Thread: Surefire Lego?

  1. #421
    Flashaholic* angelofwar's Avatar
    Join Date
    Nov 2007
    Location
    South Carolina
    Posts
    3,339

    Default Re: Surefire Lego?

    Here it is...

    Left-to-right:
    -6Z Tail Cap
    -A20
    -A19
    -A21
    -L60



    And



    As well...



    Lastly...


  2. #422

    Default Re: Surefire Lego?

    Surefire 6P, Steampunk Edition:



  3. #423

    Default Re: Surefire Lego?



    I'm still waiting on parts, but its basically going to be an E2DL head with E1B guts, E1E body, and E2D tailcap, making it a E1DL. It might or might not replace my E2DL as my primary EDC.

  4. #424

    Default Re: Surefire Lego?

    Nitrolon + Nitrolon + Nitrolon + SS/TiAlN:



  5. #425

  6. #426

    Default Re: Surefire Lego?

    6P with $12 Moddoo "Thin Run" Tumbled Z59 SS Clip, Tactical HID's Xeno RG03 V3 SS Bezel and Malkoff M60 on AW RCR123s


    G2Z with ElectronGuru McClicky, Matte Delrin Shroud, Xeno ST03 V2 Blacked Out SS Strike Bezel, GID O-rings, Lighthound Novatac New Style Clip and P60L.


    Very Happy. Thanks Tom and Dan.
    Last edited by BIGLOU; 05-08-2010 at 04:06 PM.

  7. #427

    Default Re: Surefire Lego?

    Is there any extension that would fit a G2Z and let me use 3xcr123?

  8. #428

    Default Re: Surefire Lego?

    Quote Originally Posted by red02 View Post
    Is there any extension that would fit a G2Z and let me use 3xcr123?
    Thats a tricky one. SF makes two 'lengths' of extender:

    A19 - 34mm
    A14 - 50mm

    A19's are only available in metal (matches 6P) and these don't work (in my testing) with Nitrolon bodies. A14's are available in Nitrolon, but give more length than you need.

    So its easy to add an A14 to a G3 and run 3x17500's, but you'd need some kind of half cell (~15mm) spacer to add one cell to your G2Z with an A14.

  9. #429

    Default Re: Surefire Lego?

    Its good to hear that there are options. I have a 17mm wf-139 spacer. I think lighthound carries a 15mm charging spacer.

    How about the L2-ECR? will it lego with a G2Z?

  10. #430

    Default Re: Surefire Lego?

    G's have shorter tailcap threads so the key issue is the metal liner touching the inside rim of an extender before it can't go on any farther. Other designs may not have this issue.

    Careful with the spacers. 17mm is probably fine but unless they are wrapped, there is a risk of them shorting with the sides of the tubes.

  11. #431
    Flashaholic* Solscud007's Avatar
    Join Date
    Apr 2008
    Location
    Nyack, NY
    Posts
    2,049

    Default Re: Surefire Lego?

    I have been playing around with my SF M910 vertical grip weaponlight.

    I discovered that the tailcap is similar to my LU60, A21, and K2/U2 head threading.

    only the incan head works as I can run reversed polarity. anyone know of any P60 led dropins that can run reverse polarity?












    I like to call this lego, the Porcuipine boomerang of death!!!!


    Collecting is not about what you have but rather what you DONT have . . . yet.
    ABTOMAT: "Newer Surefire lights strike me as the result of CNC programmers saying to each other "Hold my beer and watch THIS."

  12. #432
    Flashaholic* kosPap's Avatar
    Join Date
    Mar 2007
    Location
    Naoussa Greece
    Posts
    2,575

    Default Re: Surefire Lego?

    huh? that beats my "hammer" flashlight design!

    you got an angle iron!

  13. #433
    Super Moderator
    DM51's Avatar
    Join Date
    Oct 2006
    Location
    Borg cube #51
    Posts
    13,341

    Default Re: Surefire Lego?

    Is that for mounting on one of those new rifles I've heard about that shoots round corners?
    Resistance is futile...

  14. #434
    Flashaholic* Solscud007's Avatar
    Join Date
    Apr 2008
    Location
    Nyack, NY
    Posts
    2,049

    Default Re: Surefire Lego?

    haha sure!! it is called the Corner Shot. no joke. the gun that shoots around corners is the Corner Shot.
    Last edited by Solscud007; 06-05-2010 at 10:59 PM.
    Collecting is not about what you have but rather what you DONT have . . . yet.
    ABTOMAT: "Newer Surefire lights strike me as the result of CNC programmers saying to each other "Hold my beer and watch THIS."

  15. #435
    Flashaholic* Dioni's Avatar
    Join Date
    Jan 2007
    Location
    Law Enforcement Front, Brazil
    Posts
    1,388

    Default Re: Surefire Lego?

    Quote Originally Posted by Solscud007 View Post





    LOL...

  16. #436
    Flashaholic* Solscud007's Avatar
    Join Date
    Apr 2008
    Location
    Nyack, NY
    Posts
    2,049

    Default Re: Surefire Lego?

    Quote Originally Posted by Dioni View Post
    LOL...

    I like to think of it as my SF water proof capsule haha.
    Collecting is not about what you have but rather what you DONT have . . . yet.
    ABTOMAT: "Newer Surefire lights strike me as the result of CNC programmers saying to each other "Hold my beer and watch THIS."

  17. #437
    Super Moderator
    DM51's Avatar
    Join Date
    Oct 2006
    Location
    Borg cube #51
    Posts
    13,341

    Default Re: Surefire Lego?

    Quote Originally Posted by Solscud007 View Post
    the gunt that shoots around corners
    Phew - that was a near one.
    Resistance is futile...

  18. #438
    *Flashaholic* Monocrom's Avatar
    Join Date
    Aug 2006
    Location
    NYC
    Posts
    13,909

    Default Re: Surefire Lego?

    Quote Originally Posted by Solscud007 View Post
    haha sure!! it is called the Corner Shot. no joke. the gunt that shoots around corners is the Corner Shot.
    Nothing new. There was one created during the Wild West. But limited technology meant that the barrel was slowly bent ever so slightly until it curved, but only in one direction. If you were on the wrong side of a corner, you'd have to fire the weapon upside down. Apparently it worked, but carrying it on a horse with your other rifles proved to be horrible impractical. It fell out of favor.

    Now the concept is back again.

    (I guess you could just toss a grenade around the corner, but sometimes you want to take chances. )
    "The World is insane. With tiny spots of sanity, here and there... Not the other way around!" - John Cleese.

  19. #439
    Flashaholic* kosPap's Avatar
    Join Date
    Mar 2007
    Location
    Naoussa Greece
    Posts
    2,575

    Default Re: Surefire Lego?

    Quote Originally Posted by Solscud007 View Post



    Dead End flashlight....or blind as a Bat!

  20. #440
    Flashaholic* Solscud007's Avatar
    Join Date
    Apr 2008
    Location
    Nyack, NY
    Posts
    2,049

    Default Re: Surefire Lego?

    Quote Originally Posted by Monocrom View Post
    Nothing new. There was one created during the Wild West. But limited technology meant that the barrel was slowly bent ever so slightly until it curved, but only in one direction. If you were on the wrong side of a corner, you'd have to fire the weapon upside down. Apparently it worked, but carrying it on a horse with your other rifles proved to be horrible impractical. It fell out of favor.

    Now the concept is back again.

    (I guess you could just toss a grenade around the corner, but sometimes you want to take chances. )

    yes but thanks to technology, the Corner shot has a camera and viewscreen. The camera relays what the gun is pointing at and has a reticle so you can actually aim. the object of course is to keep the shooter completely covered and not have to reveal any part of the body.
    Collecting is not about what you have but rather what you DONT have . . . yet.
    ABTOMAT: "Newer Surefire lights strike me as the result of CNC programmers saying to each other "Hold my beer and watch THIS."

  21. #441

    Default Re: Surefire Lego?


    KT1+C3 body+Z58



    M4+Seraph P7 head;M3T+JET M2S Adapter



    L4+MC E2S
    Last edited by aioria; 06-07-2010 at 09:50 PM.

  22. #442
    Flashaholic* Dioni's Avatar
    Join Date
    Jan 2007
    Location
    Law Enforcement Front, Brazil
    Posts
    1,388

    Default Re: Surefire Lego?

    Quote Originally Posted by Solscud007 View Post
    I like to think of it as my SF water proof capsule haha.
    Indeed! I didn't think on this. Hahaha..
    PS.: I "bit" expensive though, but... it's a Surefire!

    Quote Originally Posted by aioria View Post


    M4+Seraph P7 head;M3T+JET M2S Adapter
    Very nice! Just a question, whats this M2S adapter?
    Last edited by Dioni; 06-08-2010 at 08:53 PM. Reason: Coment add

  23. #443
    Flashaholic alantch's Avatar
    Join Date
    Jul 2006
    Location
    GMT +8
    Posts
    471

    Default Re: Surefire Lego?

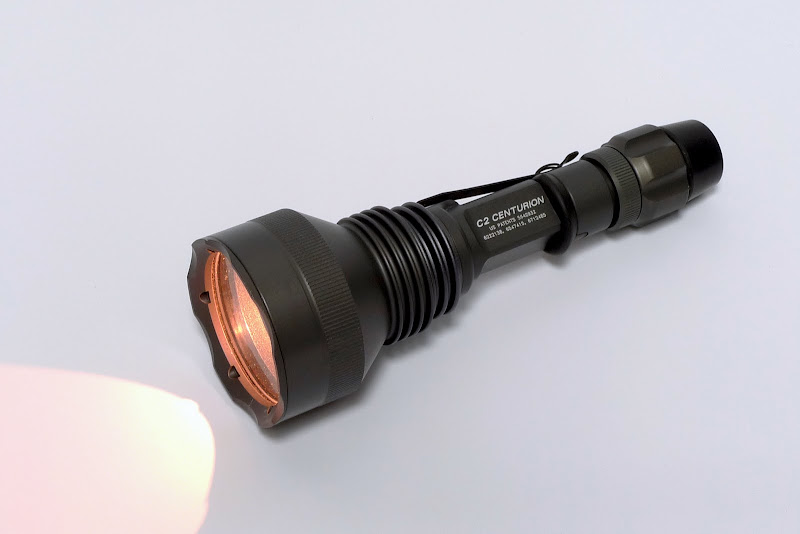

    Another one of mine


  24. #444
    Flashaholic* angelofwar's Avatar
    Join Date
    Nov 2007
    Location
    South Carolina
    Posts
    3,339

    Default Re: Surefire Lego?

    Quote Originally Posted by alantch View Post
    Another one of mine

    WOW, Alan!!! That's one sweet looking get-up. Looks a little more "Robust" than using it with the standard KT1-HA. How's the balance in the hand??? Does the tail-cap help off set the weight of the head? And are ya running a N1 in there or a Lumens Factory bulb?

  25. #445

    Default Re: Surefire Lego?

    Quote Originally Posted by Dioni View Post
    Just a question, whats this M2S adapter?
    Pls look at this site:
    http://jetbeam.com.cn/links/pro/m2s.aspx,
    The M2S adapter can apply to SUREFIRE.


  26. #446
    Flashaholic alantch's Avatar
    Join Date
    Jul 2006
    Location
    GMT +8
    Posts
    471

    Default Re: Surefire Lego?

    Quote Originally Posted by angelofwar View Post
    WOW, Alan!!! That's one sweet looking get-up. Looks a little more "Robust" than using it with the standard KT1-HA. How's the balance in the hand??? Does the tail-cap help off set the weight of the head? And are ya running a N1 in there or a Lumens Factory bulb?
    It balances very nicely in the hand, which was quite a surprise to me as I thought it'll be front-heavy due to the KT4. I guess the SW02 balances it due to it's bigger mass. It's running a warm 3 mode NB tower module.

  27. #447
    Flashaholic* Dioni's Avatar
    Join Date
    Jan 2007
    Location
    Law Enforcement Front, Brazil
    Posts
    1,388

    Default Re: Surefire Lego?

    Quote Originally Posted by aioria View Post
    Pls look at this site:
    http://jetbeam.com.cn/links/pro/m2s.aspx,
    The M2S adapter can apply to SUREFIRE.
    Oh yep... you mean the extender! I was thinking you were using a adapter to fit the Surefire TH on the Jet body. So didn't you need it? Are they compatible? Nice!

    Cheers,
    Dioni

  28. #448
    Flashaholic Kif's Avatar
    Join Date
    Aug 2005
    Location
    Mississippi
    Posts
    201

    Default Re: Surefire Lego?

    Here are the Surefire Legos I recently built.

    Surefire KL1 w/ VG FB3 body
    Fit either CR123 primaries or AA. Great back-up light


    Surfire Z44 bezel w/ FM 1x16340 body & Solarforce R2 drop-in
    Nice pocket rocket

    Last edited by Kif; 06-16-2010 at 02:35 PM.

  29. #449
    Flashaholic* kosPap's Avatar
    Join Date
    Mar 2007
    Location
    Naoussa Greece
    Posts
    2,575

    Default Re: Surefire Lego?

    Quote Originally Posted by Kif View Post
    Here are the Surefire Legos I recently built.

    Surefire KL1 w/ VG FB3 body
    Fit either CR123 primaries or AA. Great back-up light
    cannot tell from my screen but this body is 2xAA...so you can run the head with 3CR123s too?

  30. #450
    Flashaholic Kif's Avatar
    Join Date
    Aug 2005
    Location
    Mississippi
    Posts
    201

    Default Re: Surefire Lego?

    Quote Originally Posted by kosPap View Post
    cannot tell from my screen but this body is 2xAA...so you can run the head with 3CR123s too?
    Actually the FB3 body is designed for 3xCR123, but 2xAA will be fine.
    The KL1 working voltage is 3v-9v, so I think this combination is great.
