Thread: Low profile Helmet light with XPE leds (picture heavy)

  1. #1
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Low profile Helmet light with XPE leds (picture heavy)

    I have not seen anything happening with the cree XPE led and wondered why .

    so I ordered a few to have a play with and see what they would be suitable for in the bike light world.

    First impressions on opening the packet was dang they are small


    I had not ordered any optics because I did not know what to go for and there was not a lot of info on these about so left them for a while .
    I suppose wanting some one else to experiment .

    I ran out of things to do so revisited the XPE s and had a look again to see if things had changed .
    But no every one was doing MCE stuff me included
    so I bit the bullet and ordered some optics , I went for the Carclo 10 mm square ones thinking the XPEs are on 10 mm boards so 10 mm optics .

    Again these arrived and hell they are tiny how can something so tiny deal with all these lumens.






    I had a look around and found some curtain track and it looked perfect to use as a mount for these as in the pic above ,
    This sparked the idea for a helmet light with a low profile and much studying this configuration and showing it to my helmet followed.
    I could not seem to figure a way to do the build so desided to start from scratch .

    First off what sort of beam was I dealing with so I did a ceiling shot to find out
    the tapes are 1 metre long and the distance is 2.2 metres
    this is 1 XPE and optic



    Not bad quite a spot it was it did not throw the light every where like the MCE optics .

    so the helmet light was started from a block of aluminium and My hacksaw and mini mill .




    I went for 6 XPE as they hit the sweet spot of the MaxFlex driver and my 14.8 li ion batteries .
    and are still quite compact

    The mounts for helmets seem to lift the light up higher so I went for a simple strap and put 2 slots for the strap


    also to make it universal it can take a bar clamp bolted to the bottom


    and here is where it is at the moment
    no wiring yet and I am waiting for a switch and power socket .







    I could not wait so cobbled up a power supply and driver for a test and beam shot


    It was a full moon so quite a bit of ambient light
    moonlight




    now my 6 XPE helmet light @ 500 ma from a Nflex and 18 volt battery
    Hi and Low to give an idea.

    The bike is 35 metres away , the post 50 metres
    the trees on the right 75 metres
    and the trees at the back I have no idea but I am very impressed with this as a biking helmet light.



    and on low

  2. #2
    Flashaholic* znomit's Avatar
    Join Date
    Aug 2007
    Location
    New Zealand
    Posts
    915

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Troutie, thats your best work yet (and thats saying something).

    Now anodise it black and put some red leds out the back.

  3. #3
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by znomit View Post
    Troutie, thats your best work yet (and thats saying something).

    Now anodise it black and put some red leds out the back.

    Thanks Znomit I am rather pleased with this one .
    I am supprised that there are`nt a few more XPE lights out there .

    Good thinking there with the red leds plenty of room available
    anodising this one is not possible but the mark 2 will be .


    I would have thought the XPE would be right up your street for the tiny lights with big output.

  4. #4
    Flashaholic* znomit's Avatar
    Join Date
    Aug 2007
    Location
    New Zealand
    Posts
    915

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by trout View Post
    I would have thought the XPE would be right up your street for the tiny lights with big output.
    After my last failed 400 miler (only manage 260) I found I need to spend more time working on my legs and less time working on my lights

    Doing a single MC-E Boom SS with 3 die high beam, single die low beam(dyno of course) for a 300 mile ride in april, and slowly ledifying my Vespa.

  5. #5
    Flashaholic Tidra's Avatar
    Join Date
    Nov 2006
    Location
    Slovenia - EU
    Posts
    211

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Good one, Trout,...

    But you got to admit, you have too much time,...


    LP
    Iztok

  6. #6
    Flashaholic*
    Join Date
    Jan 2007
    Location
    Michigan
    Posts
    3,846

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    I likey!!!

    Looks pretty bright to me!

    Nice Job!

    I haven't seen very many people using these little guys.
    I'd like to get my hands on some, but don't know where to get them other than cutter...and I hear shipping times aren't that great there.

  7. #7
    Unenlightened
    Join Date
    Jan 2009
    Location
    Malvern, UK
    Posts
    6

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Hey Chris, I still can't believe how small these things are!!!

    Steve

  8. #8
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    A bit of an update on this project .
    I have tidied it up a bit and had some CNCed




    The housings are for sale and cutters are doing a kit to fit in which consists of
    6 XPE R2 leds on boards
    6 carclo 10 mm square optics
    1 Maxflex 3

    Kit here

    details on the housing is here
    Last edited by trout; 03-06-2009 at 11:20 PM.

  9. #9
    Flashaholic*
    Join Date
    Jun 2007
    Location
    California
    Posts
    755

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Wow trout those are quite nice I must say, what do you do for a living? Some type of engineer or technician, or just enjoy doing this on the side?

    What are the disadvantages/advantages of the XP-E's anyway... their output is similar to those of the XR-E, so why would anyone want to keep using the xr-e?

  10. #10
    Flashaholic*
    Join Date
    Dec 2006
    Location
    Australia Geelong
    Posts
    749

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Excellent Trout
    You need to fix your links (they have an extra "http" in them).

    In reply to kuksul08 - i think the XP-E hasn't taken off so well is because of the limited amount of optics available. Or no really tight beam ,ie 10deg or less.

    Though with 6 of them is such a small space should counteract any lack of spot in Trouts application :-)

    Nice simple design -have you some mounting options you can show us?

    Cheers
    Dom

  11. #11
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by kuksul08 View Post
    Wow trout those are quite nice I must say, what do you do for a living? Some type of engineer or technician, or just enjoy doing this on the side?

    What are the disadvantages/advantages of the XP-E's anyway... their output is similar to those of the XR-E, so why would anyone want to keep using the xr-e?

    I am a carpet and flooring fitter / garden shed inventor/ mtbiker

    The advantages for me were tiny size of the led and optics so I could get 6 in a small low profile housing.
    there are some nice optics arriveing on the scene for these now .
    and 3 of these gives a punchier beam than a MCE


    Cheers Dom I have fixed the links

    Good point on the mount , it is simply a velcro strap through the 2 slots on the base . a bit difficult to see in the picture against the velcro stuck to my helmet that was an experiment to see if it would hold and it was too wobbly



    There is a bar mount option but I am waiting for some to be delivered so cant show that yet

  12. #12
    Flashaholic*
    Join Date
    Feb 2008
    Posts
    1,755

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    I`ve been lurking this thread since the start and I gotta hand it to you, this is an awesome looking light...!
    I`m looking for a light to give a friend that rides ( I used to but have backinjury...) and this looks like it...!

    What would be the total..?
    The cutter site looks a bit confusing to me.....




    Allso, do you do custom jobs...?

  13. #13
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by lumafist View Post
    I`ve been lurking this thread since the start and I gotta hand it to you, this is an awesome looking light...!
    I`m looking for a light to give a friend that rides ( I used to but have backinjury...) and this looks like it...!

    What would be the total..?
    The cutter site looks a bit confusing to me.....




    Allso, do you do custom jobs...?


    Yes it is a little confusing .
    you can do the build up for £120 or 140 euro
    the kit from cutters is approx 70 euro shipped
    the grey anodised housing is again approx 70 euro shipped

    all you then need is a mom switch and power socket to match battery.
    some AAA and Silicon and That is it


    Yes I can do the odd custom build , but it is primarily a hobby that funds itself

    loads of pics of stuff here

  14. #14
    Enlightened
    Join Date
    Oct 2008
    Location
    East Anglia
    Posts
    47

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Chris, that light is fantastic!

  15. #15
    Flashaholic*
    Join Date
    Feb 2008
    Posts
    1,755

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Awesome..!
    Thanks....!

  16. #16

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    What battery pack range could be used?

    Just unsure of the draw and how long it will last per a/hr and volts.

    Nice work!

  17. #17
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by kombiman View Post
    What battery pack range could be used?

    Just unsure of the draw and how long it will last per a/hr and volts.

    Nice work!
    Hi Kombiman
    recomended voltage is 14.4v li ion as it is boosting up to 19 volts and the maxflex is happy at this . @ full power the draw is .98a
    so you will get good runtimes even if you used full power all the time
    I only use full for the techy stuff and downhill and tend to dim it for the climbs .

  18. #18
    Enlightened
    Join Date
    Jan 2007
    Location
    Australia
    Posts
    62

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    How hot does that get if you are not moving?
    Looks like a lot of power in a small package.

  19. #19
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by mikeh View Post
    How hot does that get if you are not moving?
    Looks like a lot of power in a small package.
    Here is a time lapse photo sequence with the probe drilled in to the heat sink just behind the leds .
    it shows the heat up to the maxflex tripping at 50 degrees .
    and how a small draught from a desk fan brings the temp back down

    this is the prototype and has not got as good thermal paths as the new one .




  20. #20
    Flashaholic* John_Galt's Avatar
    Join Date
    Feb 2009
    Location
    SW, PA
    Posts
    1,583

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Wow! Those beram shots were from that little LED bar?!? Thats insane. I would love to have something like that for my quad, running off of the stator (I think thats what it's called, right?). No more headlamps for me, I'll take two.

  21. #21
    Flashaholic
    Join Date
    Nov 2006
    Location
    Toronto, Canada
    Posts
    472

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by trout View Post
    A bit of an update on this project .
    I have tidied it up a bit and had some CNCed




    The housings are for sale and cutters are doing a kit to fit in which consists of
    6 XPE R2 leds on boards
    6 carclo 10 mm square optics
    1 Maxflex 3

    Kit here

    details on the housing is here

    Trout,

    This is very elegant, sexy, and amazing. Nicely done. BTW inquiring minds would love you see a 'off the chain' model for beeps & giggles with a double roll for a total of 12 LED's just for pics and uber factor. I'm still drooling.
    Zero_Enigma

  22. #22
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Cheers Zero-enigma
    I have thought about it , also Zmonit suggested if the fins were dovetaited then they would slot together

    I want to do beam shots with 2 or 3 of them but never seem to have more than 1 built at any time .

  23. #23
    Enlightened merkaba's Avatar
    Join Date
    Sep 2007
    Location
    Gold Coast, Australia
    Posts
    89

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    very nice light trout!

    When do you think you will have the bar mount option available?

  24. #24
    Flashaholic ifor powell's Avatar
    Join Date
    Nov 2007
    Location
    Bristol UK
    Posts
    230

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

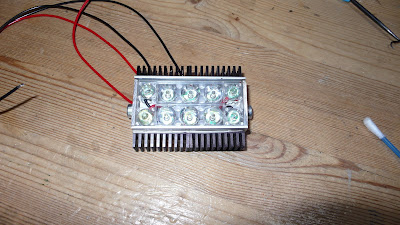

    Not anything like as bling is Trouties light but pleanty of punch...



    I think you can drill and tap Trouties housing for a bar mount, there is a thinker bit centraly on the bottom specificaly for it I belive.

    Ifor

  25. #25
    Flashaholic
    Join Date
    Nov 2006
    Location
    Toronto, Canada
    Posts
    472

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by trout View Post
    Cheers Zero-enigma
    I have thought about it , also Zmonit suggested if the fins were dovetaited then they would slot together

    I want to do beam shots with 2 or 3 of them but never seem to have more than 1 built at any time .

    Please!! As the Nikey slogan says 'JUST DO IT!". I just need 1-2 mins video of that with the max output to get my fills.
    Zero_Enigma

  26. #26
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by merkaba View Post
    very nice light trout!

    When do you think you will have the bar mount option available?

    Cheers Merkaba
    Ifor was correct there is a centre piece in side which is for a tapped hole
    I am just waiting for some mounts then I can show one fitted



    Zero I have one built and 2 more ordered so will delay sending them out
    and do the beam shots

  27. #27

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Im awaiting the more instructions on your site but keen as mustard!

  28. #28
    Flashaholic
    Join Date
    Nov 2007
    Location
    yorkshire / England
    Posts
    425

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by kombiman View Post
    Im awaiting the more instructions on your site but keen as mustard!
    Hi Kombiman some instructions now up here and more will be added later today .

    this is one I am building for someone who wanted rear red leds also




  29. #29

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    How would someone go about ordering one of these lights from you, and what would the cost be? Thanks!

    Jeremy

  30. #30
    Flashaholic*
    Join Date
    Feb 2008
    Posts
    1,755

    Default Re: Low profile Helmet light with XPE leds (picture heavy)

    Quote Originally Posted by trout View Post
    Yes it is a little confusing .
    you can do the build up for £120 or 140 euro
    the kit from cutters is approx 70 euro shipped
    the grey anodised housing is again approx 70 euro shipped

    all you then need is a mom switch and power socket to match battery.
    some AAA and Silicon and That is it


    Yes I can do the odd custom build , but it is primarily a hobby that funds itself

    loads of pics of stuff here
    Quote Originally Posted by trout View Post
    A bit of an update on this project .
    I have tidied it up a bit and had some CNCed


    The housings are for sale and cutters are doing a kit to fit in which consists of
    6 XPE R2 leds on boards
    6 carclo 10 mm square optics
    1 Maxflex 3

    Kit here

    details on the housing is here
    Quote Originally Posted by jsalbre View Post
    How would someone go about ordering one of these lights from you, and what would the cost be? Thanks!

    Jeremy


Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
