Show your D and C mag mods

[J.C.F.]

Show your cool and powerful mags!(must be D or C size) And if possible say how many lumens it pumps out.

[tx101]

Mag 2C Tri R2 @1000mA
Mag 2D Tri Q5 by Essexman
Mag 1.25D Quad SSC P4 by Wquiles
Mag 1.25D Penta R2 @1000mA .... gets hot fast
Mag 1D P7 direct drive (commandeered by the Mrs)
Mag 1C Malkoff dropin
Mag 1D pending project, R2 @ 1200mA + aspheric lens
Mag 2D KD dropin + MG aspheric lens
Mag 1D P7 direct drive
Mag 2C untouched at the moment ... maybe another quad emitter build
Mag 1D shorty P7 DD by Plasmaman
Mag 1D P7 by Ccmaclel ( not pictured)

[J.C.F.]

Vrey nice collection of these mags.

[StarHalo]

TerraLUX TLE-300 drop-in powered by 6xAA, UCL lens, 600 lumens. Flash-Cap tail. Not the most sophisticated build, but at $110 total, definitely a bang-for-the-buck winner.

[AlexGT]

RCatR made "C" host with R2 WC Cree driven by Flupic Ver 2.2 and a Surplusshed Aspheric 50 x 35 Fl with a Kiu Stainless Steel VX bezel and a Mag-clickie

It is powered by 1 Li-ion "C" battery and also have an extension to drive it with 3 alkalines/NiMh.

[bxstylez]

now that is SICK!

i like how its fluted on the bottom half of the head.... with fins all around

.

[sygyzy]

tx101 - Where did you get those polished bezels?

[ANDREAS FERRARI]

AlexGT-I would love to see some beamshots of that little beast!

[tx101]

tx101 - Where did you get those polished bezels?

They are made by CPFer Download
You can buy them
here

[AlexGT]

I posted some on this post when I was comparing to another mod I did

http://candlepowerforums.com/vb/show...85&postcount=7

AlexGT-I would love to see some beamshots of that little beast!

[Justin Case]

2C Mag
4sevens P4 heat sink
SSC P4 U2SW0H-bin LED
BadBoy Nexgen 1000 driver
UCL window
Stock reflector
Estimated ~200 emitter lumens
Runs on 2xC alkalines or NiMH
Completely cool operation, zero heat buildup

SureFire 12ZM compared to 2C Maglite


Front end of the P4-mod'ed 2C Mag


The P4 LED inside of the Mag. Bezel, UCL, and reflector removed for a better view.


4sevens heat sink inserted into the 2C Mag body


Trimmed reflector


White wall beam shot from about six feet. Note the single bright ring in the spill.


Lighting up some basement stairs

[MWClint]

6D Mag
P7 CSWOI @ 3amps
H22a Heatsink
Der Wichtel Buck Driver
Taskled D2DIM dimmer
gold plated spring
MOP camless reflector
UCL
6x 10,000mah Accupower LSD D's
mag switch modded to momentary for d2dim uasage

business end


guts


size vs an ex10

[Justin Case]

4C Mag
4sevens P4 CMag heat sink, filed down for the P7
SSC P7 DSW0I-bin
SOB1000 driver
UCL
Stock reflector (cam removed)
Runs on 4xC alkalines or NiMH

Heavily underdriven P7 is probably running at Vf~3.1V. Another very cool-running setup that still puts out an estimated 300 lumens.

The LED


SOB1000 driver wired up to attach to the LED. Wire on the left goes to LED-. Wire on the right goes to LED+.


SOB1000 in the 4sevens heat sink. Solder has been put down on the center anode pad and the outer ground trace ring for later attachment of the 4C Mag's switch wires.


Filed down 4sevens P4 CMag heat sink on the right (P7 DMag heat sink on the left)


P7 glued to the heat sink using Arctic Alumina epoxy. I chose AA over Arctic Silver because the filing exposed some bare aluminum and I didn't want any potential problems with the P7's slug. I used 24 gauge, stranded Teflon wire, which barely fits past the P7.


Side view of the P7 on the heat sink


Hardwired Mag switch. Brown and white wire will be soldered to the center anode pad of the SOB1000. White and black wire will be soldered to the outer ground trace ring of the SOB1000. The wire is 22 gauge, stranded Teflon wire. The Mag is actually an old version body (i.e., it doesn't have the letter "C" in the serial number). I tightly wrapped strips of aluminum foil to fill the ~1mm gap between the heat sink and the Mag body. But since this is a very cool running setup, this was more for mechanical support (keeping the heat sink in the Mag tube, keeping the P7 centered) than for heat management.


Everything hooked up and assembled. Beam quality about the same as with the SSC P4 LED. The P7's hot spot is not as tightly focused as with the P4 and the P7's hot spot has more defects in it. The P7's spill is wide, bright, and smooth and doesn't have the P4's single bright ring in the middle of the spill.

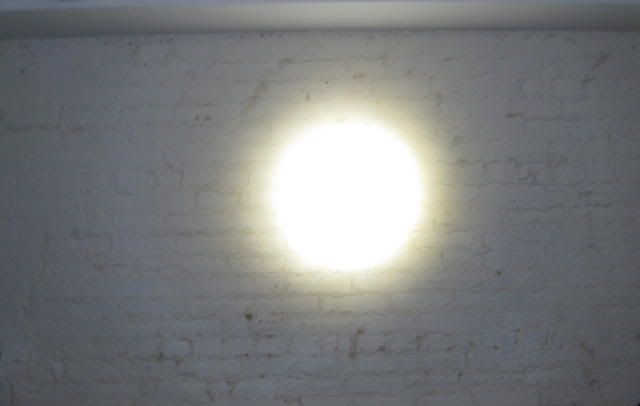

Beam shot, from about 7 feet. Unfortunately, my camera can't capture the fine details of the hot spot. The image is totally oversaturated by the intensity. The hot spot does not look this good in reality.


Comparison beam shot from a 3D incandescent Mag

[Ajay]

Sweet thread! I will hopefully add my first mag mod to this thread soon. Just waiting for the teflon wire, UCL, P7 DSXOJ and heatsink.
I will be using 2 AMC7135 boards in parallel to produce 2amps hopefully. I wonder how hot/cool this will run? Can't wait

I am working on a parallel 18650 solution for the mag 2D in the meanwhile.

[mmajunkie]

TerraLUX TLE-300 drop-in powered by 6xAA, UCL lens, 600 lumens. Flash-Cap tail. Not the most sophisticated build, but at $110 total, definitely a bang-for-the-buck winner.

Absolutely beautiful Light.

[old4570]

3D Cree P4 ... Moded Terralux ...

[brighterisbetter]

An HAIII natural 2C M@G w/Malkoff Triple. Has UCL and custom delrin battery sleeve to hold either 2x17500's or 3xCR123's for no rattle.

{CLICK TO ENLARGE}

[MWClint]

Cut down C mag. no side switch.. mounted a tail switch instead.
Dereelight DBS smooth reflector
Cree Q5 WC at 1.5amps
AW18650

Great little thrower.

Had to mount the heatsink further down into the body to allow room
for the deep dereelight reflector. Used a large oring to take up the
space between the reflector and the bezel.







in a fully lit room, it still projects a nice spot.

[AlexGT]

Nice Mod Clint! Never seen a DBS reflector inside a Mag before, thanks for sharing!

AlexGT

[J.C.F.]

Man thank all of you guys for the good pics. All of these flashlight are giving me great ideas.

[spc]

Heres my sorta EDC. I dont carry it in my pocket all day, but its usually close by (in the jeep or on the nightstand).. My 1.75d P7 mag smoothie. Runs on 2 18650s with a tailcap clickie. Just for fun I may hit it with some coyote brown duracoat later...

[5.0Trunk]

Here is one of my favorites. It a Mag 1D P7 made by Jo at Britelumen. I also put a Download MagRing on it.

SPECS:

- Custom Mag host ( approxmate 1D size )
- P7 DSXPJ bin ( 800 ~ 900 lumens )
- Metal MOP
- UCL lens
- Run on a single 18650 lithium ion / D size lithium ion
- Custom sleeve to accomodate 18650
- Custom heatsink
- Modified tailcap to suit 18650 lithium ion
- Latest d2Flex Driver ( UIP: 5 level dimming, flashlight use optimized )

* Direct Drive with Dimming
* Utilizes PWM for dimming control
* uController based
* UI-UNI firmware

[spc]

here she is in coyote brown duracoat- (dont mind the different color shade, gotta work on my camera skills)

[Ajay]

here she is in coyote brown duracoat-

SWEET!

[supasizefries]

Cut down C mag. no side switch.. mounted a tail switch instead.
Dereelight DBS smooth reflector
Cree Q5 WC at 1.5amps
AW18650

Great little thrower.

Had to mount the heatsink further down into the body to allow room
for the deep dereelight reflector. Used a large oring to take up the
space between the reflector and the bezel.







in a fully lit room, it still projects a nice spot.

I love the form factor of that light! Looks really bright too!

[kz1000s1]

This is my testlight for P7 mods.
It temporarily has some purple parts from
an old 2C.

Mag 1C
Seoul P7 CSWOI running DD
IMR18650 battery
4Sevens heatsink
d2Flex dimming driver
DX reflector
UCL lens

[tx101]

Installed a Diamond Dragon emitter in this Mag last night




The beam with a smooth reflector comes out ok, a small hotspot
decent amount of spill and hardly any rings.




Couldnt resist but added a GITD oring




As usual I couldnt help but try it out with an aspherical lens ....



It focuses well

[Essexman]

Installed a Diamond Dragon emitter in this Mag last night




The beam with a smooth reflector comes out ok, a small hotspot
decent amount of spill and hardly any rings.

Oh TX that looks great, how are you powering the Diamond Dragon LED?
I think those osrams are really something, can't understand why more people don't use them?
Very nice lanyard too .

[GLOCK18]

Lime Green - Hotwire 2 AW C Lio-ion 5761 Bulb 1500 Lumen
Mac's Red D Mag Host - P7 2 stage Tail Switch 3 AW 17670 800 Lumen
Mac's Naked Spectre 6 R2 2 Stage Switch 300 / 1100 Lumen
FM 1D Mag Malkoff Tri Drop In AW C Lio-ion 600 Plus Lumen
FM 1D Mag Malkoff Tri Drop In AW C Lio-ion 600 Plus Lumen
Mac Naked P7 1 AW C Lio-ion 800 Lumen
Mac's Lime Green Three Q3-5A - 2 stage Switch
Mac's Q5-Bin Tri-Cree, Fade Host, MCR20's Copper Heat Sink 600 Plus Lumen
Mac's Q5-Bin Tri-Cree, Fade Host, MCR20's Aluminum Heat Sink 600 Plus Lumen

[QtrHorse]

Very nice collection Glock and two of them are the rare lime green lights.
