Thread: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

  1. #1
    Flashaholic* csshih's Avatar
    Join Date
    Sep 2008
    Location
    Illumination Supply
    Posts
    3,918

    Smile Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Hi Everyone,

    Up for review is the Fenix TK11 R2 Sorry, I do not have the original packaging for this, it was a gift, and didn't have packaging, regardless, thanks! (you know who you are)
    .. I just thought it would be fun to review some of the lights I had sitting around.
    Here's a summary of the specs, taken from 4sevens

    • Cree XR-E R2
    • Two modes of output, selected by turning the bezel
    • Turbo Mode: Constant 240 Lumens
    • 2.7 hours (one 18650 Li-ion battery), 1.5 hours (two CR123A batteries)
    • General Mode: Constant 64 Lumens
    • 12 hours (one 18650 Li-ion battery)
    • 10 hours (two CR123A batteries)
    • AR coated window
    • Removeable Grip ring


    More information can be found in the threads linked below.

    A Bit of Background:
    The tk11 was first officially announced on 6/13/08 in this thread.. A discussion thread about that light, though, started a bit earlier . You can find it here. 6 months later, (ok,.. they were 3 days early ) Fenix came out with the R2 version of the light. Link on the MP is here.

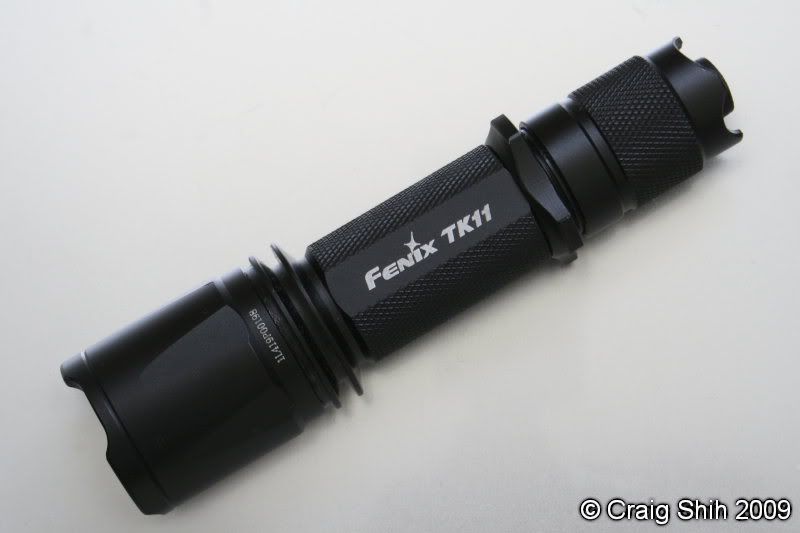

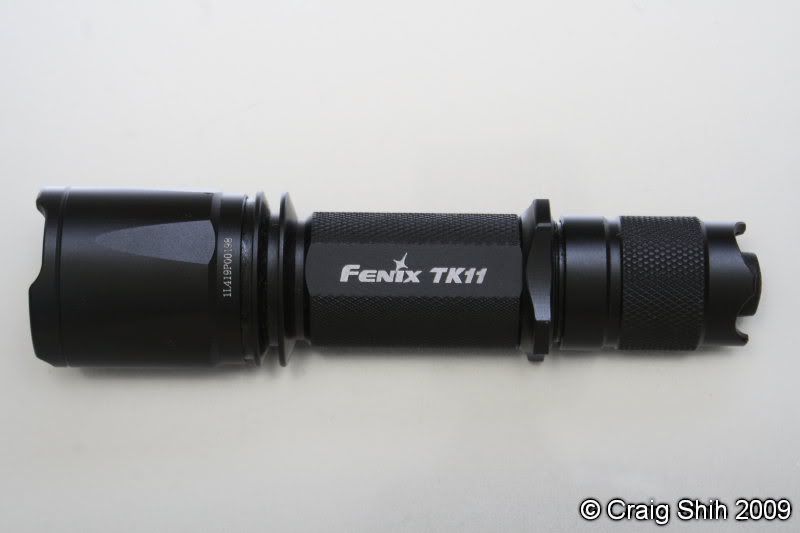

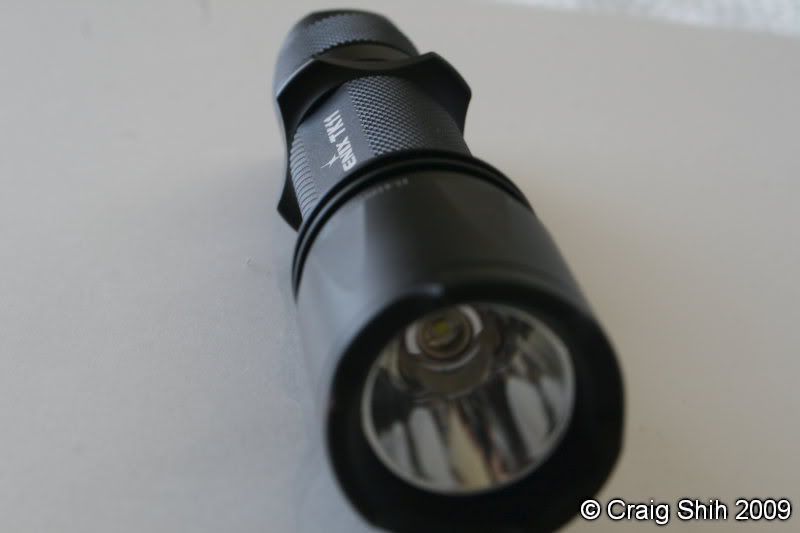

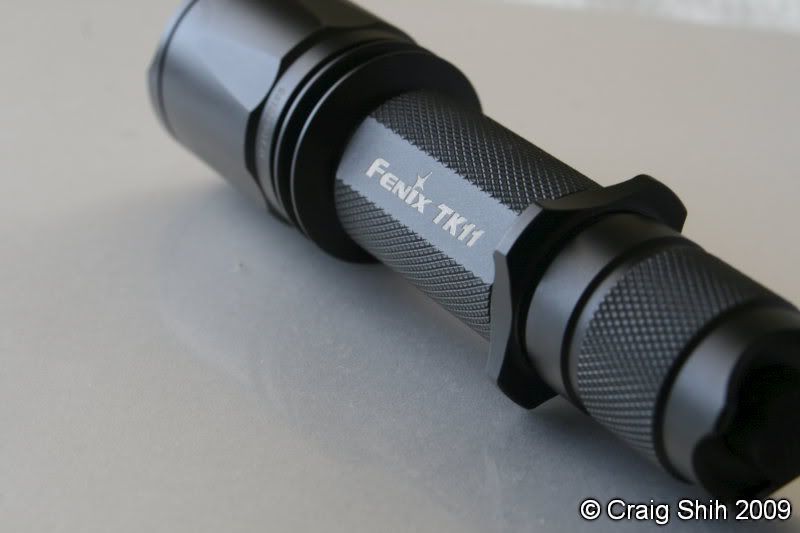

    and, here we go.. pics, pics, and more pics... though number of pics would be slightly less than normal






    any dings on the light would be my fault o.O

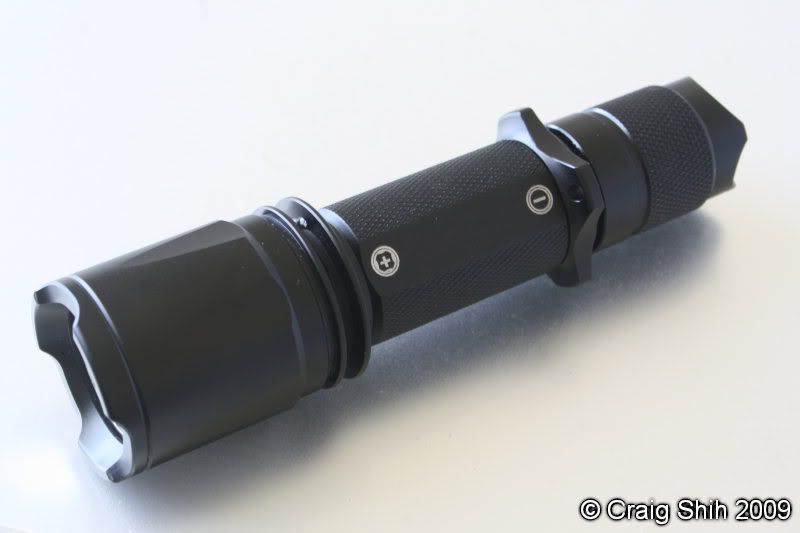

    easy to read +, and -, sign.. I demand you not stick batteries in backwards,!!!!

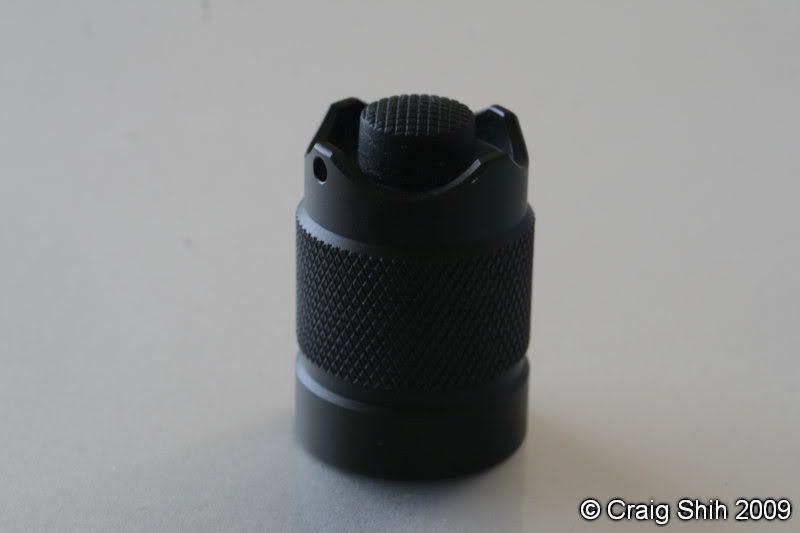

    tailcap, with its small lanyard hole

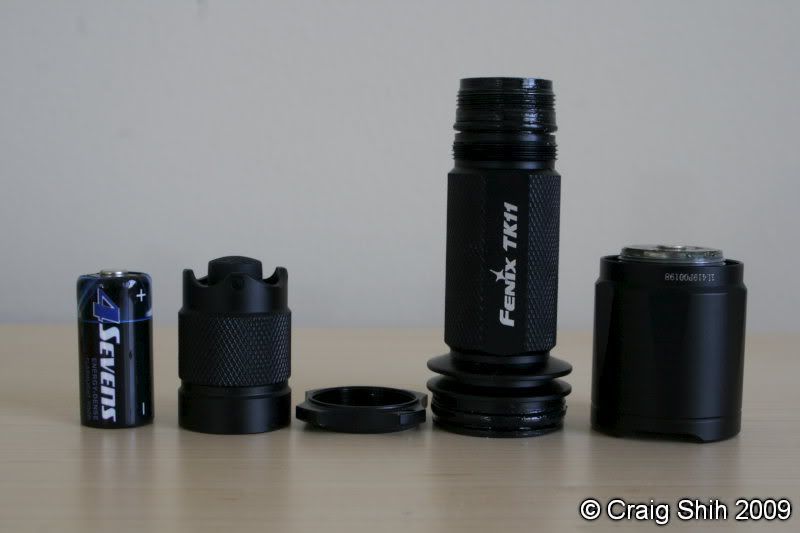

    disassembled. I figure you can ID the individual components

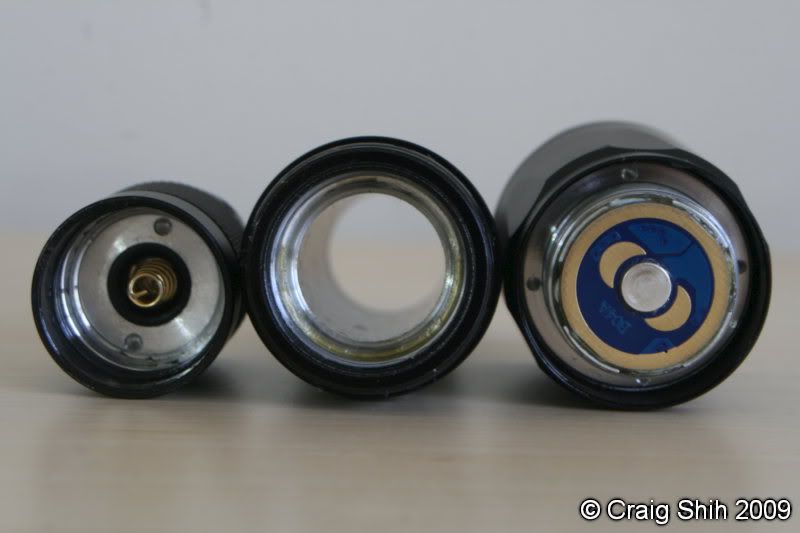

    super thick walls.. this thing is built like a tank

    Comparison:

    Compared to other lights of the same caliber, the Fenix TK11 is a very tough feeling light. It is also well balanced and easy to grip and use.

    Indoor Shots:
    (because of the sheer volume of lights in one shot, I have them in the large 800 px wide size)

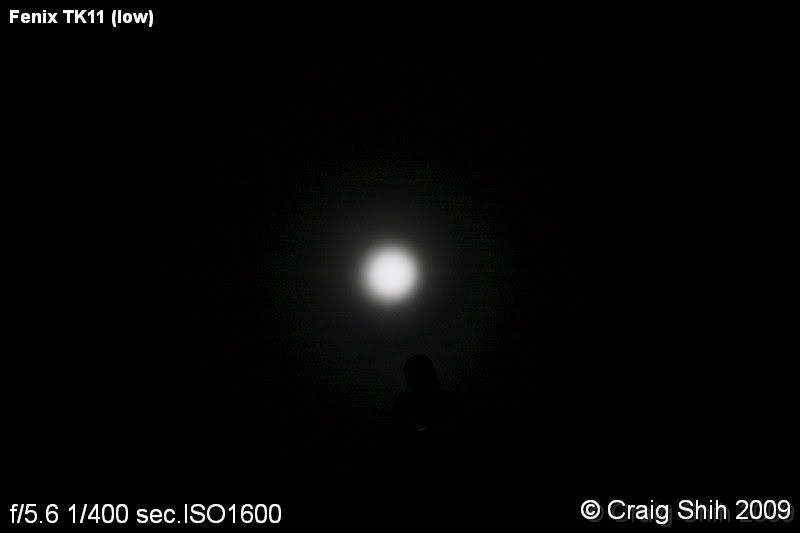

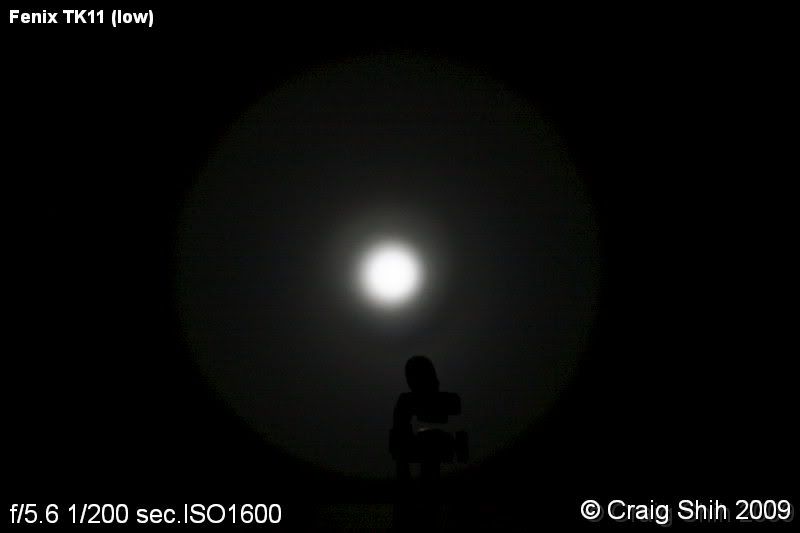

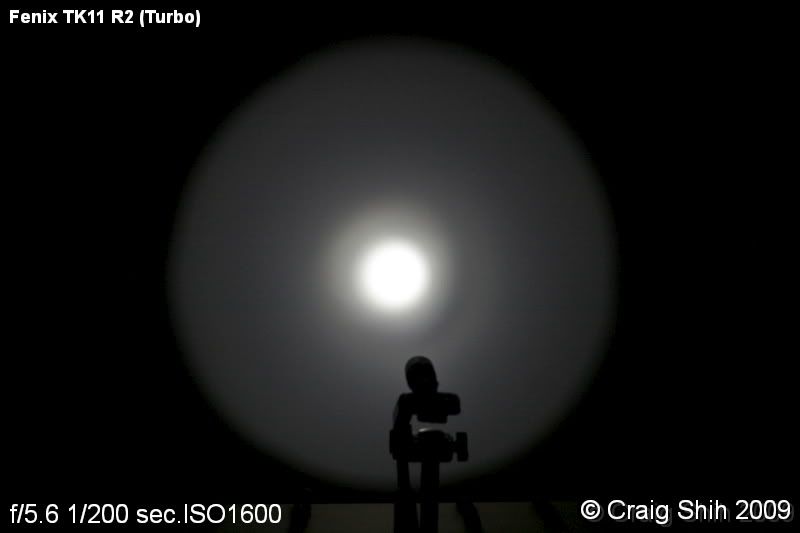

    White Wall shots:




    not the cleanest beam ever, the Fenix TK11 with its SMO reflector is a bit of a thrower

    Outdoor Shots:
    Fenix TK11 2xCR123A (18650 compatible)



    compare these with other ones in this thread

    Impressions:
    The Fenix TK11 is a very comfortable light to use.. Hefty and sturdy feeling, I would have no qualms tossing em up in the air like some of those silly youtube videos .. except instead of a simple maglite, this is a LED flashlight with complicated circuitry.
    that being said, it sounds like an ideal EDC for those with medium sized pockets.. even the anti roll ring can be removed for more comfortable EDC, though I did not feel any problems with it. Output is nice.. though the low mode could be allot dimmer. the difference is not that much, so I'd use the light on low most of the time with a nice extended burn.

  2. #2
    Banned Metatron's Avatar
    Join Date
    Jun 2008
    Location
    perths lightening swamp
    Posts
    876

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    awesome review mate, that tk 11 is no slouch

  3. #3

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Nice review as always csshih!

    How do you like it compared to MD2/M60?

  4. #4
    Enlightened
    Join Date
    Apr 2008
    Location
    Singapore
    Posts
    37

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    It would be nice to compare it with the Olight M20 R2 and Jetbeam RRT2 (R2). The Olight is a tad brighter than the Fenix at max but you are hard pressed to tell the difference unless you scrutinise the beam closely.

  5. #5
    Flashaholic* csshih's Avatar
    Join Date
    Sep 2008
    Location
    Illumination Supply
    Posts
    3,918

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Fenix tk11 compared to the md2/m60?
    Hmm.. Beam wise, the fenix is more of a thrower wheras the md2 has it's interesting throw/flood beam. I guess the fenix would be better outdoors where th malkoff performs well at closer range applications.
    Also, between the 2 bodies, I'll have to lean slightly toward the md2.. I have a slight preference to the lighter knurling... Makes for a great edc! Both of these lights, though, are very suitable as both are built very sturdy.. Nice and thick walls allow for the occasional drop.

    As for the olight and jetbeam.. Sorry! Don't own em.

  6. #6
    Flashaholic* Dioni's Avatar
    Join Date
    Jan 2007
    Location
    Law Enforcement Front, Brazil
    Posts
    1,380

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Awesome review csshih!

  7. #7
    Flashaholic
    Join Date
    Aug 2008
    Location
    MIAMI, FL
    Posts
    190

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Hi, the rubber tailcap switch cover of my TK11 broke and I order a new one, the thing is that when I remove the tailcap switch the hole thing came out and now I dont know the order of the parts.
    Would you please help me.

    I´m assuming that first of course goes the rubber cover, second the metal washer and third the plastic washer and then the hole switch right?

    Thank you.

  8. #8
    Flashaholic* csshih's Avatar
    Join Date
    Sep 2008
    Location
    Illumination Supply
    Posts
    3,918

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    I am currently at school but will get you pics of the tailcap-- the step you posted appear to be correct but I will verify in a few hours.

  9. #9
    Flashaholic* csshih's Avatar
    Join Date
    Sep 2008
    Location
    Illumination Supply
    Posts
    3,918

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Quote Originally Posted by tango44 View Post
    Hi, the rubber tailcap switch cover of my TK11 broke and I order a new one, the thing is that when I remove the tailcap switch the hole thing came out and now I dont know the order of the parts.
    Would you please help me.

    I´m assuming that first of course goes the rubber cover, second the metal washer and third the plastic washer and then the hole switch right?

    Thank you.

    I just took it apart -- It is:

    rubber boot - plastic washer - metal washer - switch assembly - switch retaining ring.

  10. #10
    Flashaholic
    Join Date
    Aug 2008
    Location
    MIAMI, FL
    Posts
    190

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Quote Originally Posted by csshih View Post
    I just took it apart -- It is:

    rubber boot - plastic washer - metal washer - switch assembly - switch retaining ring.
    Thanks a lot I just checked my friends TK11 and is the same way that you described.

    Thank you.

  11. #11
    Unenlightened
    Join Date
    Mar 2010
    Posts
    1

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    The Fenix TK11 R2 now has a orange peel finish on the reflector to minimize the ring emitted by the light. I do have the grip ring removed however.

  12. #12

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    TK11's design is by far the most pretty at least among the presented flashlights in this review!

    At this moment R2 edition probalby is the best choise even though the R5 edition is rated at 285 lumens !

  13. #13
    Flashaholic* kj2's Avatar
    Join Date
    May 2010
    Location
    The Netherlands
    Posts
    4,017

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Nice review. Got an Fenix TK-11 R2 myself. Very happy with it
    Has a nice clear white light. Throws the beam far (over 100mtr)
    Last edited by kj2; 07-20-2012 at 06:27 AM.

  14. #14

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    I got the Fenix TK11 R5 as my weapon light.


  15. #15

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    I just ordered the r5 and was just wondering if this light has any issues with overheat when running on turbo for long periods of time?

  16. #16

    Default Re: Fenix TK11 Review : Pics, Comparisons, indoor/outdoor beamshots, impressions

    Great review, this made my short list, wondering if in turbo mode does it heat up like crazy? like would i break a sweat working in an attic? and is it really as durable as a tank like the sell sheets say?
