Thread: SSC P7 dome apperance

  1. #1

    Default SSC P7 dome apperance

    Hello, this is a question about the domes on P7 leds, I have purchased several of these over time and found different appearances, is this normal?

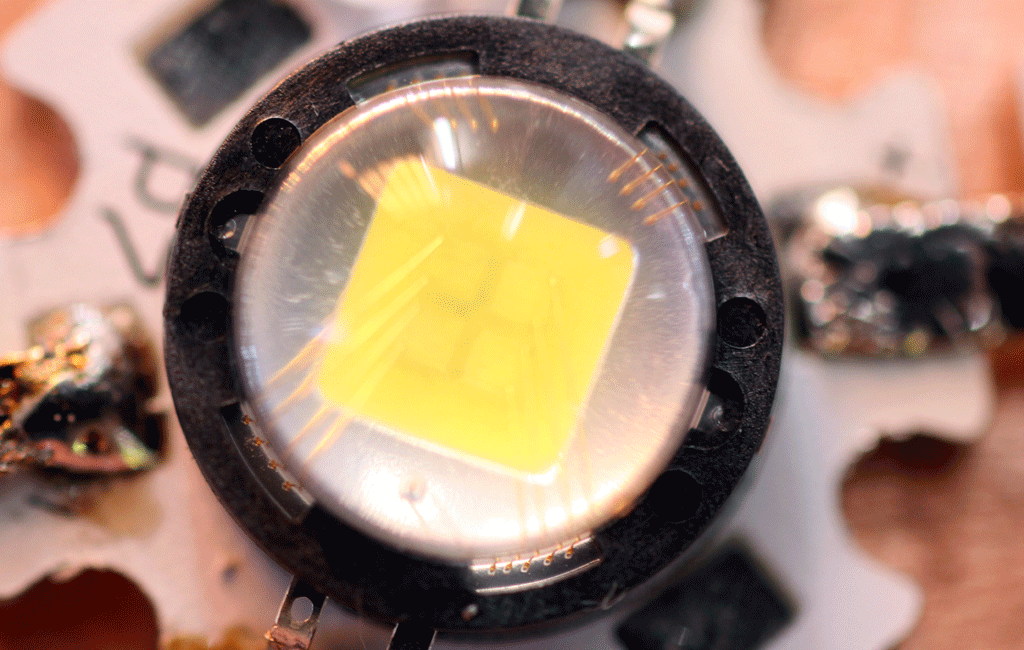

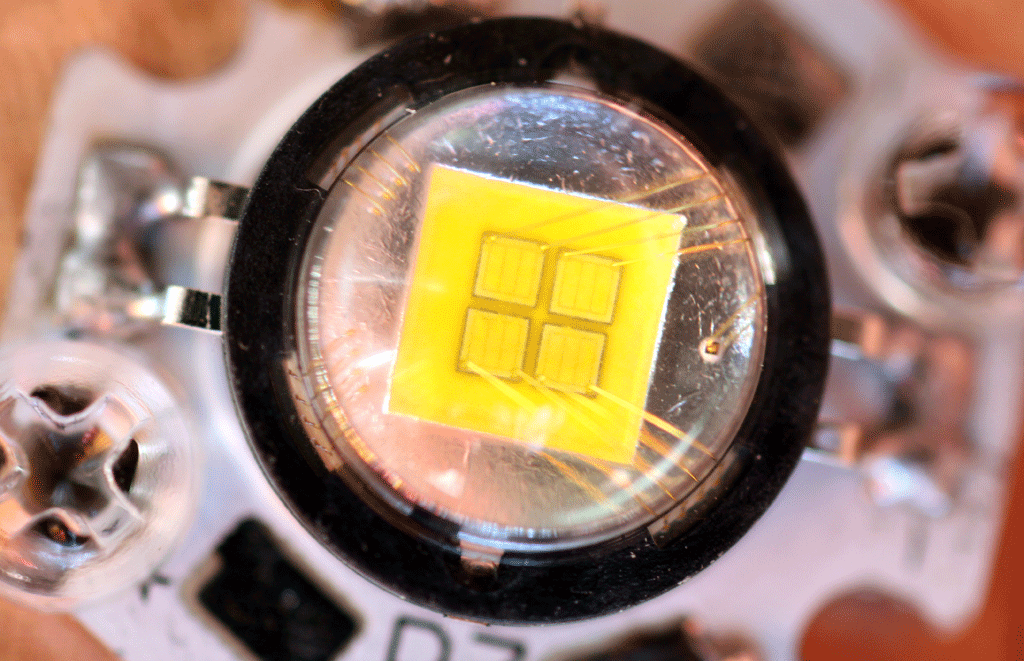

    These were both sold to me as D bin P7's, close up of each are below






    Is anyone aware of non genuine P7's around? Should I be worried these are not both genuine?

    Regards,

    greg

  2. #2
    Flashaholic* znomit's Avatar
    Join Date
    Aug 2007
    Location
    New Zealand
    Posts
    915

    Default Re: SSC P7 dome apperance

    The cloudy dome has been reported before in threads. Try a search.
    Interestingly there is more differences than just the dome there.

  3. #3

    Default Re: SSC P7 dome apperance

    I have also noted that some of my P7's have clouded domes.

    space

  4. #4

    Default Re: SSC P7 dome apperance

    It looks more like the fuzzy one has more phosphor coating on it. Do they both looks like the same tint when on?

  5. #5

    Default Re: SSC P7 dome apperance

    Yes, as far as my eyes can tell all these are a similar color, the clearer domed ones appear more intense at lower driver currents but above 2amps my uncalibrated eyes can't tell them apart.

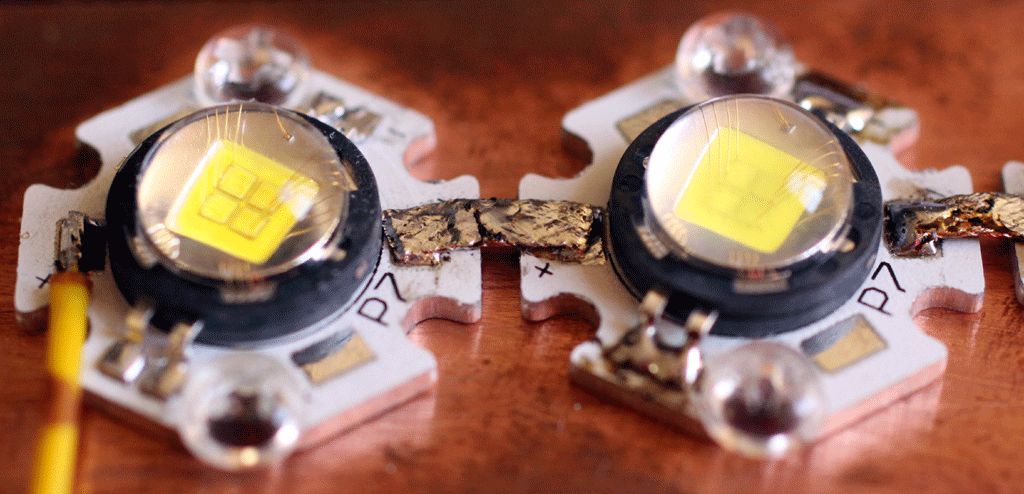

    There are other differences too that you can see in the construction, ejector pin marks are much more pronounced on the cloudy one and the die looks not so sharp, are they production variances or products of different lines.
    Can be sure it's a SSC part, not a P7 style LED? Are there knock offs of these to watch out for? I searched on her for fake, knock off but found noting relevant.

    cheers,

    greg

  6. #6

    Default Re: SSC P7 dome apperance

    I just searched again and found this here

    http://www.candlepowerforums.com/vb/...d.php?t=239512

    Possibly old stock for the cloudy LED?

    greg

  7. #7

    Default Re: SSC P7 dome apperance

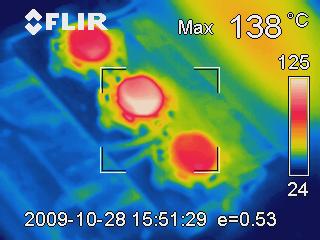

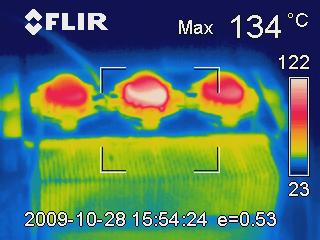

    I did a bit more investigation, the middle P7 in this row is the frosty appearing one, they are connected in series running at 2.75amp.



    The middle one is defiantly different!

    They are all bolted to a copper heatsink



    greg

  8. #8
    Flashaholic* DaFABRICATA's Avatar
    Join Date
    Jan 2007
    Location
    Michigan
    Posts
    3,846

    Default Re: SSC P7 dome apperance

    tane,

    Thanks for posting that picture!!
    It help us see things we normally wouldn't be able to with the naked eye.

    My guess is the domes are separating and the phosphor is degrading...I'm probably wrong though.


    I have a LOT of Seoul P4's that look like that and a few P7's too.

    Its a shame and possibly a quality control issue.

    Heres a pic showing the differences with the P4's....the top one is a new one.

    Flashlight Modifications available upon request
    "I have to go return some video tapes." -Patrick Bateman



  9. #9

    Default Re: SSC P7 dome apperance

    Nube question here and still haven't gotten a succinct answer, what is the real difference in the C & D bins? I have seen other bins listed too, which would consistently deliver the higher lumens?

  10. #10
    Flashaholic* lolzertank's Avatar
    Join Date
    Dec 2008
    Location
    The Land of Silicon
    Posts
    555

    Default Re: SSC P7 dome apperance

    Quote Originally Posted by jbmtnbiker View Post
    Nube question here and still haven't gotten a succinct answer, what is the real difference in the C & D bins? I have seen other bins listed too, which would consistently deliver the higher lumens?
    The D bin is brighter. The C bin produces at least 700lm at 2.8A, while the D bin produces at least 800lm.
    Awesome! I just got the Luxoulree Z4 bin XD-Q! Wait... are you saying they released the Z5 bin the day after I bought it?

  11. #11

    Default Re: SSC P7 dome apperance

    Perfect answer! Thanks

    I am finally decided which to look for once I sell a bike...soon hopefully
