Thread: Loc-Line flexible Tripod Stalk

  1. #1

    Default Loc-Line flexible Tripod Stalk

    Hi guys,

    Over the years, I have found all kinds of applications for using Loc-Line hose and most of these have been for low voltage fixed lighting. I have designed and had a number of custom Loc-Line fixtures and components in this vein.

    One component I have had in mind for a number of years finally came to be. It is an anodized aluminum (6061) connector that provides a female 1/4"x20 thread at the end of a section of Loc-Line. By putting one of these at each end of the Loc-Line you essentially have a flexible tripod extension. Adding a socket set screw to one of the connector provides both male and female genders.



    In the photo above you can see a stalk assembly as well as a loose connector and 1/2" long set screw. The connector is not tapped completely through so there is a stop for the 1/4"x20 screw. The pilot hole does go all the way through so the thread depth could be extended with a tap if the need was there.

    The pic below shows a couple ideas and applications for this tripod stalk



    In the example showing the Sapphire light, I removed the connector from the one end and slipped a section of 1/2" vinyl tubing over the loc-line and the sapphire is pressed into this tubing for a secure mount.

    In the image below, I used a rubber clamp that I got somewhere, sometime ago, mounted to one end of the tripod stalk. This clamp will hold any light with a 1" OD section.



    In the photo below, the SF Titan screws directly to the male end of the tripod stalk and I drilled a hole through the utility clamp and secured it to the other end of the tripod stalk with a 1/4"x20 screw.



    At some point, I want to consolidate some of the other Loc-Line custom connectors as well as get a few other ideas and components gathered together in a reasonable and more comprehensive "system" of gizmos. It just requires, time, money, focus and motivation; all of which I seem to be lacking in.

    In the mean time, if any of you guys are interested in one of these tripod stalks, I can turn this thread into an offering with the standard line of how to order and such. I figure $20 plus postage would be the price.

    The assembly would consist of 10 ea. of the Loc-Line hose sections, a socket - socket connector and 2 ea. of the aluminum 1/4"x20 connectors. One of the connectors will have a removable set screw in it. Basically the assembly is that shown in the first image above but not including the loose third connector or second set screw.

    There are all kinds of the little desk top tripods to be had at reasonable prices and with so many of the small digital point and shoot cameras, there may be a market for this tripod stalk. For those of us wanting or using a flexible stalk for hands free flashlight mount, with the addition of some type of flashlight holder, this stalk can be used in such a manner. Somewhere in Berkeley I have a bunch of magnets I bought years ago that would serve easily as a magnetic base for these stalks. Obviously at this point, many of these applications and ideas would require a DIY approach to a completed assembly and I welcome any ideas or examples to be shared here in the thread.

    A priority for me is a flashlight mount similar to the one shown above holding the SunDrop and before I go to the trouble of designing one and paying for a mold, I would like to see if I can find a ready made solution.

    EDIT See post #17 for info on these now being offered - Thanks!
    Last edited by McGizmo; 02-04-2010 at 12:08 PM. Reason: now being offered in this thread (see post #17)
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  2. #2

    Default Re: Loc-Line flexible Tripod Stalk

    Don,

    If the stalk is straight, at a 45° angle, about how much mass can the Loc-Line resist before it starts drooping?

    I could definitely go for one, possibly more depending on the answer.
    Ray
    Good people need to be there for each other. It's the only way to stay sane in a sometimes insane world.

  3. #3
    Flashaholic* London Lad's Avatar
    Join Date
    Feb 2006
    Location
    Suffolk U.K.
    Posts
    1,755

    Default Re: Loc-Line flexible Tripod Stalk

    I would be up for one please Don.

    I am going to order an AA pack once you post the sales thread. Maybe you could ship them together?


  4. #4

    Default Re: Loc-Line flexible Tripod Stalk

    Ray,
    I don't know how much weight the stalk can handle. A full size SLR will capsize it I am certain.

    London Lad,
    No problem on including a stalk with another order.
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  5. #5
    *Flashaholic* fyrstormer's Avatar
    Join Date
    Jul 2009
    Location
    Northern VA, USA
    Posts
    5,829

    Default Re: Loc-Line flexible Tripod Stalk

    HELL YES. Finally I'll be able to use my Tasklight Two the way it was intended!

    Regarding the grippy flashlight holder, what about basing your design on something like this? It should just require a threaded puck to expand the 1/4" stud you've already created to fit whatever size threading this grip uses:



    The setup belongs to Keissling. If you asked really nicely, I bet he'd tell you what components he used.

  6. #6

    Default Re: Loc-Line flexible Tripod Stalk

    I think that is a mic holder there. The fork and eye as well as swivel are unnecessary with the Loc-Line but I agree it is a cool clamp itself.
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  7. #7
    *Flashaholic* fyrstormer's Avatar
    Join Date
    Jul 2009
    Location
    Northern VA, USA
    Posts
    5,829

    Default Re: Loc-Line flexible Tripod Stalk

    I wonder if the spot where the ball joint attaches could accept (or be modified to accept) the 1/4" threaded stud you've made?

  8. #8
    Flashaholic* gswitter's Avatar
    Join Date
    Apr 2006
    Location
    California
    Posts
    2,581

    Default Re: Loc-Line flexible Tripod Stalk

    I'm interested, and will probably request one along with a 2AA Pak tomorrow as well.

    I'm chuckling at the possibilities (and looks) of this stalk mated to a Gorillapod.



  9. #9
    Flashaholic* senna94's Avatar
    Join Date
    Dec 2005
    Location
    Houston, Texas
    Posts
    1,735

    Default Re: Loc-Line flexible Tripod Stalk

    Quote Originally Posted by gswitter View Post
    I'm interested, and will probably request one along with a 2AA Pak tomorrow as well.

    I'm chuckling at the possibilities (and looks) of this stalk mated to a Gorillapod.


    +1
    "The Constitution says promote the the general welfare not provide welfare." -Allen West-
    To a democrat freedom means freedom from responsibility.

  10. #10
    Flashaholic* maxspeeds's Avatar
    Join Date
    Jan 2007
    Location
    Oahu, Hawaii
    Posts
    1,780

    Default Re: Loc-Line flexible Tripod Stalk

    I'm definitely interested, Don. Especially if someone can find a source for clamping our McGizmos (no pun intended). This would be a really cool flashlight / desklight / camping light stand! I could definitely picture myself using this in the future.
    Cheers from the McGizmo state.

  11. #11
    Moderator
    Kiessling's Avatar
    Join Date
    Nov 2002
    Location
    Germany, Old World
    Posts
    16,140

    Default Re: Loc-Line flexible Tripod Stalk

    Quote Originally Posted by fyrstormer View Post
    HELL YES. Finally I'll be able to use my Tasklight Two the way it was intended!

    Regarding the grippy flashlight holder, what about basing your design on something like this? It should just require a threaded puck to expand the 1/4" stud you've already created to fit whatever size threading this grip uses:



    The setup belongs to Keissling. If you asked really nicely, I bet he'd tell you what components he used.

    Yes, a mic stand. Nothing special.
    bernie
    There is a type of perfection that transcends the quest for lumens. Buying a $250 1-cell light for "lum factor" is like buying a $250 single malt Scotch for the alcohol content.
    - paulr


    It's always darkest just before it goes pitch black.
    My shoes are too tight. But it doesn't matter, because I have forgotten how to dance.

  12. #12
    *Flashaholic* wquiles's Avatar
    Join Date
    Jan 2005
    Location
    Texas, USA, Earth
    Posts
    8,422

    Default Re: Loc-Line flexible Tripod Stalk

    Don,

    You can count me "in" for two of the $20 kits.

    Will
    Please no PM/Visitor Msg's. Email for questions/Paypal: wquiles [at] gmail {dot} com. Please visit my new website.

  13. #13
    Unenlightened
    Join Date
    Feb 2010
    Posts
    1

    Default Re: Loc-Line flexible Tripod Stalk

    Hi Don,
    New user here. I am interested in one or two as well.

  14. #14
    Flashaholic*
    Join Date
    Dec 2006
    Location
    Australia Geelong
    Posts
    749

    Default Re: Loc-Line flexible Tripod Stalk

    Great idea Don - i'd be in for 5.
    I'd use a clamp like this
    http://www.joetoolcompany.com/wlmw986.html

    We use them at work -though a different brand -Irwin , i think.
    Would be great for holding any shape/size light(within reason).

    Cheers
    Dom

  15. #15

    Default Re: Loc-Line flexible Tripod Stalk

    Dom,
    Those clamps look like a great idea and I like the price! I suspect one could be successful with crutch tips and round table leg boots in coming up with a mount for flashlights as well.

    I am a bit overwhelmed at the moment with some builds and the introduction wave of the 2xAA McClickie paks. Some of you have requested a tripod stalk or two with your orders of other stuff and I am honoring those requests and including the tripod stalks at a cost of $20/ stalk. Until I get my act together and turn this thread into an official offering, don't let that stop you if you wish to get a tripod stalk or two.
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  16. #16
    Flashaholic*
    Join Date
    Dec 2006
    Location
    Australia Geelong
    Posts
    749

    Default Re: Loc-Line flexible Tripod Stalk

    Hi Don
    Will wait till you're ready for mass production of these
    before putting an order in as don't
    want you to be snowed under :-)

    Unless you have 5 off lying around! hehe.

    Cheers
    Dom

  17. #17

    Default Re: Loc-Line flexible Tripod Stalk (offering)

    Dom (and others),

    If you want one or more of these, you can send me an e-mail with tripod stalk in the subject line and your mailing address in the body of the e-mail along with a clear indication of the quantity you seek. The price is $20/ stalk and the priority mail or international priority mail is additional. I will respond with a postage notification e-mail and the total will be in the subject line. My PP address is the same e-mail address as linked above.
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  18. #18

    Default Re: Loc-Line flexible Tripod Stalk

    My stalk arrived today and I couldn't be happier. Thx, Don!

    Last edited by Codeman; 02-06-2010 at 03:10 PM. Reason: added photo
    Ray
    Good people need to be there for each other. It's the only way to stay sane in a sometimes insane world.

  19. #19
    Flashaholic* gswitter's Avatar
    Join Date
    Apr 2006
    Location
    California
    Posts
    2,581

    Default Re: Loc-Line flexible Tripod Stalk

    Quote Originally Posted by gswitter View Post
    I'm chuckling at the possibilities (and looks) of this stalk mated to a Gorillapod.
    About what I expected...




  20. #20

    Default Re: Loc-Line flexible Tripod Stalk

    That reminds me of War of the Worlds, gswitter!
    Ray
    Good people need to be there for each other. It's the only way to stay sane in a sometimes insane world.

  21. #21

    Default Re: Loc-Line flexible Tripod Stalk

    Quote Originally Posted by McGizmo View Post
    ...1/2" long set screw...
    I missed that earlier. A 1/8" hex wrench can be used to tightened it down or loosen it.
    Ray
    Good people need to be there for each other. It's the only way to stay sane in a sometimes insane world.

  22. #22
    *Flashaholic* wquiles's Avatar
    Join Date
    Jan 2005
    Location
    Texas, USA, Earth
    Posts
    8,422

    Default Re: Loc-Line flexible Tripod Stalk

    I am already putting to good use one of these

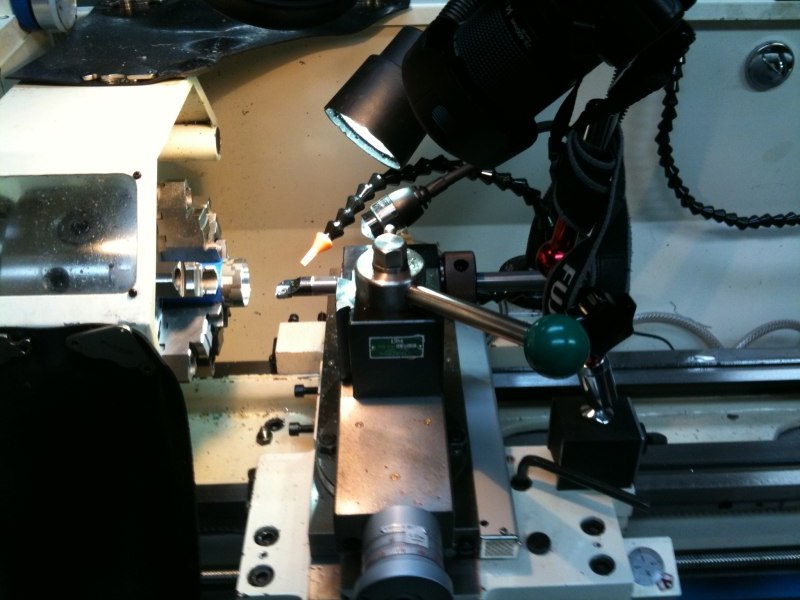

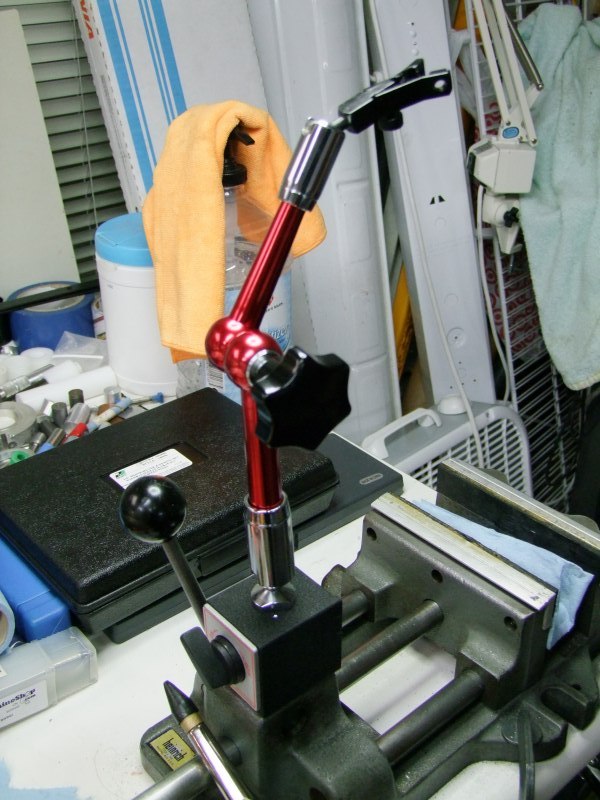

    Since my FujiFilm bridge camera is too heavy for this stalk, I decided to use one of these hydraulic tool holders from Shars/Ebay:

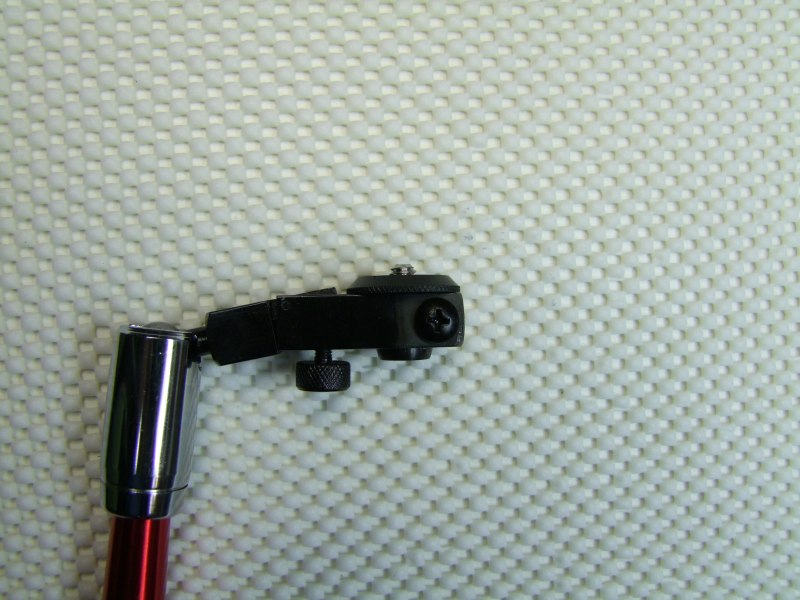

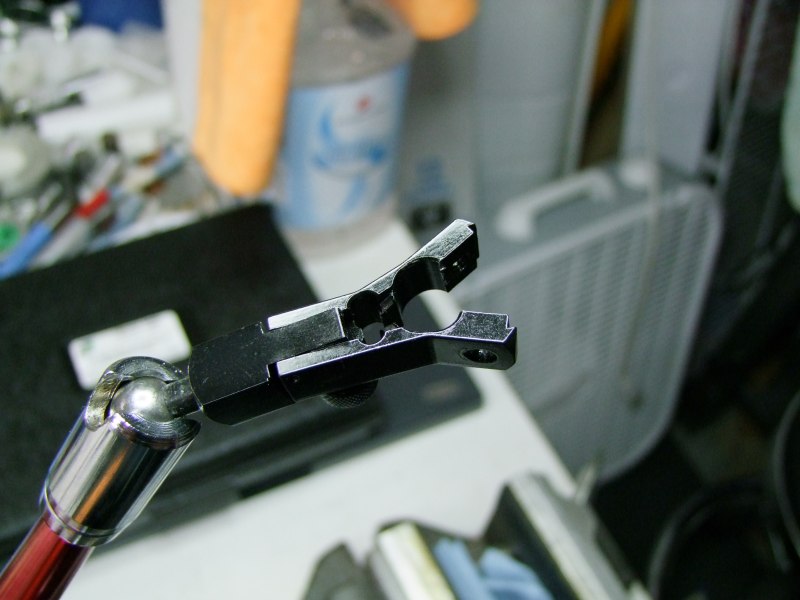

    I started by bending and filing and using a dremel tool until I was able to securely attach the adapter to this end:

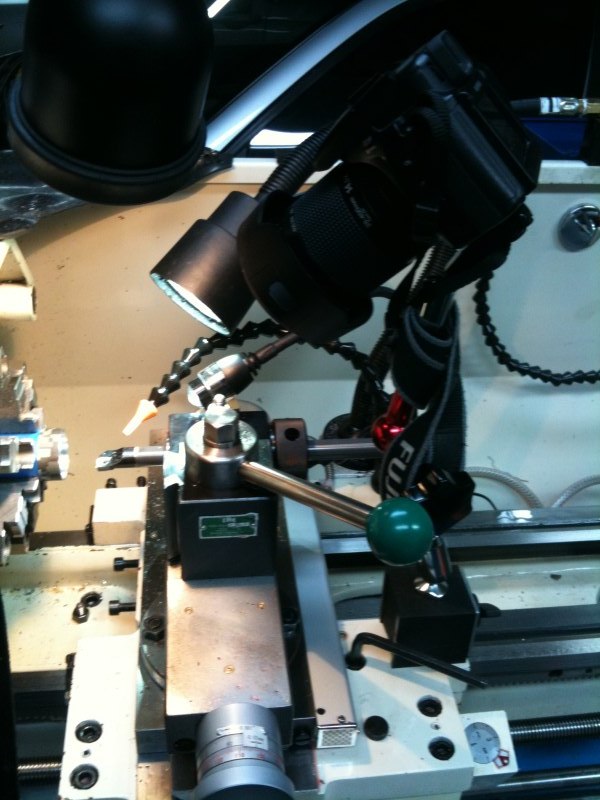

    And this is how the camera looks in position - very sturdy. Of course, I can't take a picture of this setup with my good camera since the camera is the object of the picture, so I am using my iPhone's camera - sorry about the lower quality:





    Thanks much Don
    Last edited by wquiles; 02-14-2010 at 04:00 PM.
    Please no PM/Visitor Msg's. Email for questions/Paypal: wquiles [at] gmail {dot} com. Please visit my new website.

  23. #23
    Enlightened
    Join Date
    Apr 2009
    Location
    Oahu, HI
    Posts
    94

    Default Re: Loc-Line flexible Tripod Stalk

    Hi Don. Email sent. Mahalo.
    Dare to reach out your hand into the darkness, to pull another hand into the light -- Norman B. Rice

  24. #24
    Enlightened
    Join Date
    Apr 2009
    Location
    Oahu, HI
    Posts
    94

    Default Re: Loc-Line flexible Tripod Stalk

    Paypal sent. Mahalo.
    Dare to reach out your hand into the darkness, to pull another hand into the light -- Norman B. Rice

  25. #25
    Flashaholic
    Join Date
    Aug 2004
    Location
    Alaska
    Posts
    235

    Default Re: Loc-Line flexible Tripod Stalk

    Paypal sent for one ea. Doc.

  26. #26

    Default Re: Loc-Line flexible Tripod Stalk

    Hi guys,
    I am going to "sticky" this thread if I can figure out how to...
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  27. #27
    Flashaholic* RedLed's Avatar
    Join Date
    Oct 2006
    Location
    Beverly Hills, Palm Springs, Seattle
    Posts
    1,468

    Default Re: Loc-Line flexible Tripod Stalk

    Try the Matthews or avenger catalogs for photography, and motion picture grip equipment.

    There are a ton of clamps, and things to hold just about everything, most everything also has a 1/4 20 attachment.

    There is no way I can use the plastic grip arms for the work we do, our equipment is too heavy, expensive, and for now ...not replaceable because of the earthquake.

    Mole Richardson in H' Wood has a fantastic selection of grip arms metal goose necks and clamps. The Nano clamp and arm from Manfrotto is amazing. We have a few, but they are expensive.

    I am just too used to metal for this, since I hang cameras and lenses worth tens of thousands of dollars on everything from helicopters, the flightdeck of the USS Ronald Reagan, above the ring at big fights in Las Vegas, and with the POTUS, and other places we can have no failures, and places not friendly to our gear if something does go wrong.

    I mostly skip the things made for photographers, and use the motion picture grade grip gear.

    Part of being a good gaffer is being able to put anything anywhere, anytime, and fast. This could include a flashlight as well.

    Hope this helps.

    Best wishes,

    Ned Redway, Owner, Master Photographer, Director & Janitor
    Ned Redway Photography
    NR Digital Productions Worldwide
    www.Redwayphoto.com
    Last edited by RedLed; 05-04-2011 at 03:28 AM.
    Check my Web Site: www.Redwayphoto.com

  28. #28

    Default Re: Loc-Line flexible Tripod Stalk

    Hello, are these still for sale? My Gorillapod Magnetic isn't tall enough so I'm thinking I need this extension (Spark SD6 NW desklamp). What's it's full height? How reliable are these things before they start to sag?

    Quote Originally Posted by McGizmo View Post
    The assembly would consist of 10 ea. of the Loc-Line hose sections, a socket - socket connector and 2 ea. of the aluminum 1/4"x20 connectors. One of the connectors will have a removable set screw in it. Basically the assembly is that shown in the first image above but not including the loose third connector or second set screw.

    I just wanna make this clear: we get two socket connectors, 10 pieces, and 2 aluminum screws? Thank you.
    Last edited by excfenix; 02-01-2012 at 01:41 AM.

  29. #29

    Default Re: Loc-Line flexible Tripod Stalk

    Yes,
    I still have some of these. The offering is as shown in the first pic but not included are the additional loose connector and 1/2" long set screw. I have no idea how much weight it can support without sagging. Sorry.
    Build Prices .... some mods and builds (not 4 sale) "Nature can be cruel- but we don't have to be."~ Temple Grandin

  30. #30

    Default Re: Loc-Line flexible Tripod Stalk

    Do you offer just the little aluminum things? I have clamps, loc line etc.....
