Thread: McGizmo LS20 XP-G Update

  1. #1

    Evilgrin07 McGizmo LS20 XP-G Update

    FINALLY getting back onto CPF!
    The last few months have been extremely hectic as I’ve been moving and many other things have kept me busy and away from CPF. The fact that the internet is S--L--O--W where I live has also made it hard to even want to get online. Hopefully I’ll get the internet thing straightened out. Until then, I’ll be on/off again. I have a bunch of PM’s that need to be responded to and will do my best to get caught up in the coming week/s.
    I went from living on the inner-outskirts of a small/medium city to living in the middle of nowhere surrounded by farmland. I have been riding or walking for the last 9 years as my only form of transporation (other than the occasional ride from family/friend) and now I need to think about getting my drivers license back. Luckily a post office is a few miles up the road, so I'll still be able to do CPF stuff. Lots of changes going on...

    I’ve missed this place and all the great people that make it feel like a family. Nice to see all the great things people have been doing and more creative lights made.

    During my move, I spent some time thinking about flashlights and actually used a lot of them during the process. It gave me a nice chance to really run them through their paces. Headlamps are covered by the selection of zebra lights I’ve accumulated. Handhelds were usually a Spy of some sort (005/007/Tri-V) as well as a selection of Aleph/Surefire lights that have been heavily modified. Having multiple levels is a must for any flashlight I carry unless mounted on a weapon. Having different beam-patterns in one light with the addition of different levels is even better! The Tri-V does just that and so much more.
    Flashlights that combine different beams and outputs are where it’s at in my book! Which got me thinking about my next flashlight purchase. I’ve picked up a few production lights after purchasing the Tri-V, but nothing that really stood out or that I was willing to drop a substantial amount of money on.

    After being able to log back onto CPF, a Lunasol 20 was just put up for sale in the CPF Custom-B/S/T.
    It was hard to resist and was a user which is what I was looking for. I replied using my slow-ass internet and hoped nobody jumped on it before my reply went through. At last, the McGizmo light that I always admired was on it’s way to me. Another light with more than one beam pattern and output!
    Well, today my first McGizmo showed up in the mail. The LS20. (Thanks dadof6)
    The only other Titanium McGizmo I’ve ever seen/used/touched was the LS27 when the pass-around was happening and I was fortunate enough to get in on. Mind you this was not too long after I joined CPF and (at the time) could not imagine spending so much on a light, but given the opportunity to check one out personally for a few days was awesome! That was my first experience with titanium and it helped me understand why they are so darn cool! I loved the light, but felt that it would be too heavy and bulky to carry as an EDC. The LS20 really caught my attention due to it’s smaller size and the “Dual Beam” ability.
    Flood can be a very useful feature and is with regards to the LS20.

    Now before I get ahead of myself, I’d like to comment on the beautifully machined parts. The fluting in the head makes for a nice grip when twisting it. Speaking of twisting, the threads on this light are so smooooth!! The window is ultra clear and very thick with o-ring seals on both sides! The body fits in the hand perfectly and the Ti clip grabs tight on my pocket. The green trit in the piston is always a welcome addition and will allow me to find it easy in the dark. The PD action is also very smooth and easy to “Feel” the transition between the levels. Twisting the head one-handed is also very easy to do.
    The flood from the 3 X 3mm LED’s is great and has a very useful beam pattern as general purpose illumination. When more throw and output are needed , either mashing the piston all the way down or twisting the head further is at that is needed. Very nice!

    The golden dragon emitters never really appealed to me, and this was backed up today when using high on this amazing light. The high beam is sufficient for most I’m sure, but being that I own a Tri-V, its doesn’t stand a chance. Please don’t take this as a direct comparison as these 2 lights are in a category of their own. Just that they both use the McR12 reflector. The GD has a very tight hot-spot with ok spill. The output on high was about what I expected, seeing that the GD is running at only 400mA. The tint was on the cool side with a slight purple/blue tint but nothing bad. When using it, I was left wanting more “Punch” to the high beam.

    That being said, I couldn’t even wait till it got completely dark out before deciding it needed an emitter upgrade. The LS20 is not the easiest light to work on and much care needs to be taken when working within the limited space.
    From what I’ve gathered, the reflector in the LS20 is an McR12 for the GD emitter. The Tri-V uses an McR12 coupled with the XP-G emitter for a very nice beam. Other mods I’ve done using the GD reflectors with the XP-G’s have produced great results. After disassembly of the LS20, the GD emitter was removed from the board and an R5 XP-G was put in it’s place and was used for this particular mod.
    I made an entirely new heatsink for a neutral XP-G that will replace this one in the near future. After everything was soldered and put back together, I was extremely happy to see an identical beam as my Tri-V on “reflector mode” Much larger hot-spot, as well as a brighter and more useful beam pattern, giving me the added "Punch" I was after.
    The improvement made by just an emitter swap is all it has taken to really draw me into the usefulness of this light.
    Add some levels (via driver upgrade) to allow the XP-G to run harder than 400mA...Maybe 750+ to this beauty and I see a welcome addition to my EDC rotation. That’s not to say the light is not very nice the way it is, I just have a hard time leaving well enough alone…

    Next up is to swap the emitter/heatsink again, possibly add a resistor to the 3 X 3mm LED’s for a “Lower Low” and to do a driver swap for more levels/ & higher drive levels.
    One of my favorite things about flashlights is that with the proper host, new technology can be added to improve on already amazing light/designs and bring them up to date!

    I feel very fortunate to have been able to score one of Don’s amazing creations and fully understand why so many people love them.
    I have already been trying to decide which one I’d like to add next. The LS20 was THE McGizmo I have been wanting and I’m glad I held out till I found one!


    Unfortunately, I didn't get before beamshot pictures, but anyone with an LS20 will be able to tell this is not your typical LS20 GD beam!










    Titanium Goodness!
    Last edited by DaFABRICATA; 04-23-2014 at 07:45 PM.
    Flashlight Modifications available upon request
    "I have to go return some video tapes." -Patrick Bateman



  2. #2
    Flashaholic* Zeruel's Avatar
    Join Date
    Jan 2009
    Location
    SIN
    Posts
    3,241

    Default Re: McGizmo LS20 XP-G Update

    Nice mod.

    I've wanted a Lunasol 20 for some time too, being what I think is the best looking PD light from Don. But after playing with my friend's, like you, I desire the high to have a bit more punch. So I got the Haiku instead. Now your mod fuels my need and want to search for one....

  3. #3

    Default Re: McGizmo LS20 XP-G Update

    Nice work and welcome back. You were missed

  4. #4
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    DaFAB! Awesome!! When I owned my LS20, that was my only 'thing'...the beam from the main emitter left me wanting a bit more. The light itself was a functional piece of art.

    Now you have me wanting another....

    When I owned mine I asked around to see if anyone could mod it, and although the many gifted modders out there said it was doable, most just didn't want to tackle it.

    SOOOOO - if I decide to get another, perhaps you can mod it for me?

    Then maybe we can do the driver upgrade, too?

    Great write up, BTW - and GREAT to have you back on the forum! You have been missed!


  5. #5
    *Flashaholic* wquiles's Avatar
    Join Date
    Jan 2005
    Location
    Texas, USA, Earth
    Posts
    8,373

    Default Re: McGizmo LS20 XP-G Update

    Nice work
    Please no PM/Visitor Msg's. Email for questions/Paypal: wquiles [at] gmail {dot} com. Please visit my new website.

  6. #6
    Flashaholic dcaprilia's Avatar
    Join Date
    Aug 2009
    Location
    Philippines
    Posts
    400

    Default Re: McGizmo LS20 XP-G Update

    Milky upgraded mine to an XPG and boy I wish I did the mod sooner. The beam bigger and brighter all around
    "Growing old is mandatory, growing up is optional"

  7. #7
    *Flashaholic* fyrstormer's Avatar
    Join Date
    Jul 2009
    Location
    Northern VA, USA
    Posts
    5,705

    Default Re: McGizmo LS20 XP-G Update

    I'd jump on an XP-G mod if I could get an XP-G with a similar tint to the original. I'm not a huge fan of the super-cool tint, but the light was designed to have the same tint between the flood and spot emitters, and I'd want to keep that to a reasonable extent.

  8. #8
    Flashaholic* ninemm's Avatar
    Join Date
    Mar 2010
    Location
    Pennsylvania, USA
    Posts
    1,543

    Default Re: McGizmo LS20 XP-G Update

    Great to have you back! Hope all goes well in the transition to your new home/location.

    That mod looks awesome! Excellent work as usual. Look forward to hearing back from you on a T1A mod when you have time.

  9. #9
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    I am too too excited! DaFAB told me today that my modded LS20 is on its way home to papa!! I haven't been this excited since Data said he'd shipped my Tri-V!

    I will post a review of the mod and comparison to a stock LS20 this weekend. Line up, folks - I know this mod is going to be fantastic based on the description of the shape/tint/brightness of the LS20 after the mod. Jump in line to have yours done!


  10. #10

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by run4jc View Post
    I am too too excited! DaFAB told me today that my modded LS20 is on its way home to papa!! I haven't been this excited since Data said he'd shipped my Tri-V!

    I will post a review of the mod and comparison to a stock LS20 this weekend. Line up, folks - I know this mod is going to be fantastic based on the description of the shape/tint/brightness of the LS20 after the mod. Jump in line to have yours done!


    Awesome Dan! This was one of my favorite all time lights and I can't wait to see the review coming as I know it will nothing short of sensational.


    Great Work DAfaB!!!!!!!

  11. #11
    Flashaholic*
    Join Date
    Feb 2008
    Location
    Golden Poppy State
    Posts
    1,236

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by run4jc View Post
    I am too too excited! DaFAB told me today that my modded LS20 is on its way home to papa!!
    Was the current bumped?

  12. #12
    Flashaholic* shado's Avatar
    Join Date
    Jul 2010
    Location
    Wild Rose Country
    Posts
    1,175

    Default Re: McGizmo LS20 XP-G Update

    Dan,

    I'm looking forward to your review. I hope you are able to throw in a couple of beam shots from a Haiku XP-G or SPY 007/TRI-V to compare to as well?

    Thanks
    Todd
    My Lights__________________________________________________ ___________________________________________

  13. #13

    Default Re: McGizmo LS20 XP-G Update

    Thanks for all the nice words guys!

    This is certainly a time consuming modification as there is more to take apart and reassemble than most other lights.
    I also make sure to take my time with these to be EXTRA careful and to be sure everything goes together smoothly and as planned.
    I just recieved another members light that had Frystormers awesome 3 speed upgrade done to it.
    It should be interesting to see what the neutral XP-G does with the higher current!
    After seeing the difference Frystormer 3 speed modification made, I can say I highly recommend it!!

    Drywolf, run4jc's LS20 was only an emitter swap to an R4 as per his request and came out better than expected.
    When compared to mine, it is a bit brighter........I'm jealous..

    I still have been carrying my LS20 everyday since delivery and am thinking a driver swap is in the works very soon before I head off to Colorado.

    Don said he planned on using the Rebel for this light, but due to the recall he opted for the GD instead.
    He told me that had the XP-G been available back then it would have been a no-brainer to use in this amazing light.
    Since the reflector is basically an McR17, when coupled with the XP-G it should give about the same beam shape as the Haiku XP-G, just not as bright unless a driver swap is done.
    I can't be sure of this since I don't have a Haiku and maybe Dan can give us his input soon since he has one..
    The LS20 continues to impress me with it's dual beams and I am so glad I finally picked one up....It's here to stay.....Very likely to never be sold.
    Flashlight Modifications available upon request
    "I have to go return some video tapes." -Patrick Bateman



  14. #14
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by SFfanman View Post
    Awesome Dan! This was one of my favorite all time lights and I can't wait to see the review coming as I know it will nothing short of sensational.


    Great Work DAfaB!!!!!!!
    Quote Originally Posted by shado View Post
    Dan,

    I'm looking forward to your review. I hope you are able to throw in a couple of beam shots from a Haiku XP-G or SPY 007/TRI-V to compare to as well?

    Thanks
    Todd
    Thanks, Ryan! Timing of the Labor Day weekend couldn't be better...I need a long weekend to recharge, and "playing with my little lights" is one of my favorite ways to relax. And Todd, as long as the weather holds up in Southern Maryland, I will definitely be using those lights - and others - for comparison! Looks like we're in luck - I don't think Hurricane Earl is going to visit during out stay at the beach....

    Quote Originally Posted by DaFABRICATA View Post
    Thanks for all the nice words guys!

    This is certainly a time consuming modification as there is more to take apart and reassemble than most other lights.
    I also make sure to take my time with these to be EXTRA careful and to be sure everything goes together smoothly and as planned.
    I just recieved another members light that had Frystormers awesome 3 speed upgrade done to it.
    It should be interesting to see what the neutral XP-G does with the higher current!
    After seeing the difference Frystormer 3 speed modification made, I can say I highly recommend it!!

    Drywolf, run4jc's LS20 was only an emitter swap to an R4 as per his request and came out better than expected.
    When compared to mine, it is a bit brighter........I'm jealous..

    I still have been carrying my LS20 everyday since delivery and am thinking a driver swap is in the works very soon before I head off to Colorado.

    Don said he planned on using the Rebel for this light, but due to the recall he opted for the GD instead.
    He told me that had the XP-G been available back then it would have been a no-brainer to use in this amazing light.
    Since the reflector is basically an McR17, when coupled with the XP-G it should give about the same beam shape as the Haiku XP-G, just not as bright unless a driver swap is done.
    I can't be sure of this since I don't have a Haiku and maybe Dan can give us his input soon since he has one..
    The LS20 continues to impress me with it's dual beams and I am so glad I finally picked one up....It's here to stay.....Very likely to never be sold.
    Fyrstormer suggested that the LS20 be modded by DaFAB first - he suggested I check that out and see if I still felt it needed 'more' after the mod. According to Cree's data, the XPG R4 should output around 120 lumen at 350mA - I'm guessing that the LS20 should output around 120 lumen then since it runs at 400mA by default? Since I am not looking for a 'flamethrower', rather, an EDC, this will likely be enough output. Since the early days of my flashlight 'affliction', it's become obvious to me that the differences between, say, 120 lumen and 200 lumen, while definitely noticeable, aren't major.

    We'll see. I'll use it for a while, but curiosity will likely get the better of me and the LS20 will probably go to Fyrstormer's "Evil Labs" for the upgrade, if he's willing! I think that it's great of Fyrstormer to suggest that upgrade path.

    But back to DaFAB - Thank you! Folks, Tim is GREAT to deal with. We are blessed at CPF to have so many great folks doing these mods, and I'm not taking anything away from any of them. I have trusted a Spy 007 and this LS20 to Tim because a: I trust him completely and b: I believe he treats every light as if it were his OWN light. And his pricing is absolutely fair - in my mind, a bargain!

    So Fedex says it's well on its way - to arrive tomorrow! Can't wait! Thanks, Tim!

  15. #15

    Default Re: McGizmo LS20 XP-G Update

    Tim is the best

  16. #16
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    WOO HOO!! The light just arrived! Can't wait to test it this weekend, but for now I am uber pleased! Tint is really nice, and Tim did just one heck of a job. You'd think that the light came with this emitter - just perfect.

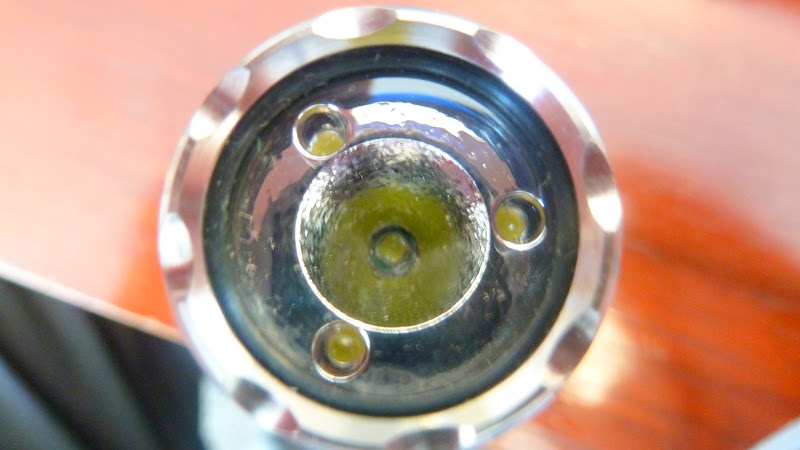

    Again, there will be more this weekend, but for now, the business end (with my point and shoot camera)



  17. #17
    Flashaholic*
    Join Date
    Feb 2008
    Location
    Golden Poppy State
    Posts
    1,236

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by run4jc View Post
    WOO HOO!! The light just arrived! Can't wait to test it this weekend, but for now I am uber pleased! Tint is really nice, and Tim did just one heck of a job. You'd think that the light came with this emitter - just perfect.

    Again, there will be more this weekend, but for now, the business end (with my point and shoot camera)



    Bro!!


  18. #18
    Flashaholic ejot's Avatar
    Join Date
    May 2009
    Location
    East Fishkill, NY
    Posts
    370

    Default Re: McGizmo LS20 XP-G Update

    Very nice. Could you swap the 3mm LED's too?
    I pledge to be Shelf Queen-free by 01/01/11. "Use 'em!"
    My Builds: Mag623 ; RoomSweeper Clone

  19. #19
    Flashaholic* Light11's Avatar
    Join Date
    Nov 2009
    Location
    The Great Northwest
    Posts
    1,151

    Default Re: McGizmo LS20 XP-G Update

    Dan,I'll be looking forward to your review and great pics

    and pm sent to you DaFABRICATA!




    Quote Originally Posted by run4jc View Post
    WOO HOO!! The light just arrived! Can't wait to test it this weekend, but for now I am uber pleased! Tint is really nice, and Tim did just one heck of a job. You'd think that the light came with this emitter - just perfect.

    Again, there will be more this weekend, but for now, the business end (with my point and shoot camera)



  20. #20
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    Looking forward to doing the review! Measured the light in my sphere - I'd guessed 120 lumen - my sphere returned 118! Makes sense - 'sposed to put out 115 or so at 350mA - with 400mA that's about right.

    It is a perfect EDC - it just needs a little bit more 'pop'...Fyrstormer's upgrade to a 750mA board should just do the trick. It read 75 lumen stock, so it's already a huge improvement - plus the beam is perfectly shaped (for me) and the tint is great.

    Hoping to shoot the beam shots tonight - between chores tomorrow and Sunday hope to get the review posted!

    Hope it doesn't let anyone down...didn't mean to hype it so!

    Oh, if you are thinking of sending yours to Tim, DO IT!!

  21. #21
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by Drywolf View Post
    Bro!!

    Great photo my Bro!

  22. #22
    Flashaholic* run4jc's Avatar
    Join Date
    Apr 2009
    Location
    Back in Sweet Home Alabama
    Posts
    2,718

    Default Re: McGizmo LS20 XP-G Update

    Okay, folks! Review with beam shots posted over here. It's quite the eye opener!

    Last edited by run4jc; 09-04-2010 at 04:52 AM.

  23. #23

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by ejot View Post
    Very nice. Could you swap the 3mm LED's too?

    Yes they can!
    I might be putting some UV 3mm in mine just for the heck of it!


    Quote Originally Posted by Light11 View Post
    Dan,I'll be looking forward to your review and great pics

    and pm sent to you DaFABRICATA!

    PM back at ya!


    Quote Originally Posted by run4jc View Post
    Okay, folks! Review with beam shots posted over here. It's quite the eye opener!


    Dan, Awesome beamshots and review!!

    Thanks again for all the nice comments!
    BTW, I got those o-rings for the 007!!! THANK YOU!!!
    Flashlight Modifications available upon request
    "I have to go return some video tapes." -Patrick Bateman



  24. #24
    Flashaholic ejot's Avatar
    Join Date
    May 2009
    Location
    East Fishkill, NY
    Posts
    370

    Default Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by DaFABRICATA View Post
    Yes they can!
    I might be putting some UV 3mm in mine just for the heck of it!
    Now I am very interested in getting this done!! I'll send ya a PM when I have a few minutes later on.
    I pledge to be Shelf Queen-free by 01/01/11. "Use 'em!"
    My Builds: Mag623 ; RoomSweeper Clone

  25. #25

    Evilgrin07 Re: McGizmo LS20 XP-G Update

    Quote Originally Posted by ejot View Post
    Now I am very interested in getting this done!! I'll send ya a PM when I have a few minutes later on.



    Expect a PM later today....








    Finished up 6 x LS20's over the last 2 days.
    3 of them had Frystormer's very cool GDuP upgrade already done and were in for new emitters.
    It's really something to see the XP-G on high!
    After doing 5 CPFers lights I finally got to my personal LS20 late tonight.
    Removed the cool tinted XP-G and replaced it with a neutral, and swaped out the stock driver for a Flupic.
    While I was at it, the 3mm LED's were swapped out for UV's...just for the hell of it.
    Now, that I had the chance to use a Ti McClicky PD pak for the LS20, I really want one for myself!........it does make switching between levels much easier.
    Gotta get some sleep now...
    Flashlight Modifications available upon request
    "I have to go return some video tapes." -Patrick Bateman



  26. #26
    Flashaholic* stoli67's Avatar
    Join Date
    Jul 2010
    Location
    Sydney Austalia
    Posts
    866

    Default Re: McGizmo LS20 XP-G Update

    DaFabricata,

    where is that thread with the LS20 upgrade to an XML and XPG? Can't find it...

    Your Inbox is full BTW.... wanted to talk to you about a little LS20 upgrade for me!
    Currently into SPYs....
    My Lights In Detail

  27. #27
    *Flashaholic* fyrstormer's Avatar
    Join Date
    Jul 2009
    Location
    Northern VA, USA
    Posts
    5,705

    Default Re: McGizmo LS20 XP-G Update

    Three of them had the Centauri mod? Wow. Those little guys get around. If I had any sense I'd keep track of how many I've done. I want to say it's approaching ten now.

    How does the driver behave with the XP-G emitter? It should need to recalibrate, but that only takes a few seconds. After that, how do the modes look?
    Last edited by fyrstormer; 01-09-2012 at 10:57 PM.

  28. #28
    Flashaholic* Obijuan Kenobe's Avatar
    Join Date
    Sep 2010
    Location
    Rotterdam, Netherlands
    Posts
    850

    Default Re: McGizmo LS20 XP-G Update

    I think it should be OK for me to post here that DaFabricata is--between a busy real life and a lack of reliable internet--for all practical purposes far...far...far away from CPF at the moment. I am sure there are those here who are closer to him, but I have recently had contact with him...so that's why I presume to post.

    I am not sure when he will be able to regularly post again. I believe his email can be found in his profile. However, I might suggest just sending one email and then waiting. I'd be willing to bet that if he is able to start taking modification requests...he will.

    I think he likes it. BTW...here is that thread, Stoli:

    http://www.candlepowerforums.com/vb/...shlights/page6

    obi
    Last edited by Obijuan Kenobe; 01-10-2012 at 02:32 AM.
    Stay sharp and bright for life.
    Have your knife and light handy at all times.
    Sent from a long time ago, in a galaxy far, far away.

  29. #29
    Flashaholic* stoli67's Avatar
    Join Date
    Jul 2010
    Location
    Sydney Austalia
    Posts
    866

    Default Re: McGizmo LS20 XP-G Update

    Thanks obi that is n amazing thread.

    The mods are crazy. I will send him an email and wait.
    Currently into SPYs....
    My Lights In Detail

  30. #30
    Flashaholic* stoli67's Avatar
    Join Date
    Jul 2010
    Location
    Sydney Austalia
    Posts
    866

    Default Re: McGizmo LS20 XP-G Update

    Still no reply... Is dafab modding anything anymore..... anyone know...
    Currently into SPYs....
    My Lights In Detail

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
