  1. #31
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    Sure, there are some in this thread pg 13.
    http://www.candlepowerforums.com/vb/...hrowers/page13

  2. #32
    Flashaholic* bigchelis's Avatar
    Join Date
    Oct 2008
    Location
    San Jose,CA
    Posts
    3,361

    Default Re: VaraPower Turbo

    Quote Originally Posted by Noobiwan View Post
    Do you know approximately how many lumens are lost when the LED is dedomed? How much lux is gained? Thanks in advance.

    I tested various SST-90, SST-50, XM-L, with and without DOME.

    Lux will increase 25%~~
    Lumens drop 30~40%

    For me personally the drop in lumens is just not worth it.

    The VaraPower Turbo is my next light. Lamdalights is just very busy but hopefully next month I can have my own.
    I am getting a special one made. Mine will be 16A or so. This is possible due to copper to LED bonding. I have an XR-E R2 EZ1000 pill with LED to copper bonding at 12 watts it stays nice and pure white tint. Yes, 12~13 watts out of XR-E R2 Lamdalights helped with bonding them.

    bigC
    Last edited by bigchelis; 02-10-2012 at 05:53 AM.
    Surefire 6P with Malkoff M60 simple, bright, efficient.

  3. #33

    Default

    Quote Originally Posted by bigchelis View Post
    I tested various SST-90, SST-50, XM-L, with and without DOME.

    Lux will increase 25%~~
    Lumens drop 30~40%

    For me personally the drop in lumens is just not worth it.

    The VaraPower Turbo is my next light. Lamdalights is just very busy but hopefully next month I can have my own.
    I am getting a special one made. Mine will be 16A or so. This is possible due to copper to LED bonding. I have an XR-E R2 EZ1000 pill with LED to copper bonding at 12 watts it stays nice and pure white tint. Yes, 12~13 watts out of XR-E R2 Lamdalights helped with bonding them.

    bigC
    I'm saving up for a new tv...but what great products varapower produces...Maybe someday.....

  4. #34
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    Quote Originally Posted by ScaryFatKidGT View Post
    Why does your Lamda hydra with narrow optics look like it has 3 times the output as the reflector version?

    If I wanted one of these for max throw what would I order? De-domed obviously to start with what about amps tint blah blah blah?

    And Id like to see a shot of there TK70 in there it seems to be more of a contender than the SR90

    I think my aim on the CW Hydra was a bit different than that on the NW one. The optics are more efficient at gathering the light. I've got a few other optics that I can test, medium and wider beam. But to my eyes the CW lights always appear less bright or more sterile feeling, but it comes down to personal preference, maybe genetics or something.

    I'd too like to see the VPT vs a TK70 and have thought about buying one. But as nice as it is, I think it'd be a let down. I believe the TK-70 a bit longer than the SR-90 at 15.9" v 13". If your carrying something the size and length of a cow femur, you'd expect it to be bright. For instance, the SR-90 is a really bright light, that is, iff you've not seen a VPT first. But the numbers say it all, basically the same lux as an SR-90 but with 7-800 or so more lumens. With a 3" v 4" reflector means more spill as well. I do have a Xtar D31 which is a 3MCE set up and does have some throw that I could get a distance shot maybe similar to a tk70.


    Here is a shot beamshot I did of the D31. I know it's more flood but it'd be the most similar thing that I would have at this time.



    Here is the animated SR90 and VPT .gif; barn is at 1038'


    If it's not too cold this weekend I'd like to take a few of the big lights out and take some pictures. Forecast was saying -20°F wind chill, least the LEDs will be overheating and keep my hands warm.

    I've got to say that this is one of those lights that you turn on and you wonder what cars half a mile away must be thinking when you are lighting up a field or the sky. This light is the king of LEDs though. I've got 7 other LED lights that would classify as 2000 OTF and it's no contest. In person the difference is more than you can see above because the spill extends further than you can tell. But this is the only light I've ever seen that really is comparable to HID.
    Last edited by Fresh Light; 02-10-2012 at 12:41 PM.

  5. #35

    Default Re: VaraPower Turbo

    Quote Originally Posted by bigchelis View Post
    I tested various SST-90, SST-50, XM-L, with and without DOME.

    Lux will increase 25%~~
    Lumens drop 30~40%

    For me personally the drop in lumens is just not worth it.

    The VaraPower Turbo is my next light. Lamdalights is just very busy but hopefully next month I can have my own.
    I am getting a special one made. Mine will be 16A or so. This is possible due to copper to LED bonding. I have an XR-E R2 EZ1000 pill with LED to copper bonding at 12 watts it stays nice and pure white tint. Yes, 12~13 watts out of XR-E R2 Lamdalights helped with bonding them.

    bigC
    I have tried searching for what this doming and de-doming means. Can someone point me to a FAQ or a post on what this entails?

    How does that pill differ than what the VPT uses normally?

    Thanks,
    JD

  6. #36

    Default Re: VaraPower Turbo

    +1 to what JudasD said...

    Also when you have a 'stock' VPT, how is the heat on high in normal mild temps? And what about the custom one your having built?
    I love overkill, but its kinda a bummer if you can only blast away for a couple minutes at a time.....
    Thanks!
    Tony

  7. #37

    Default Re: VaraPower Turbo

    I am also curious why there is the desire to use either 4C or 3D batteries and not just 4D batteries? the VPT sounds awesome. Just with there was a little more info about it. I realize it is a custom build, but getting information via secret-handshake is sort of a bummer.

    JD

  8. #38
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    Ok, quick dedoming is simply removing the hard lens that is attached to power LEDs. It takes care though not to damage the substrate or bonding wires. Anyways 4c cells are used in a 3d size M@G simply for convenience and portability over a 4D size. The 4D would provide the potential for a more Amps, but these lights are pushed pretty much to the max as they are. What info/secret handshake are you looking for? Like a link? Here you are, Kevin is excellent to work with http://www.lambdalights.com/index.html
    As far as color temps, I love the 4500k, but it in not available in the higher flux bins that the 5700 and 6500k ones are. The 6500 will provide higher lumen output and lux as mechanically measured, but from my experience the 5700 will appear brighter. So until Luminous comes out with their higher CRI SST90 and makes it available the 5700 is my personal preference.

  9. #39
    Flashaholic* saabluster's Avatar
    Join Date
    Oct 2006
    Location
    Garland Tx
    Posts
    3,545

    Default Re: VaraPower Turbo

    Quote Originally Posted by JudasD View Post
    Man, that VPT puts out alot of light. its difficult to tell the differences in the hotspot between the VPT and the deft. In person does the deft still throw further? There appears to be a ton of spill on the VPT from those pictures. Do you have any pictures where you are no zoomed in?

    Thanks,
    JD
    Well I wasn't there when these lights were being fielded but you can clearly see the DEFT of solidly beating them. Look at the trees behind the pole. Notice the saturation of the colors and how you can see things back there that cannot be seen with the other lights. The DEFT was designed for spotting at distances far exceeding the target of those photos.

    I'm blown away at how well the VPT did against the SR90. Looks to me that it beats it despite being much smaller which is very hard to do. Seems I will have to amend a recent post. Good job Lamda.

  10. #40
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    Quote Originally Posted by saabluster View Post
    Well I wasn't there when these lights were being fielded but you can clearly see the DEFT of solidly beating them. Look at the trees behind the pole. Notice the saturation of the colors and how you can see things back there that cannot be seen with the other lights. The DEFT was designed for spotting at distances far exceeding the target of those photos. I'm blown away at how well the VPT did against the SR90. Looks to me that it beats it despite being much smaller which is very hard to do. Seems I will have to amend a recent post. Good job Lamda.

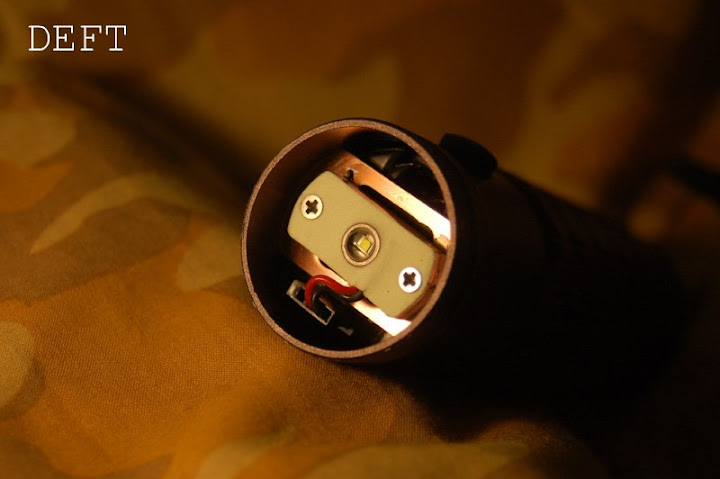

    Here they all are. No question the DEFT is the best thrower I have and the VPT is the best reflector LED light yet. The VPT with the aspheric, no reflector, looks like a tv projector image but brighter. I think that's what the sst LEDs are being used for in some applications. I think it really looks less bright than the image shows it to be. VPT is much better with the reflector, it would take an enormous lens to collimate that die.






























    Last edited by Fresh Light; 02-11-2012 at 01:14 PM.

  11. #41
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    There were 3 VPTs available, I know they are hard to get
    http://www.lambdalights.com/varaorders.html

  12. #42

    Default Re: VaraPower Turbo

    I would really love to see some beamshots of VPT domed 6,500 vs. VPT dedomed 6,500 vs. TK70. That would be awesome! I only ask for TK70 since that is the brightest light that i own and would love to see a VPT compared against it so i can see bright the VPT actually is.

    JD

  13. #43
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    While I am really happy that Olight and Fenix have produced industry leading output lights, but the lights that I've purchases from domestic manufacturers have been by far more impressive. Compare the Olight pic above with a large brass heat sink to the huge, 6.2oz, heat sink on the VaraPower lights. The production VPT had to cut down the Cu heat sink a small amount but was made up and more by the large Al finned connector. The VaraPower lights have over 30 levels so they can be used where super low light is desired and no strobe to skip over or think about, SR90 makes it available by double clicking but I consider it an unnecessary annoyance. But my opinion is that this is the most significant LED light that I have yet to see, it is really that good.













    Last edited by Fresh Light; 02-14-2012 at 09:28 AM.

  14. #44
    Flashaholic* BLUE LED's Avatar
    Join Date
    Apr 2008
    Location
    UK
    Posts
    1,248

    Default Re: VaraPower Turbo

    Quote Originally Posted by tolkaze View Post
    I noticed this a few days ago on the Lambdalights page, but haven't heard anything about it. I did a search, but didn't turn up anything...


    Any details? anybody going to get one?

    All I have found is a few images from another forum, and a few stats

    5700K with LED dome lens in place:
    115,000 lux @ 12.84 Amps

    6500K with LED dome lens removed:
    165,000 lux @ 11.60 Amps
    I have the new VPT with the dome removed. It is a staggering 200,000 lux. I couldn't believe it, so I took measurements 7 times. I was going to buy the Olight SR90, but the Varapower Turbo caught my eye. I liked that it was smaller and used batteries that I could easily replace. The control ring is especially nice with lots of different outputs. This monster thrower makes me smile. I really like high output throwers. My unit has a surprising amount of side spill and lights up a large area. I thought that would be the case for the dome version. This is one of my best buys.
    Last edited by BLUE LED; 02-18-2012 at 10:46 AM.

  15. #45
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    200k lux, that is amazing, do you have any other lights for comparison with your meter? What is the Amps? You'll have to get a beamshot at the longest distance you can find! I think it's funny people ask about the runtime on high. Really it's prob just 3 to 4 min before it's going to get too hot to hold. But i don't think i've ever had it at high more than just a min or so at a time. Thanks

    BTW I do have the 75mm DX glass aspheric and it is a bit thicker than the one that I have that Saab made for the DEFT. The glass one does work and could be good but the DEFT lens and spacer ring gave a significantly tighter brighter spot.

  16. #46
    Flashaholic* djans1397's Avatar
    Join Date
    Jul 2007
    Location
    Cut Bank, Montana
    Posts
    730

    Default Re: VaraPower Turbo

    So can you just simply screw on the DEFT lens/head onto the VPT light?

    I just stumbled onto this thread and WOW! What a hell of a light! I've been wanting a SR90 but after seeing the VPT... this is the one I want! I plan on ordering one now, but have a few questions...

    I get the dedoming deal, more lux but less lumens, but I don't really understand what the pros/cons are. Is it brighter? throw further? etc. I guess I've always been a little confused on what lux vs lumens really means.

    Thanks,
    Dan

    Quote Originally Posted by Fresh Light View Post
    200k lux, that is amazing, do you have any other lights for comparison with your meter? What is the Amps? You'll have to get a beamshot at the longest distance you can find! I think it's funny people ask about the runtime on high. Really it's prob just 3 to 4 min before it's going to get too hot to hold. But i don't think i've ever had it at high more than just a min or so at a time. Thanks

    BTW I do have the 75mm DX glass aspheric and it is a bit thicker than the one that I have that Saab made for the DEFT. The glass one does work and could be good but the DEFT lens and spacer ring gave a significantly tighter brighter spot.
    For you were once darkness, but now you are light in the Lord. Live as children of light (Ephesians 5:8 NIV)

  17. #47

    Default Re: VaraPower Turbo

    Quote Originally Posted by JudasD View Post
    I would really love to see some beamshots of VPT domed 6,500 vs. VPT dedomed 6,500 vs. TK70. That would be awesome! I only ask for TK70 since that is the brightest light that i own and would love to see a VPT compared against it so i can see bright the VPT actually is.

    JD
    Ditto. What I really want to see/know:

    VPT vs TK70
    VPT vs SR92
    Domed vs de-domed
    How long can you have it on at its highest output?

    Kind of crazy I went from never wanting a lighter larger than my TK35 to saying "you know, I can make something like this work" just because it appears to be so insanely bright.

  18. #48

    Default Re: VaraPower Turbo

    Quote Originally Posted by BLUE LED View Post
    I have the new VPT with the dome removed. It is a staggering 200,000 lux. I couldn't believe it, so I took measurements 7 times. I was going to buy the Olight SR90, but the Varapower Turbo caught my eye. I liked that it was smaller and used batteries that I could easily replace. The control ring is especially nice with lots of different outputs. This monster thrower makes me smile. I really like high output throwers. My unit has a surprising amount of side spill and lights up a large area. I thought that would be the case for the dome version. This is one of my best buys.
    200K is insane! did you go with a 6500 or a 5700? I have a 6500 coming in with the dome still on. Kevin says he got a 130k on it. I cant wait for it to show up!

  19. #49
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    I am partial to the warmer tints, 4500k is great, but since it to my knowledge is not available in a N or P flux bin, I go with the 5700 since it is, along with the 6500k. The 6500 does put out higher lumens and that is great for some people but I think a hundred or two lumens out of more than 2000 is acceptable. I've thought about getting a TK70, but the 3XML Hydras put out way more light, more floody but they are only 2D mag size compared to the 16 inch TK70.
    This VPT 5700k is my 4th SST-90 Lambda light and it is by far the brightest of any light that I have owned. The other SST-90 VaraPower lights are the 6500k domed and another Dedomed and a 5700 Dome intact. The 6500k lights do put out more measurable light, but to me they are not as bright. I'm not sure what color temp the SR90 uses, but usually they uses the highest output so prob the 6500k.
    I think others that own one of these things would agree that after you have used one of these everything else seems weak. Not to mention the 30 or so power settings so it is useable without messing up night vision.

  20. #50
    Flashaholic* BLUE LED's Avatar
    Join Date
    Apr 2008
    Location
    UK
    Posts
    1,248

    Default Re: VaraPower Turbo

    Quote Originally Posted by JudasD View Post
    200K is insane! did you go with a 6500 or a 5700? I have a 6500 coming in with the dome still on. Kevin says he got a 130k on it. I cant wait for it to show up!
    I went for the 6500k without the dome for more throw. You do lose some lumens, but the extra lux is compensation. It all comes down to personal preference. The classic debate lux over lumens.

  21. #51
    Flashaholic* BLUE LED's Avatar
    Join Date
    Apr 2008
    Location
    UK
    Posts
    1,248

    Default Re: VaraPower Turbo

    I tested the VPT Dedome 6500k with 4x Powerex 5000mAh C cells. It started at 199,980 lux. I know it's a little down on my first 7 tests which showed 200,000 lux. I used a stop watch and ran it on maximum output for 12 minutes. The new aluminium heat-sink really makes a difference. The lux after 12 minutes was 144,600 lux. I could have gone on longer, but I wanted to preform a test test with the 3xD Powerex 22,000mAh. I ran this for 8 minutes and it was only warm.

  22. #52
    Flashaholic* BLUE LED's Avatar
    Join Date
    Apr 2008
    Location
    UK
    Posts
    1,248

    Default Re: VaraPower Turbo

    Some lux readings for a few of my other lights.
    VPT Dedome 6500k 4xC cells 200,000 lux
    VPT Dedome 6500k 3xD cells 138,210 lux
    Wolfeyes 24w Boxer HID 83,140 lux
    Wolfeyes 10w Boxer HID 69,800 lux
    Dereelight DBS-T EZ900 R2 2MT-S, 64,300 lux
    Deft EDC 39,100 lux
    Deft EDC LR 50,300 lux
    Crelant 7G5 56,800 lux
    Olight M3X 55,200 lux
    Eagletac M3C4 XM-L 41,000 lux
    Olight SR92 44,310 lux

  23. #53
    Flashaholic* BLUE LED's Avatar
    Join Date
    Apr 2008
    Location
    UK
    Posts
    1,248

    Default Re: VaraPower Turbo

    I have a Canon EPS 5D mark II, but have the artistic talent of a iPhone 4S switched off. Plus my digital multimeter is no longer working. I will have to buy another one along with a tripod and ask friends for advice on photography techniques.

    I will try to make time to preform some detailed tests, as my long awaited Crelant 7G5 V2 is still on transit to me.
    Last edited by BLUE LED; 02-19-2012 at 06:06 AM.

  24. #54

    Default Re: VaraPower Turbo

    Out of curiosity, what type of light meter are you using?

    JD

  25. #55
    Flashaholic* The_Driver's Avatar
    Join Date
    Jan 2010
    Location
    Germany
    Posts
    789

    Default Re: VaraPower Turbo

    Quote Originally Posted by Fresh Light View Post
    I am partial to the warmer tints, 4500k is great, but since it to my knowledge is not available in a N or P flux bin, I go with the 5700 since it is, along with the 6500k. The 6500 does put out higher lumens and that is great for some people but I think a hundred or two lumens out of more than 2000 is acceptable. I've thought about getting a TK70, but the 3XML Hydras put out way more light, more floody but they are only 2D mag size compared to the 16 inch TK70.
    This VPT 5700k is my 4th SST-90 Lambda light and it is by far the brightest of any light that I have owned. The other SST-90 VaraPower lights are the 6500k domed and another Dedomed and a 5700 Dome intact. The 6500k lights do put out more measurable light, but to me they are not as bright. I'm not sure what color temp the SR90 uses, but usually they uses the highest output so prob the 6500k.
    I think others that own one of these things would agree that after you have used one of these everything else seems weak. Not to mention the 30 or so power settings so it is useable without messing up night vision.
    As is noted here, 4500k SST-90s are in fact avalaible in Bin N . I'm thinking of getting one during the next few months .


    By the way has anyone found a diffusor for the turbo?
    Last edited by The_Driver; 02-19-2012 at 02:00 PM.

  26. #56
    Flashaholic Fresh Light's Avatar
    Join Date
    Mar 2009
    Location
    Stratford WI
    Posts
    373

    Default Re: VaraPower Turbo

    Quote Originally Posted by The_Driver View Post
    As is noted here, 4500k SST-90s are in fact avalaible in Bin N . I'm thinking of getting one during the next few months .


    By the way has anyone found a diffusor for the turbo?
    Well that's the new Bin N since they changed their binning. The old Bin N is now P. P is the top flux bin. But like you said they are available in Bin N and still very bright.

  27. #57
    Flashaholic
    Join Date
    Dec 2003
    Location
    Los Angeles
    Posts
    374

    Default Re: VaraPower Turbo

    Quote Originally Posted by djans1397 View Post
    I get the dedoming deal, more lux but less lumens, but I don't really understand what the pros/cons are. Is it brighter? throw further? etc. I guess I've always been a little confused on what lux vs lumens really means.
    Dan, put very simply, the lux rating is a measurement that it is of primary importance to us flashaholics when we're trying to determine how far downrange a light can effectively project its beam. By using a lightmeter, a measurement of the luminous intensity at a single point in the brightest part of the flashlight's beam (usually the center of the hotspot) is taken. It tells us nothing more, not even how large in area the hotspot might be at that distance - only how intense the light within the hotspot is at a single point in space at a given distance.

    Of course the taking of lux readings needn't be restricted to just the area within the hotspot. You could just as easily measure the intensity of the spill portion of the beam by aiming the hotspot slightly away from the lightmeter. But nine times out of ten, flashaholics want that hotspot centered on the light meter so as to be able to estimate the potential throw of the light.

    The lumen rating, on the other hand, is simply a cumulative measurement of the total amount of light that a flashlight (or in some cases its emitter) is putting out in all directions. A specialized sphere is the preferred device for measuring lumens because it, unlike a lightmeter, is capable of recording luminous intensity at many points simultaneously, effectively capturing and measuring all the photons that are being emitted out the end of the flashlight.

    Thus it is, that through the use of larger reflectors, optics, aspherical lenses, etc., you can easily have a situation in which one light with a tightly focused beam and high lux rating is easily able to out throw another light producing many more lumens, but with a less focused beam.

    Take the example of a mini maglite. If I turn it on and adjust the reflector for the tightest beam, I could shine that hotspot on a lightmeter several feet away and maybe get a lux reading of 1000 cd (an estimate made strictly for illustrative purposes). Now, if I completely unscrew and remove the head of the flashlight using it in candle mode, I may only get a max lux reading of 50 cd at the same distance. In both instances we have the exact same batteries powering the exact same bulb putting out exactly the same amount of emitter lumens. But the luminous intensity is drastically reduced in the second instance because there is no reflector to focus the light energy.
    Last edited by Bronco; 02-20-2012 at 07:02 AM.
    --Semper Fi--
    Bill

  28. #58
    Flashaholic* The_Driver's Avatar
    Join Date
    Jan 2010
    Location
    Germany
    Posts
    789

    Default Re: VaraPower Turbo

    Quote Originally Posted by Bronco View Post
    Dan, put very simply, the lux rating is a measurement that it is of primary importance to us flashaholics when we're trying to determine how far downrange a light can effectively project its beam. By using a lightmeter, a measurement of the luminous intensity at a single point in the brightest part of the flashlight's beam (usually the center of the hotspot) is taken. It tells us nothing more, not even how large in area the hotspot might be at that distance - only how intense the light within the hotspot is at a single point in space at a given distance.

    Of course the taking of lux readings needn't be restricted to just the area within the hotspot. You could just as easily measure the intensity of the spill portion of the beam by aiming the hotspot slightly away from the lightmeter. But nine times out of ten, flashaholics want that hotspot centered on the light meter so as to be able to estimate the potential throw of the light.

    The lumen rating, on the other hand, is simply a cumulative measurement of the total amount of light that a flashlight (or in some cases its emitter) is putting out in all directions. A specialized sphere is the preferred device for measuring lumens because it, unlike a lightmeter, is capable of recording luminous intensity at many points simultaneously, effectively capturing and measuring all the photons that are being emitted out the end of the flashlight.

    Thus it is, that through the use of larger reflectors, optics, aspherical lenses, etc., you can easily have a situation in which one light with a tightly focused beam and high lux rating is easily able to out throw another light producing many more lumens, but with a less focused beam.

    Take the example of a mini maglite. If I turn it on and adjust the reflector for the tightest beam, I could shine that hotspot on a lightmeter several feet away and maybe get a lux reading of 1000 cd (an estimate made strictly for illustrative purposes). Now, if I completely unscrew and remove the head of the flashlight using it in candle mode, I may only get a max lux reading of 50 cd at the same distance. In both instances we have the exact same batteries powering the exact same bulb putting out exactly the same amount of emitter lumens. But the luminous intensity is drastically reduced in the second instance because there is no reflector to focus the light energy.
    Conclusion:
    bigger, deeper reflector => same lumens but more throw => great => varapower turbo really great

  29. #59
    Flashaholic* bigchelis's Avatar
    Join Date
    Oct 2008
    Location
    San Jose,CA
    Posts
    3,361

    Default Re: VaraPower Turbo

    Quote Originally Posted by BLUE LED View Post
    Some lux readings for a few of my other lights.
    VPT Dedome 6500k 4xC cells 200,000 lux
    VPT Dedome 6500k 3xD cells 138,210 lux
    Wolfeyes 24w Boxer HID 83,140 lux
    Wolfeyes 10w Boxer HID 69,800 lux
    Dereelight DBS-T EZ900 R2 2MT-S, 64,300 lux
    Deft EDC 39,100 lux
    Deft EDC LR 50,300 lux
    Crelant 7G5 56,800 lux
    Olight M3X 55,200 lux
    Eagletac M3C4 XM-L 41,000 lux
    Olight SR92 44,310 lux



    Blue LED,
    Very nice numbers and good info. Thanks.


    I used to use the AEMC CA817 lux meter and take my readings at 5M and calculate back to 1M. For the bigger lights I think 10M may give better numbers.

    When I had the DEFT FTP, I got 60K lux out of it when I actually measured at 1M. When I measured at 5M and did the calculation to 1M it was 98K lux. I think I needed to measure at 15M and calcualte back to 1M to get the 120K lux others got. I just ran out of space.

    My DEFT EDC got me 35K lux

    You have an Aluminum Heatsink on that VARAPower?
    I show almost linear OTF lumens with copper to LED bonding but with aluminum its not so.

    bigC
    Last edited by bigchelis; 02-20-2012 at 10:47 AM.
    Surefire 6P with Malkoff M60 simple, bright, efficient.

  30. #60
    Flashaholic* The_Driver's Avatar
    Join Date
    Jan 2010
    Location
    Germany
    Posts
    789

    Default Re: VaraPower Turbo

    Quote Originally Posted by bigchelis View Post
    Blue LED,
    ...

    You can have Aluminum Heatsink on that VARAPower?
    I show almost linear OTF lumens with copper to LED bonding but with aluminum its not so.

    bigC
    The turbo has a 0,75in aluminium extender which allows for a longer copper heatsink on the inside and a better heat-transfer to the air on the outside (here).

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
