Thread: 8000 Lumen Video Light

  1. #1
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default 8000 Lumen Video Light

    Using 8XML with Taskled Driver and 18 18650 (6S 3P) and the new TLS 3.5" OD (3.0" ID) canister. Canister pic shows 2.5"OD can vs the new 3.5"OD. LEDs will run 2 strings of 4 in series. Vf is about 12 volts at 6 amps! Will use a 6S LiIon pack by 3 parallel and PCB with balancing function.
    [IMG][/IMG]

    [IMG][/IMG]
    Last edited by 350xfire; 04-29-2012 at 10:17 PM.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  2. #2
    Flashaholic* Packhorse's Avatar
    Join Date
    Nov 2007
    Location
    New Zealand
    Posts
    1,897

    Default Re: 8000 Lumen Video Light

    8000 lumen? is that all? Pfffffft LOL

    Any issue with PWM and frame rate with the driver? As in flickering frames?

  3. #3

    Default Re: 8000 Lumen Video Light

    Quote Originally Posted by Packhorse View Post
    8000 lumen? is that all? Pfffffft LOL

    Any issue with PWM and frame rate with the driver? As in flickering frames?
    I've not seen this with any TaskLED drivers, and I've used them extensively.
    Regards,
    Damien Siviero
    http://damiensiviero.com

  4. #4
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    So far I have only hooked them up directly to the lab power supply. I will have to hook up the driver and see. George did make a run of high voltage drivers (30+ volts) which I was planning on using with 8 XML in series, but due to the cost of PCBs ($75+) with balancing function for 8S battery config, I decided to stick with a 6S pack. Only about $20 for that PCB. I will let you guys know. Those LEDs do get plenty HOT out of water and FAST.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  5. #5
    Enlightened
    Join Date
    Jan 2010
    Location
    Quebec, Canada
    Posts
    85

    Default Re: 8000 Lumen Video Light

    you should use a thermistor switch in the head to avoid Poof &

    nice work !

  6. #6

    Default Re: 8000 Lumen Video Light

    Looks like nice clean work so far!

    Whats the cost on your 3in can?

  7. #7
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    [IMG][/IMG]

    18 x 18650 battery pack 6S3P to power up the 8000 lumen light
    Last edited by 350xfire; 05-25-2012 at 08:38 PM.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  8. #8
    Flashaholic* Klem's Avatar
    Join Date
    Mar 2010
    Location
    Perth Australia
    Posts
    581

    Default Re: 8000 Lumen Video Light

    Is this the battery you wil be using? Rectangular shape in your circular canisters. Is there much excess space/unwanted buoyancy?

    I'm wondering if 3 rows of 6 in a circle would be more economical for bulk/buoyancy than a rectangle.

  9. #9
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    Well, 3 rows of 6 makes for a longer canister! I was trying to make it shorter. Buoyancy was not a big concern on my end. There is some space that one can use to put some weight in the canister.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  10. #10
    Flashaholic* Klem's Avatar
    Join Date
    Mar 2010
    Location
    Perth Australia
    Posts
    581

    Default Re: 8000 Lumen Video Light

    'Like fitting a square peg in a round hole!'

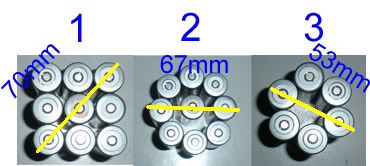

    Just did some 'what if's' on a couple of configurations; using the height of each battery as 65mm, plus a 5mm gap for insulating and soldering between layers, plus 5mm on each end.



    Option 1 (rectangular 2 layers)...558,250 cubic mm
    Option 2 (circular 2 layers)...511,425
    Option 3 (circular 3 layers)...474,520

    Note; This does not include whatever volume your plug and protection circuit will need.

    Of course this is all moot unless you can dictate the ID/OD of the canister. Also moot if your canister is negatively buoyant regardless of battery configuration.

    ...I just hate having to add useless weight to a torch to keep it down.

  11. #11
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    Klem:
    I agree with you... The main issue was that, as you noted, I did not have a say in canister diameter. I have those made out of clear PVC and got stuck with 3.5" ID. So ues, ended up with some unused volume. I do like option 2 and thought about it but looked to be a bit harder to construct so I decided to make it easier to my battery guy.

    I will also have to see if the can is negative with all those cells. My belief is that it may be a bit on the + side.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  12. #12

    Default Re: 8000 Lumen Video Light

    In any case you can forget flying with that sucker ;-)

  13. #13
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    Quote Originally Posted by Codiak View Post
    In any case you can forget flying with that sucker ;-)
    lol, yeah, may be hard to convince TSA...
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  14. #14

    Default

    What is the watt-hr capacity of the pack?

  15. #15
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    6000mah at 22.2 volt. I was hoping for about 7000-7500 but this will work
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  16. #16
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    OK, so I finally got the head assembled, finishing up tomorrow. MY impression is that there is definitely not enough throw on it. It is a bright son of a gun but all flood and really wide. I think with 2 heads holding the DX 3XML module with reflector it will work very well, but by itself just doesn't seem to me (above water) to be enough... So for now I will say a combination of reflectored and reflectorless may be the trick.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.

  17. #17
    Unenlightened
    Join Date
    Jun 2012
    Location
    Perth, Western Australia
    Posts
    10

    Default Re: 8000 Lumen Video Light

    This monster looks intense! Nice work!

  18. #18

    Default

    Quote Originally Posted by 350xfire View Post
    OK, so I finally got the head assembled, finishing up tomorrow. MY impression is that there is definitely not enough throw on it. It is a bright son of a gun but all flood and really wide. I think with 2 heads holding the DX 3XML module with reflector it will work very well, but by itself just doesn't seem to me (above water) to be enough... So for now I will say a combination of reflectored and reflectorless may be the trick.
    Won't the reflector create a hot spot?

  19. #19
    Flashaholic* 350xfire's Avatar
    Join Date
    Aug 2008
    Location
    Texas
    Posts
    1,229

    Default Re: 8000 Lumen Video Light

    The DX 3XML reflector creates a really large floody spot. I think that willk provide the throw. The ones without reflectors will provide the flood.
    http://tlslights.com/ your source for quality affordable dive lights, Mag-lite conversions and weapon lights. Now a Federal Firearms Dealer.
