    Default UltraFire 9T6 (with 9 x XM-L) Review (2-3x 18650 or 26650)

    The UltraFire 9T6 is the second one up for this set of three reviews of DX lights. Quoted as having 7200lm output, this is the highest output LED light listed on DX. With a 65W HID I have measuring in at 3560lm, 7200lm is a tall order, so how close will it get?

    (The first review in this series can be found here.)





    Initial Impressions:

    Much as we should not judge a book by its cover, the UltraFire 9T6’s packaging is a let down. The lack of proper protection meant that the extension tube was dented out of the box. Although I was able to ‘ease’ this back into shape, it is not a good start.

    Moving on from this initial disappointment the 9T6 is a substantial light. As the battery tube takes 26650s the tube diameter is equivalent to one that takes C-cells, making this more of a handful than the more common 18650 size tube. Somehow it doesn’t seem right not to include the extension tube and once in place the 9T6 takes you back to the days of the 4 C-cell Maglite, but with substantially different performance!

    Even beyond the 7200lm quoted by the manufacturer (and so listed by DX), the 9T6 claims 9500lm on the side of the battery tube. 9500lm! – better just ignore that; it is a pity that a more realistic claim is not made for the output.

    Still, it has 9 XM-L emitters, this should be interesting.





    What is in the box:

    The outer packaging.



    Inside the box the components are wrapped in a thin bubble wrap.



    During transit, the package has been dropped and due to the lack of padding, the end of the extension tube hit the head of the light denting the tube wall inwards.

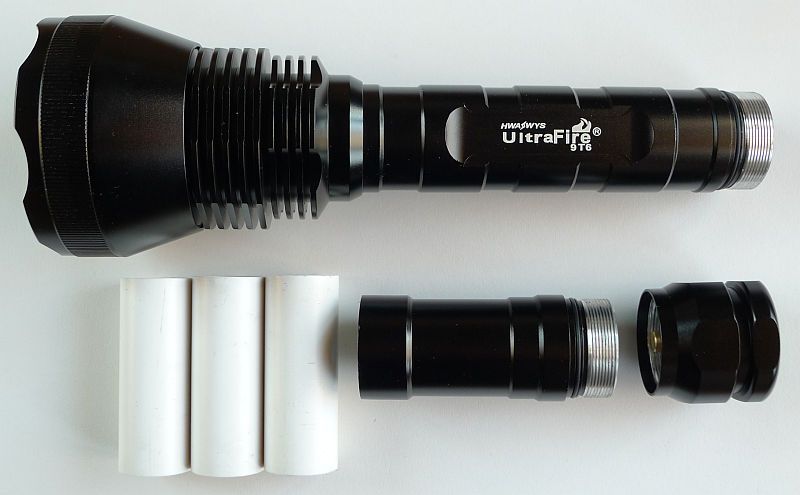

    In the box are the main light head and battery tube, the extension tube, tail cap and plastic tubes to allow 18650 cells to be used.





    Taking a closer look and looking inside:

    So, the main reason you might want this light is the massive output that is claimed. To achieve big output, this light has a big head with 9 XM-L emitters in a compound reflector.

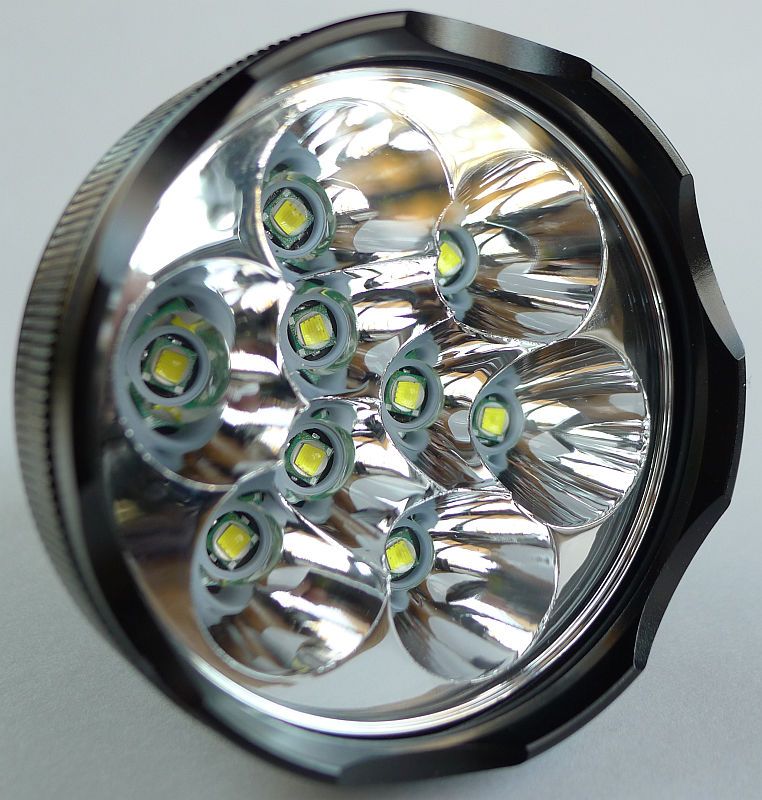

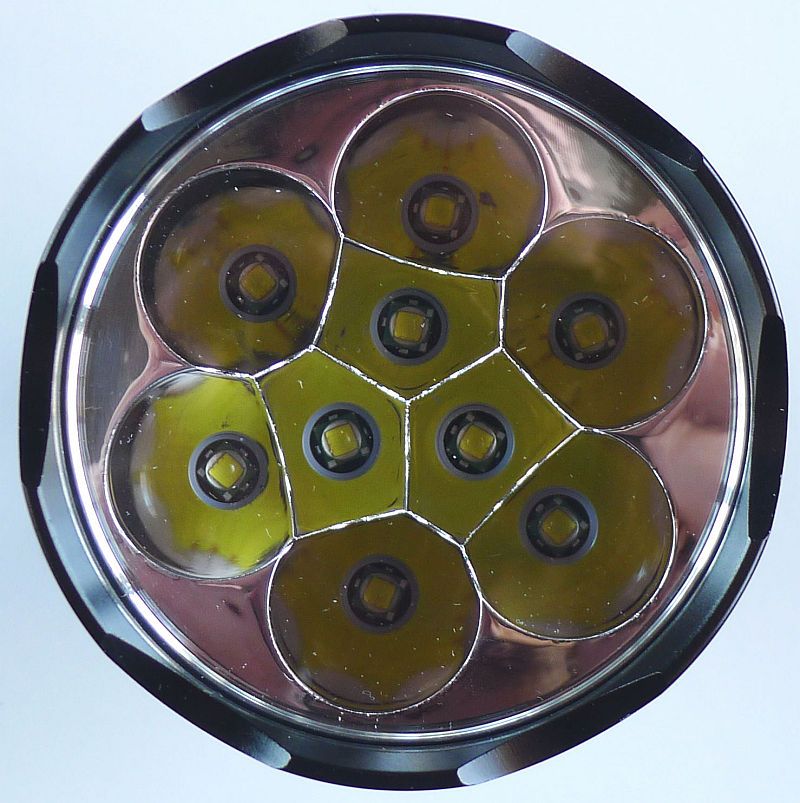

    Looking dead on into the lens, the reflector looks a bit like a few soap bubbles clumped together. Each of the outer ring of 6 emitters has a reflector with alternately merges with one or two of the inner three emitter’s reflectors. There is a pattern, but it looks slightly dishevelled.

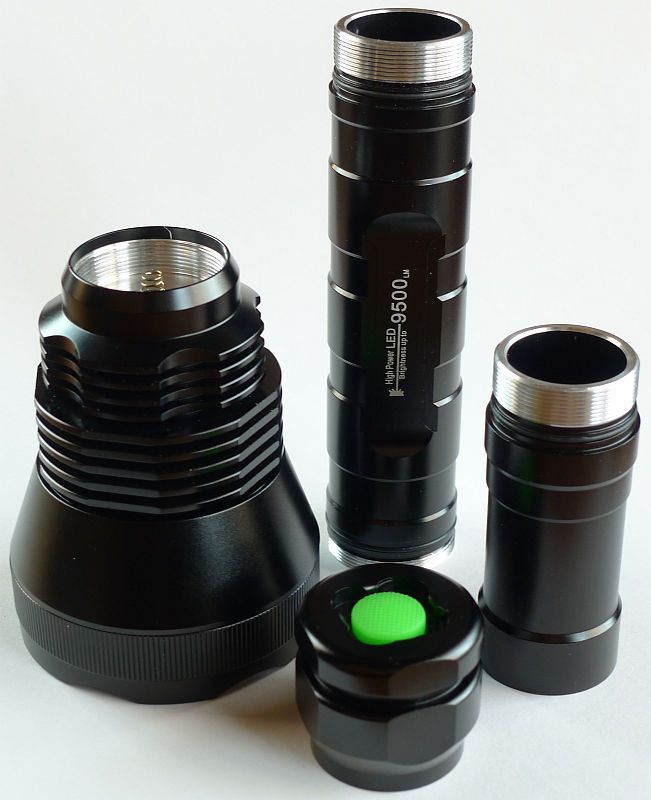

    Broken down into the main components.

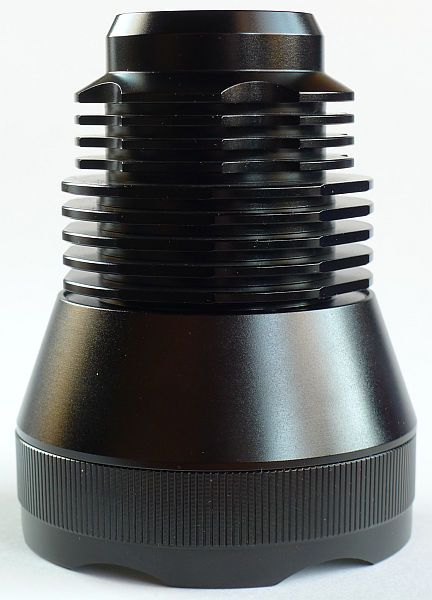

    The cooling fins.



    The graphics are printed onto rather than etched into the surface.

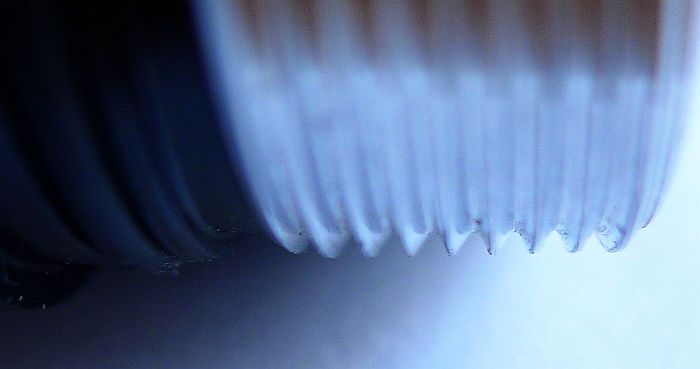

    Threads look asymmetrical, but are cut cleanly enough.

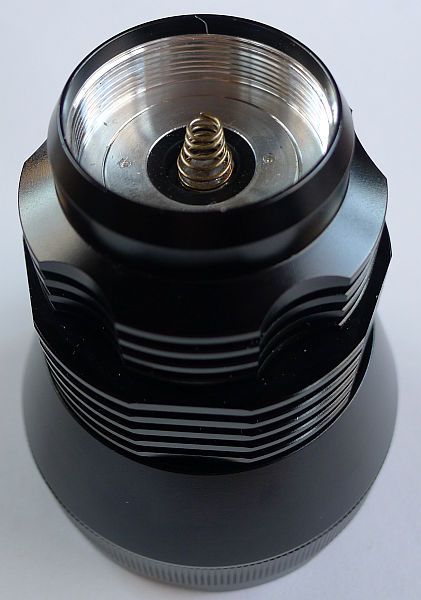

    The positive terminal in the head is a large spring.

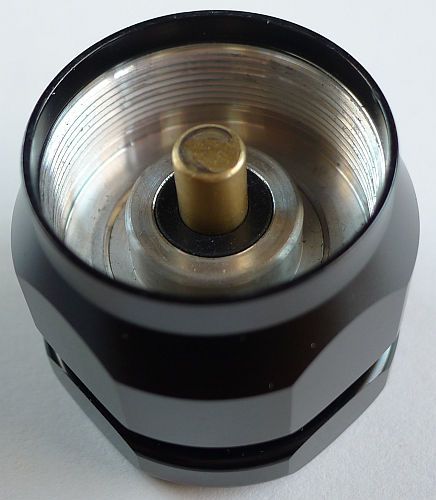

    The tail-cap contact is a large brass spring loaded plunger. A standard reverse clicky switch.

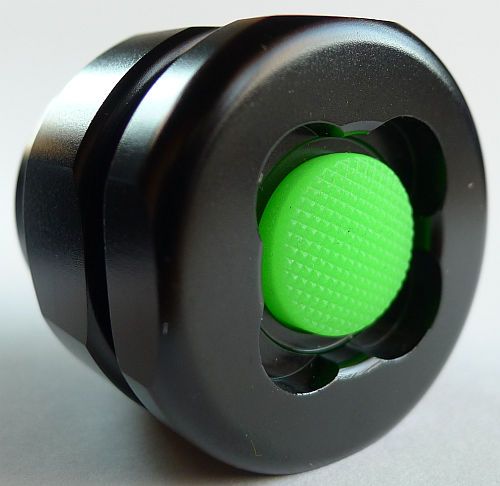

    The tail-cap switch boot is made from GITD material.

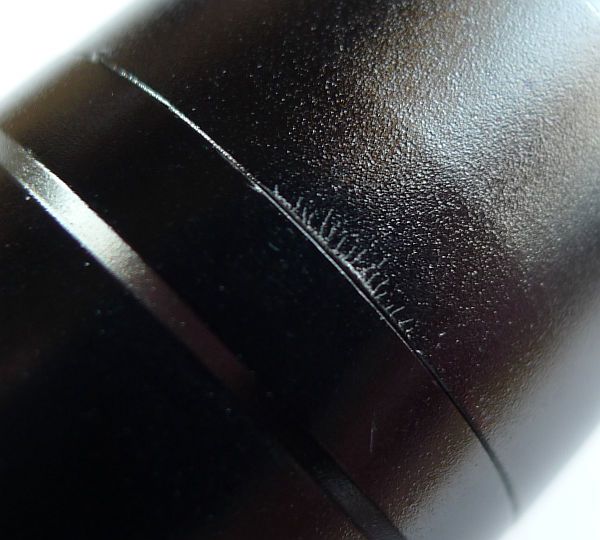

    After repairing the dent to the extension tube, the surface finish has a few fine cracks visible. This surface finish looks to be paint or lacquer rather than anodising.

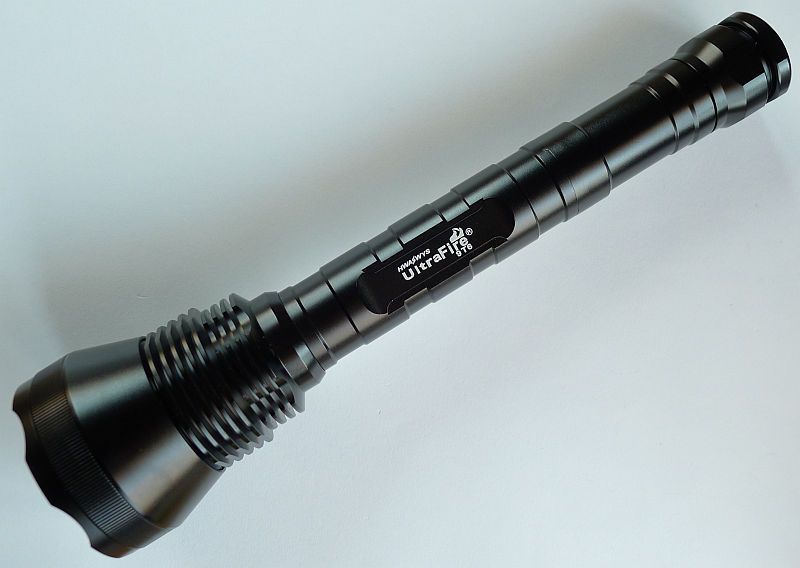

    The 9T6 fully assembled.





    Modes and User Interface:

    The UltraFire 9T6 has a typical five mode driver with memory. The switch is a reverse clicky action.

    Click-on to the last used mode, then half press the switch briefly to change mode. Modes are High, Medium, Low, Strobe, SOS back to High etc.

    As long as you leave a second or two between turning it off and on again, it will remember the last used mode.



    Batteries and output:

    The UltraFire 9T6 has four possible battery configurations:
    2x 18650 or 2x26650 – without the extension tube
    3x18650 or 3x26650 - with the extension tube

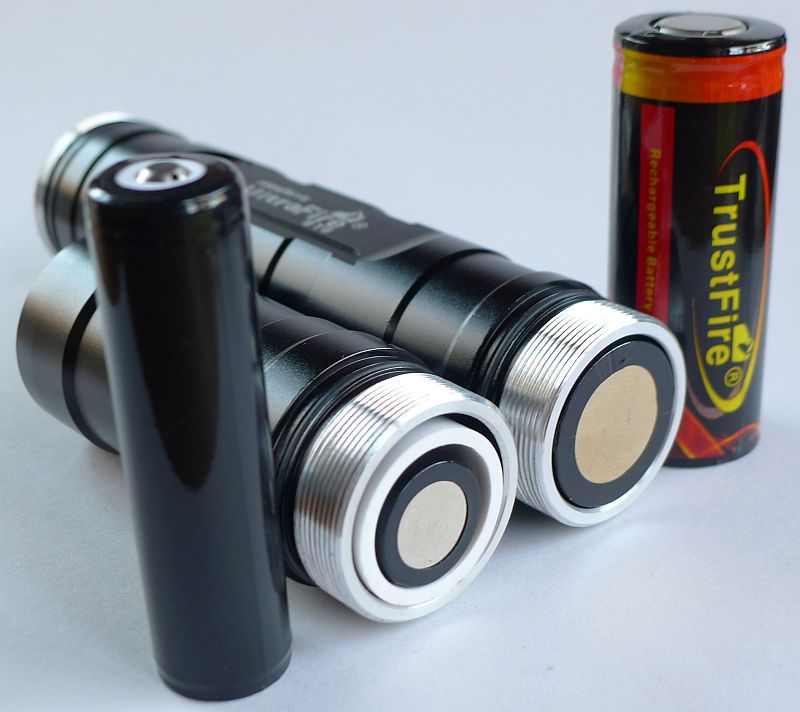

    The protected 26650 cells available on DX seem a little longer than even the longest protected 18650s so when loaded with 3 cells, the tailcap does not screw all the way down, and it is easy to dent the end of the cells slightly. As the threads are bare, there are no issues with operation, but even with the springs in the positive and negative terminals, there is not enough movement to fully accommodate 26650s

    26650 cells are a good fit in the battery tube, but even with the adapters provided, 18650s are a loose fit. However having these more common cells as an option gives far greater flexibility.




    So now down to the crux of the matter – just how bright is this?

    To measure actual output, I built an integrating sphere. See here for more detail. The sensor registers visible light only (so Infra-Red and Ultra-Violet will not be measured).

    Please note, all quoted lumen figures are from a DIY integrating sphere, and according to ANSI standards. Although every effort is made to give as accurate a result as possible, they should be taken as an estimate only. The results can be used to compare outputs in this review and others I have published.

    The output measurements were made using 26650 cells.

    Starting off with 2 x 26650 (and also confirmed with 2x 18650)

    UltraFire 9T6 output mode 2 x 26650 I.S. measured ANSI output Lumens PWM frequency (Hz)
    High (after cleaning the threads and contacts) 233 0
    Medium 111 92
    Low 38 92

    Whoa! A 9 XM-L light claiming 9500lm giving 233lm on high. Initially I thought this was a fault, but no, it is exactly what this light gives on 2 cells.

    Better move swiftly along now to use the extension tube and load up 3 x 26650s

    UltraFire 9T6 output mode 3 x 26650 I.S. measured ANSI output Lumens PWM frequency (Hz)
    High (after cleaning the threads and contacts) 3717 185
    Medium 1267 185
    Low 477 185

    Strobe frequency is 9.6Hz

    Peak current draw on high with 3 x 26650 cells (12.47V) is 2.28A

    Well, that is more like it. 3717 ANSI lumens available instantly (beating a 65W HID). So not the 7200lm or 9500lm claims, but 3717lm is still a lot from a production UltraFire light. Not bad at all.

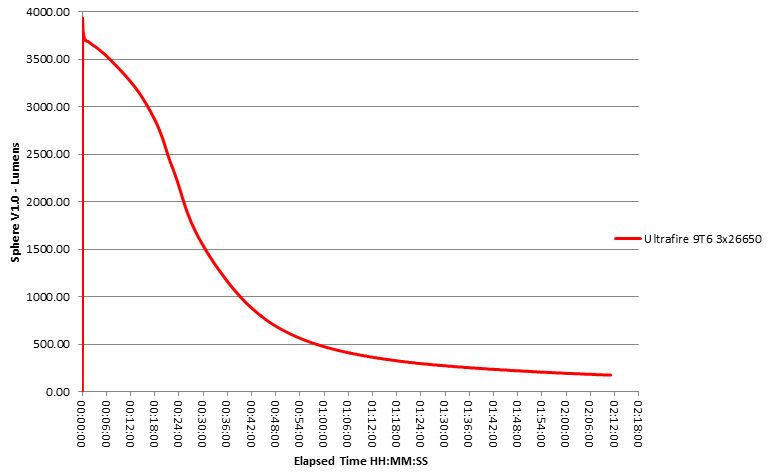

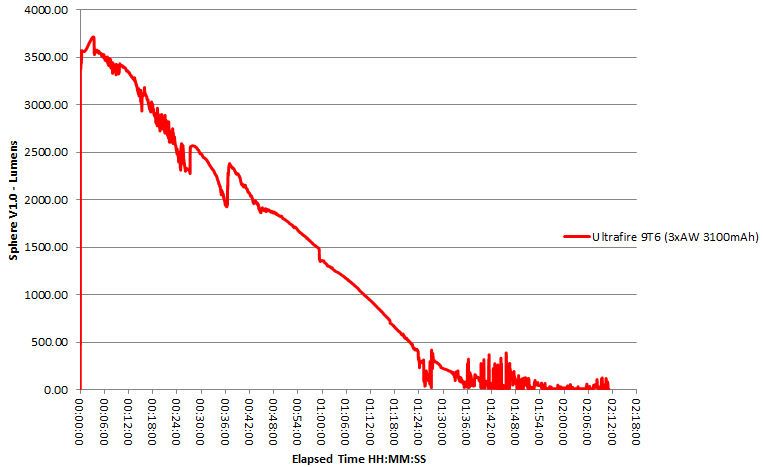

    For the first runtime graph the 26650s from DX were used. During the runtime, the head reached 46º C under a strong cooling fan, so a lot of heat is being dissipated.



    The output does steadily decline, roughly halving after only 28minutes, continuing to decline until it hits about 500lm after an hour of constant running. No evidence of any regulation.

    After running the 26650 runtime trace I decided to try it on good quality 18650 so loaded up three of AWs 3100mAh cells.

    The results were strange with a lot of flickering.



    Thinking this was some sort of contact issue I cleaned all the contacts again (as I always check and clean contacts before runtime tests) and ran it again. This time it was even more uneven, though had a slightly better total output over the test period.



    Odd.

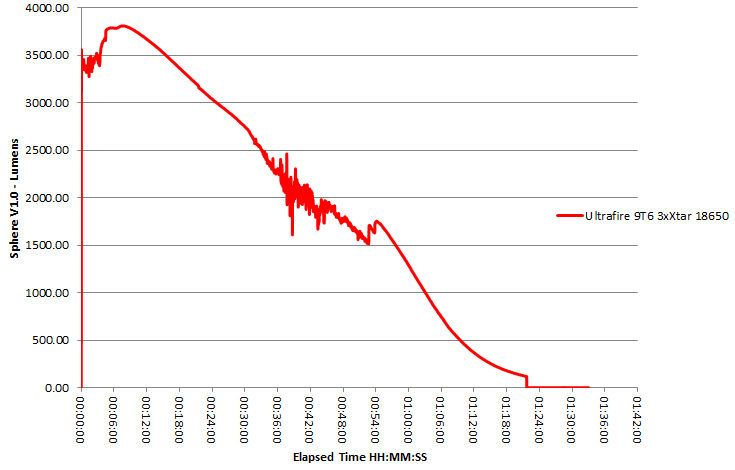

    So I ran it again with Xtar 3100mAh cells. The 2.28A draw should not cause problems with either the AWs or the Xtars.

    The Xtar trace seems a bit better and the point at which it reaches the 2000lm output level there may have been some driver interaction causing the fluctuating output – or not.



    I’m not sure if this odd behaviour on 18650s is the cell chemistry, the protection circuitry. Or maybe it was the effect of the loose fit of the 18650 cells (although the test was run in a fixed rig) combined with the effects of heating during the runtime test, or maybe the barely perceptible vibration from the cooling fan was the reason for these results.

    Back on the 26650s the output is smooth as in the first trace.



    In The Lab

    NEW for Winter 2012 ANSI standards include maximum beam range. This is the distance at which the intensity of light from an emitter falls to 0.25lux (roughly the same as the lux from a full moon). This standard refers only to the peak beam range (a one dimensional quantity), so I am expanding on this and applying the same methodology across the entire width of the beam. From this data it is possible to plot a two-dimensional ‘beam range profile’ diagram which represents the shape of the illuminated area.

    In order to accurately capture this information a test rig was constructed which allows a lux meter to be positioned 1m from the lens and a series of readings to be taken at various angles out from the centre line of the beam. As the rig defines a quadrant of a circle with a radius of 1m, all the readings are taken 1m from the lens, so measuring the true spherical light intensity. The rig was designed to minimise its influence on the readings with baffles added to shield the lux meter from possible reflections off the support members.

    The distance of 1m was chosen as at this distance 1lux = 1 candela and the maximum beam range is then calculated as the SQRT(Candela/0.25) for each angle of emission.

    In this plot, the calculated ANSI beam ranges are plotted as if viewed from above (for some lights there may also be a side view produced) using a CAD package to give the precise 'shape' of the beam.

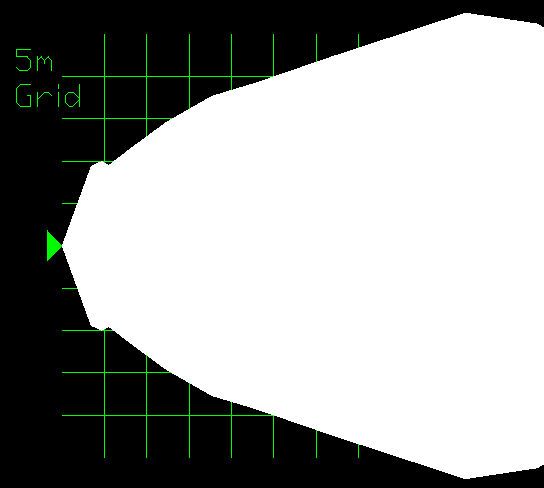

    Starting with the 5m range grid you get an idea of the broad flood of light blotting out the range grid almost entirely.

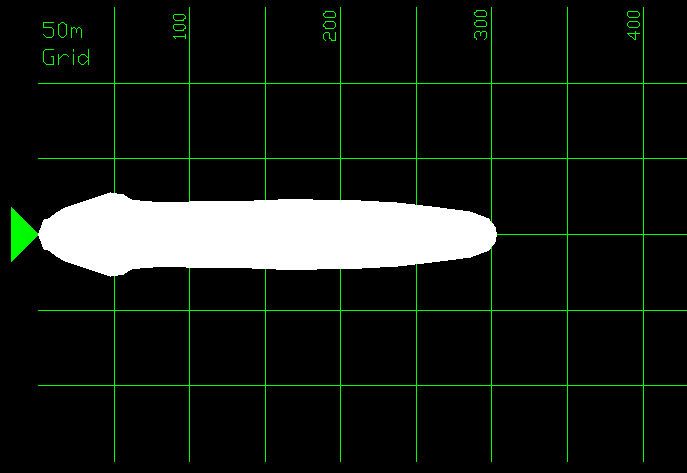

    Then zooming out to the 50m range grid showing the extent of the wide beam’s range. Even with the wide flood of light, the ANSI beam range still reaches 300m.





    The beam

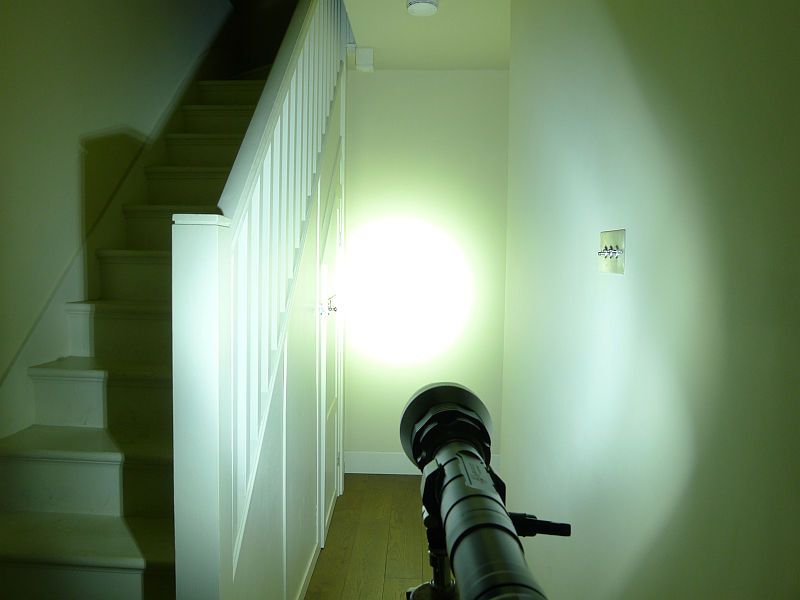

    The indoor beam shot shows how blinding this light is. At close range 3700lm is way too much! There are multi-emitter artefacts at the outer edges of the spill.

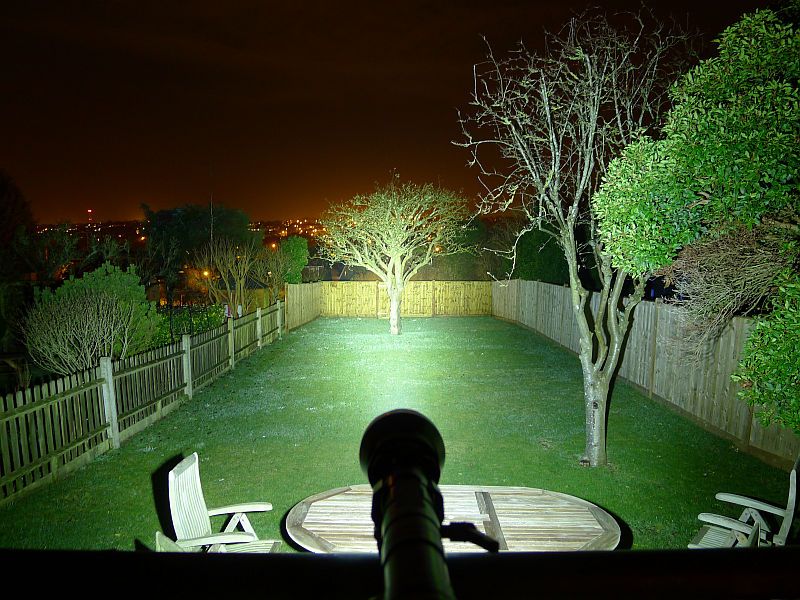

    Now going outdoors, to put things in perspective, just as I did with the previous review, this is the TK41 (my frequently used reference light due to its well-known excellent performance).



    And on the same exposure setting, here is the 9T6 on full blast. That is 3700lm for you!





    What it is really like to use…

    As mentioned in the initial impressions, the form factor of this light takes you back to the days of multi-cell Maglites. Long wide battery tube, combined with a reasonably heavy construction makes this a light you know you are carrying.

    It is just not worth bothering to only use two cells in this light. It would have to be an emergency when you really only have two cells available as the performance on 2 cells is worlds apart from the output on 3 cells.

    This light is suited to massive output for short periods of time. As shown in the runtime graphs, you only get 15minutes or so of 3000lm-and-above output. Not so much a limitation of the 9T6 itself, more on drawing 2.3A from each cell and the resulting drop in voltage. The 9T6 wants all 12.6V which it will not get for long.

    The PMW is present in all output modes and at 185 Hz is not too noticeable.

    Somehow not using high seems like cheating the UltraFire 9T6 out of giving its best, but 3700lm is too much to be practical for regular use – unless you need to provide floodlighting for a sports field.

    The ‘up to 9500lm’ claimed on the light itself is not going to happen, and the manufacturers claim of 7000lm (hence DX quoting this figure) also overblown, but as the output tests showed, this is an actual ANSI output of 3717lm which is not to be sneezed at!

    Solid construction and very power hungry, the UltraFire 9T6 does not disappoint as far as awesome output goes - just have a ready supply of high capacity cells on hand to feed it.

    Is it practical? – the jury is still out on that….. but is it fun? – Yes 3700lms worth.




    Test sample provided by DX for review.

    (Note – prior to posting this review in the main ‘flashlight reviews’ forum, the CPF site moderators confirmed that this was correct forum)
    Last edited by subwoofer; 12-29-2012 at 10:29 AM.
