Thread: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

  1. #1

    Wink2 Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Warning: this overview of the Turbo head options for the Eagletac GX/SX/MX25L2 is a lot more pic heavy than usual, due to the outdoor beamshots.

    UPDATE SEPTEMBER 1, 2013: I have just posted a review of the SBT-70 version of this light (i.e., maximum throw version of this series).


    Following up on my recent Eagletac GX/SX25L2 and MX25L2 reviews, Eagletac has sent me the various Turbo head options to evaluate.

    As this will involve a lot of pics and animated GIF outdoor beamshots, I thought I would do a separate thread to compare and discuss the Turbo options for the whole family. Please see my earlier reviews above for a detail analysis of the performance and features of the various lights, as this thread will focus on the beam differences between the Standard and Turbo heads.

    As a reminder, this series is distinguished by the battery source used (2x18650 for the GX, 2x26650 for the SX, and 2x32650 for the MX), and the emitter (Cree XM-L2 for the GX/SX, and Luminus SST-90 for the MX). All my review samples featured bundled replaceable battery packs and built-in chargers.

    Note that you can buy the lights in either form (Standard or Turbo head), but there is an additional cost to acquire the Turbo head separately. Current MSRPs that I've seen for the Turbo heads alone are ~$49 for the GX/SX Turbo head, and ~$119 for the MX25L2.

    One quick comment before we get started: the Turbo head upgrade option comes with a nice screw-on plastic plug (with o-ring), that can be used to keep the unused head (Standard or Turbo) sealed when not in use.

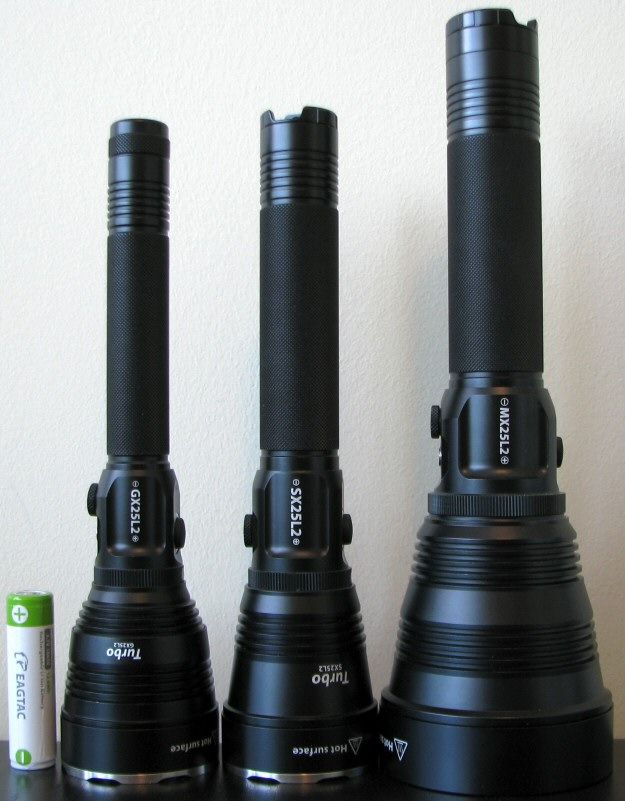

    First off, let's see how the Turbo head versions look, relative to the Standard heads (Standard first, followed by Turbo):



    From left to right: Eagletac Protected 18650 (3400mAh); Eagletac GX25L2, SX25L2, and MX25L2.

    And here is a side-by-side comparison:


    From left to right: Eagletac Protected 18650 (3400mAh); Eagletac GX25L2 Standard Head (alone), GX25L2 with Turbo Head, SX25L2 with Turbo head, SX25L2 Standard Head (alone).


    From left to right: Eagletac Protected 18650 (3400mAh); Eagletac MX25L2 with Turbo Head, MX25L2 Standard Head (alone).

    First thing you may notice is that while the standard head of the SX25L2 was larger than the GX25L2, the Turbo heads have a fairly similar size between these models. Also, the MX25L2 now had a flat black aluminum bezel on the Turbo head.

    Let's see how they measure up exactly:

    All dimensions directly measured, and given with no batteries installed (unless indicated):

    Eagletac GX25L2: Weight: 198.3g (with battery pack: 290.1g), Length: 224mm, Width (bezel): 39.5mm
    Eagletac GX25L2 Turbo: Weight: 320.7g (with battery pack: 412.5g), Length: 251mm, Width (bezel): 62.0mm
    Eagletac SX25L2: Weight: 279.4g (with battery pack: 470.3g), Length: 239mm, Width (bezel): 47.0mm
    Eagletac SX25L2 Turbo: Weight: 343.4g (with battery pack: 534.3g), Length: 255mm, Width (bezel): 62.0mm
    Eagletac MX25L2:Weight: 468.7g (with battery pack: 744.2g), Length: 266mm, Width (bezel): 62.0mm
    Eagletac MX25L2 Turbo:Weight: 698.6g (with battery pack: 974.1g), Length: 292mm, Width (bezel): 91.3mm

    I had already determined in my GX/SX25L2 review that those two models have similar output level on Max. With the comparable Turbo reflectors between the models, the difference really comes down to runtime now (which is based on the capacity of the 18650 vs 26650 cells used). I would expect no significant difference in throw between these two models with Turbo heads installed.

    The MX25L2's Turbo head is massive, and brings us into the territory of the Olight SR95 (which is 87mm in diameter).

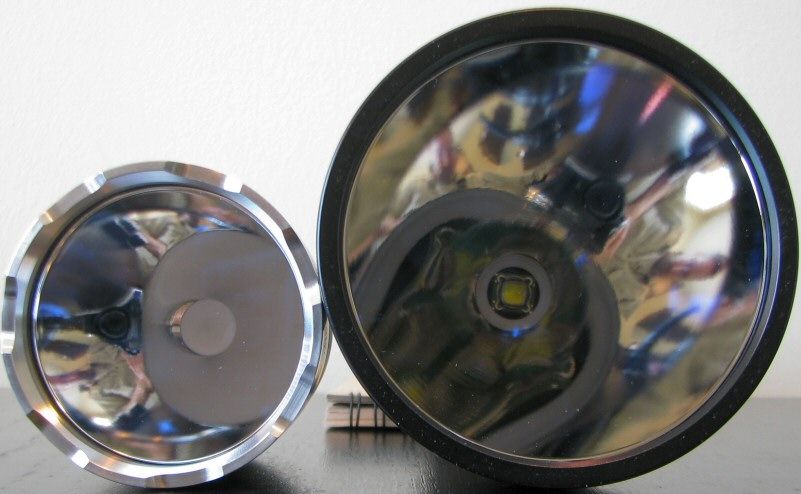

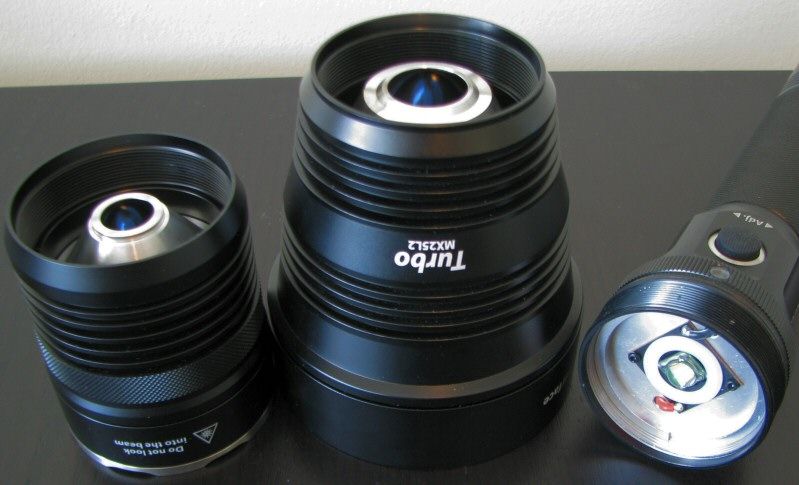

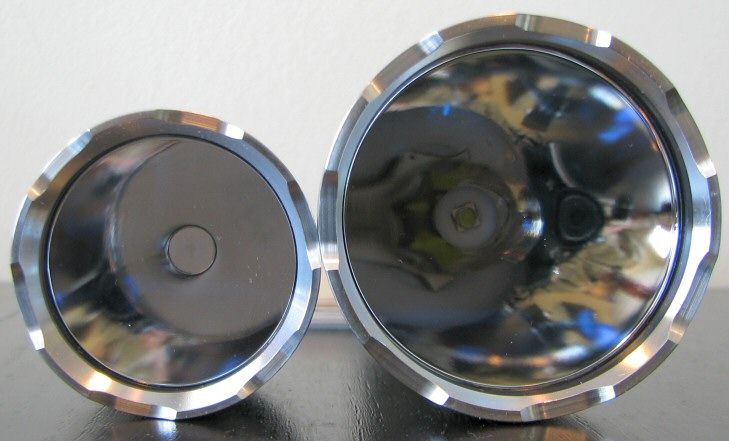

    Here are some direct comparison pics of the standard and Turbo heads:

    GX25L2:




    SX25L2:




    MX25L2:




    The quality and design of the Turbo heads matches the rest of the build. I suggest you refer back to my earlier GX/SX25L2 and MX25L2 reviews for more information on the build, user interface, circuit features, etc.

    Beamshots:

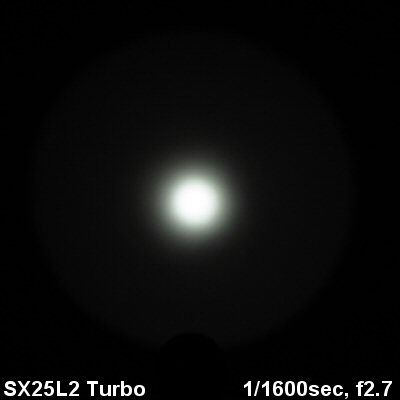

    All lights are on their standard battery, about ~0.75 meter from a white wall (with the camera ~1.25 meters back from the wall). Automatic white balance on the camera, to minimize tint differences.

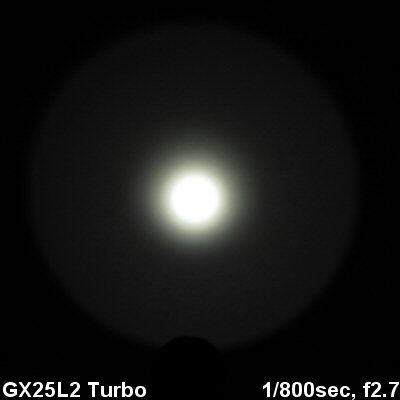

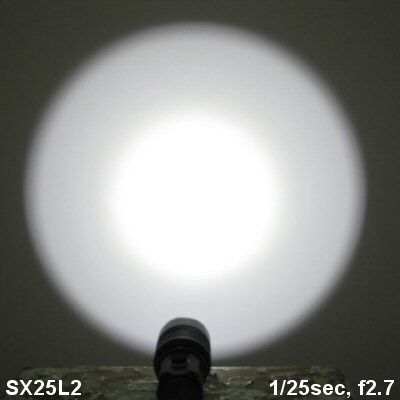

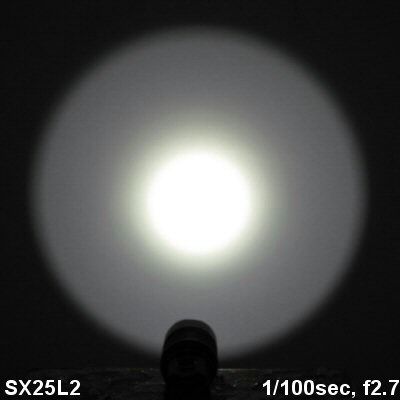

    GX/SX25L2:













    Obviously, the Turbo heads are more focused for throw. Overall spillbeam width also seems slightly narrower. Please see my earlier GX/SX25L2 review for additional white wall beamshots comparing to other lights in this class.

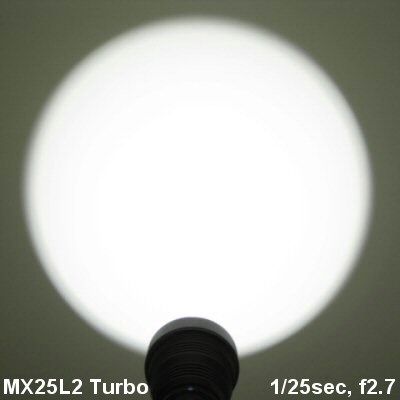

    For the MX25L2, I am including a couple of recent SST-90-based lights in the comparisons below.

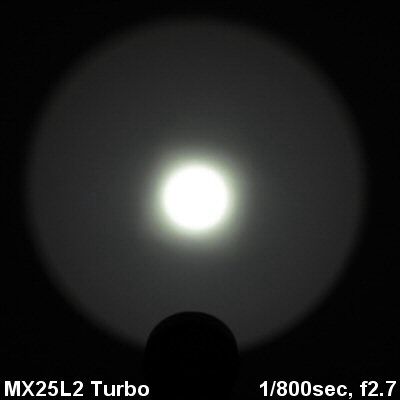

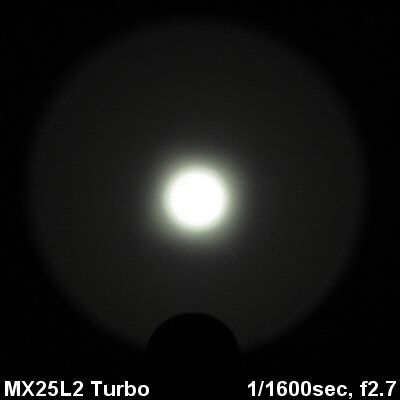

    MX25L2:













    The overall beam pattern (spillbeam width and hotspot width) of the MX25L2 Turbo is intermediate to the Skilhunt K30 and Olight SR95. However, the peak intensity is actually higher than either of these comparable lights – but that's hard to see in white wall shots at 0.75m. Check out the outdoor shots below, or scroll down for a detailed output/throw table.

    Outdoor Beamshots

    And now, what you have all been waiting for – outdoor beamshots. For these, everything is done in the style of my earlier 100-yard round-up review. Please see that thread for a discussion of the topography (i.e. the road dips in the distance, to better show you the corona in the mid-ground).

    FYI, any "streaks" you see across the images are bug-trails. Flying insects are often attracted to the bright lights, and their flight trails get captured as swirly streaks due to the long exposure time. Also, ignore any tint differences below – they are mainly due to the automatic white balance setting on the camera.

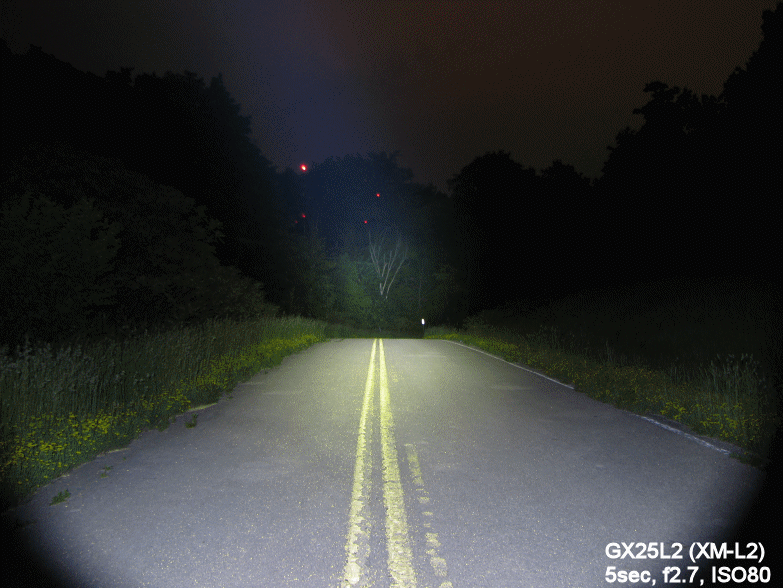

    Let's start by comparing each light one at a time – starting with wide-angle shots, and then close-ups on the hotspots:

    GX25L2:



    SX25L2:



    MX25L2:



    Clearly, the Turbo heads all make a huge difference to how far the lights throw.

    To help you compare models, here are the various head types together, starting with the standard heads, followed by the Turbo heads:

    Standard Heads:



    Turbo Heads:



    Since the GX25L2 and SX25L2 Turbo heads have the same relative throw (and my SX25L2 pics came out a little better focused), let's compare this light to other lights in the heavy thrower class. For these comparisons, I am using the furthest throwing XM-L/XM-L2 lights in my current collection.







    As you can see, the GX/SX25L2 is certainly in the same category as these other top throwers (although not quite as tightly focused as some of them). But again, these are the best XM-L/XM-L2-class throwers in my collection at the moment, so this is a very impressive showing for the GX/SX25L2 Turbo.

    I didn't have my other Luminus SST-90-based lights with me on this latest outdoor excursion, but here is a comparison of the MX25L2 to the new MT-G2 lights:




    As you can see above, the MX25L2 Standard head manages to at least match (and slightly exceed) the throw of the MT-G2 lights - the Turbo head knocks it into another ballpark. Sorry about the lack of SST-90 comparisons ... if I get the chance to do some more super-high output comparison tests, I will update this thread.

    UPDATE OCTOBER 4, 2013:

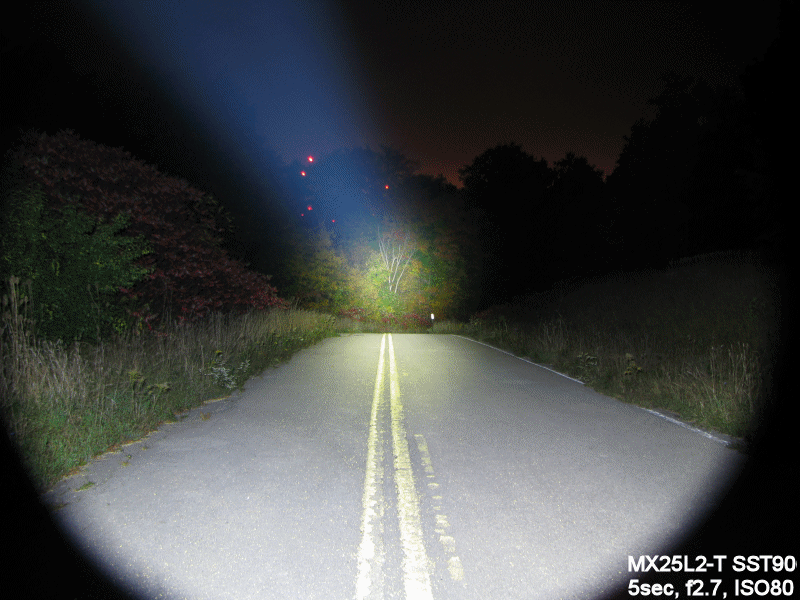

    Here is an additional comparison of the MX25L2 SST-90 with Turbo head to the Olight SR95 (also SST-90):




    You can see both the output and throw of the MX25L2 Turbo head exceed the SR95, when matched with the same emitter (although the difference isn't huge)

    Also, please ignore any tint differences above – they are mainly due to the automatic white balance setting on the camera.

    Testing Method:

    All my output numbers are relative for my home-made light box setup, a la Quickbeam's flashlightreviews.com method. You can directly compare all my relative output values from different reviews - i.e. an output value of "10" in one graph is the same as "10" in another. All runtimes are done under a cooling fan, except for any extended run Lo/Min modes (i.e. >12 hours) which are done without cooling.

    I have devised a method for converting my lightbox relative output values (ROV) to estimated Lumens. See my How to convert Selfbuilt's Lightbox values to Lumens thread for more info.

    Throw/Output Summary Chart:

    My summary tables are reported in a manner consistent with the ANSI FL-1 standard for flashlight testing. Please see http://www.flashlightreviews.ca/FL1.htm for a discussion, and a description of all the terms used in these tables. Effective July 2012, I have updated all my Peak Intensity/Beam Distance measures with a NIST-certified Extech EA31 lightmeter (orange highlights).



    My updated summary table confirms what you can see in the beamshots – the Turbo heads provide a significant improvement in throw, moving these Eageltac models up toward the top of their respective emmiter classes.

    Output/Runtime Graphs:

    Again, check out my full reviews of the GX/SX25L2 and MX25L2 to see how these lights compare to others in their respective classes.

    One thing I will update here – Eagletac sent me a couple of their 3400mAh protected 18650 cells (presumably based on the Panasonic NCR18650B). I had previous determined that their bundled battery pack for the GX25L2 (3100mAh cells) performed comparable to other 3100mAh cells in my collection (all based on Panasonic NCR18650A).

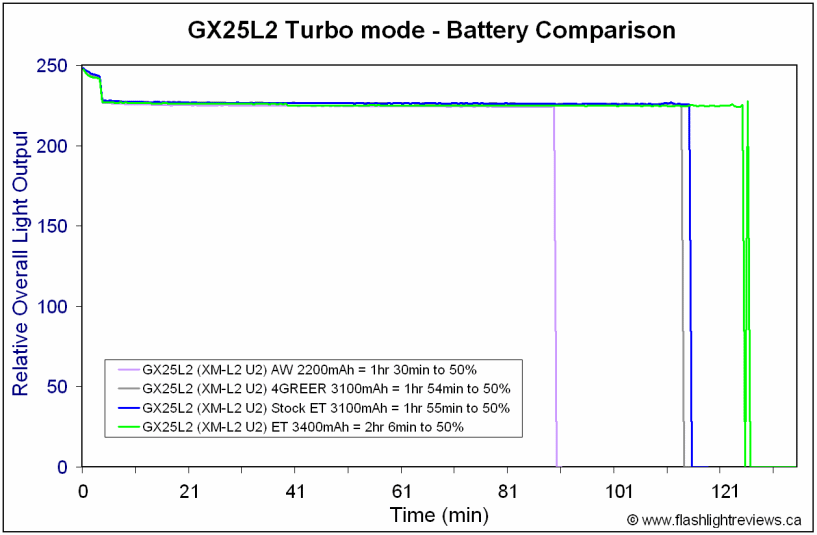

    Let's see how these Eagletac 3400mAh cells compare in the GX25L2:



    The 3400mAh Eagletac cells certainly have more capacity than the standard 3100mAh cells.

    Potential Issues

    The main limitation of the Turbo heads is the larger size and weight. This may make carrying the lights more awkward.

    The Turbo heads can be expensive to purchase separately (current MSRP is ~$49 for the GX/SX models, and ~$119 for the MX).

    Preliminary Observations

    As promised, this was a picture heavy update. But hopefully it has given you a feel for how the Turbo heads compare to the Standard head models I reviewed previously. To put it simply, the Turbo heads propel the GX/SX/MX25L2 lights into the current top-end of throw class champions (for their respective emitters).

    It really comes down to whether or not you need all that throw. Speaking as a typical suburban/city dweller, I find current regular-sized high-output lights exceed my actual throw needs. But if you need or crave the maximum possible reach, these Turbo heads do not disappoint.

    Of course, you do loose some ease and flexibility of carry with these larger heads. The SX25L2 is probably the one model that retains the most proportional dimensions (i.e., the Turbo head version doesn't seem that much out of place). I guess it comes down to whether you want to look like you are carrying an updated Mag/Stinger-style light (with Standard head). or a portable throw cannon (with Turbo head).

    Hope you found all the beam comparisons helpful.

    ----

    Turbo heads and batteries were provided by Eagletac for review.
    Last edited by selfbuilt; 10-04-2013 at 09:29 AM.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  2. #2
    *Flashaholic* kj2's Avatar
    Join Date
    May 2010
    Location
    The Netherlands
    Posts
    7,739

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Great! thanks

  3. #3
    Flashaholic CamoNinja's Avatar
    Join Date
    Dec 2007
    Location
    Back in S. Fl.
    Posts
    389

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Awesome, thank you selfbuilt. Been waiting for this. Now I'll order a turbohead for my SX25L2.

  4. #4
    Enlightened
    Join Date
    Dec 2012
    Location
    Gordon's Bay, South Africa
    Posts
    76

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Another very useful review, Selfbuilt, thank you!

    I notice that you estimate a peak beam intensity of 158,500 lux for the MX25L2 Turbo with the SST-90P LED, while Eagletac themselves say on their website that it produces (only) 93,400 lux. However, they claim their SBT-90 NB LED produces twice that intensity with the turbo reflector, at 181,000 lux, while their SBT-70 PB emitter is brighter still with a 203,000 lux hotspot!
    Last edited by bietjiedof; 06-12-2013 at 11:15 AM.

  5. #5

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by kj2 View Post
    Great! thanks
    You seem to have the record for posting first in my review threads, kj2.

    Quote Originally Posted by bietjiedof View Post
    I notice is that you estimate a peak beam intensity of 158,500 lux for the MX25L2 Turbo with the SST-90P LED, while Eagletac themselves say on their website that it produces (only) 93,400 lux. However, they claim their SBT-90 NB LED produces twice that intensity with the turbo reflector, at 181,000 lux, while their SBT-70 PB emitter is brighter still with a 203,000 lux hotspot!
    That 158,500cd is a direct measure, using ANSI FL-1 standard methodology with a NIST-calibrated lux light meter. I don't know why the Eagletac specs are so much lower, but I noticed the same thing when I initially tested the standard heads (i.e., I consistently get higher throw values than spec). It's odd, since my output measures (which are only estimates) are pretty close to the Eagletac numbers.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  6. #6
    *Flashaholic* kj2's Avatar
    Join Date
    May 2010
    Location
    The Netherlands
    Posts
    7,739

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by selfbuilt View Post
    You seem to have the record for posting first in my review threads, kj2.
    I'm quick

  7. #7
    Enlightened
    Join Date
    Dec 2012
    Location
    Gordon's Bay, South Africa
    Posts
    76

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by selfbuilt View Post
    That 158,500cd is a direct measure, using ANSI FL-1 standard methodology with a NIST-calibrated lux light meter. I don't know why the Eagletac specs are so much lower, but I noticed the same thing when I initially tested the standard heads (i.e., I consistently get higher throw values than spec). It's odd, since my output measures (which are only estimates) are pretty close to the Eagletac numbers.
    Yes, I noticed that you estimated 2,300 lumens to ET's rating of 2,210, so it seems you have the SST-90 emitter. I can't wait to see whether their SBT-equipped turbo-headed lights set fire to those trees at the end of your road!

  8. #8

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by bietjiedof View Post
    Yes, I noticed that you estimated 2,300 lumens to ET's rating of 2,210, so it seems you have the SST-90 emitter. I can't wait to see whether their SBT-equipped turbo-headed lights set fire to those trees at the end of your road!
    I would expect the SBT-70 coupled with the Turbo head to be an incredible thrower, even better than their specs indicate (based on the relative comparison of the SST-90 and SBT-70 in my Olight SR95-series lights).
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  9. #9

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Hello to everybody!
    I have one question to selfbuild. Is it posible to screw GX's turbo head to G25C2's body?

  10. #10

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by sxv View Post
    I have one question to selfbuild. Is it posible to screw GX's turbo head to G25C2's body?
    I am afraid not, it is a completely different build (i.e., the G25C2's head doesn't open the same way as the GX25L2).

    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  11. #11
    Flashaholic
    Join Date
    Oct 2007
    Location
    Near Toronto
    Posts
    125

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Very nice review. I think that I will order SBT-70 based on this review.

  12. #12
    Flashaholic*
    Join Date
    Mar 2013
    Location
    Eureka, CA
    Posts
    690

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Selfbuilt, under Potential Issues, you said:

    "The main limitation of the Turbo heads is the larger size and weight. This may make carrying the lights more awkward."

    In the meantime, have you had any opportuity to actually feel this out a bit?

  13. #13

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by hikingman View Post
    "The main limitation of the Turbo heads is the larger size and weight. This may make carrying the lights more awkward."
    In the meantime, have you had any opportuity to actually feel this out a bit?
    Just to test it out with the supplied holsters. With the standard heads installed, and the holster attached to my belt, the head nuzzles against upper hip/lower side-abdomen. I've found this to be ok for carry purposes. But with the turbo heads installed, the lights all dig into my side somewhat (the MX25L2-Turbo in particular, which I don't consider feasible to wear this way). Depending on one's abdominal girth, you may find the Turbo heads uncomfortable to wear with the supplied holster.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  14. #14
    Flashaholic*
    Join Date
    Mar 2013
    Location
    Eureka, CA
    Posts
    690

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Oh, I was thinking of hand carrying, and thought you meant the lights (the MX in particular) would be head heavy, sorta like the SR90 was. Do you find hand carrying the MX turbo comfortable in balance?

  15. #15

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by hikingman View Post
    Oh, I was thinking of hand carrying, and thought you meant the lights (the MX in particular) would be head heavy, sorta like the SR90 was. Do you find hand carrying the MX turbo comfortable in balance?
    Well, it is certainly a lot better than the SR90 was - that light was very head-heavy. But the MX25L2-Turbo is still somewhat top-heavy, compared to other large light lights. For example, I find the SR95 is better balanced overall (but that's because it has a heavier handle, to compensate for balance).
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  16. #16
    Flashaholic
    Join Date
    Jul 2013
    Location
    Folsom, CA
    Posts
    475

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Any chance of Eagletac sending you the SBT-70/90 for review as well?

  17. #17

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by MBentz View Post
    Any chance of Eagletac sending you the SBT-70/90 for review as well?
    Yes.

    I have received the SBT-70 version for review, but haven't had a chance to take it out yet and test it outdoors. I will get to it when I can, but a bit swamped with lights these days (and am about to head off on holidays).

    And
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  18. #18
    Flashaholic
    Join Date
    Jul 2013
    Location
    Folsom, CA
    Posts
    475

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by selfbuilt View Post
    Yes.

    I have received the SBT-70 version for review, but haven't had a chance to take it out yet and test it outdoors. I will get to it when I can, but a bit swamped with lights these days (and am about to head off on holidays).

    And
    Excellent news! Thank you for the welcome. I've been a long time lurker. I could have sworn I had registered accounts here on CPFMP, but I guess I didn't. Your reviews helped me purchase a Jetbeam M1X and an Eagletac T20C2 way back when. Thank you for all the hard work on your reviews, it must take quite some time to review each light! I will be anxiously awaiting the SBT-70 review.

  19. #19
    Flashaholic
    Join Date
    Jul 2013
    Location
    Folsom, CA
    Posts
    475

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Eagletac has posted the numbers for the SBT-70 equipped light on their web page. 203,000 lux. I really wanted it to unseat the SR95S UT for long distance throw considering the added cost. Oh well, I'll still wait for the review before buying one or the other.

  20. #20

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by MBentz View Post
    Eagletac has posted the numbers for the SBT-70 equipped light on their web page. 203,000 lux. I really wanted it to unseat the SR95S UT for long distance throw considering the added cost. Oh well, I'll still wait for the review before buying one or the other.
    FYI, the official Eagletac throw numbers appear to be under-reporting across this whole series. The MX25L2 Turbo models are no exception.

    I'm testing the SBT-70 version now, and hope to have a review up soon.
    Full list of all my reviews: flashlightreviews.ca. Latest hobby: whiskyanalysis.com. Latest flashlight review: Thrunite TN42.
    Gratefully accepting donations to my battery fund.

  21. #21
    Flashaholic
    Join Date
    Jul 2013
    Location
    Folsom, CA
    Posts
    475

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by selfbuilt View Post
    FYI, the official Eagletac throw numbers appear to be under-reporting across this whole series. The MX25L2 Turbo models are no exception.

    I'm testing the SBT-70 version now, and hope to have a review up soon.
    I hope so, I have some play money burning a hole in my wallet!

  22. #22

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by selfbuilt View Post
    FYI, the official Eagletac throw numbers appear to be under-reporting across this whole series. The MX25L2 Turbo models are no exception.

    I'm testing the SBT-70 version now, and hope to have a review up soon.
    I am looking forward to that review! I have been really considering this to be my next purchase but will wait for the review. I have the Olight SR95S-UT SBT-70 and its awesome! If you have time can you post some beamshots compared tothe Olight. Keep up the good work!

  23. #23
    Flashaholic*
    Join Date
    Mar 2013
    Location
    Eureka, CA
    Posts
    690

    Default Re: Eagletac GX25L2/SX25L2/MX25L2 Turbo Head Comparison Review: OUTDOOR BEAMSHOTS+

    Quote Originally Posted by selfbuilt View Post
    I'm testing the SBT-70 version now, and hope to have a review up soon.
    Add me to the list of anxious readers, selfbuilt! Actually, I really only want to know what the Lux measurements are. I can easily imagine the rest, given what I've already seen here.
    Last edited by hikingman; 08-09-2013 at 08:40 AM.

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
