Thread: Performance Review: Fenix E99 Ti (1xAAA)

  1. #1
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,368

    Default Performance Review: Fenix E99 Ti (1xAAA)



    Why a 'Performance Review'?:
    I'm not always able to conduct a full review, but have run the technical tests on a particular light. A 'Performance Review' is intended to provide an outlet for this information and a placeholder for further updates and discussion. No Pros and Cons are included as these performance reviews contain only experimentally measured output figures.

    As a 'Performance Review', this thread contains the measured output and runtime data for the Fenix E99Ti





    ---------------------------------------------------------------------------------------------------------------------
    Author's Statement for Transparency and Disclosure
    The test sample/s featured in this article have been provided for technical testing and review by the manufacturer. Test samples are retained by the reviewer following publication of the completed review for the purposes of long term testing and product comparisons.

    All output figures and test results published in this review are the sole work of the reviewer, and are carried out independently and without bias. Test results are reported as found, with no embellishments or alteration. Though best endeavours are made to maintain the accuracy of test equipment, the accuracy of these results is not guaranteed and is subject to the test equipment functioning correctly.
    ----------------------------------------------------------------------------------------------------------------------


    A couple of details:

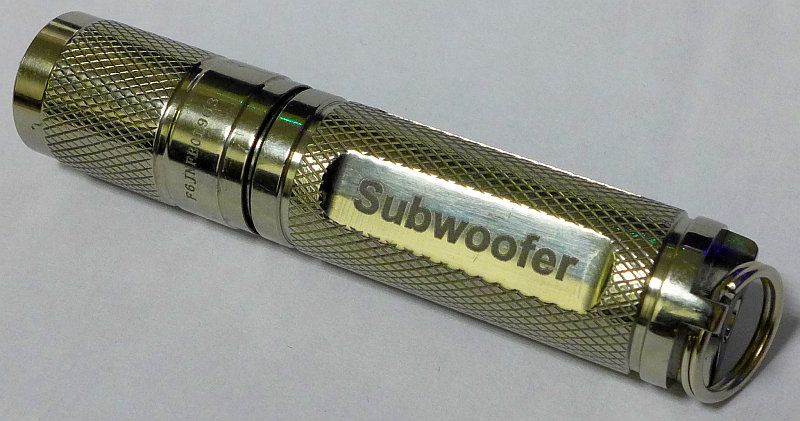

    Some of the machining and the neat knurling

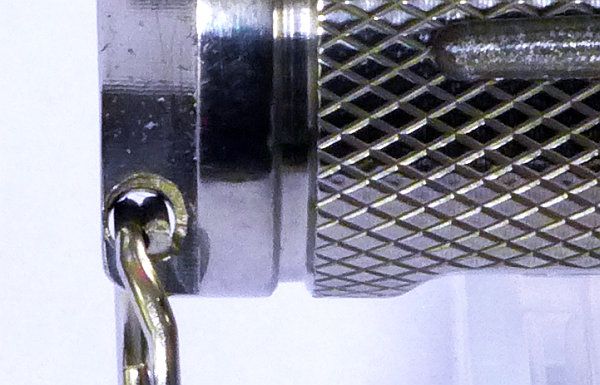

    The lanyard hole is drilled very close to the edge.





    Modes and User Interface:

    A simple twisty, starting on Low then Medium, then High. Defaulting to Low.



    Batteries and output:

    The Fenix E99Ti uses an AAA cell, li-ion cells cannot be used.

    To measure actual output, I built an integrating sphere. See here for more detail. The sensor registers visible light only (so Infra-Red and Ultra-Violet will not be measured).

    Please note, all quoted lumen figures are from a DIY integrating sphere, and according to ANSI standards. Although every effort is made to give as accurate a result as possible, they should be taken as an estimate only. The results can be used to compare outputs in this review and others I have published.

    E99 Ti using AAA Eneloop I.S. measured ANSI output Lumens PWM frequency or Strobe frequency (Hz)
    High 118 0
    Medium 33 0
    Low 3 0

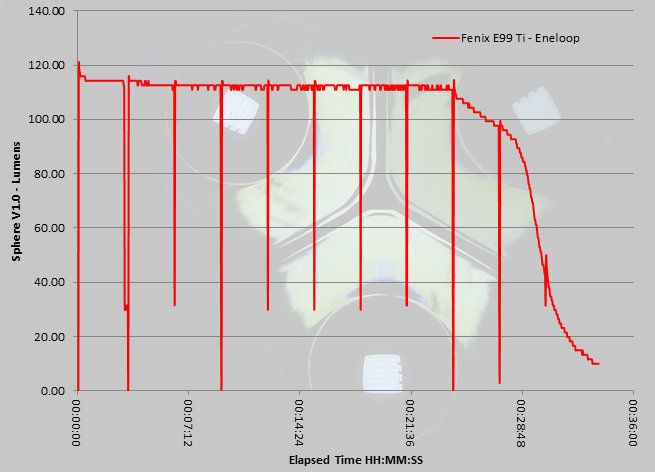

    The E99 Ti runtime trace was carried out using 1x AAA Eneloop cell, and started on High.

    After every three minutes the output drops to Medium, but can be reset to High immediately.



    If time permits further information and beam shots will be added to this Performance Review in post 2.


    If you enjoyed the review, please remember to 'Like' me on Facebook

    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  2. #2
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,368

    Default Re: Performance Review: Fenix E99 Ti (1xAAA)

    Reserved for updated, beamshots and further information...
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  3. #3
    Flashaholic* bladesmith3's Avatar
    Join Date
    May 2012
    Location
    colorado springs
    Posts
    555

    Default Re: Performance Review: Fenix E99 Ti (1xAAA)

    so approx. 115 lumens for 25 mins?

  4. #4
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,368

    Default Re: Performance Review: Fenix E99 Ti (1xAAA)

    Quote Originally Posted by bladesmith3 View Post
    so approx. 115 lumens for 25 mins?
    Remember that ANSI output ratings cut off at 10% of the ANSI peak output figure (at 30s). When you see the actual output graph you can see for how long the highest output is maintained for. In this case the 115lm is maintained for about 25 minutes (with manual resets every 3 minutes).
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"
