Thread: Performance Review: THORFIRE PF01 and PF02 (1xAAA and 2xAAA)

  1. #1
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Performance Review: THORFIRE PF01 and PF02 (1xAAA and 2xAAA)



    Why a 'Performance Review'?:
    I'm not always able to conduct a full review, but have run the technical tests on a particular light. A 'Performance Review' is intended to provide an outlet for this information and a placeholder for further updates and discussion. No Pros and Cons are included as these performance reviews contain only experimentally measured output figures.


    As a 'Performance Review', this thread contains the measured output and runtime data for the THORFIRE PF01 and PF02 lights.





    ---------------------------------------------------------------------------------------------------------------------
    Author's Statement for Transparency and Disclosure
    The test sample/s featured in this article have been provided for technical testing and review by the manufacturer. Test samples are retained by the reviewer following publication of the completed review for the purposes of long term testing and product comparisons.

    All output figures and test results published in this review are the sole work of the reviewer, and are carried out independently and without bias. Test results are reported as found, with no embellishments or alteration. Though best endeavours are made to maintain the accuracy of test equipment, the accuracy of these results is not guaranteed and is subject to the test equipment functioning correctly.
    ----------------------------------------------------------------------------------------------------------------------


    A couple of details:

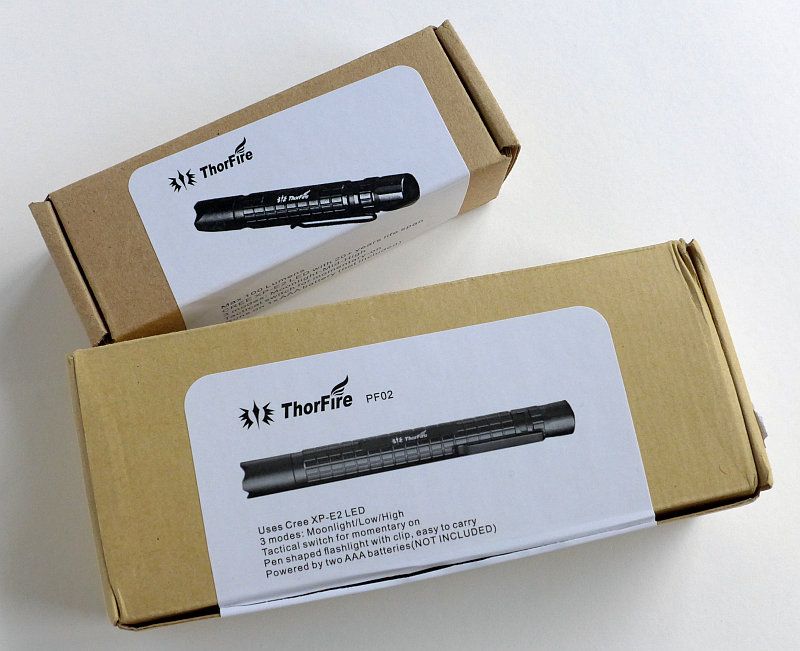

    Both lights arrived in strong cardboard boxed.

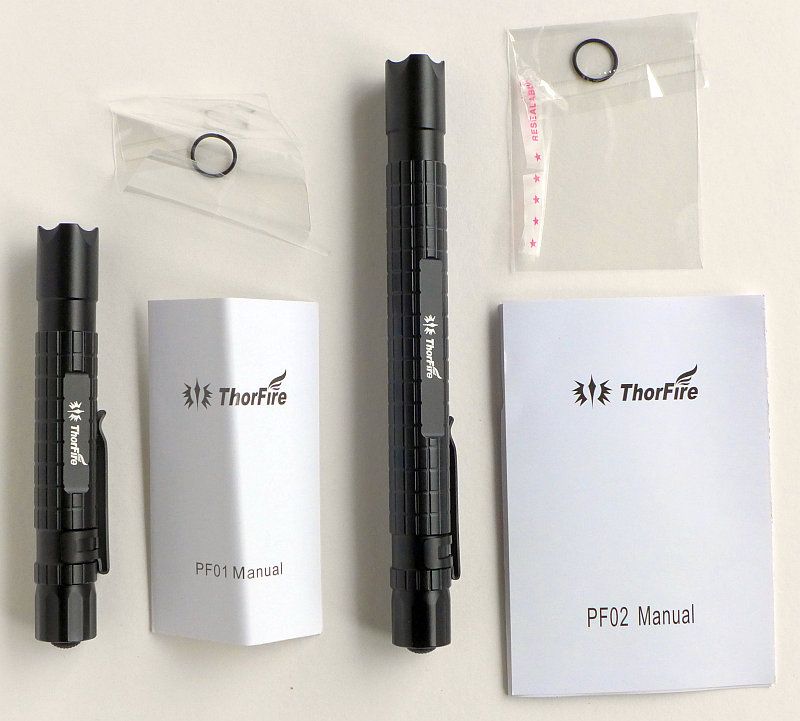

    Each light has a spare O-ring and instruction manual.

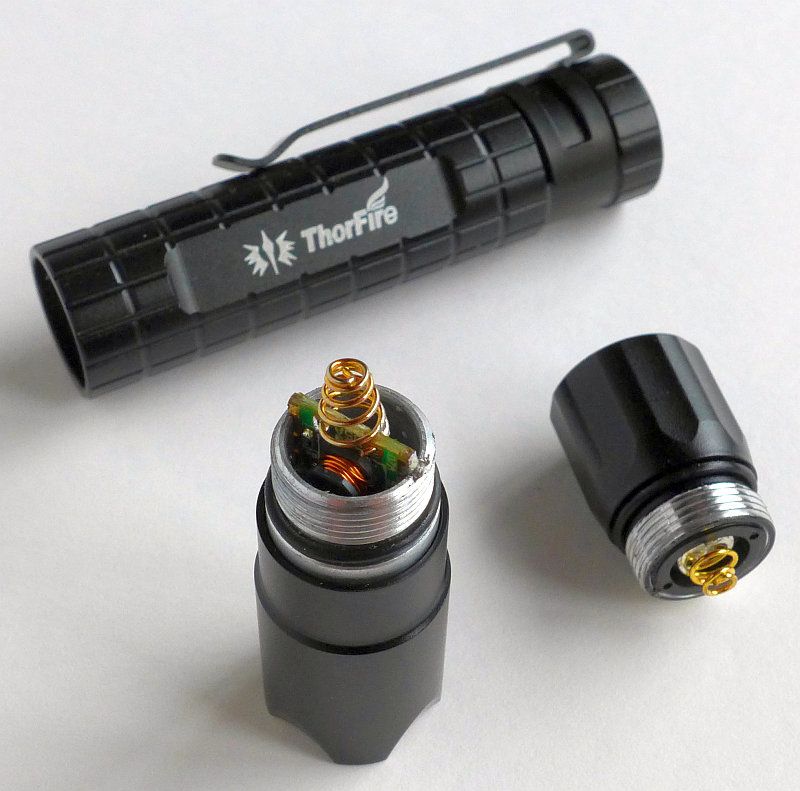

    Easily dismantled, both lights have an in-line circuit board with edge mounted positive contact spring.

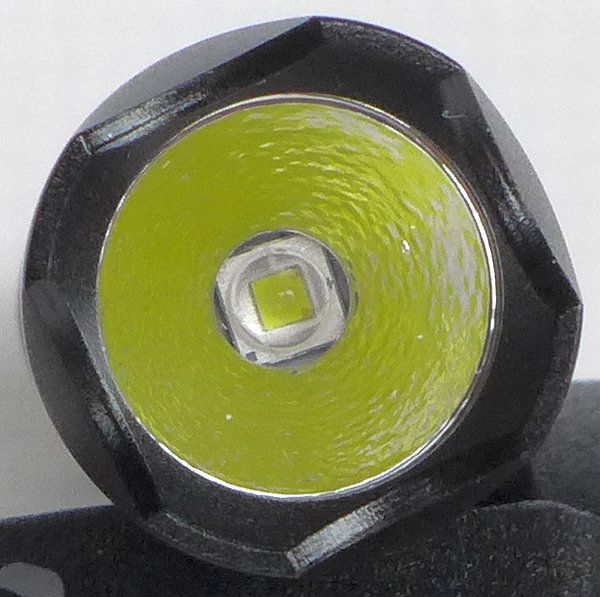

    Both models use the XP-E2 LED and a small textured reflector.

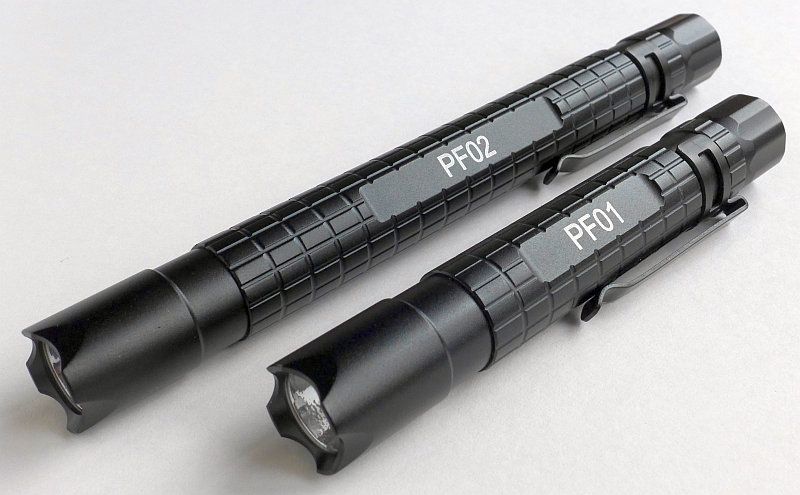

    The model is laser engraved on each light.





    Modes and User Interface:

    Both the PF01 and PF02 use a forward clicky tail-cap switch. Turning either model on and off within 10s will cycle to the next mode.

    From off this uses the repeating cycle Moon -> Low -> High.

    If left off for more than 10s they default back to Moon.



    Batteries and output:

    The PF01 uses 1xAAA and the PF02 uses 2xAAA, either Alkaline or NiMh.

    To measure actual output, I built an integrating sphere. See here for more detail. The sensor registers visible light only (so Infra-Red and Ultra-Violet will not be measured).

    Please note, all quoted lumen figures are from a DIY integrating sphere, and according to ANSI standards. Although every effort is made to give as accurate a result as possible, they should be taken as an estimate only. The results can be used to compare outputs in this review and others I have published.

    THORFIRE model and mode (using AAA Eneloop) I.S. measured ANSI output Lumens PWM frequency or Strobe frequency (Hz)
    PF01 - High 75 0
    PF01 - Low 21 125
    PF01 - Moon Below Threshold See PWM note below
    PF02 - High 106 0
    PF01 - Low 33 117
    PF02 - Moon Below Threshold See PWM note below

    PWM Note: For both models, the PWM used in moon mode defied measurement due to be variable, but was very low frequency and quite obvious.

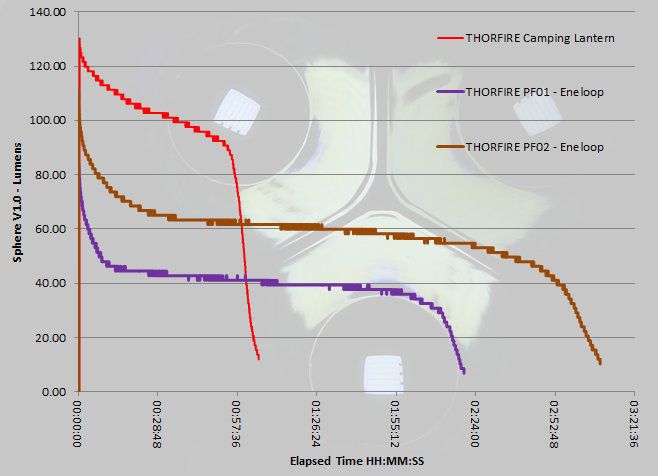

    Running on Maximum, this is the output graph when using NiMh Eneloop cells. The THORFIRE Camping Lantern is also included in this graph.




    The PF01's beam looks like this.




    With the reflector looking identical to other model, the PF02 has much the same beam as the PF01.





    If you enjoyed my reviews, please remember to 'Like' me on Facebook and follow me on Twitter @Subwoofer_CPF
    to get all the latest updates and news.

    You can also find exclusive insights on Instagram and Pinterest



    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  2. #2
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Performance Review: THORFIRE PF01 and PF02 (1xAAA and 2xAAA)

    Reserved for updates...
