Thread: Review: Nextorch TA40 and accessories (18650, 2x CR123)

  1. #1
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Review: Nextorch TA40 and accessories (18650, 2x CR123)

    ---------------------------------------------------------------------------------------------------------------------
    Author's Statement for Transparency and Disclosure
    The test sample/s featured in this article have been provided for technical testing and review by the manufacturer. Test samples are retained by the reviewer following publication of the completed review for the purposes of long term testing and product comparisons.

    All output figures and test results published in this review are the sole work of the reviewer, and are carried out independently and without bias. Test results are reported as found, with no embellishments or alteration. Though best endeavours are made to maintain the accuracy of test equipment, the accuracy of these results is not guaranteed and is subject to the test equipment functioning correctly.
    ----------------------------------------------------------------------------------------------------------------------


    Released as the successor to the Nextorch TA4, the new TA40 adds a XM-L2 LED and significantly higher output. The TA40 includes USB charging and NEXTORCH's Duo Switch as well as a distinctive styling and smooth finish. This review also includes various hunting/gun mount related accessories.

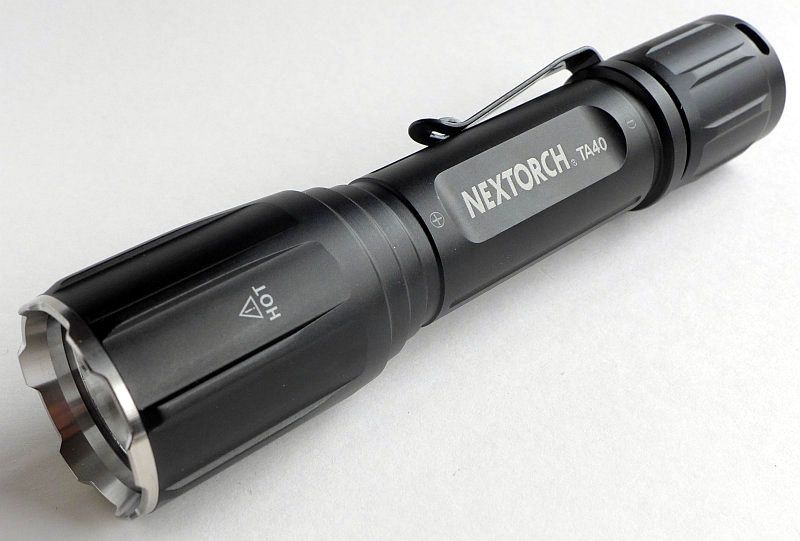

    Taking a more detailed look:

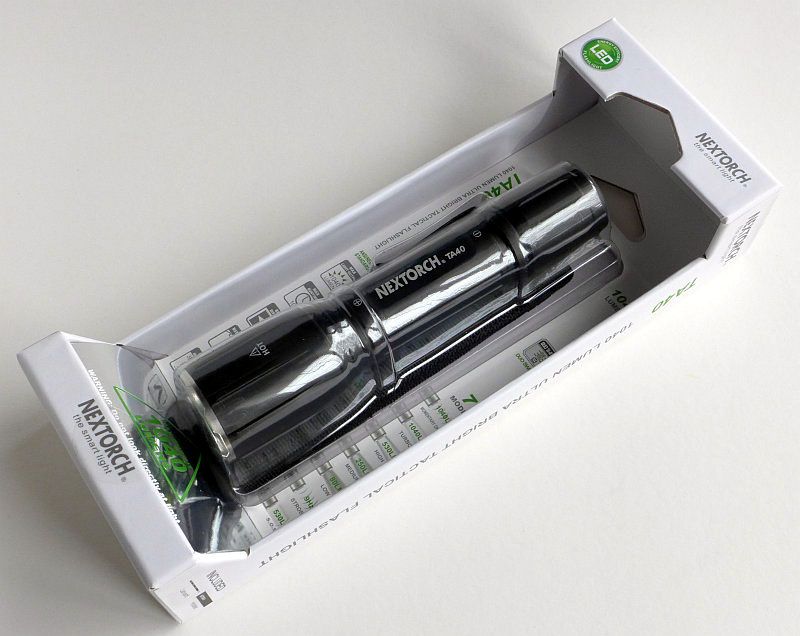

    The retail packaging invites you to try out the TA40. Considering its output this might not be the best idea.




    Nextorch supplied a few accessories to try out as well. These include the FT32F coloured filter kit, 3400mAh 18650, the V1 upgrade holster (the TA40 does come with a basic one), the TS-4 remote switch, RM-81 gun mount and RM85 gun mount.




    Opening the TA40's package, it is supplied with two spare O-rings, the USB charging cable, bascis holster, lanyard and instructions.

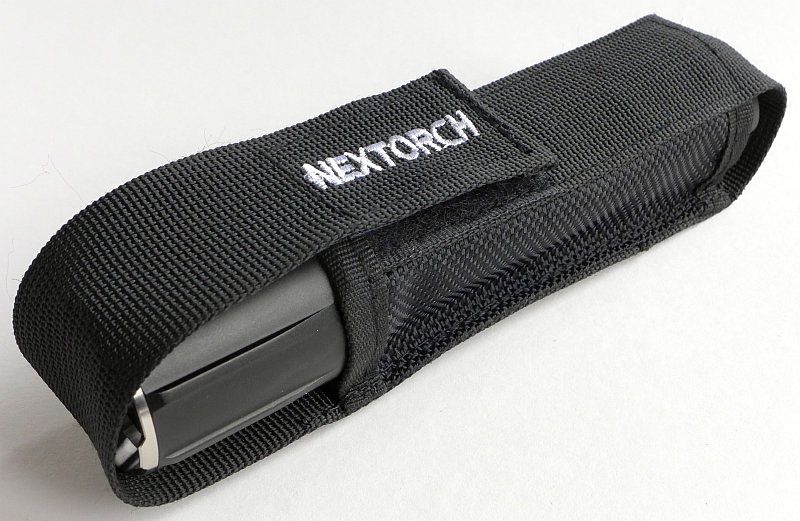

    The basic holster is a good snug fit.




    On the back of the holster is a fixed belt loop and a smaller hanging loop.




    NEXTORCH have given the TA40 a special Duo Switch (explained in the UI section), and next to this is the waterproof charging port (which appears to use an MCX connector). There is a partial cut away to give easier access to the switch.

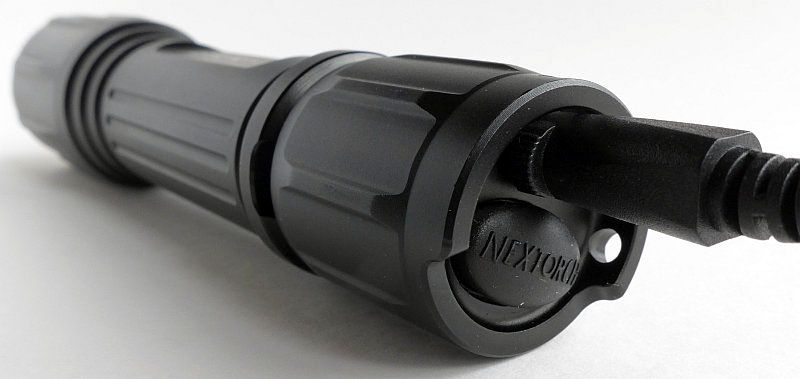

    With the charger cable fitted.




    Looking down the battery tube, the positive contact is a long spring.

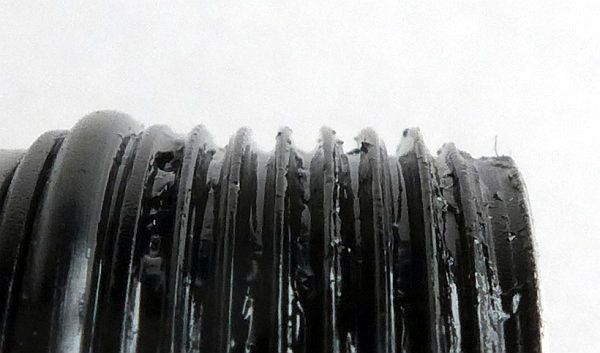

    The threads are cleanly cut standard threads and are anodised.

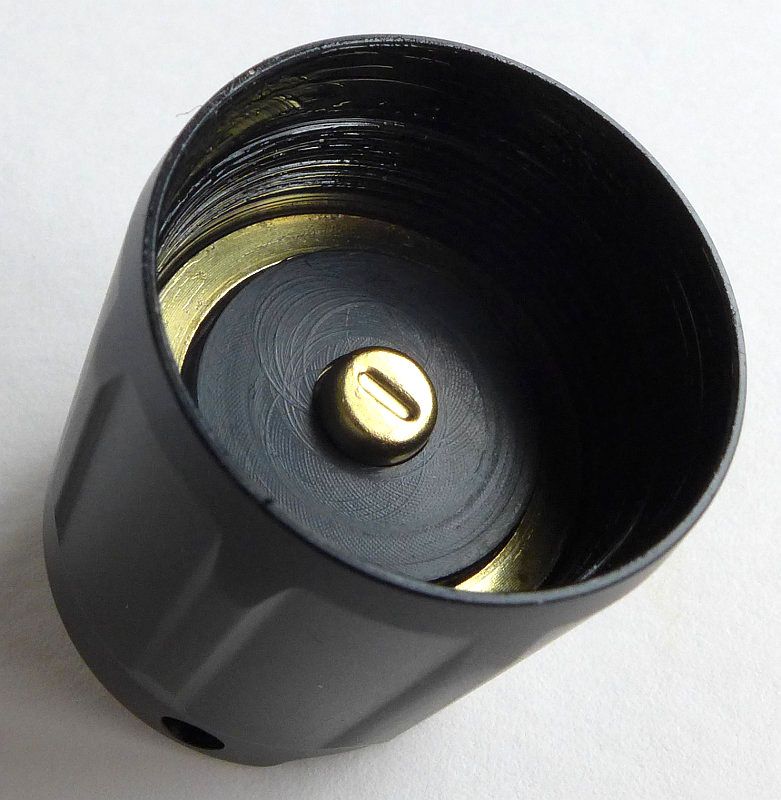

    In the tailcap, there is a short sprung negative post terminal, and the circular contact for the battery tube.

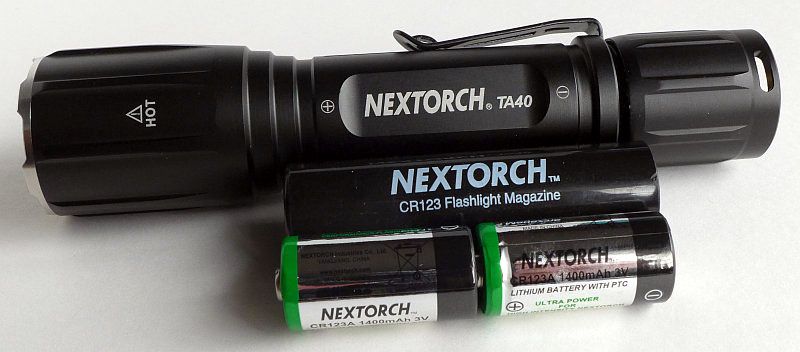

    For scale, the TA40 is shown next to 2 x CR123 cells and an 18650 sized holder to stop the CR123s rattling.




    But to use the recharging feature, the TA40 needs an 18650, and there is a 3400mAh NEXTORCH cell.




    When charging the indicator light is red, once fully charged this goes green.

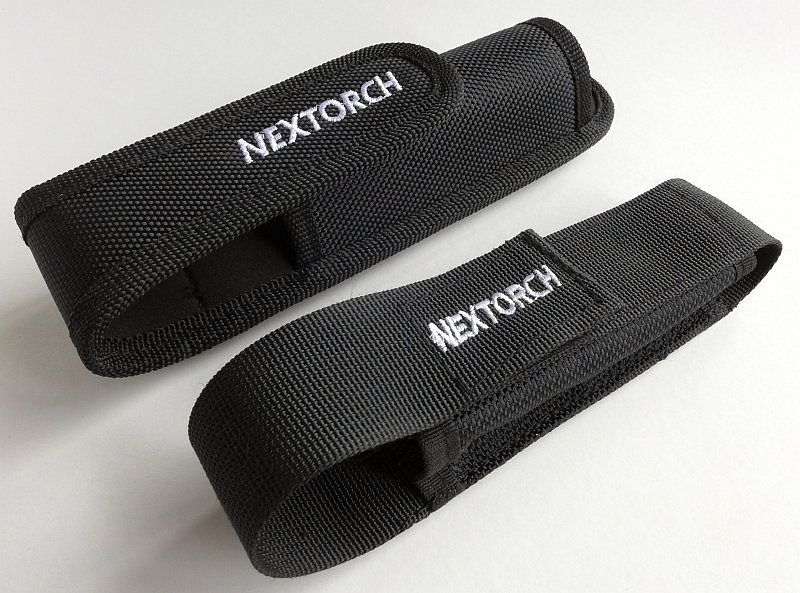

    The V1 holster is a more substantial holster compared to the one that come with the TA40. It is constructed of a thicker more padded material, but is also bulkier because of this. The feel is of a 'better' holster, and some TA40 owners might like to go for this more protective holster.




    The TA40 in the V1 holster.




    Being of higher specification, the V1 holster also has a D-loop, and Velcro and press-stud closed belt loop.




    To add versatility to the TA40, you can use the FT32F filter set. In this image, you can see the trademark random cut across the package from what I now term the 'DHL Slasher'. Several review samples I have received from Hong Kong have been 'security inspected' which is fine, but not the way the items have been treated. The DHL Slasher has taken to opening packages by making deep cuts across the middle of the package with no regard for the contents.




    Inside are three high quality glass coloured filters.




    The chosen filter is fitted into a rubber mount that slips over the end of the TA40 (or any other similar sized light).

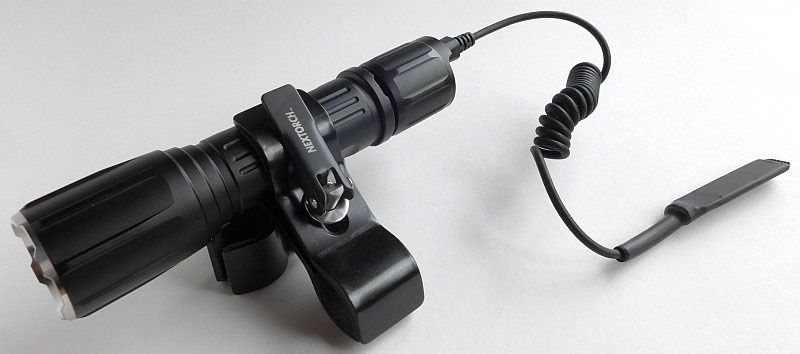

    Onto the gun mounting accessories. Starting with the remote pressure switch which fits into the same MCX connector used for the charging cable. Then there are two different clamp mounts to fit the TA40 onto the scope of barrel of the gun.

    In the middle is the RM85, which is more of a quick release mount as no other tools are required for fitting and removal. On the right is the lower profile RM81, which is very securely attached with two allen bolts and is semi-permanent (you need a tool to remove it).




    As I use a compact scope, there is not sufficient exposed scope tube to mount the TA40 with either of these mounts, so here it is shown with the RM85 fitted to the TA40 as if on a gun, with the remote pressure switch fitted as well.






    The beam

    Please be careful not to judge tint based on images you see on a computer screen. Unless properly calibrated, the screen itself will change the perceived tint.
    The indoor beamshot is intended to give an idea of the beam shape/quality rather than tint. All beamshots are taken using daylight white balance. The woodwork (stairs and skirting) are painted Farrow & Ball "Off-White", and the walls are a light sandy colour called 'String' again by Farrow & Ball. I don't actually have a 'white wall' in the house to use for this, and the wife won't have one!



    The TA40's beam is clean, with a defined hotspot. The stainless steel bezel does cause some artefacts in the outer spill.




    This set of images shows the white beam and then each coloured filter, all at the same exposure to show the effect of each filter on overall brightness.




    The outdoor shot shows how the spill is bright and wide enough to be useful. The beam is really too wide for use on a rifle, and would be better suited to a shotgun.





    Modes and User Interface:

    One of the listed features of the TA40 is its DUO Switch. This switch is unusual in that it functions like both a forward and reverse clicky switch. This will become clearer as I explain more.

    Momentary operation is possible from OFF by half pressing the switch. This will always use Turbo output.

    Strobe is accessed from OFF by a rapid double tap (half press) of the switch. Once activated the switch can be fully pressed to latch on Strobe, or released to switch OFF.

    For Constant ON, fully press the switch and release.

    Up to this point the operation has been equivalent to a forward clicky switch, now things change –

    To set a lower output level, first select Constant ON Turbo. Then tap the switch (half press and release) to cycle through Turbo -> High -> Medium -> Low -> Turbo etc.

    To choose SOS, first set to Constant ON Turbo. Then half press the switch and hold for 3s. Release the switch and the TA40 will stay in SOS until switched OFF.

    Both these operations are equivalent to a reverse clicky switch.


    When the remote switch is fitted, the tail-cap switch still functions normally. The remote switch activates Turbo regardless of whether the TA40 is OFF on ON in any mode. Releasing the pressure switch returns the TA40 to its previous state (OFF or ON in a different mode).



    Batteries and output:

    You can use 2x CR123 or to take advantage of the built in charging function a protected 18650 can be used (flat top or button top).

    Testing has been carried out using a NEXTORCH 18650 charged in the TA40.

    To measure actual output, I built an integrating sphere. See here for more detail. The sensor registers visible light only (so Infra-Red and Ultra-Violet will not be measured).

    Please note, all quoted lumen figures are from a DIY integrating sphere, and according to ANSI standards. Although every effort is made to give as accurate a result as possible, they should be taken as an estimate only. The results can be used to compare outputs in this review and others I have published.

    ___________________________________________ ________________________________ ________________________________
    Nextorch TA40 with Nextorch 3400mAh 18650 I.S. measured ANSI output Lumens PWM frequency or Strobe frequency (Hz)
    ___________________________________________ ________________________________ ________________________________
    Turbo 746 0
    High 358 1420
    Medium 195 1420
    Low 36 1420
    Strobe 240 12.2

    Peak Beam intensity measured 16100lx @1m giving a beam range of 254m.

    There is parasitic drain at 71uA giving a time to drain the fully charged 3400mAh cell of 5.46 Years.

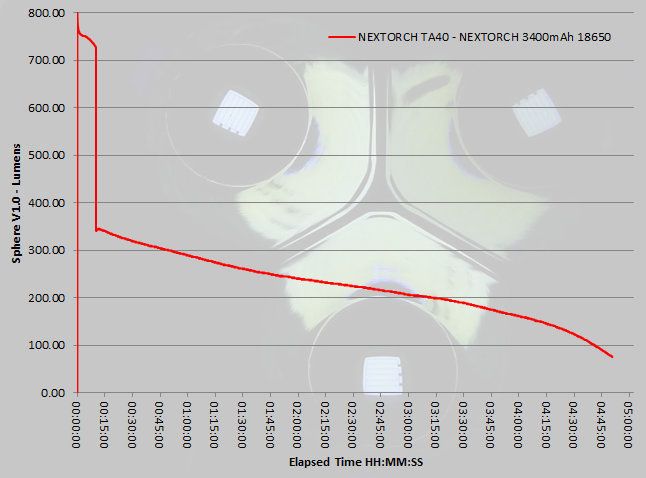

    After 10 minutes of Turbo, the TA40 drops to the High output for the rest of the runtime. Output is not regulated and gradually fades.





    Troubleshooting

    This is a new section I am adding to mention any minor niggles I came across during testing, in case the information helps anyone else.

    Nothing has come up during testing.

    As per the description of this section, this information is provided in case anyone else finds a similar 'issue' that might be fixed in the same way.



    The TA40 in use

    A defining feature of the TA40 is the choice of its DUO Switch and mode set. You will always get Turbo at first. This will suit some and not others.

    With most other lights that change mode with rapid presses and use a forward clicky, you have to select the mode on the initial switching on. After this, you have to click the light off to change modes again. The DUO Switch gives you the momentary use (also read 'silent'), just like a forward clicky, but the mode change of a reverse clicky. This is an idea I like, but what I would like to see would be a way to turn the modes round so that the TA40 comes on in Low and then lets you switch up to Turbo. Perhaps a TA40T and TA40E (Tactical and EDC) version, or a switching method built in to one model.

    With its ability to tail stand, the TA40's DUO Switch is not really accessible enough, and you might struggle if wearing gloves.

    A complete lack of knurling on the TA40 gives it a distinctive look and feel. All machining is precise and clean but with no sharp edges. The bezel is similarly well machined and though you feel the corners they are not aggressively sharp. Altogether a quality feel.

    Unfortunately I find a bit of a contradiction in that the operation of the TA40 fits 'tactical/gun-light' use, but the DUO Switch is not accessible enough for (and possible not durable enough) for tactical use, there is a lack of grip due to the smooth finish, no grip ring, and the remote switch is only a push fit, so could come loose at a critical moment, all of which make it unsuitable for tactical or critical use scenarios (in my opinion).

    Though the TA40 does use PWM for the lower modes, this has not proven to be visible. It uses a reasonably high frequency of 1420Hz, which even this 'PWM sensitive' reviewer has not noticed. However, there is an audible whine on all modes except Turbo.

    So where does the TA40 fit? If you want solid build, always on Turbo, built-in recharging and the ability to use gun mounted thanks to the remote switch, then this certainly is a strong contender. Even if all you want is something a bit different to most 18650 lights, the TA40 gives you this with a different look and feel.


    Review Summary

    _______________________________________________ _______________________________________________
    Things I like What doesn't work so well for me
    _______________________________________________ _______________________________________________
    746 ANSI lumens No direct access to lower modes
    PWM not visible at 1420Hz PWM whine can be heard
    Built-in USB recharging for 18650 Recessed switch
    Can tailstand Lack of grip (can be slippery to hold)
    Optional Remote pressure switch
    DUO Switch
    Good quality machining and finish


    If you enjoyed my reviews, please remember to 'Like' me on Facebook and follow me on Twitter @Subwoofer_CPF
    to get all the latest updates and news.

    You can also find exclusive insights on Instagram and Pinterest



    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  2. #2
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Nextorch TA40 and accessories (18650, 2x CR123)

    Reserved for updates...

    A detail I would like to highlight is that there is a retaining feature for the charging plug or remote switch. On the plug, there is a lug which fits into a corresponding slot in the tailcap.




    The plug is first inserted.




    Then rotated to engage the lug.




    And seen from the side.




    With the lug rotated into place.




    This detail in design is useful, but the resistance to rotation is low, so there is still concern about the plug coming out.

    UPDATE 22/07/2015 - new runtime graph to include CR123 output.

    ANSI output is now 899lm on CR123 compared to 746lm on 18650.

    Last edited by subwoofer; 07-22-2015 at 05:07 AM.
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  3. #3
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Nextorch TA40 and accessories (18650, 2x CR123)

    Post 2 is now updated with an additional runtime graph and output on CR123.
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  4. #4

    Default Re: Review: Nextorch TA40 and accessories (18650, 2x CR123)

    Great reviews subwoofer!Good pictures as well.
    Like the RM85, do not see too much around me, it's great to you don’t need any other tools to fit the stuff, which are always easier to lose.

  5. #5
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Nextorch TA40 and accessories (18650, 2x CR123)

    Quote Originally Posted by Abbu View Post
    Great reviews subwoofer!Good pictures as well.
    Like the RM85, do not see too much around me, it's great to you don’t need any other tools to fit the stuff, which are always easier to lose.

    Thanks.

    Tool-less mounts are convenient, especially as I tend to carry the light separately and add it on if needed (to keep weight down).
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  6. #6
    Flashaholic
    Join Date
    Jul 2015
    Location
    Alberta Canada
    Posts
    266

    Default Re: Review: Nextorch TA40 and accessories (18650, 2x CR123)

    Great review, thanks for sharing. Was the runtime graph done with the included Nextorch cr123a batteries? Are they quality batteries?

  7. #7
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Nextorch TA40 and accessories (18650, 2x CR123)

    Quote Originally Posted by Raysbeam View Post
    Great review, thanks for sharing. Was the runtime graph done with the included Nextorch cr123a batteries? Are they quality batteries?
    I've not had many of the Nextorch CR123s sent to me, but your comment has reminded me of an interesting comment from Nextorch. They said their CR123s are 3.3V cells whereas other CR123s are 3.2V. I thought this slightly odd as the voltage is dictated by the chemistry and the major difference between CR123s is the total capacity and their ability to maintain voltage under load.

    So going by Nextorch's comments their CR123s are better than any other, but I've not used enough to know how the compare to other well known CR123s.
