    Default Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)


    ---------------------------------------------------------------------------------------------------------------------
    Author's Statement for Transparency and Disclosure
    The test sample/s featured in this article have been provided for technical testing and review by the manufacturer. Test samples are retained by the reviewer following publication of the completed review for the purposes of long term testing and product comparisons.

    All output figures and test results published in this review are the sole work of the reviewer, and are carried out independently and without bias. Test results are reported as found, with no embellishments or alteration. Though best endeavours are made to maintain the accuracy of test equipment, the accuracy of these results is not guaranteed and is subject to the test equipment functioning correctly.
    ----------------------------------------------------------------------------------------------------------------------

    Olight have been building up performance levels with the other Javelot models. These Javelots have been getting noticed for their enhanced throw, and then Olight released the M3XS-UT taking performance up another notch. The M3XS-UT is currently the top of performer amongst the Javelots.





    Taking a more detailed look:

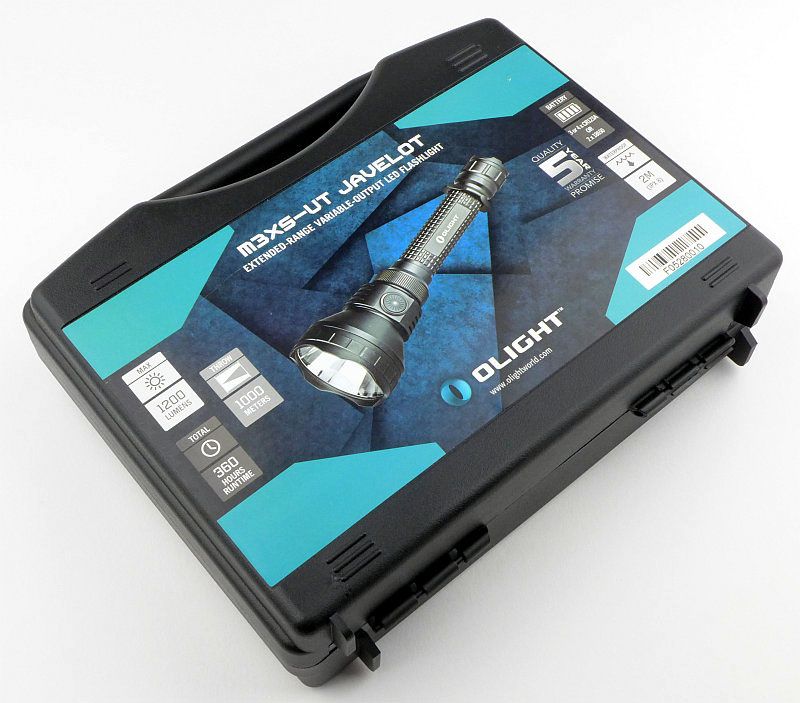

    Like all the Javelots I’ve tested, the M3XS-UT comes with a plastic carry case rather than a disposable cardboard box.




    Inside, the contents are held in place with a foam liner. The empty slot would contain the CR123 holder, but in this case this demonstration light had a set of cells fitted into the light when it arrived.

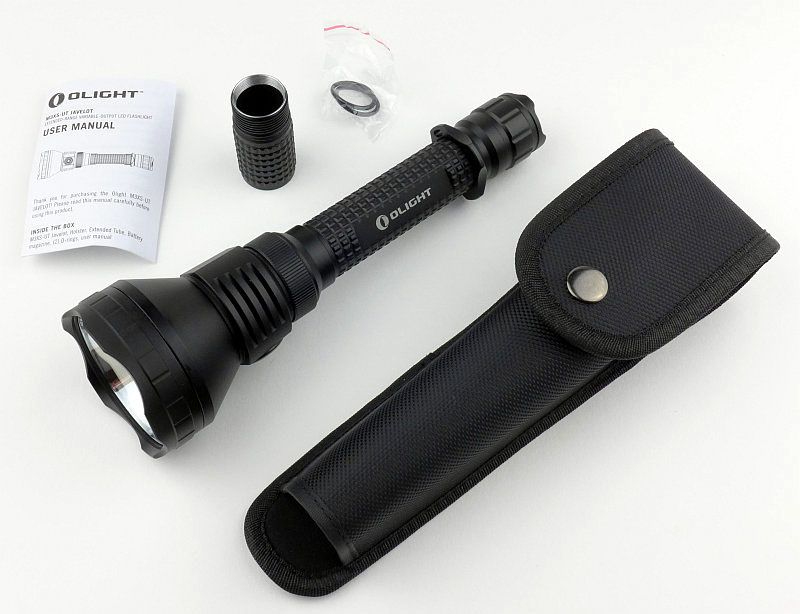

    Included are the M3XS-UT, an extender tube, holster, two O-rings and the instructions. (the CR123 cell holder is already in the light here).

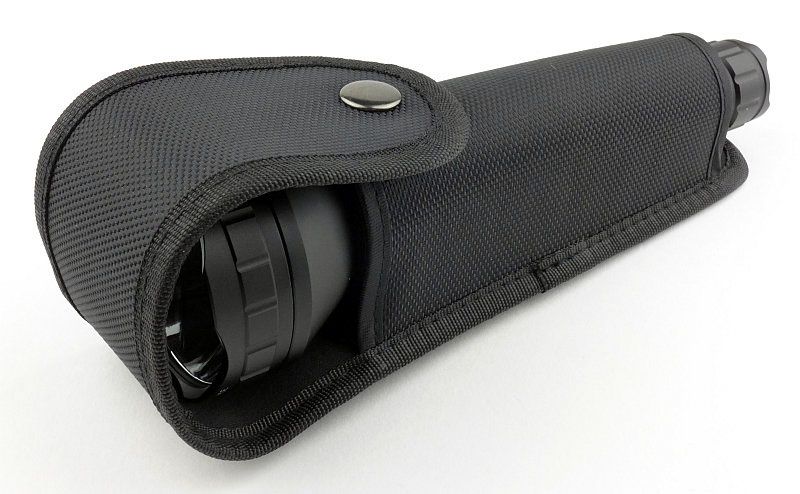

    Out of necessity, the M3XS-UT has an open bottom holster.

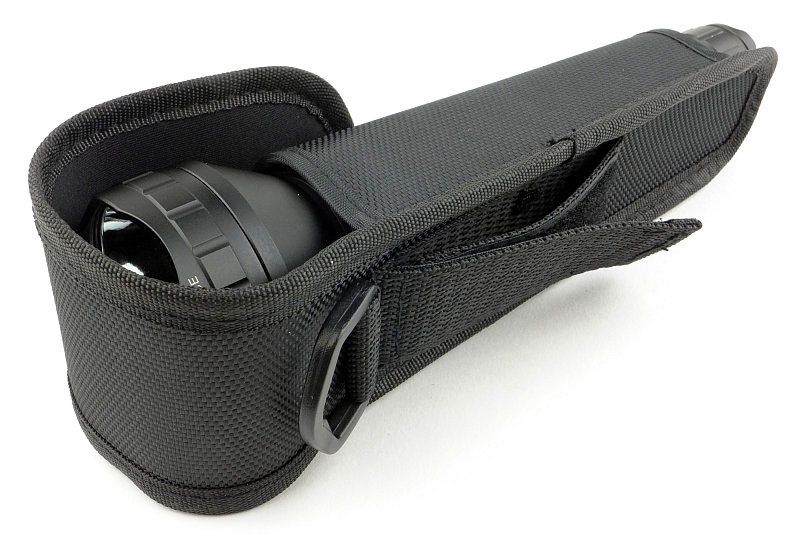

    You have the choice of D-ring or Velcro-closed belt loop.

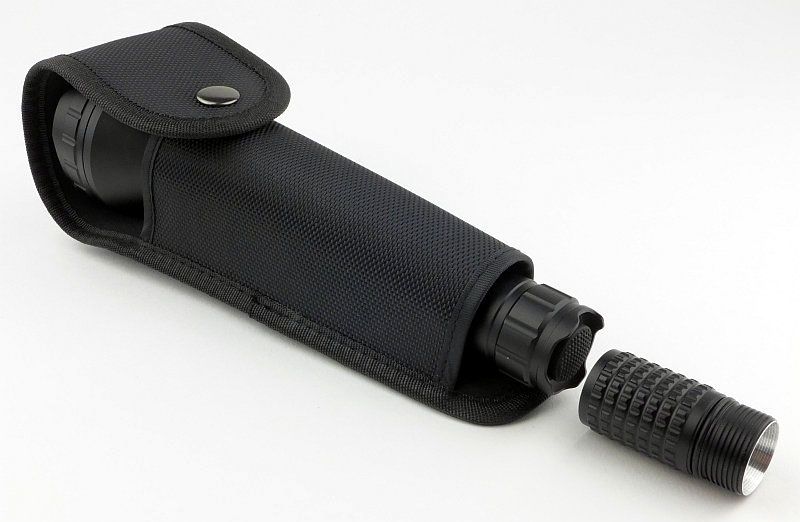

    This is why there is an open bottom in the holster.

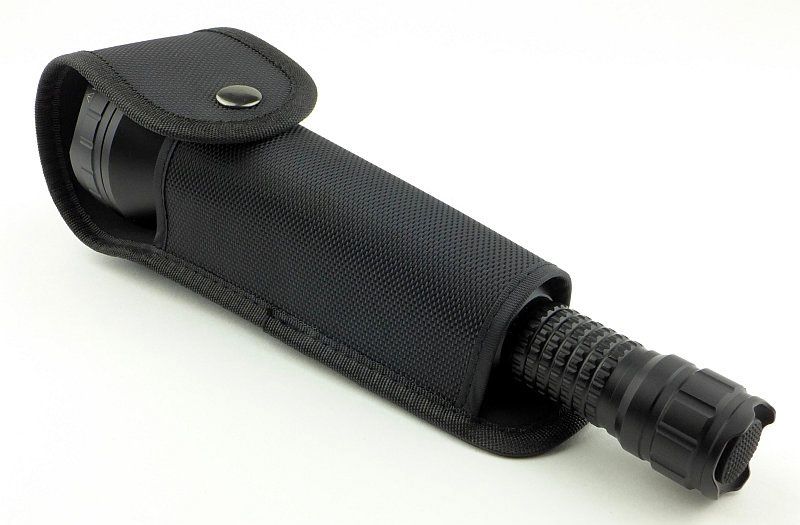

    This holster can be used with or without the extension tube.

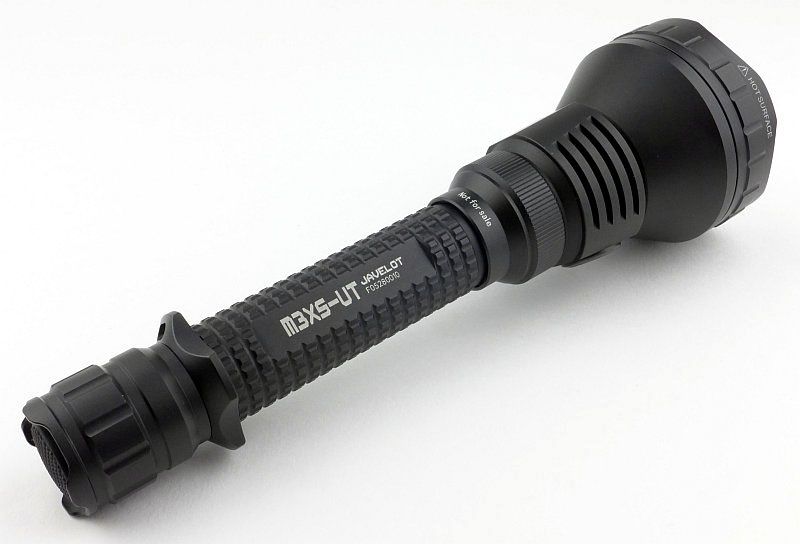

    The M3SX-UT has a removable grip ring.

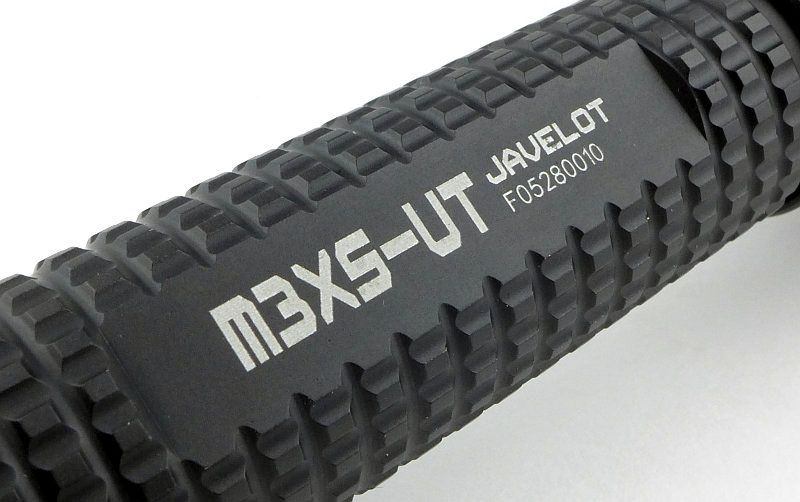

    Instead of standard knurling a very effective pattern is machined into the body.




    In addition to the tail-cap switch, there is a side-switch for mode selection.




    Either side of the side-switch are heat sink fins.




    The switch boot is wider than most and the tail-cap has four small raised lugs which allow it to tail-stand (though not very stable).

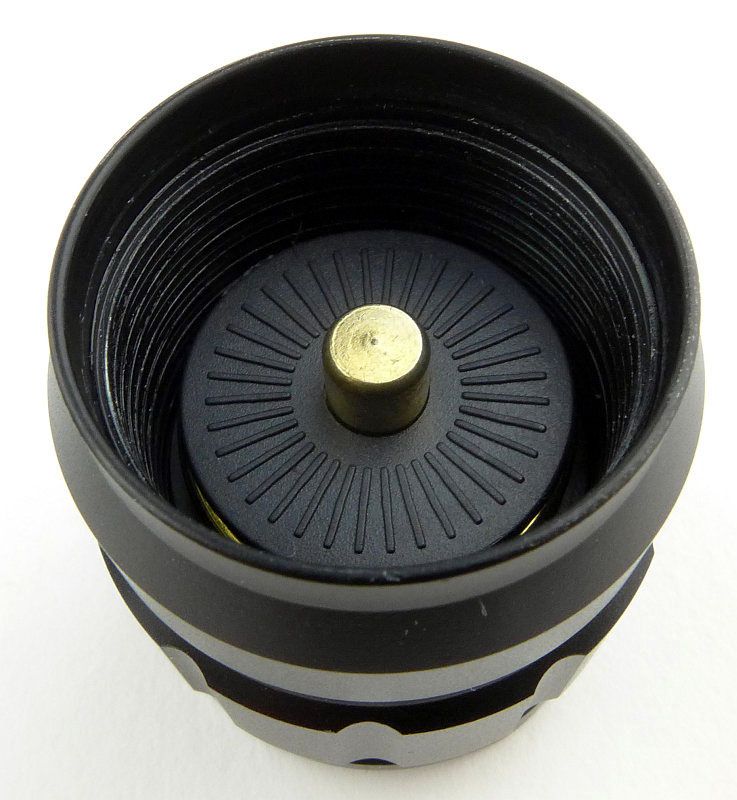

    Looking into the tail-cap, the negative terminal is clearly visible, but the contact for the battery tube is only seen as small glimpses. This is due to the design not using a contact point on the end of the tube, but instead fitting into the cone shaped inner edge.




    Removing the battery tube completely shows the positive contact in the head as well as the circular battery tube contact.

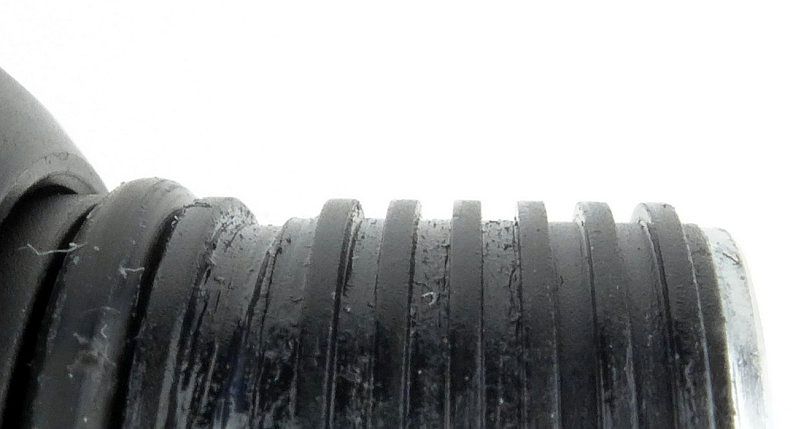

    For the tail-cap end of the battery tube, the threads are a square-cut.




    At the head end of the batter tube, the threads are standard and two O-rings are used.

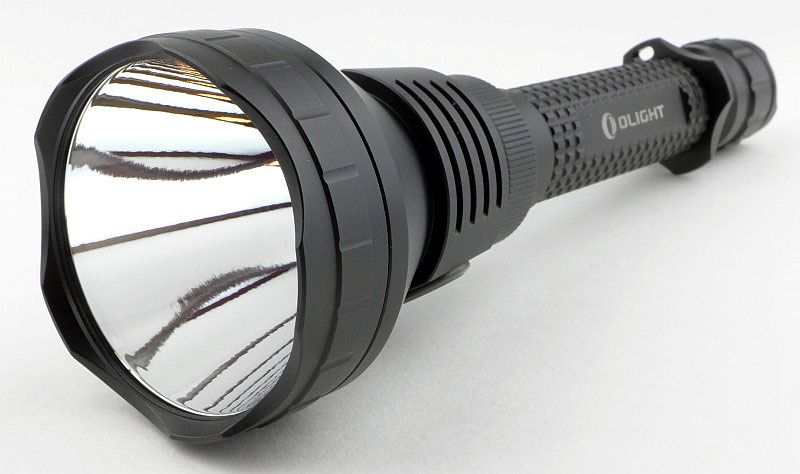

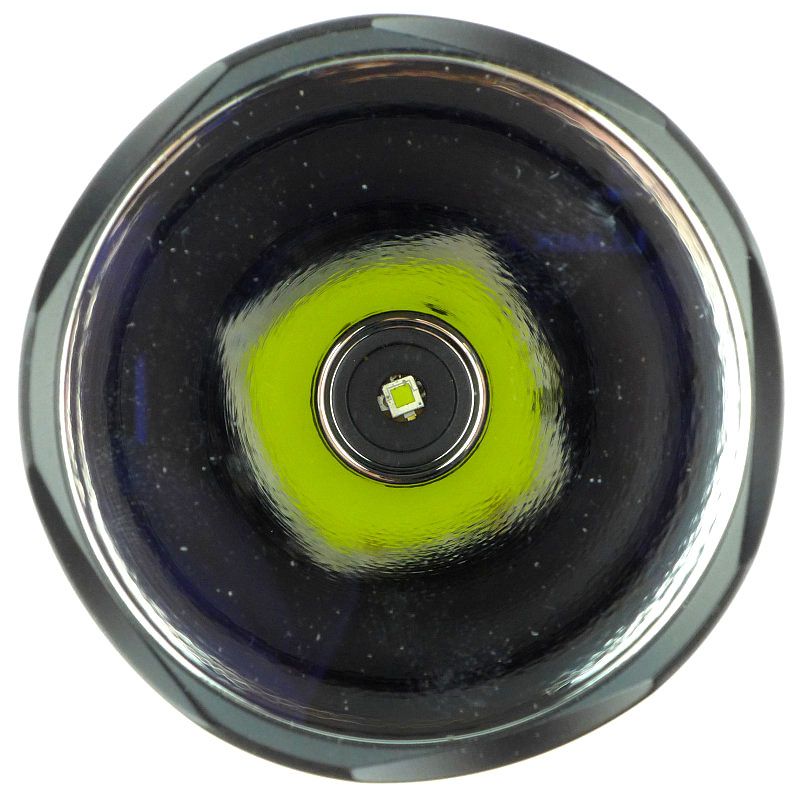

    There is just a tiny hint of texturing in the large reflector, and at its heart, a fully exposed XP-L HI LED.

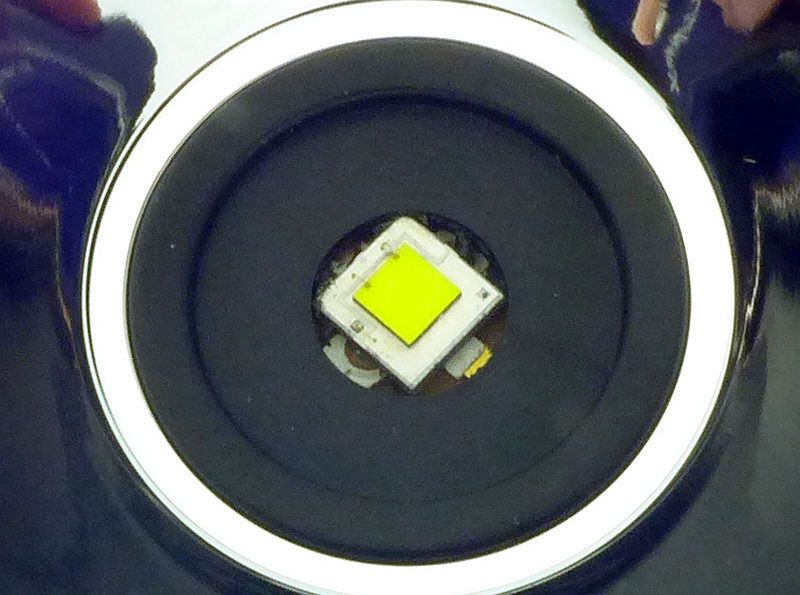

    A closer view of the bare phosphor of the XP-L HI.

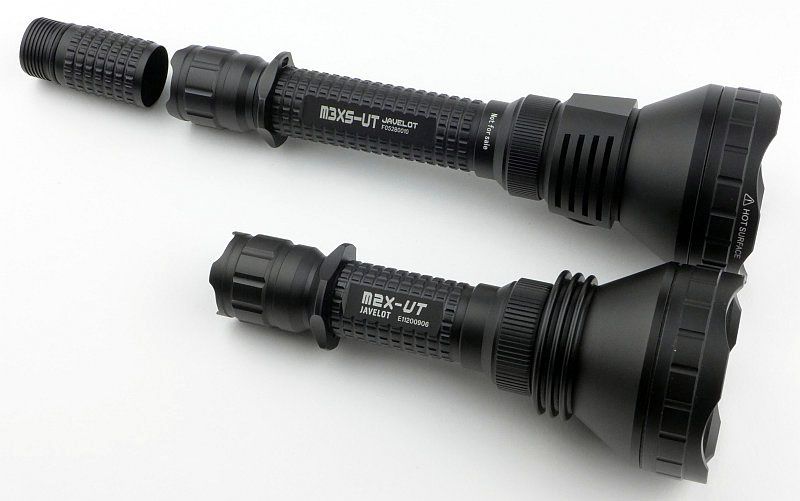

    Making comparison to the M2X-UT (using 1x18650), this larger version is clearly longer from the lens to the battery tube due to the inclusion of the side switch and larger heat sink. The non-extended battery tube is also 3xCR123 in length.

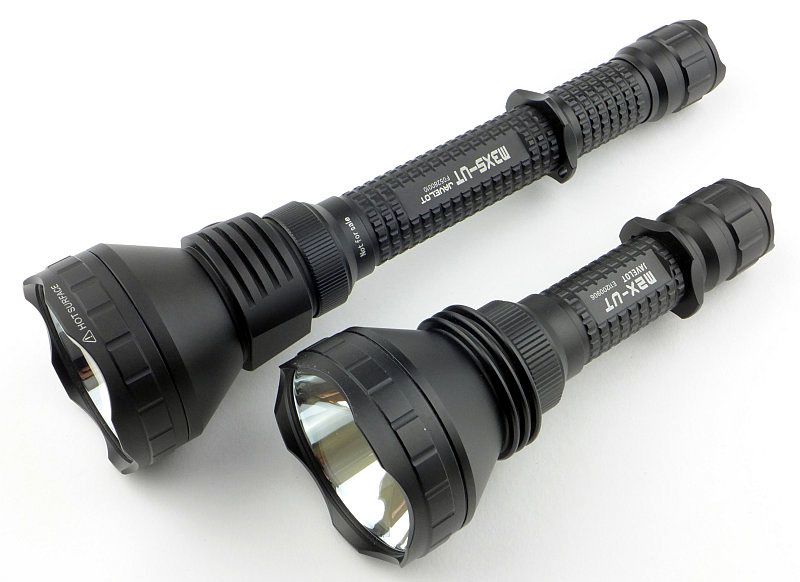

    Comparing again with the extension tube fitted.

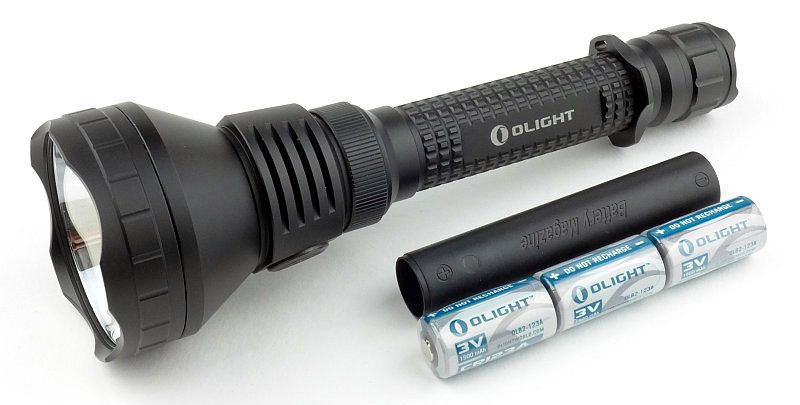

    Taking the M3X-UT at its smallest size, it runs on 3xCR123 and has a cell holder to stop any rattle.

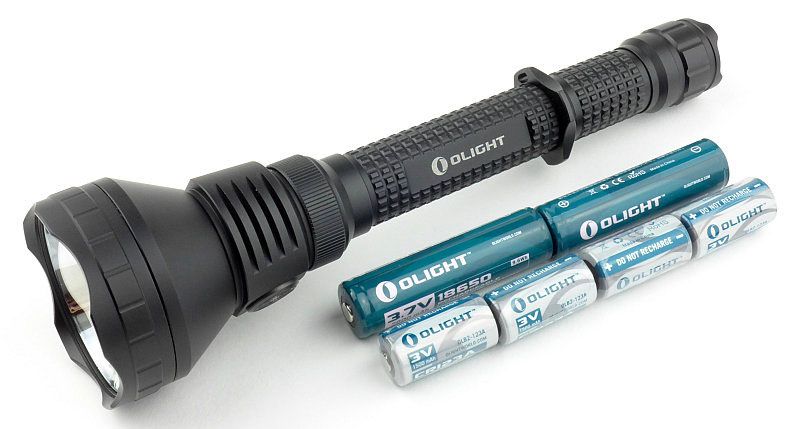

    Stepping up to the full length M3XS-UT it runs on 2x18650 or 4xCR123.




    To get the most runtime out of the M3XS-UT use it with the extension tube fitted.





    The beam

    Please be careful not to judge tint based on images you see on a computer screen. Unless properly calibrated, the screen itself will change the perceived tint.
    The indoor beamshot is intended to give an idea of the beam shape/quality rather than tint. All beamshots are taken using daylight white balance. The woodwork (stairs and skirting) are painted Farrow & Ball "Off-White", and the walls are a light sandy colour called 'String' again by Farrow & Ball. I don't actually have a 'white wall' in the house to use for this, and the wife won't have one!



    Starting indoors, it is immediately obvious we have a super-high intensity hotspot. In fact what you can see in this photograph is the effect of the hotspot being of such high brightness it is acting as a significant source of light. The edge of the spill is easy to see, but the whole scene is lit behind the spill edge due to the hotspot’s light bouncing back.




    Outdoors the hotspot burns out the centre of the image.




    To really appreciate the full power of the M3XS-UT we need a little more range. How about a driving range?

    The beam is aimed at a set of four distance markers behind a circular net. The closest marker is 100 yards, with the others set 50 yards apart going up to the furthest at 250 yards.




    The beam lights well beyond the markers.





    Modes and User Interface:

    There are four constant output modes, High, Medium, Low and Moonlight as well as a Strobe mode.

    Access to these is via a series of clicks of the forward-click tail-cap switch combined with the side switch.

    Turning the M3XS-UT ON with the tail-cap switch, the steady modes are cycled through using the side switch Low -> Medium -> High -> Low etc. The selected mode is memorised for the next time the tail-cap switch is used.

    While ON, pressing and holding the side switch turns the output to Strobe.

    From OFF, half-pressing or fully pressing the tail-cap switch activates the memorised output level.
    From OFF, a rapid double tap of the tail-cap switch activates High. This is not memorised.
    From OFF, a rapid triple tap of the tail-cap switch activates Strobe. This is not memorised.
    From OFF, holding the side switch while activating the tail-cap switch turns the output to Moonlight. This is not memorised.



    Batteries and output:

    The Olight M3XS-UT runs on 3/4x CR123 or 2x18650.

    To measure actual output, I built an integrating sphere. See here for more detail. The sensor registers visible light only (so Infra-Red and Ultra-Violet will not be measured).

    Please note, all quoted lumen figures are from a DIY integrating sphere, and according to ANSI standards. Although every effort is made to give as accurate a result as possible, they should be taken as an estimate only. The results can be used to compare outputs in this review and others I have published.

    ___________________________________________ ________________________________ ________________________________
    Olight M3XS-UT Javelot using specified cell I.S. measured ANSI output Lumens PWM frequency or Strobe frequency (Hz)
    ___________________________________________ ________________________________ ________________________________
    High using 3x Olight CR123 cells 1243 0
    Medium using 3x Olight CR123 cells 678 0
    Low using 3x Olight CR123 cells 118 0
    High using 2x Olight 18650 cells 1234 0
    Medium using 2x Olight 18650 cells 666 0
    Low using 2x Olight 18650 cells 116 0

    * Beacon and Strobe output measurements are only estimates as the brief flashes make it difficult to capture the actual output value.

    Peak Beam intensity measured 249000lx @1m giving a beam range of 998m.

    There is no parasitic drain.

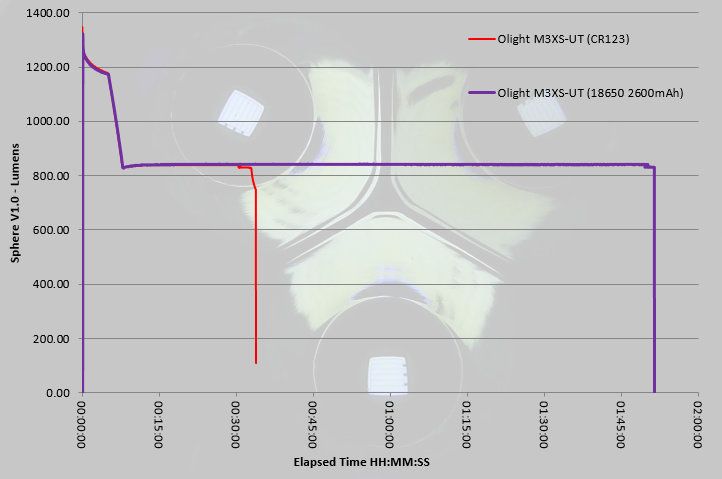

    After 8 minutes on High (using either CR123 or 18650) the output makes a controlled reduction to 832lm which is then maintained as a regulated output for as long as the cells can manage.

    Running on 2x18650 you have a huge difference in total runtime with the CR123s running into the ANSI cutoff at 35 minutes from turn on, but the 2x18650 (and only 2600mAh cells) gives you up to 1h51m at which point the protection cuts in and the output goes off.

    The regulation used in the M3XS-UT means that you get little or no warning of the output cutting out. On 18650 the protection activates, and with CR123 the output plummets once the cells are depleted.





    Troubleshooting

    This section is included to mention any minor niggles I come across during testing, in case the information helps anyone else.

    No issues were encountered during testing.

    As per the description of this section, this information is provided in case anyone else finds a similar 'issue' that might be fixed in the same way.



    The M3XS-UT Javelot in use

    This light is an out-and-out throw monster. Unless the extra 3.5cm is a deal breaker, you will want to use the extension tube for the massive increase in run time and guilt-free rechargeable lumens.

    At short ranges the M3XS-UT is too tight a beam for comfortable use. It is great for ceiling bounce, but not when directed towards whatever you are looking at. Of course if you are peering into a deep space, the tight beam works wonders, but for general use this extreme-thrower is not the right choice. What you want this light for is its throw and lightsaber like beam.

    Due to the intensity of the beam, if you hold it too near to your line of vision the beam itself can obscure your view of what you are shining it at. It is best to hold the light away from your head to allow you to see further. This varies with atmospheric conditions being far more noticeable when the air is moisture laden.



    Compared to the smaller M2X-UT (which has very impressive performance – see my review of the M2X-UT for more details), the M3XS-UT steps things up. At 182800 lux@1m the M2X-UT has a beam range of 855m, but with the M3SX-UT this is raised to 249000 lux@1m and a beam range of 998m. A significant jump in beam intensity from the same diameter reflector.

    If you are using the momentary output to flash a signal, it is quite easy to activate strobe, and I’d much prefer there to be no strobe at all. In an extreme-range searchlight I see no point in strobe.

    Much better is the partly hidden Moonlight mode. In practical terms, due to the highly focussed beam, Moonlight mode is not terribly useful. All you end up seeing is a small bright circle with very dim spill round it. Better than nothing, but this is not a close-range light even with moonlight mode. If only strobe were hidden in this way, then you could easily avoid it.

    Handling with the extension fitted is really good. Though the grip ring is now further from the switch, it simply sits between your middle and ring finger, or ring finger and little finger, and gives you plenty of security. I particularly like the machined grip pattern on the battery tube. It is not as abrasive as knurling, but the knobbles give great hold without acting like sandpaper.

    The lux figures speak for themselves, and yet the M3XS-UT is not overly large, so you get fantastic throw in a still relatively compact and easy to handle light.

    It may not be an all-rounder, but that is not what this light is all about - give it some range and the M3XS-UT truly sings.



    Review Summary

    _______________________________________________ _______________________________________________
    Things I like What doesn't work so well for me
    _______________________________________________ _______________________________________________
    Super throw with 249000 lux @1m – 998m beam range Strobe too easily activated
    1200lm output Not suited to short range use
    Included extension tube allows for longer runtimes Regulated output results in shutdown with little warning
    Holster accommodates extension tube
    Bare XP-L HI LED used for highest lux
    Relatively compact for its performance




    If you enjoyed my reviews, please remember to 'Like' me on Facebook and follow me on Twitter @Subwoofer_CPF
    to get all the latest updates and news.

    You can also find exclusive insights on Instagram and Pinterest



    Last edited by subwoofer; 02-24-2016 at 09:02 AM.
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  2. #2
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    reserved for updates...
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  3. #3

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Awesome review! I gave that light a SERIOUS look and ultimately chose the SR52UT for its virtual identical throw, but way longer runtime and in light charge capability. However your review and pics clearly show that you couldn't possibly make wrong choice between the two! That's some serious throw there.

  4. #4
    Flashaholic*
    Join Date
    Sep 2015
    Location
    Sampson Flat, Sth. Aust.
    Posts
    1,100

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Thanks for an excellent review! It tells the story of this impressive light. Would you use unprotected cells in this light?

  5. #5
    Flashaholic* akhyar's Avatar
    Join Date
    Mar 2013
    Location
    Malaysia
    Posts
    782

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Awesome review mate!

  6. #6

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    subwoofer, thanks for the review.
    Per the pic of the emitter shown in your review, that's a dedomed XPL, not a XPL HI.
    -You and others like you might be the reason lights aren't (even) better made.
    -Wider head for even more throw. Wow. That's new.
    -Nope. Not exceeding my expectations. You barely even meet them.

  7. #7
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Quote Originally Posted by scs View Post
    subwoofer, thanks for the review.
    Per the pic of the emitter shown in your review, that's a dedomed XPL, not a XPL HI.

    Olight's specification states XP-L High Intensity and I know from some of the samples I've had that Cree initially had a completely bare emitter then found that an almost flat mini dome (more of just a very thin coating) increased output efficiency and improved tint.

    The light on test will be one of the first production units (as it was a demo sample) and has the first generation of XP-L Hgih Intensity. I suspect the latest production batch will have the XP-L HI we are more familiar with.
    Last edited by subwoofer; 02-15-2016 at 08:30 AM.
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  8. #8

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Thanks for your excellent review. The Olight M3XS-UT Javelot has pretty much replaced my Thrunite TN32 when I need a flashlight with maximum throw. My only minor criticism of my M3XS-UT is it has a bit of a greenish tint.
    Necessity is the plea for every infringement of human freedom. It is the argument of tyrants; it is the creed of slaves. — William Pitt, 18 November 1783

  9. #9

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Magnificent review! Thank you for sharing...

  10. #10

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    I cannot think of any reason I would need so much throw yet I want one of these anyway! Do I get full output with 3 x CR123A?

  11. #11
    Flashaholic* subwoofer's Avatar
    Join Date
    May 2010
    Location
    Hove, UK
    Posts
    2,350

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Quote Originally Posted by recDNA View Post
    I cannot think of any reason I would need so much throw yet I want one of these anyway! Do I get full output with 3 x CR123A?
    From the Batteries and output section (also check the runtime graph again)

    ___________________________________________ ________________________________ ________________________________
    Olight M3XS-UT Javelot using specified cell I.S. measured ANSI output Lumens PWM frequency or Strobe frequency (Hz)
    ___________________________________________ ________________________________ ________________________________
    High using 3x Olight CR123 cells 1243 0
    High using 2x Olight 18650 cells 1234 0

    So yes you get full output using 3xCR123, and you get virtually the same using 2x18650 but much greater runtime.


    On the subject of 'needing' the throw, maybe you don't 'need' it, but what it does give you is a much clearer view at any range than a lesser light would. OK that other light might be adequate, but the extra throw just makes it all brighter.

    You can buy a car with adequate power to drive on motorways/freeways but not to make overtaking quick and safe. Most of the time it is fine, but wouldn't you rather have the power to overtake?
    Last edited by subwoofer; 02-16-2016 at 03:55 AM.
    Tactical Reviews by Subwoofer
    Latest Reviews - @TacticalReviews and Facebook
    CandlePower Forums "Trusted Product Tester / Reviewer"

  12. #12

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    LOL. I drive a Toyota hybrid! Not a lot of zooming power. That said I still want this light. Was thinking for the car so I prefer CR123A when I won't use a light daily. Li ions build up resistance when not used. 2 days ago it was 11 below zero here and that isn't good for li ion either.

  13. #13
    MAD777's Avatar
    Join Date
    Jul 2015
    Location
    South Florida
    Posts
    3,291

    Default Re: Review: Olight M3XS-UT Javelot – Super Thrower (3/4xCR123, 2x18650)

    Thorough review subwoofer!
    I'm wondering if 3 x 16340's can be used in lieu of the CR123's or would that add up to too much voltage?
