Thread: E-Series Modularity

  1. #1
    Moderator
    Kiessling's Avatar
    Join Date
    Nov 2002
    Location
    Germany, Old World
    Posts
    16,137

    Default E-Series Modularity

    Hi all.

    I happen to be a great fan of a modular approach to pocket lights. Saves a lot of hard earned cash and is sooo versatile ... and a lot of fun, too.

    That is why I am fond of the SF E-Series ... together with some CPF custom productions the possibilities are endless.

    I’d like to show all the major players that can be combined with the E-Series lights as a little guide to all those who haven’t been around long enough to call themselves veterans yet. This might not be complete and please do not hold me responsible if your particular combo refuses to work! In no way I am a real expert on those things [img]/ubbthreads/images/graemlins/grin.gif[/img]

    I am mainly showing the “stock” parts. Please know though that nothing is sacred to our modders … [img]/ubbthreads/images/graemlins/tongue.gif[/img]


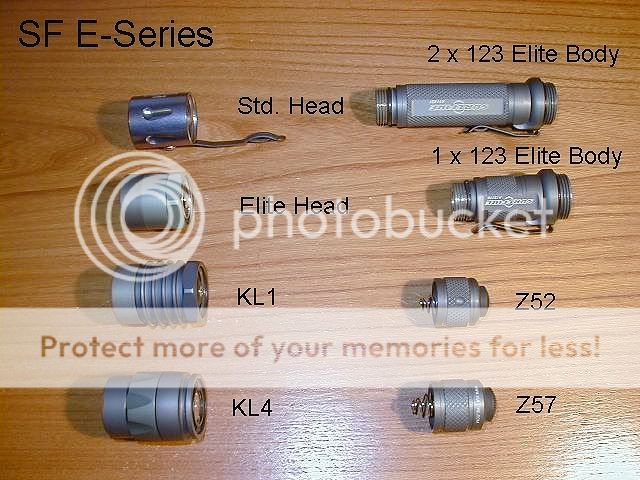

    1. Surefire E-Series parts ========================================



    - Elite 1x123 and 2x123 body with bezel-up clip
    - Std. 1x123 and 2x123 body w/o clip, not in picture, discontinued
    - Z52 LOTC
    - Z57 Clicky Tailcap with lockout feature
    - Elite Head with hex ring, accepts MN01, MN02, MN03
    - Std. Head with attached clip and tear drop marks, accepts the same lamps, but will not fit on elite-bodies and McLux bodies with installed ti-clip (because of the attached clip)
    - KL1 LED Head with a 1W HD LED (older models use a LD LED) and NX05 optics driven roughly at spec. Will run on 1x123 and 2x123. Well known mods replace the LED and / or optics and tune the driver for a more impressive output. Ask Chop, CM et al.
    - KL4 LED Head, the Head of the L4 flashlight. Runs on 2x123 and unregulated on 1x123 (combo is known as TW4 since Tactical Warehouse sold these first). Uses a 5W LED and a reflector for a flood-like beam. Best known mod is the McL4 by McGizmo that replaces the guts with a 1W HD on a BB600 for more throw.


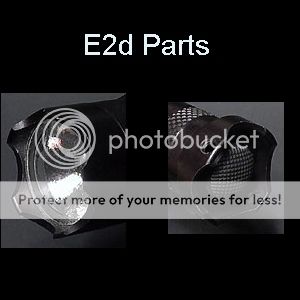

    - E2d-Parts: the new guarded tailcap and crenelated bezel with a domed lens. Never seen those in my hands though [img]/ubbthreads/images/graemlins/tongue.gif[/img]

    L1 components can be screwed on but are functionally quite different and need some serious modding before using them in this set-up …



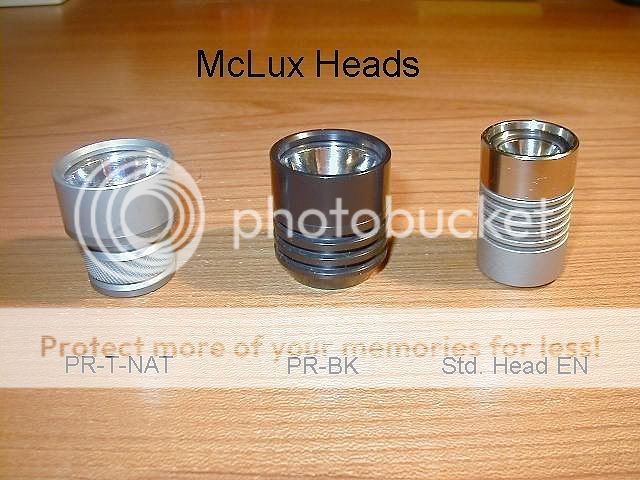

    2. McLux Parts ========================================

    … by McGizmo.



    - McLux Standard Head as on the initial Turnkey units. Accepts McFlood reflector, NX05 optix and NX01 optics and maybe Fraen LP optics.
    - McLux PR with the famous Pelican Reflector for optimum photon management with LEDs so far. Has massive heatsinking capabilities for 5W applications with longer runtimes.
    - McLux PR-T, a trimmed version of the PR-Head. Legend has it that the “T” stands for “Turbo” [img]/ubbthreads/images/graemlins/grin.gif[/img] [img]/ubbthreads/images/graemlins/evilgrin07.gif[/img]



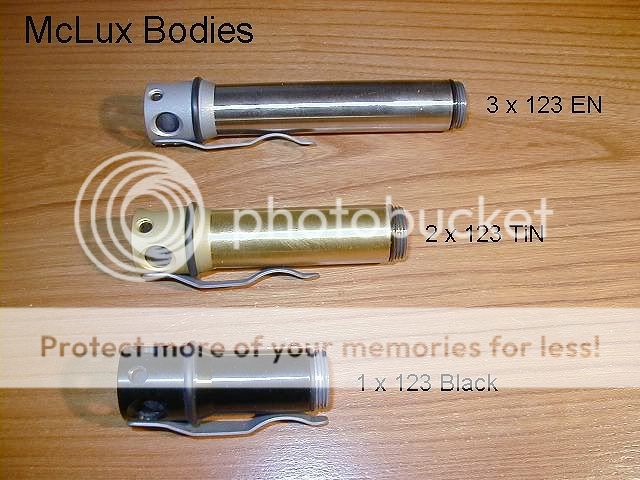

    - McLux Tails 1x123, 2x123 and 3x123 with a Kroll switch at the rear end and a multi-purpose switch guard as well as a bezel-down clip option.



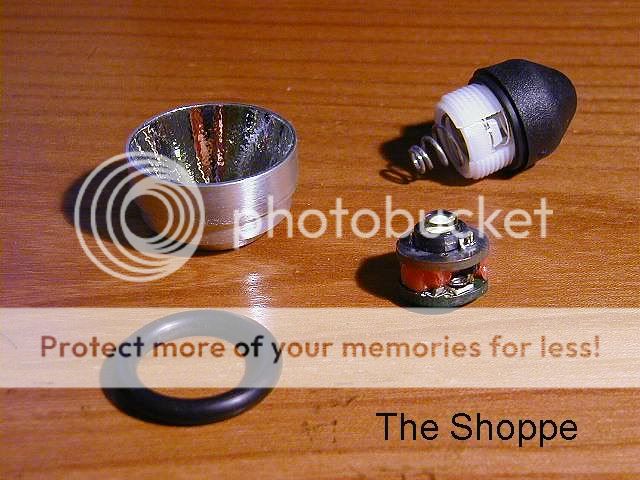

    The single parts and components to build your own McLux light are available at dat2zip’s sandwich shoppe.
    There you will also find the driver boards to make your light regulated (created by Wayne Y.):
    - BadBoy, a current regulated boost driver that can be ordered in various drive levels
    - DownBoy, a current regulated buck driver that can accept up to 4x123
    - Wizard, a buck-boost driver
    - MadMax, a voltage boost driver in various configurations
    However, I am not the right person for such technical stuff, you might want to ask someone who knows or visit the appropriate forum.



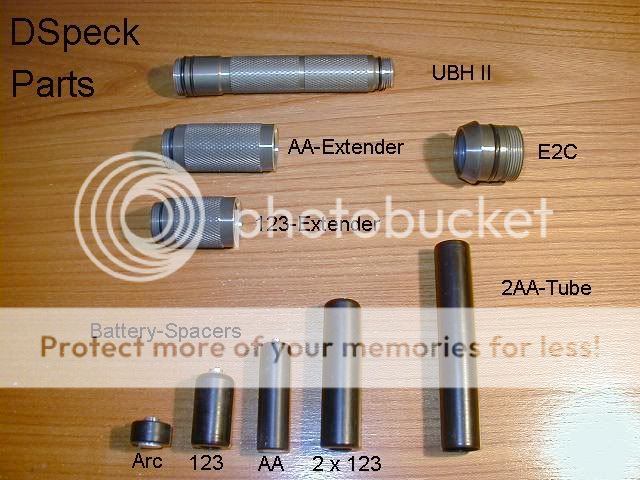

    3. DSpeck Parts ========================================



    - UBH (Universal Battery Holder); a 3x123 battery tube that accepts an E-Series compatible head at the front end and the appropriate tailcap at the rear end. Up to the UBH II the KL4 head will not fit!
    - Spacers for the UBH: there are battery spacers as shown in the pic as well as an Arc-spacer so that E-Series components may accept the Arc LS Head and a battery tube that allows 2xAA to fit in the UBH. Of course those spacers also work in other bodies just as well [img]/ubbthreads/images/graemlins/grin.gif[/img].
    - E2C: an adaptor that joins the E-Series bodies with the C-Series heads for even more possible combos. First made by McGizmo (see below)
    - 1x123 and 1xAA Body Extenders for E-Series compatible bodies, e.g. UBH, McLux.



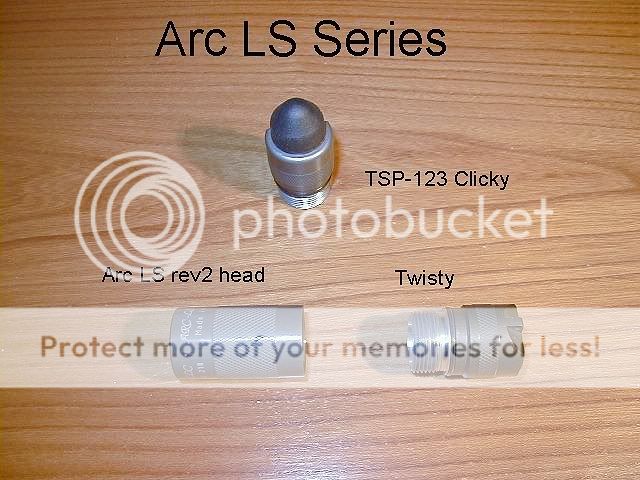

    4. Arc LS Series ========================================



    The Arc LS1 and LS2 Head may be screwed on E-Series compatible bodies, but will only work with DSpeck’s appropriate “Arc-Spacer” to compensate for the length of the battery. This head will not fit on bodies with shoulders, especially the SF Elite bodies.

    The TSP-123 Clicky and P-123 Twisty may only be used with an appropriate adapter (see below) to make a very small E-Series Twisty.



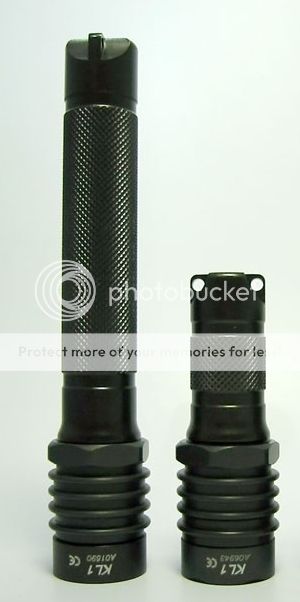

    5. Vitalgear Bodies ========================================



    These are twist-bodies for the E-Series heads available under some different names. You have to twist the head to turn the light on. It seems that waterproofness should not be compromised. But as always … YMMV [img]/ubbthreads/images/graemlins/icon15.gif[/img]



    6. Other Parts ========================================



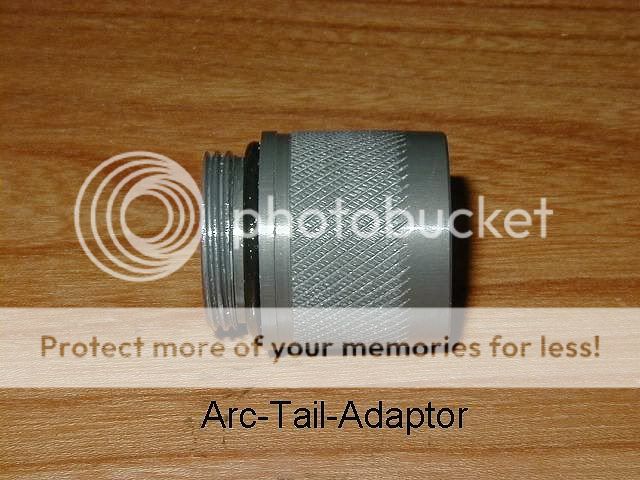

    An adapter to join an Arc Twisty (or TSP-123 if you are so inclined) to an E-Series body. Makes a very short E-Series twisty, watertight.
    This one is made by Rothrandir and works like a charm, jtice is being forced into making some more right now [img]/ubbthreads/images/graemlins/evilgrin07.gif[/img] while the original credits go to McGizmo.



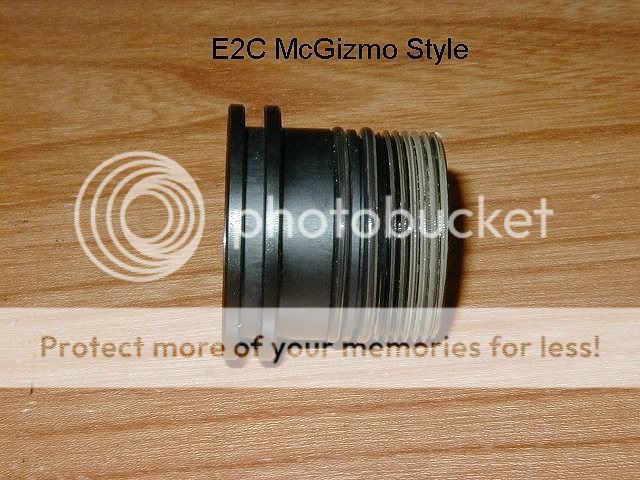

    E2c McGizmo Style, the original version of the E2C with 2 o-rings and a slightly different form-factor than Dspecks E2C.



    What we are waiting for …



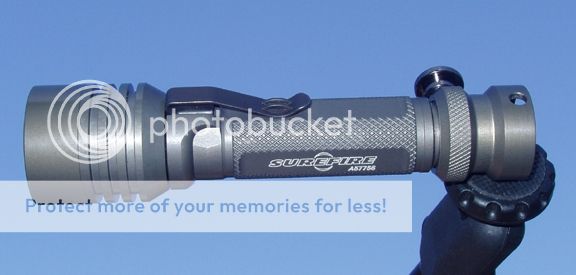

    … the famous McGizmo 2-Stage-Tailcap that will upgrade our beloved E-Series lights to the latest technological breakthroughs by making 2 brightness levels available. Soon … [img]/ubbthreads/images/graemlins/drool.gif[/img]



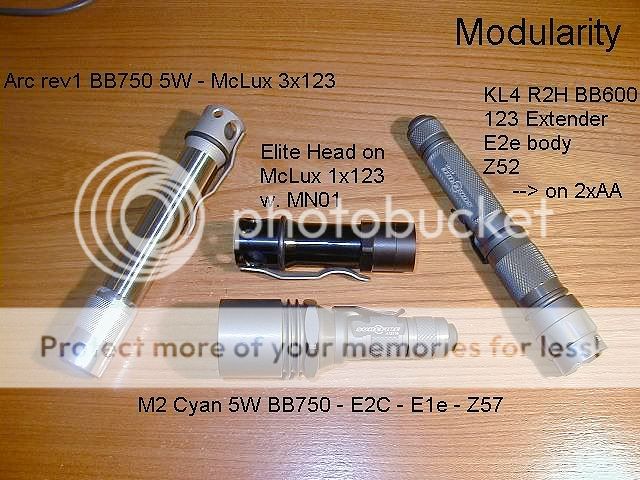

    Some Modular Examples:







    so … modularity is cool. [img]/ubbthreads/images/graemlins/cool.gif[/img]

    Almost all of my serious small lights fit in this modular concept right now. The more parts I got, the more fun I have [img]/ubbthreads/images/graemlins/party.gif[/img] …

    bernhard


    EDIT:
    vitalgear pic stolen from kj
    McGizmo tailcap pic stolen from McGizmo
    E2d pic taken from TafGear bigger photo
    --> if one of those gentlemen would like his pic removed from this post, please contact me and I'll comply asap.

  2. #2
    Flashaholic* Fitz's Avatar
    Join Date
    May 2004
    Location
    Missouri
    Posts
    1,081

    Default Re: E-Series Modularity

    WOW! Thank you for taking the time to post all that info! A 1 stop droolfest of flashlight goodness!

  3. #3
    *Flashaholic* McGizmo's Avatar
    Join Date
    May 2002
    Location
    Maui
    Posts
    17,215

    Default Re: E-Series Modularity

    Dang Bernhard! That's cool! Great contribution here! [img]/ubbthreads/images/graemlins/smile.gif[/img] More wigetry is on the way! [img]/ubbthreads/images/graemlins/tongue.gif[/img]

  4. #4
    Flashaholic
    Join Date
    May 2003
    Location
    above sea level
    Posts
    245

    Default Re: E-Series Modularity

    wonder why there doesn't seem interest for a 2x123 twisty or a pila twisty [img]/ubbthreads/images/graemlins/icon3.gif[/img] and did Vital Gear ever make one?

  5. #5
    *Flashaholic*
    tvodrd's Avatar
    Join Date
    Dec 2002
    Location
    Hawthorne, NV
    Posts
    4,987

    Default Re: E-Series Modularity

    Bernie,

    You sure like to *screw around!* [img]/ubbthreads/images/graemlins/icon15.gif[/img] [img]/ubbthreads/images/graemlins/grin.gif[/img] That's quite a collection(!) and and the pictures should be very useful for the newer members.

    Larry

  6. #6
    Flashaholic* PaulW's Avatar
    Join Date
    Mar 2003
    Location
    Laurel, Maryland
    Posts
    2,061

    Default Re: E-Series Modularity

    The pictures are useful for older members, too. I got some new ideas looking. Thanks Bernhard.

    Paul

  7. #7
    Flashaholic* 14C's Avatar
    Join Date
    Mar 2004
    Location
    Reno, Nevada
    Posts
    844

    Default Re: E-Series Modularity

    That is just too cool. The post ought to be a sticky somewhere for reference purposes.

  8. #8
    *Flashaholic* Rothrandir's Avatar
    Join Date
    Aug 2002
    Location
    US
    Posts
    7,796

    Default Re: E-Series Modularity

    wait! there's more! [img]/ubbthreads/images/graemlins/grin.gif[/img]

    great wrightup german! [img]/ubbthreads/images/graemlins/grin.gif[/img]
    hopefully more options will present themselves eventually [img]/ubbthreads/images/graemlins/wink.gif[/img]

  9. #9
    Flashaholic* 14C's Avatar
    Join Date
    Mar 2004
    Location
    Reno, Nevada
    Posts
    844

    Default Re: E-Series Modularity

    Yeah...he heeds some CNCs.... [img]/ubbthreads/images/graemlins/grin.gif[/img]

    Or do those fit the E-series heads?

  10. #10
    Flashaholic bald1's Avatar
    Join Date
    Apr 2004
    Location
    Black Hills of South Dakota
    Posts
    275

    Default Re: E-Series Modularity

    Kiessling,

    Sir, what a fantastic service this post is! You're absolutely correct in thinking that some of us who are new to CPF are confused a bit about what can fit with what. Or for that matter who makes what for what [img]/ubbthreads/images/graemlins/smile.gif[/img]

    I truly appreciate the time and effort taken to put this together. If the moderators haven't said "make it a sticky", that's certainly my put!

    Best!

    --Bob

  11. #11
    Flashaholic* lightemup's Avatar
    Join Date
    Jan 2004
    Location
    Australia
    Posts
    754

    Default Re: E-Series Modularity

    EXCELLENT POST! [img]/ubbthreads/images/graemlins/thumbsup.gif[/img] [img]/ubbthreads/images/graemlins/clap.gif[/img] [img]/ubbthreads/images/graemlins/clap.gif[/img] [img]/ubbthreads/images/graemlins/clap.gif[/img] from the owner of a E1e, E2e, and L4.

    For me I learned a lot particularly in terms of the modders offerings [img]/ubbthreads/images/graemlins/naughty.gif[/img]

    Thanks [img]/ubbthreads/images/graemlins/smile.gif[/img]

  12. #12
    *Flashaholic* jtice's Avatar
    Join Date
    May 2003
    Location
    West Virginia
    Posts
    6,331

    Default Re: E-Series Modularity

    Excellent post Kiessling! [img]/ubbthreads/images/graemlins/thumbsup.gif[/img]

    I am a huge fan of "hot swapping" parts also, Makes all the lights SOOO much more versatile this way.

    I started to make a "spy kit" will all my parts, but that got alot larger than my Pelican case. [img]/ubbthreads/images/graemlins/icon15.gif[/img]

  13. #13
    *Flashaholic* pjandyho's Avatar
    Join Date
    Oct 2003
    Location
    Singapore
    Posts
    5,498

    Default Re: E-Series Modularity

    That is very nice of you to be doing! [img]/ubbthreads/images/graemlins/thumbsup.gif[/img]

    I think your collection is just cool, really cool. Now that I am inspired...I am going to be having flashlight fever thinking about what to collect for my modular set [img]/ubbthreads/images/graemlins/sick.gif[/img]

  14. #14

    Default Re: E-Series Modularity

    Terrific post, Bernhard! [img]/ubbthreads/images/graemlins/thumbsup.gif[/img]

    Very helpful and illustrative. Thanks a bunch [img]/ubbthreads/images/graemlins/clap.gif[/img]

    Britt

  15. #15

    Default Re: E-Series Modularity

    Bravo [img]/ubbthreads/images/graemlins/clap.gif[/img]

    Someone give that man a fish...and then Sticky his post [img]/ubbthreads/images/graemlins/poke2.gif[/img]

  16. #16

    Default Re: E-Series Modularity

    Great post! Thanks for writing this up.

    I noticed that the E2+ modified head isn't included, but it is an incandescent accessory, so it doesn't really fit in with all those Luxeons.

  17. #17

    Default Re: E-Series Modularity





    Here is another example of the E-series Modularity: A composition that I call the E2-Defensless [img]/ubbthreads/images/graemlins/grin.gif[/img] Well, that's not really fair, as the LuxIII LED driven very hard makes for a great tactical defender too. It is really nice when the factory finishes closely match the modder's finishes. [img]/ubbthreads/images/graemlins/thumbsup.gif[/img]

  18. #18
    Flashaholic*
    darkzero's Avatar
    Join Date
    Oct 2003
    Location
    SoCal
    Posts
    4,457

    Default Re: E-Series Modularity

    Bernhard, nice work, awsome post!

    Atomic, nice head. [img]/ubbthreads/images/graemlins/wink.gif[/img]

  19. #19
    Moderator
    Kiessling's Avatar
    Join Date
    Nov 2002
    Location
    Germany, Old World
    Posts
    16,137

    Default Re: E-Series Modularity

    thanx for those kind words, guys! [img]/ubbthreads/images/graemlins/blush.gif[/img]

    Flatscan, the E2+ is not there becasue it is a modded standard head and not a seperate offering. There are a bunch of such mods liek the McGizmo Cyan E1e, the Opalec E1e in one of the last pics etc.
    I tried to limit this post to "stock" parts ... otherwise it would be 3 miles long. [img]/ubbthreads/images/graemlins/smile.gif[/img]

    Hey Roth, something up your sleeve? [img]/ubbthreads/images/graemlins/grin.gif[/img] [img]/ubbthreads/images/graemlins/evilgrin07.gif[/img]
    Me wants to know ... [img]/ubbthreads/images/graemlins/drool.gif[/img]

    bernhard

  20. #20
    *Flashaholic* flashlight's Avatar
    Join Date
    Apr 2004
    Location
    Republic of Singapore
    Posts
    3,557

    Default Re: E-Series Modularity

    [img]/ubbthreads/images/graemlins/bowdown.gif[/img] [img]/ubbthreads/images/graemlins/thumbsup.gif[/img] [img]/ubbthreads/images/graemlins/clap.gif[/img]

    A big Danke to Herr Kiessling for this wonderfully enlightening information! Clears up things for muddlehead newbies like me. (and makes me want to spend more $ [img]/ubbthreads/images/graemlins/broke.gif[/img] [img]/ubbthreads/images/graemlins/icon23.gif[/img]

    Sticky please! [img]/ubbthreads/images/graemlins/buttrock.gif[/img]

  21. #21
    *Flashaholic* JonSidneyB's Avatar
    Join Date
    Jun 2001
    Location
    Greenfield In
    Posts
    3,431

    Default Re: E-Series Modularity

    That was very nice Kissling.

  22. #22
    Flashaholic* Frenchyled's Avatar
    Join Date
    May 2002
    Location
    Land of Cheese, Frogs and wine
    Posts
    2,297

    Default Re: E-Series Modularity

    Bernhard, [img]/ubbthreads/images/graemlins/thumbsup.gif[/img]

    Nice, simple and efficient [img]/ubbthreads/images/graemlins/bowdown.gif[/img]

    It is certainly the beginning of an illustrated encyclopedia, I appreciate the quality of images and the wealth of information. [img]/ubbthreads/images/graemlins/ooo.gif[/img]
    Very good job. Thanks for that [img]/ubbthreads/images/graemlins/thumbsup.gif[/img]

  23. #23
    Flashaholic* BigHonu's Avatar
    Join Date
    Apr 2002
    Location
    Honolulu, HI
    Posts
    1,242

    Default Re: E-Series Modularity

    Great post Bernhard!

  24. #24

    Default Re: E-Series Modularity

    I have an E2e gunmetal and the head has the tear drop look. Something about this setup appeals to people in a office enviroment. Maybe because the color and design doesn’t look "Tactical".

    The KL1 head is very versatile it works on 3,6, or 9 volts. When used with the Vital Gear bodies you can use 1x123, 2x123, 3x123 and 2xAA batteries. Very useful if you like to mix and match. Since the new KL1s seem to be using Highdomes I may have to get another one in the future.

  25. #25
    Flashaholic*
    Join Date
    Oct 2003
    Location
    Two Rivers, Wisconsin
    Posts
    3,832

    Default Re: E-Series Modularity

    Super duper job Mr. K! May I add my thanks to the previous accolades? This is very helpful because I hope to aquire at least one of your featured lights.

  26. #26

    Default Re: E-Series Modularity

    Great post! I was going to buy a Vital Gear body for my E-Series bezel, but said screw it and picked up an E1e body and tail-cap. I hope this post gets stickied...or is it stuck?

  27. #27
    Flashaholic Kitchener's Avatar
    Join Date
    Apr 2004
    Location
    Wilmington, DE
    Posts
    136

    Default Re: E-Series Modularity

    Wow, informational over-load. I like modularity (flexibility), too. Might have to take a closer look at the E-series.

    I have a couple questions -- mounting the KL4 to the E-series... will it then perform identically to the L4?

    The mods seem to be a dime a dozen. What mod is the best combination of brightness and runtime?

  28. #28
    Moderator
    Kiessling's Avatar
    Join Date
    Nov 2002
    Location
    Germany, Old World
    Posts
    16,137

    Default Re: E-Series Modularity

    Kitchener ... the KL4 on a 2x123 E-Series body with a Z57 is the L4 flashlight. the L4 is part of the E-Series.

    If you plan your own custom light the McLux heads are the best choice since they are made to be customized with your choice of LED and driver. You chose brightness, beam characteristic and runtime.

    The available top of the line mod is McGizmo's L1-PR-T combo, runs on 2x123 with high/low switch for either 917mA or 70 mA to a LuxIII. Unfortunately this mod is destructive and ends the modularity of its components.

    If you want to stick with this platform a classical combo is BB500 Lux1 or Lux III on 1x123 or DB700 or 917 on 2x123. Of course the combos are endless, your pain to chose.

    Don's 2-stage-tailcap will bring a two-level switch to this modular platform, thus enhancing it for the future.

    bernhard

    bernhard

  29. #29
    Flashaholic Kitchener's Avatar
    Join Date
    Apr 2004
    Location
    Wilmington, DE
    Posts
    136

    Default Re: E-Series Modularity

    [ QUOTE ]
    Kiessling said:
    If you plan your own custom light the McLux heads are the best choice since they are made to be customized with your choice of LED and driver. You chose brightness, beam characteristic and runtime.

    bernhard

    [/ QUOTE ]

    As an example, though, what sort of improvements in brightness and runtime can be aspired to with the McLux heads?

    Thanks.

  30. #30
    Moderator
    Kiessling's Avatar
    Join Date
    Nov 2002
    Location
    Germany, Old World
    Posts
    16,137

    Default Re: E-Series Modularity

    no improvements over other solutions except that the PR reflector is the best photon managment device for LEDs right now. The important thing is that those heads are designed to accept diverse components (drivers, LEDs) to allow you to chose your personal combo. Of course you'd have to be able to build it or find someone who can.
    The overall quality is very high ... HA III, glass lens, o-ring sealed, perfect machining, ...
    bernhard

Page 1 of 2 12 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
