Elzetta AVS Upgrade (2021): Bravo and Charlie

wacbzz

Flashlight Enthusiast
Joined
Nov 1, 2006
Messages
1,589
Location
North of the South
New:



Old:







adamlau

Flashlight Enthusiast
Joined
Dec 8, 2007
Messages
2,424
Location
Los Angeles

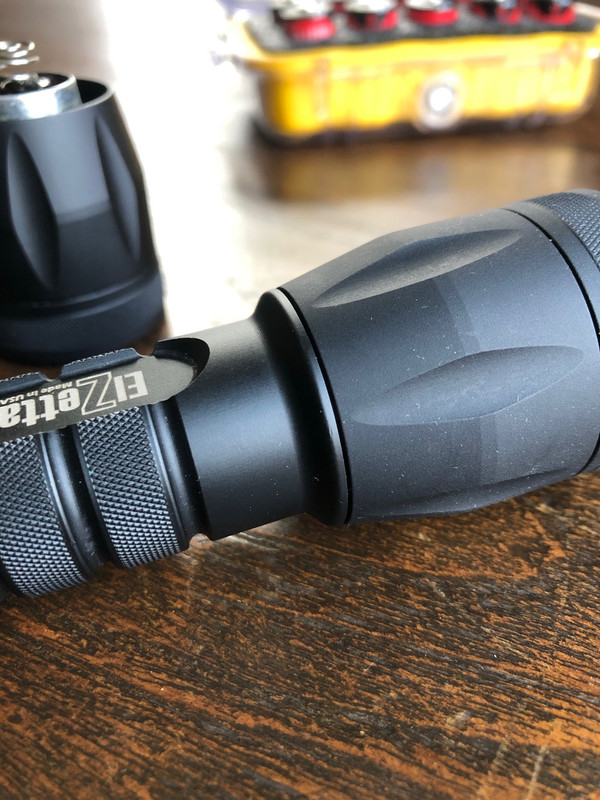

So we can confirm that the exterior finish has been updated to a matte black, less reflective surface. The Bravo/Charlie I have on hand feature a matching finish from head to tailcap.


Last edited:

Grizzman

Flashlight Enthusiast
Joined
Jul 6, 2012
Messages
3,270
Location
KC Metro

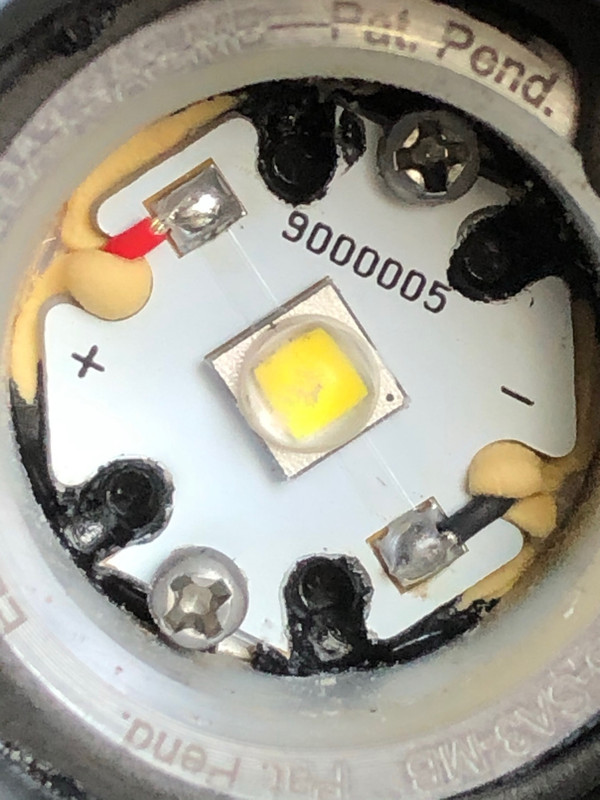

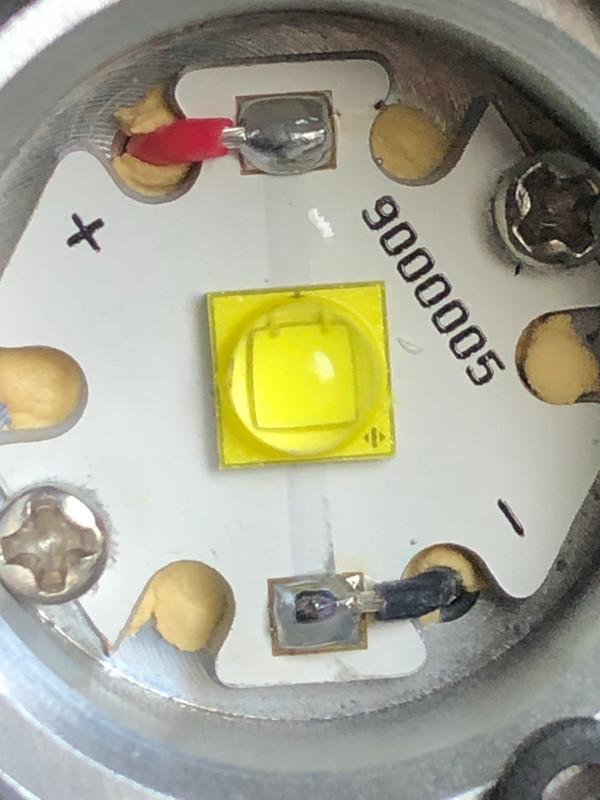

Veri nice! and quite easily the diode can be changed to XHP50.2 3V version 3000K or 6500K


I don't know how easily that would be accomplished, due to the potting compound.

Matching HA certainly isn't required, but even without excessive OCD, it would annoy me to be that different.


thermal guy

Flashaholic
Joined
Jan 28, 2007
Messages
10,001
Location
ny
Ano match color has never bothered me. But different surface finish is another thing. That photo of the new head the old Bravo body is wrong.


bykfixer

Flashaholic
Joined
Aug 9, 2015
Messages
20,468
Location
Dust in the Wind
So we can confirm that the exterior finish has been updated to a matte black, less reflective surface. The Bravo/Charlie I have on hand feature a matching finish from head to tailcap.


Added a photo of the 650 AVS Bravo and 315 Alpha to compare to the new less semi-gloss finish. Looks like the new stuff is near Pentagon dull now.



adamlau

Flashlight Enthusiast
Joined
Dec 8, 2007
Messages
2,424
Location
Los Angeles

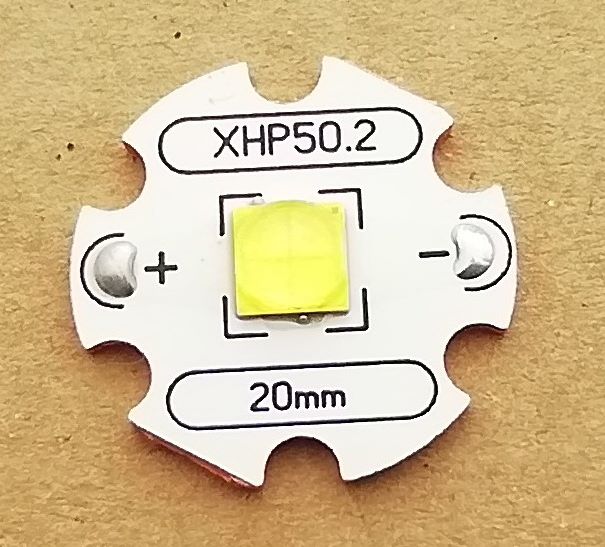

will [XHP50.2 on 20mm MCPCB] work with the tir?
Any 3V 5050 should fit and run with a slightly altered beam profile (and/or tint) through the optic, though there may not be any benefit in output being that the existing driver limits current to ~1.5A maximum. Might as well swap out the LED and driver at the same time. But then dual-fuel will be affected as you have to be wary of higher current draw on primaries. Which may then necessitate a more complex driver.

Last edited:

adamlau

Flashlight Enthusiast
Joined
Dec 8, 2007
Messages
2,424
Location
Los Angeles
Will shoot the AVS against the HD XPL-HI 6500K next week. Added a quick shot versus the HD 18650 XT 5700K for now...

Joined
Mar 22, 2013
Messages
767
Location
Big Sky Country
BTW, that's a more drastic mismatch of finishes that I'd expected!:huh: Normally I don't much care but that's kind of drastic. I would hate to buy new bodies since I already have one Charlie and two Bravos (one of them custom engraved) and an Alpha, also engraved. Still, if I set one up as a WML it would be less of an issue.
