Turn the lamp off and leave it for a few minutes. Will it turn on if you press the button? The problem is only with new alkaline, if you drain them to lower voltage it will work.
The Official Zebralight Thread
- Thread starter C.M.S
- Start date
Help Support CPF:
Help Support Candle Power Flashlight Forum
Thank you very much with the help. Can you please also describe how to test? If you just put in alkaline everything will work. The problem is that it will not turn on if you leave it off for a few minutes. You then need to unscrew and tighten the tailcap to wake it up again. The problem is only with new alkaline, if you drain them to lower voltage it will work as normal. The same problem with all alkaline batteries, have tried 5-6 most common in Europe and none worked. I have the H54c N but it should be similar with the SC54c N.
Last edited:
jon_slider
Flashaholic
- Joined
- Mar 31, 2015
- Messages
- 6,268
that thread is not getting any participation.. so I dont plan to continue that discussion
I dont think it is useful for people to have to do all the different steps you mention, in order to use a 2025 AA Zebra 54 series w Alkaline.. it just sounds UnReliable.
Yes the H54 and the SC54 are very similar.. the H54 just has slightly lower outputs (mcbob mentioned it uses a different resistor)

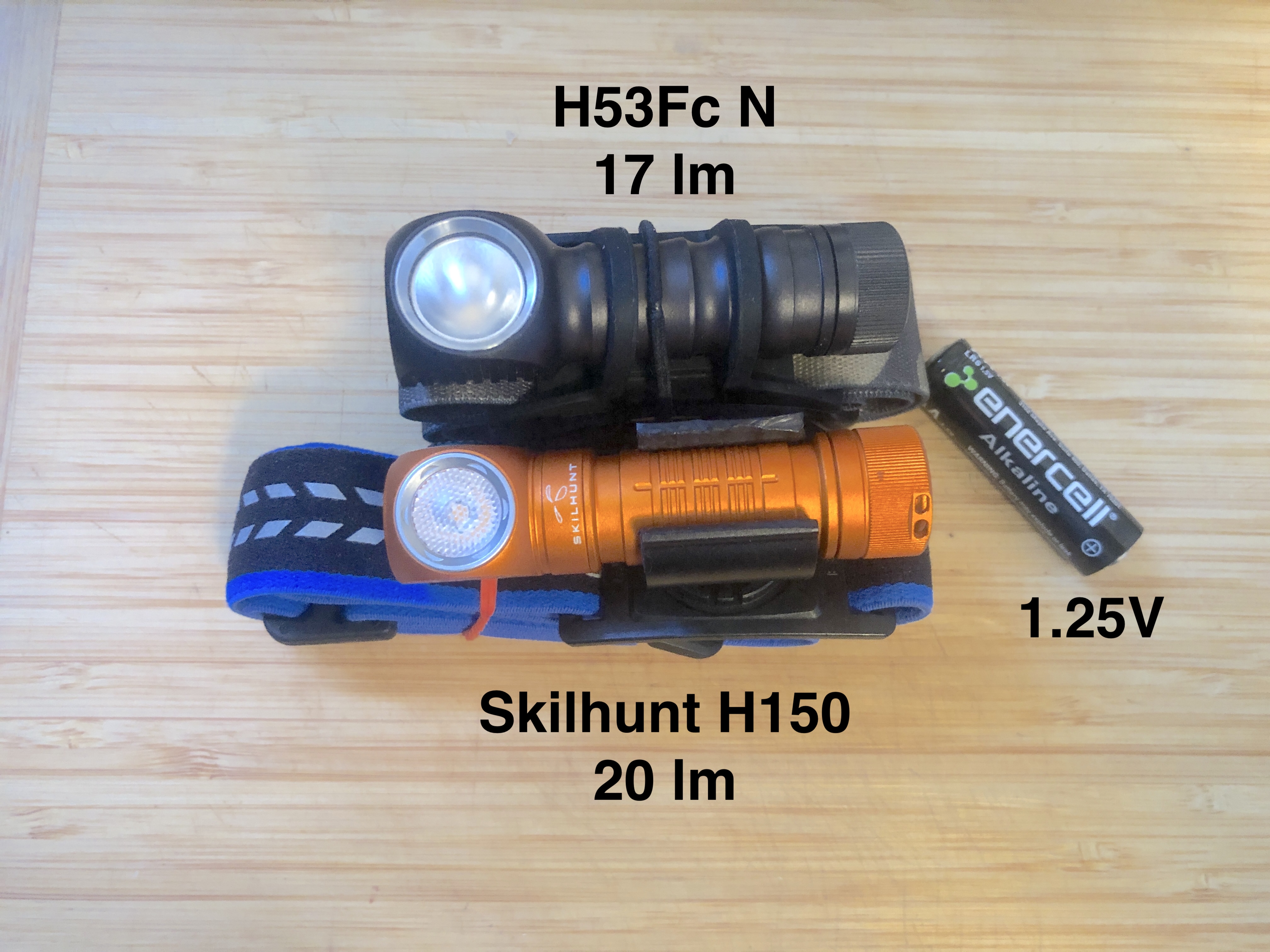

I just tested my 2023 H53Fc N on an old tired Alkaline, maximum output is 17 lumens. My Skilhunt H150 gives 20 lumens maximum on that same battery.
That battery in my 2023 SC53c N gives 25 lumens maximum, and in my Emisar D3AA gives 9 lumens maximum.
The Skilhunt is a great little dual fuel light. It differs from the Zebra in a few details.
(2023 H53Fc N pic from Tim McMahon review)
the Skilhunt:

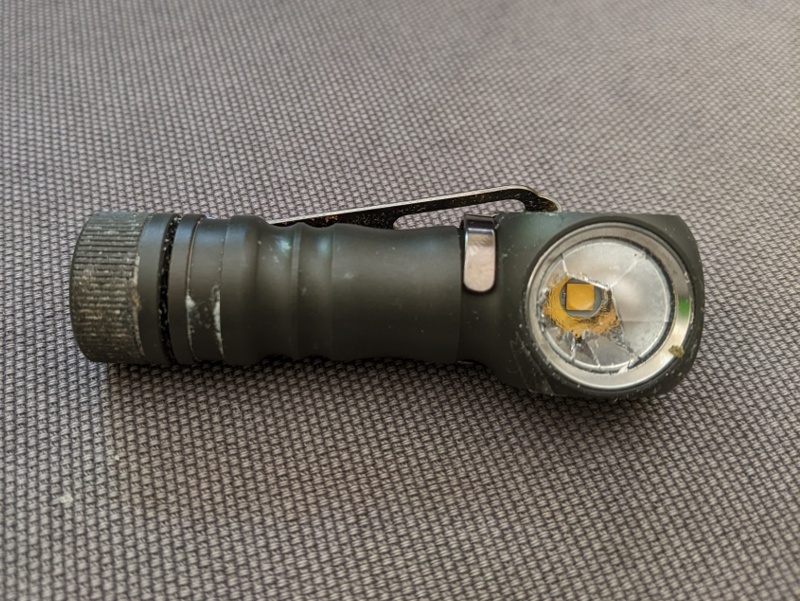

1. has no glass, so nothing can break if dropped
2. UI is imo more user friendly than Zebra UI
3. on AA maxes out at 90 lumens, the Zebra can reach 200 lumens
4. switch button is on the side of the head, which makes it easier to change outputs when worn as a headlamp.
5. switch button sticks up, it needs to be locked out when not in use (loosen tailcap slightly).
6. switch indicates battery level for 5 seconds, automatically when first turned on.
7. Has a tailmagnet
8. dual fuel AA/14500 (no special button presses to change back and forth)
9. magnetic charging for LiIon
10. Lower price

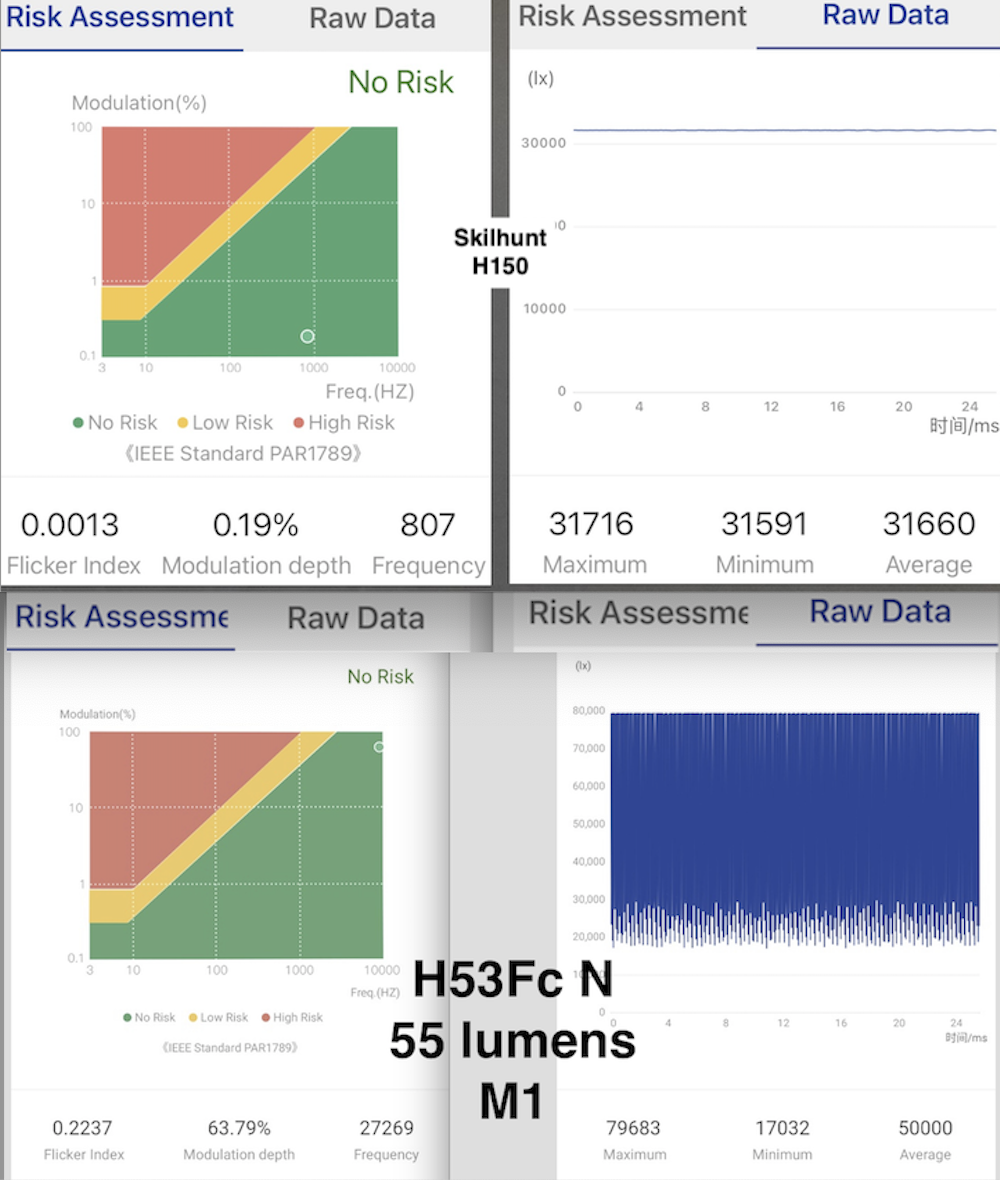

11. Very steady Lux, much lower Flicker Index, no Deep Modulation:
Last edited:
Yes. Mine works perfectly on alkalines.
Thanks for testing. What year did you buy it? How did you test it?
Thanks for testing. What year did you buy it? How did you test it?
I just bought it last month. I have just been using it for daily activities (work and normal EDC).
Interesting to know that your lamp works with alkaline. Do you have H54c N or SC54c N? My lamp also works fine when you're using it but won't turn on when left off for a few minutes. Very strange problem.
Last edited:
I probably will send the fourth lamp back and get a refund. I would prefer a working light but it seems difficult. Zebralight have really messed up something. I might order a new one later when Zebra hopefully have solved there quality problems.
Fulton started making angle lights for the military and scouts back in the 1920s. If they weren't the first, it was close.
jon_slider
Flashaholic
- Joined
- Mar 31, 2015
- Messages
- 6,268
possibly one of the first Right Angle LED Headlamps in Tube format.
I think Petzl had other headlamps before that, but they were not Tubular bodies w right angle heads..
a Headlamp was Zebralight's first product
the Zebra spreadsheet says the H50-P4 (first entry at bottom of sheet) was:
"The very first ZebraLight product. World's first "cylindrical with rubber loop" headlamp ever invented"
Last edited:

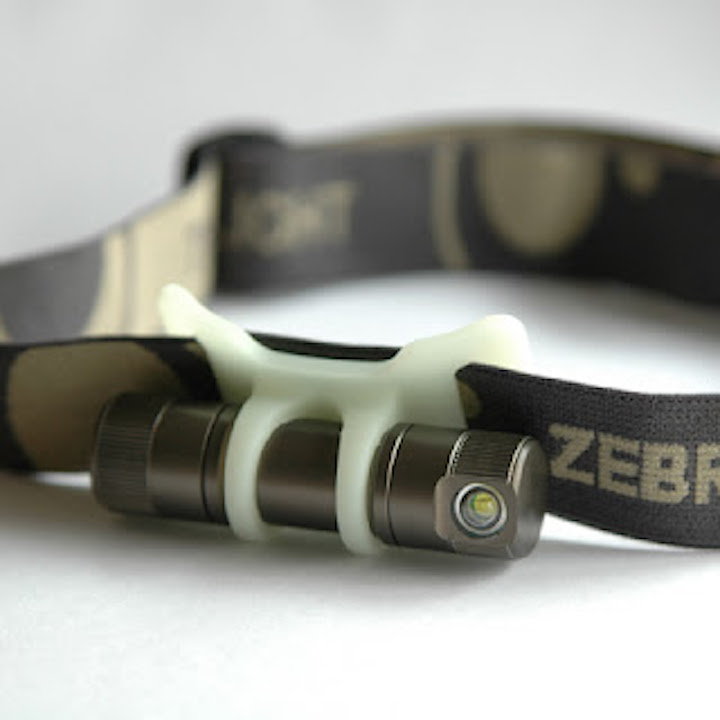

This ZebraLight H50 headlamp was indeed
the VERY FIRST light which I ever ORDERED from China ! ! !
Still have mine.
I bought my H51 year 2011 and I didn’t know of any other light with that design. Now it’s common design from many brands.
jon_slider
Flashaholic
- Joined
- Mar 31, 2015
- Messages
- 6,268
request help from someone who owns a Zebra H600 and a Protected 18650.. does it fit and work?
I read in a couple different places that protected 18650 fit Zebra Headlamps, but dont own one to verify for myself..
here is one reference:
"Zebralight headlamps will work with protected batteries. Source: I use a cold-rated protected cell in my Zebra headlamp as part of my winter car kit.
Regular Zebralights can't use protected or button-top, only a flat-top battery."
this is a protected cold weather 18650, it is 69.1mm long:
Im asking because Im considering buying an H600d Mk4 and wanted to use these USB-C 18650 that are 70.3mm long
Can someone verify if protected 18650 fit an H600 please?
I read in a couple different places that protected 18650 fit Zebra Headlamps, but dont own one to verify for myself..
here is one reference:
"Zebralight headlamps will work with protected batteries. Source: I use a cold-rated protected cell in my Zebra headlamp as part of my winter car kit.
Regular Zebralights can't use protected or button-top, only a flat-top battery."
this is a protected cold weather 18650, it is 69.1mm long:
Im asking because Im considering buying an H600d Mk4 and wanted to use these USB-C 18650 that are 70.3mm long
Can someone verify if protected 18650 fit an H600 please?

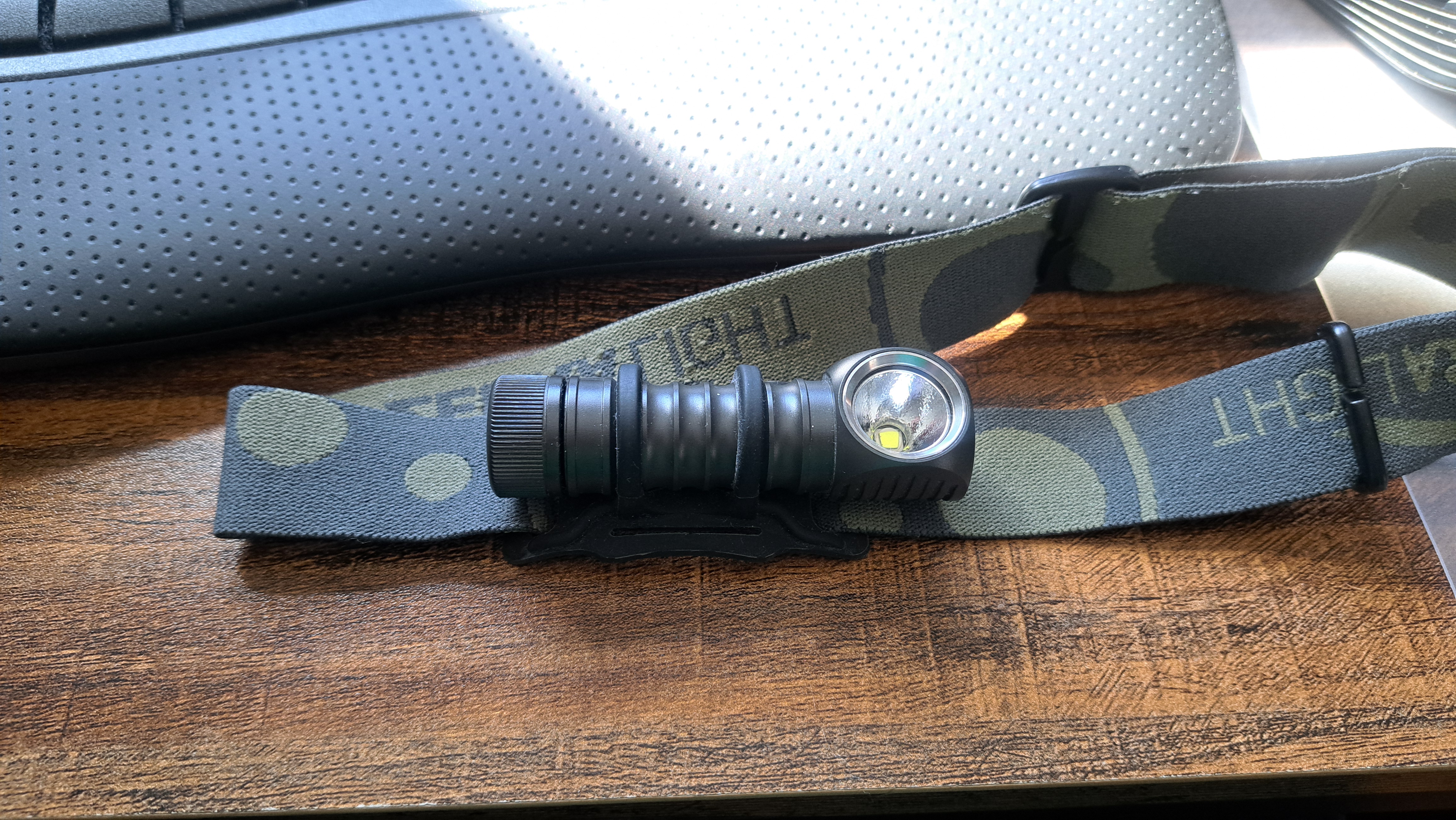

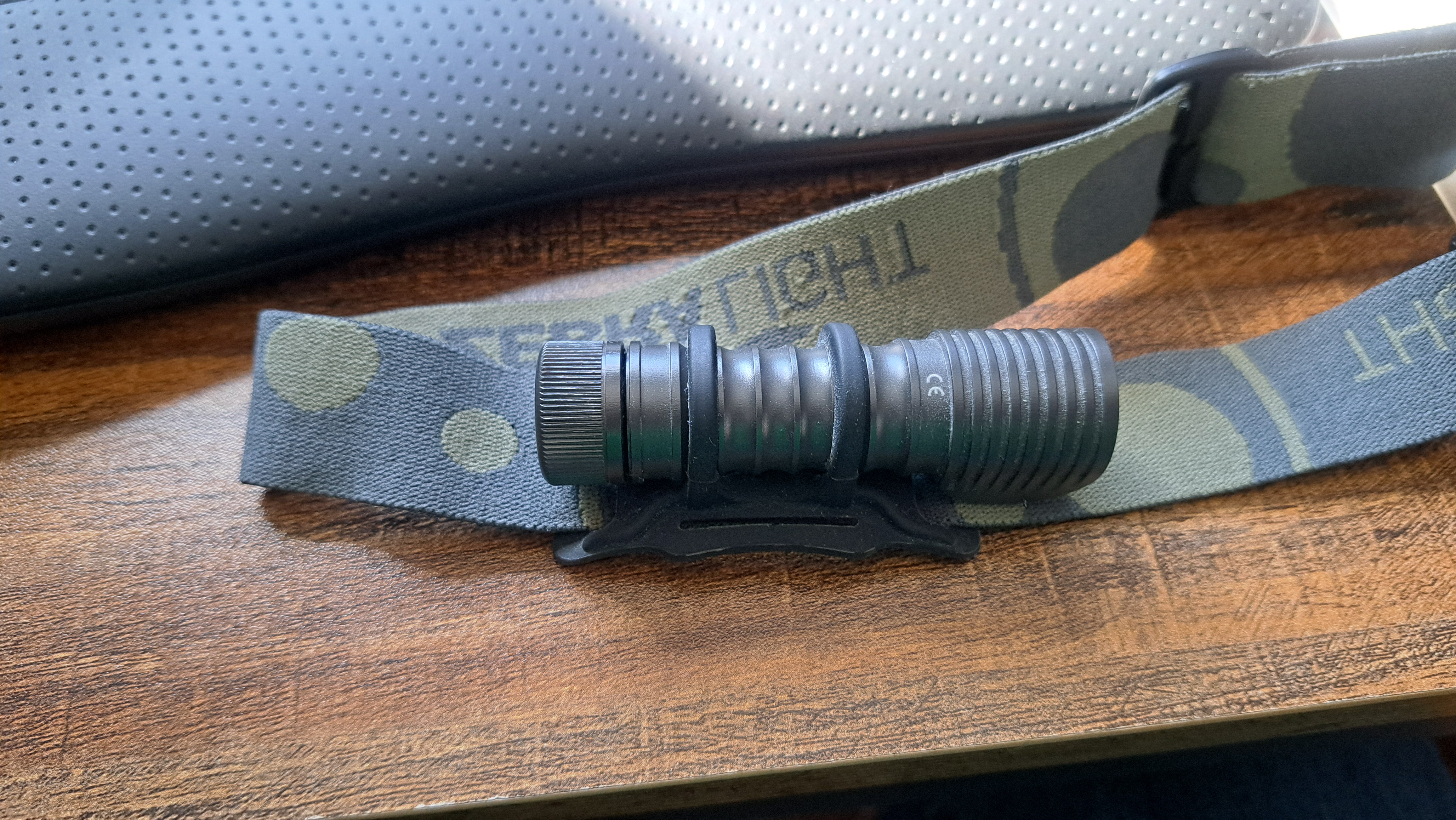

My ZebraLight 18650 headlamp
(don't know which model number it is, sorry)
fits and runs Just Fine with my
Orbtronic 3400 Protected Button-top cell.
Hope this is helpful.
jon_slider
Flashaholic
- Joined
- Mar 31, 2015
- Messages
- 6,268
Very helpful, thank you!
Beard Man
Enlightened
- Joined
- Sep 2, 2017
- Messages
- 337
Want to report that the freeze I had with my light before, only happens during a major programming clickfest.
After that I never had this issue again, the light works perfectly.
Christoph
Flashlight Enthusiast
I bought some of the first zebralights that were offered a bunch didn't have any markings I will have to get together some pics. Is this one an H52? Not an early one.
Yes, that's a later production H52.
