Thread: FS: Custom HID Searchlights 150W and 100W up to 14000 lumens!

  1. #1

    Default FS: Custom HID Searchlights 150W and 100W up to 14000 lumens!

    Hello everyone!

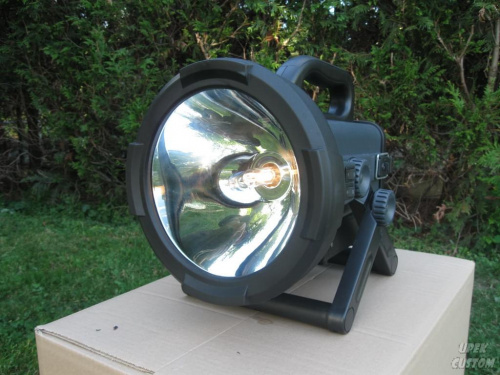

    For sale my custom modification of JML2940/Cyclops/Thor searchlight. New - only tested.



    150W and 14000 lamp lumens. Real world range: 600m. Excellent color rendering index.



    Specs:

    Light source
    Philips ceramic short arc MH lamp (CDM-T-SA) 150W
    - 14000 lumens
    - neutral white 4200K
    - 95CRI

    Reflector
    Stock with custom bulb holder. Smooth, 190mm diameter, glass lens

    Battery
    Li-ion 18650 20Ah, Samsung cells, custom made. Battery management system build-in. 50 minutes runtime.

    Charger
    4h recharge time, noiseless, small. Weight: 350g



    Size
    24 x 36 x 27cm (W x L x H) Weight: 4.2kg
    Plastic + rubber housing, build in cooling fan and arm strap.



    Display
    Battery voltage and status LED

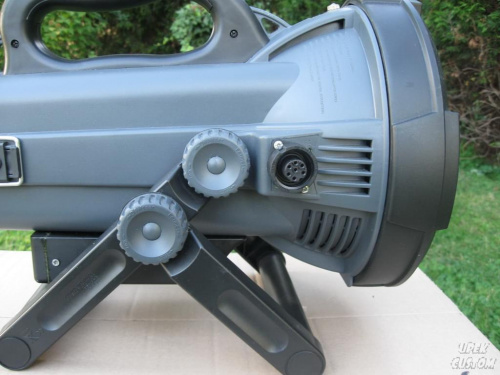

    Dual power switches and industrial charging port.

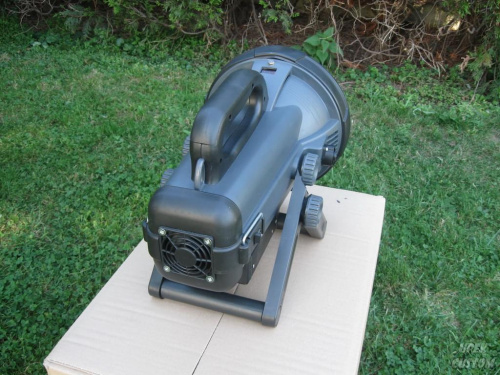

    Voltage display, status led and fan intake vent.

    Beamshots:



    600m to mast in field, zoomed on right



    Same place, different perspective, zoomed on right

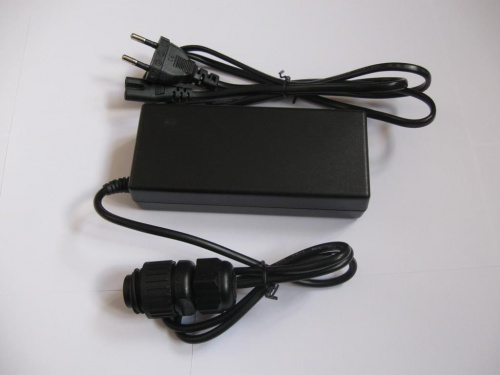

    Charger

    Searchlight is designed to work continously. Start-up time is 45s, full brightness and color after 120s. Running time 50min. It needs to be cooled down for around 5 minutes before next turn on. Excellent light quality and power. Only one piece made by me.

    Price: $500 + shipping and Paypal fee

    Item is located in Poland (EU), worldwide shipping possible.


    Contact:
    PM or upek@o2.pl





    For sale my custom modification of Lightforce Blitz 240 searchlight. New - only tested.


    100W HID, 9000 lumens and extremely good focus, 1000m real world range


    Specs:

    Light source
    HID lamp 100W
    - 9000 bulb lumens
    - neutral white 4200K

    Reflector

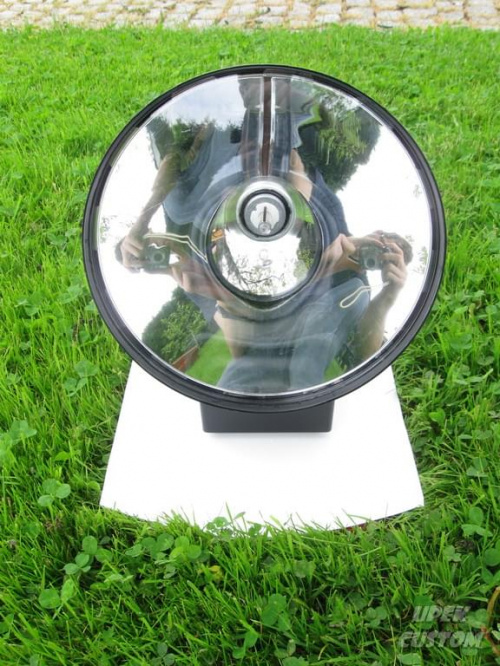

    Stock with custom bulb holder. Regulated focus. Smooth, 240mm diameter, plastic lens

    Battery
    Li-ion 18650 10Ah, 14.8V Samsung cells, custom made. Battery management system build-in. 50 minutes runtime.

    Charger
    3.5h recharge time, noiseless, small. Build-in charge level display. Weight: 450g



    Size
    24 x 26 x 36cm (W x L x H) Weight: 2.15kg
    Plastic + aluminium housing(lower part)


    Display
    Battery voltage


    Voltage display and HID bulb.


    Charge port on back and charger on right.


    Beamshots:


    Mast is 1000m away, zoomed on right


    Same place, different perspective, zoomed on right

    Searchlight has quick start-up time(1s?). Full brightness after 20s. Runtime: 50min. It is quick restrike capable. Excellent throw and high output.
    Only one piece made by me.

    Price: $400 + shipping and Paypal fee

    Item is located in Poland (EU), worldwide shipping possible.


    Contact:
    PM or upek@o2.pl



  2. #2

    Default Re: FS: Custom HID Searchlights 150W and 100W up to 14000 lumens!

    BUMP!
