    After some Months of development and build time, it is nearly finished now:
    • around 1.5 kW maximum power
    • >100.000 Lumen total output
    • intensity >1Mcd
    • 3kg weight
    • four groups of light:
      • 1x SBT90.2 behind 62mm TIR optic (tight spot, 560kcd)
      • 4x SBT90.2 behind 30mm TIR optics (medium spot, 500kcd)
      • 8x XHP50.2 in 20mm reflectors (medium width, 160kcd)
      • 8x XHP70.2 without optics (wide flood)

    • 3x buck regulator to drive SBT90.2 at 38A and 4x 33A
    • 4x boost regulator to drive each 4x XHP50/70 at up to 12A
    • 150Wh battery
      • 8x 21700 INR21700-40T
      • 4x 18650 US18650VTC5A

    • 12 lighted buttons for direct access
      • Spot tight more/less
      • Spot wide more/less
      • Mid more/less
      • Flood more/less
      • ALL_ON
      • Tactical Flash Mode
      • Momentary spot tight full, all other off
      • Momentary spot tight and spot wide full, all other off

    • OLED display for extended info/status
    • 2x RGB LED for battery status
    • 36W charging circuitry built in, accepting 5V....12V
    • USB-C or magnetic tabs for charging
    • integrated battery monitoring and balancing circuitry
    • vibration motor for important hints like low-bat warning etc.
    • multiple temperature sensors (and certainly power foldback upon overheating)
    • heatpipes to spread heat from head to body

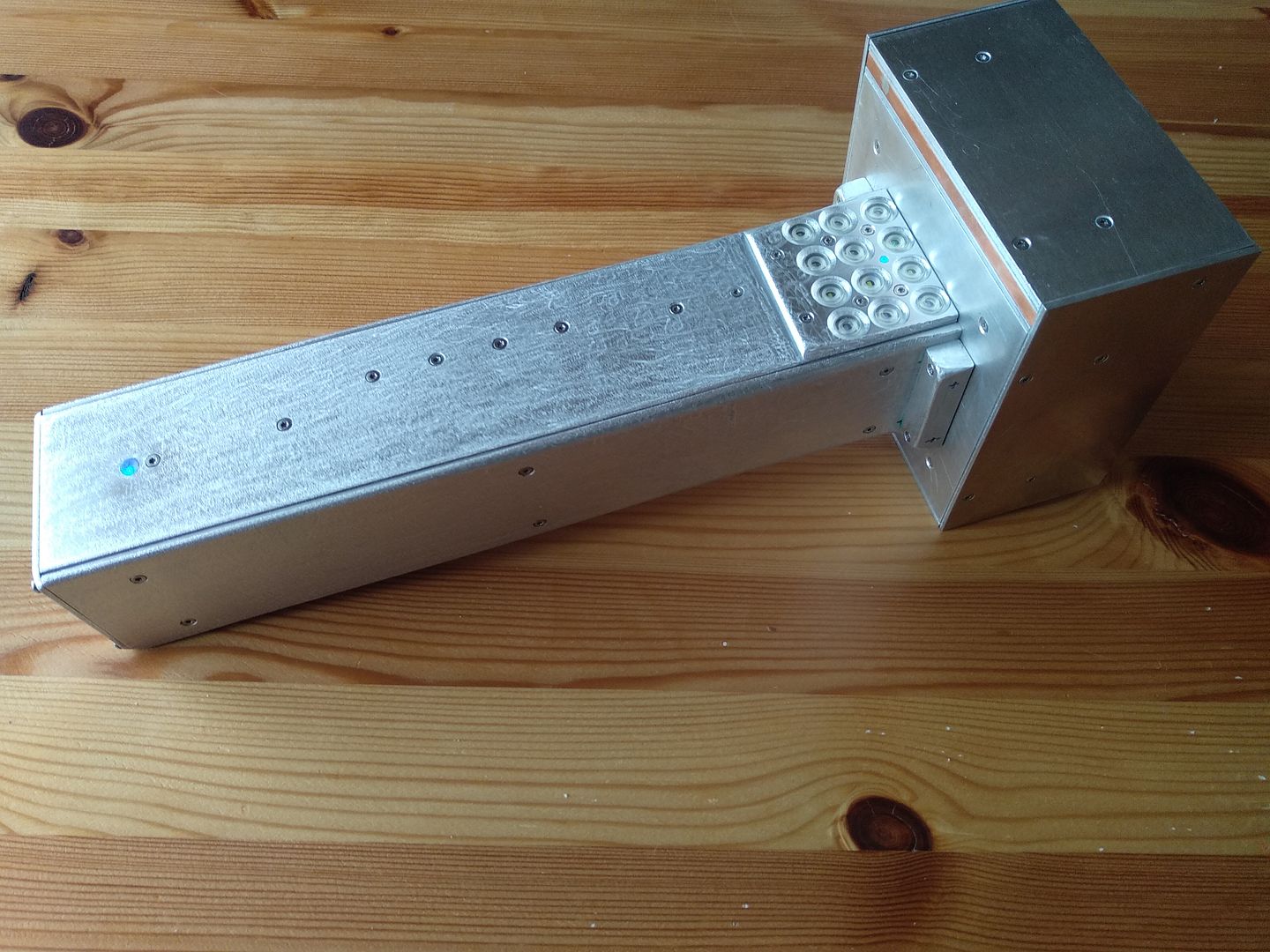

    Will add some beamshots later....View on the front, protective window still missing (will be delivered mid April)



    Here the ALL_ON button was pressed, adjusting all channels to ~75% power


    Bringup stage of development process:


    Heat of DC/DC converters is conducted through PCB to backside of PCB





    many, many threaded holes had to be made....combination of aluminium and copper to keep weight manageable


    Short video showing ALL_ON in action:
    https://app.photobucket.com/images/e...dIsvWRtqwjHw__
    Last edited by Holzleim; 04-09-2021 at 02:26 PM.
    David (10000LUX at 18x55mm size):
    Or something slightly bigger: Mr.Beambastic ... 500W LED power
