Hi guys,

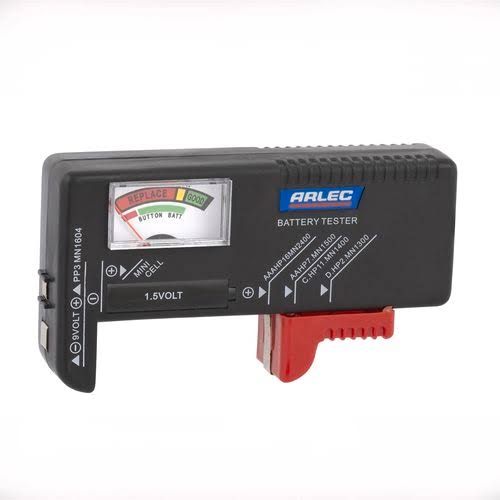

I've had a few of these battery testers:

& noticed they would all vary slightly in their reading.

I've noticed there are digital versions in a very similar housing. But I am sceptical of them being any more accurate.

Are there more reliable options? Got a recommendation?

Thanx


Aurora Jackalis

Newly Enlightened
Joined
May 23, 2017
Messages
18
PS The labeling states 1.5 Volt. Does this mean it is inaccurate for 1.2 Volt batteries?

Another reason to look for something more reliable.


fulee9999

Enlightened
Joined
Mar 3, 2021
Messages
717
those measure absolute voltage, so if you measure a 1.2V battery it will always measure it as more depleted if it's not...
also I can echo what was said before, buy a decent multimeter and just be done with it.
A more budget version is the UNI-T UT210E, a more professional one would be an IDEAL 747, or the basically industry standard Fluke 115.


ecallahan

Enlightened
Joined
Jun 5, 2008
Messages
291
I've used the ZTS MBT-1 for many years, it seems the algorithms they use to test the various battery types are accurate, I'd highly recommend it. It isn't cheap but mine has to be a decade old now and still going strong.

Most batteries you can test until you see no change in the reading, they told me that with lithium primaries just run the test 2x.


PhotonWrangler

Flashaholic
Joined
Oct 19, 2003
Messages
14,466
Location
In a handbasket
Testing batteries under a load will always be more accurate than a no-load reading using a VOM with an extremely high impedance input. A load will reveal the battery's internal IxR losses.


sim1tti

Newly Enlightened
Joined
Jan 15, 2018
Messages
135
Can anyone tell me what Ohm resistors are most appropriate to test the viability of different common battery types under load (using a multimeter)?

100 Ohm seems to be good for AA NiMH cells, but what about for 3.7 V Lions, etc?

Is there a formula or a reference sheet? I'm aware of Ohm's Law, but not sure how/if it applies to this specific usage. Thanks

Joined
Sep 30, 2020
Messages
236
Location
Caught in an air duct
100 Ohms was recommended in the YT video that I had watched a year or two ago, but they did not specify different resistances for different cells as far as I recall. I believe that the channel was "The Engineering Mindset" if you'd like to seek it out yourself. Based on the design of the ZTS MBT-1 mentioned above, it is clear that there is more to consider than just resistance if you are seeking very accurate results.


sim1tti

Newly Enlightened
Joined
Jan 15, 2018
Messages
135
Thanks @Voider of Warranties. With your display in post #9, is that just a generic led you have on the opposite ends of the alligator clips to test if that 18350 will give you a 3.7V read under load? If so, would any generic LED or resistor work?

Practically what I'm trying to discover is what kind of resistor I would need to test the voltage on a similar lithium ion battery under load. Presumably a 100 Ohm resistor would not work for all batteries. I'm pretty sure I drained a half-spent 3V watch battery trying to test it under load using a 100 ohm resistor.


snakebite

Flashlight Enthusiast
Joined
Mar 17, 2001
Messages
2,725
Location
dayton oh
Try an esr meter like the **** smith/ anatek blue.
Leave out or remove the protection diodes.
Its made for capacitors but works fine for testing ir of batteries.
For common household batteries i have a mallory tester from the 60's.
Low,medium,and high drain setting and voltages up to 45

Joined
Sep 30, 2020
Messages
236
Location
Caught in an air duct
Thats actual
Thanks @Voider of Warranties. With your display in post #9, is that just a generic led you have on the opposite ends of the alligator clips to test if that 18350 will give you a 3.7V read under load? If so, would any generic LED or resistor work?

Practically what I'm trying to discover is what kind of resistor I would need to test the voltage on a similar lithium ion battery under load. Presumably a 100 Ohm resistor would not work for all batteries. I'm pretty sure I drained a half-spent 3V watch battery trying to test it under load using a 100 ohm resistor.

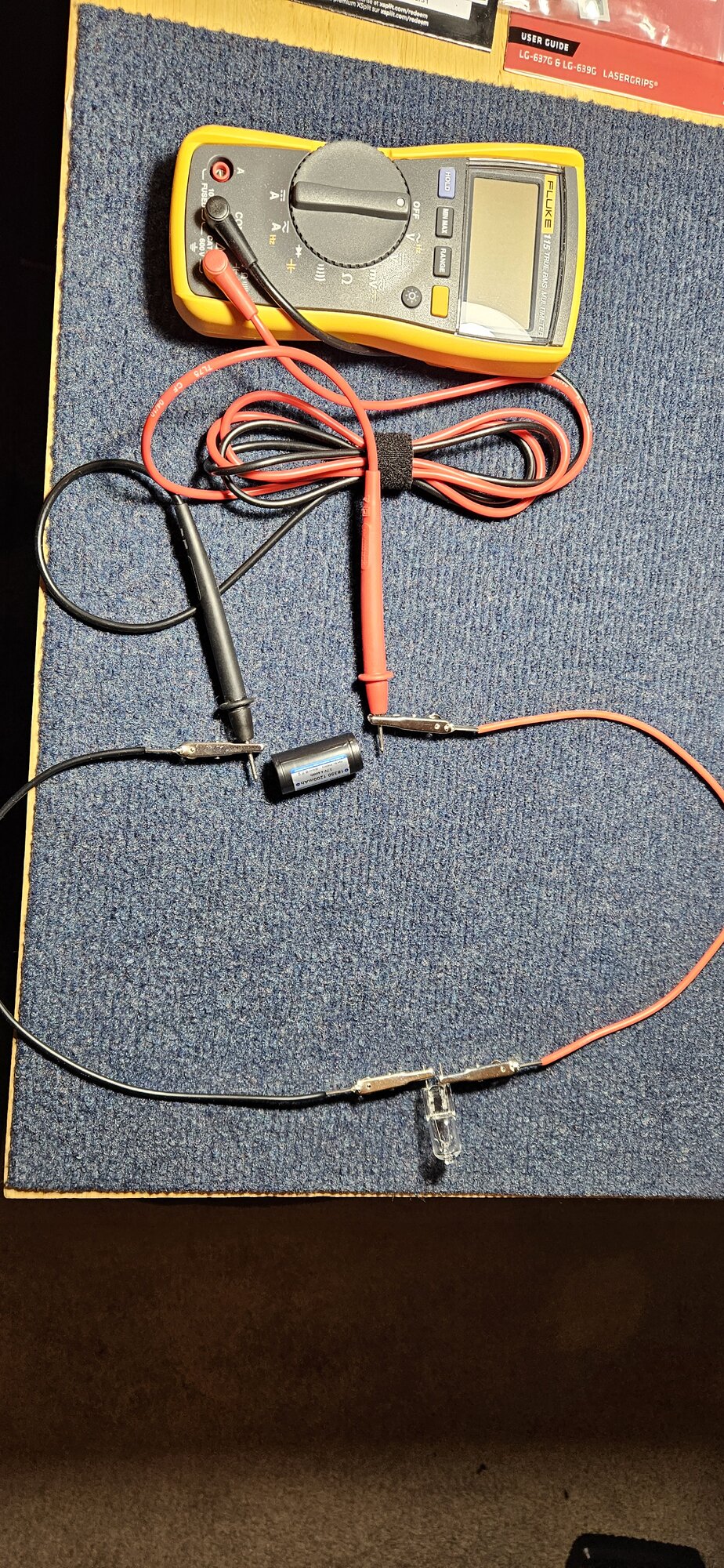

That's actually just an incan microwave bulb. It produces about 68 ohms of resistance, but it gets the job done for me. My goal was simply to compare primary cells to each other under load to see which were healthier than others. (Basically, which ones dropped the most under load.) It sounds as if a ZTS MBT-1 might be just what the doc ordered in your case. I have not used one, but I trust the opinions of the guys above who have vouched for it.


sim1tti

Newly Enlightened
Joined
Jan 15, 2018
Messages
135
That's actually just an incan microwave bulb. It produces about 68 ohms of resistance, but it gets the job done for me. My goal was simply to compare primary cells to each other under load to see which were healthier than others. (Basically, which ones dropped the most under load.) It sounds as if a ZTS MBT-1 might be just what the doc ordered in your case. I have not used one, but I trust the opinions of the guys above who have vouched for it.
Thank you. The ZTS MBT-1 looks great, but a handful of different resistors would be less economically taxing (already have the multimeeter). 100 Ohm resistors have worked bueutifully for Eneloops, the same way you have that microwave bulb wired up. Less so for testing Lithium Ions. I'm not an engineer, but figured there might be a chart somewhere or a formula that could be used to calculate what resistor would be appropriate for testing V under load. Guess not.

I may just try testing different batteries under load using different resistors. 68 Ohms resitance to test a for a 3.7 18350 gives me a good reference point point. Found some other reference to use a 10 Ohm 1/2 watt resistor works for an 18650. I'll wear eye protection just incase I send hot ceramic shards ricocheting through the gargage!

Wish me luck.

Joined
Sep 30, 2020
Messages
236
Location
Caught in an air duct

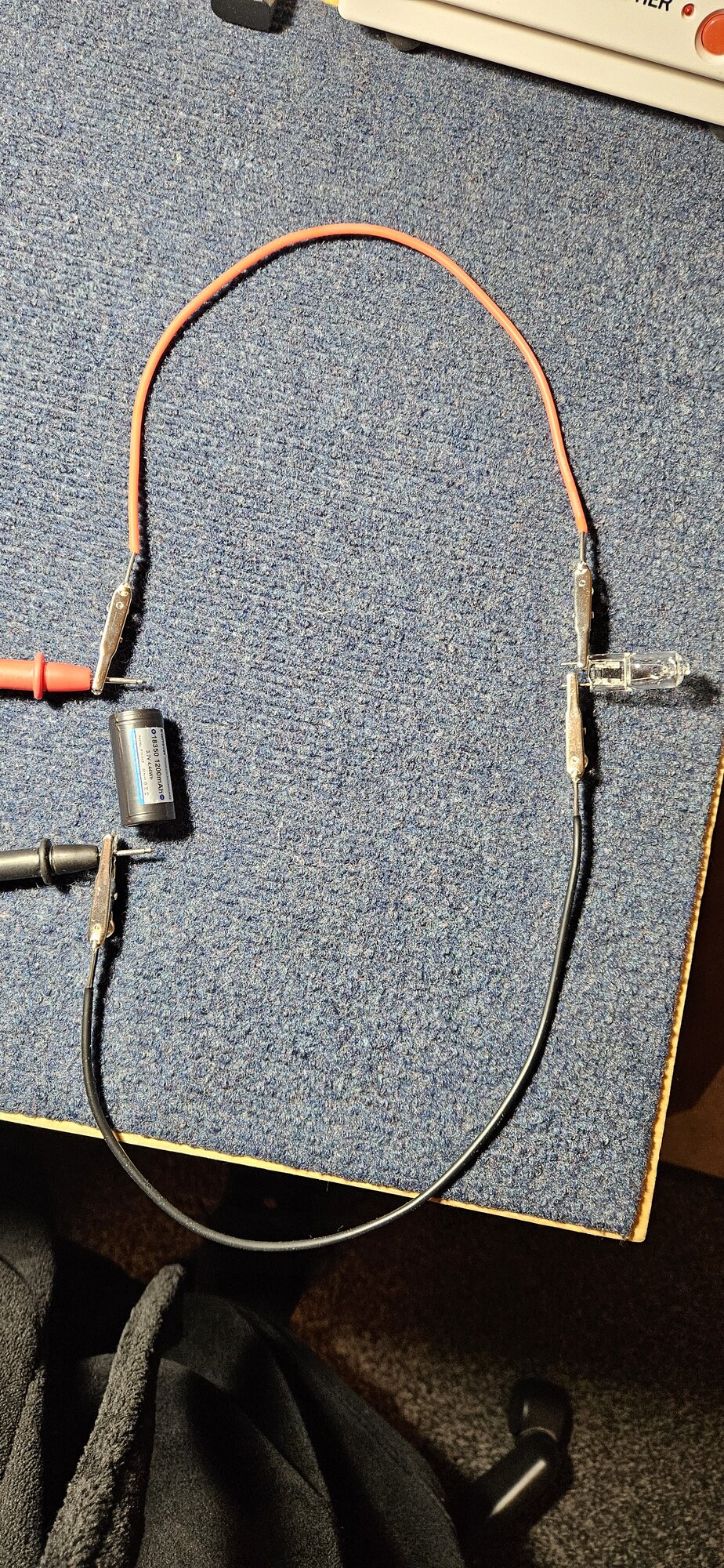

I actually only use this setup to test partially drained cr123s. I used the 18350 in the pic because it was sitting close by when I staged the shot. My intention was to represent where to put a cell in the setup and not to imply this was for 18350s per se. I think that you're on the right track experimenting with multiple resistances, but I don't know of any chart or formula to access for the info you require. Good luck.


Phil G4SPZ

Newly Enlightened
Joined
Oct 14, 2023
Messages
1
Location
Bewdley
10 ohms across a nominal 3.7 volt cell will only draw about 370mA, perfect for testing but the resistor will dissipate about 1.5 watts. A half-watt resistor will get very hot very quickly. Safety suggests you need a 5-watt resistor, readily available, which will remain comfortably warm.
