Sigma Customs: Corvus

Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA
Corvus Reservation List, LED: 219B SW35/40/45, XP-L HI 5D 4000K

1. troutpool (SW40)
2. greatscoot (SST-20 4000K)
3. bpbpoo (SW45)
4. carrot (SW35)
5. Random Dan (SW40)
6. StoneKing (SW35)
7. chipwillis
8. dotCPF (SW35)
9. boo5ted
10.
meddlecho (SW35)

Good afternoon everyone, I'd like to share a project I've been chipping away at behind the scenes for a while now.

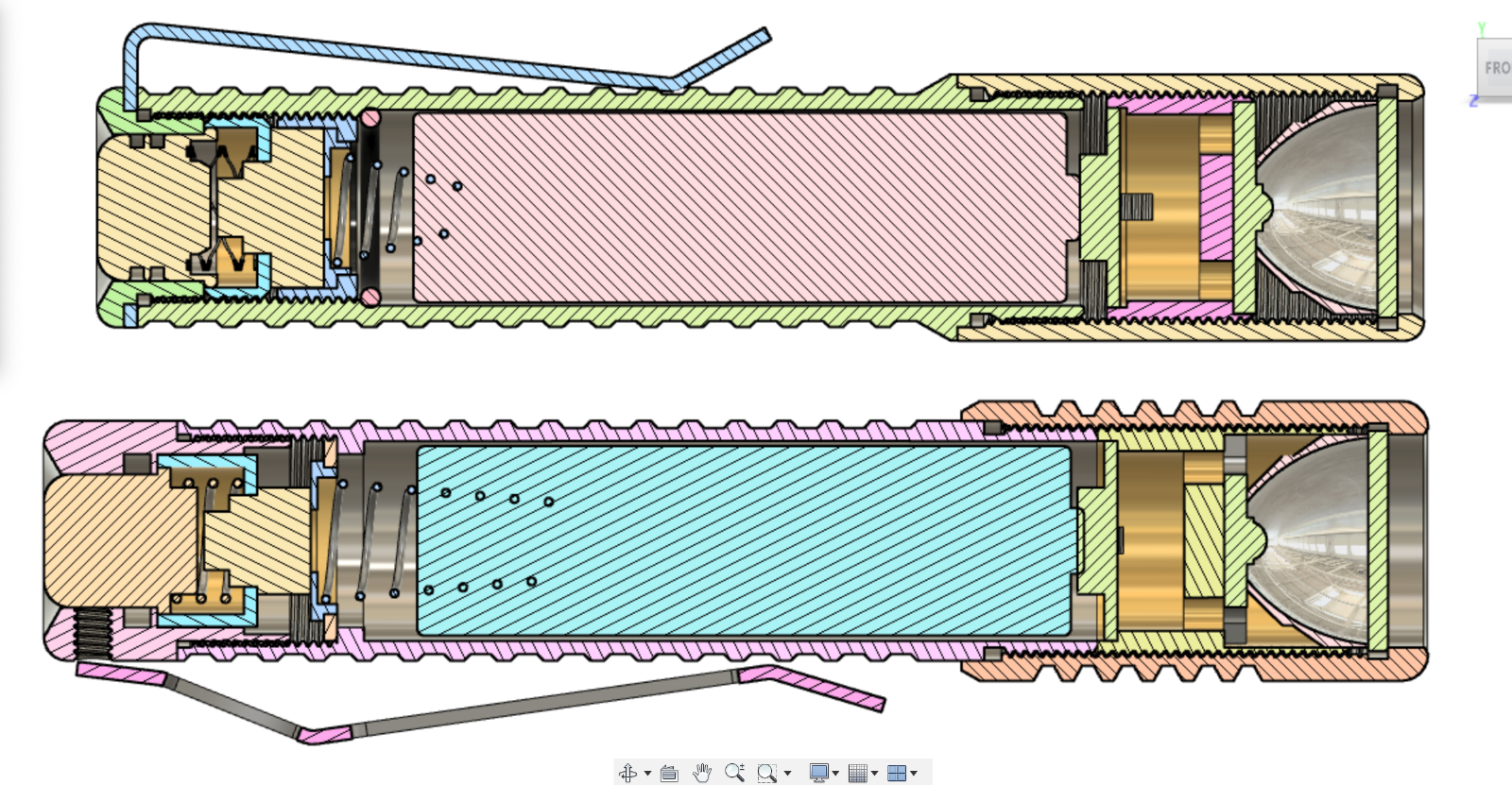

This is the "Corvus" project, a conceptual successor to the Hyperion, intended to eventually be made as a AA/14500 compatible light once a driver is available to use. Overall light design is shorter at ~100mm OAL and a bit skinnier than the Hyperion with a smaller 20mm diameter head. As usual for me, this is a manually machined custom light.

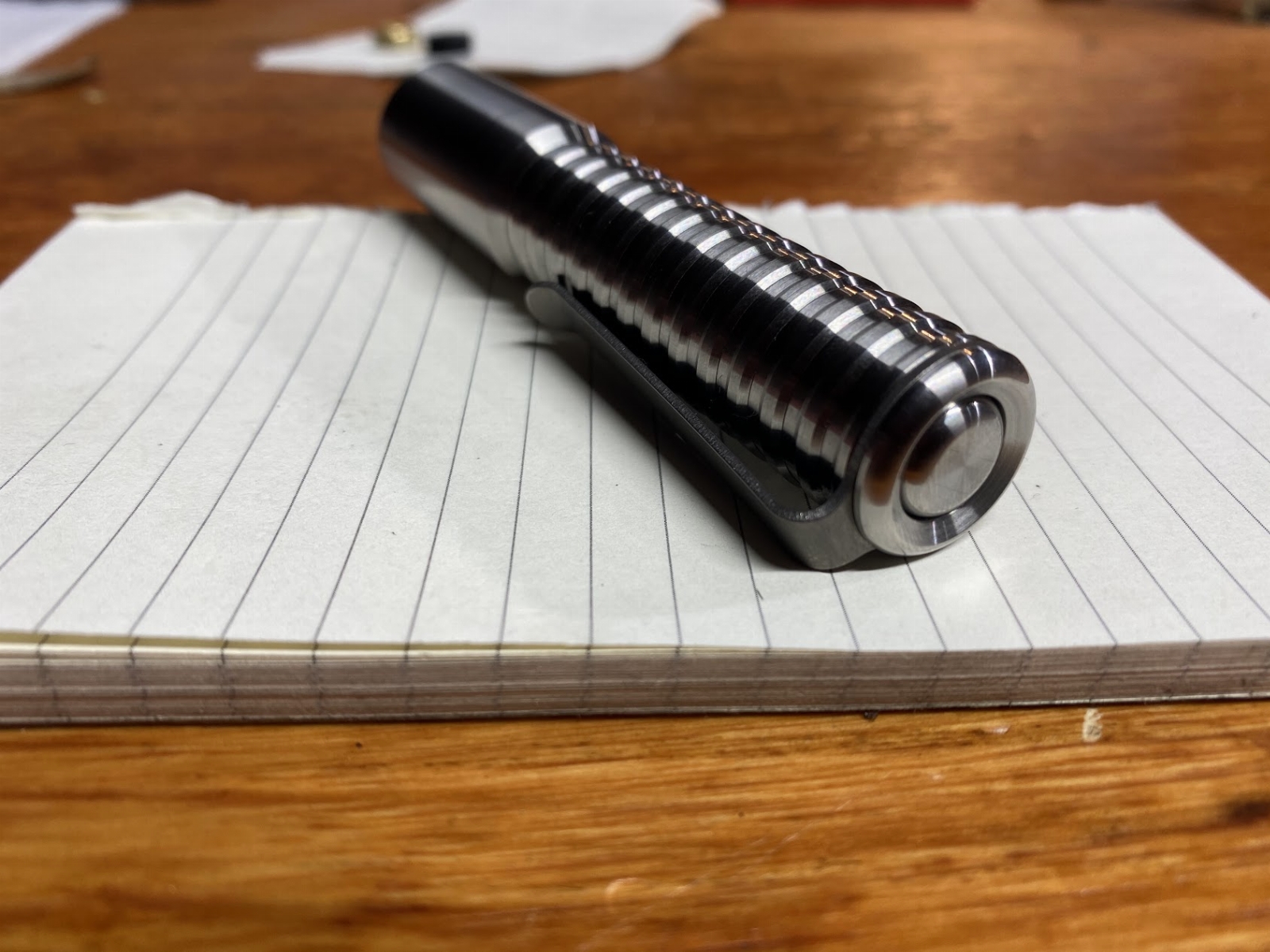

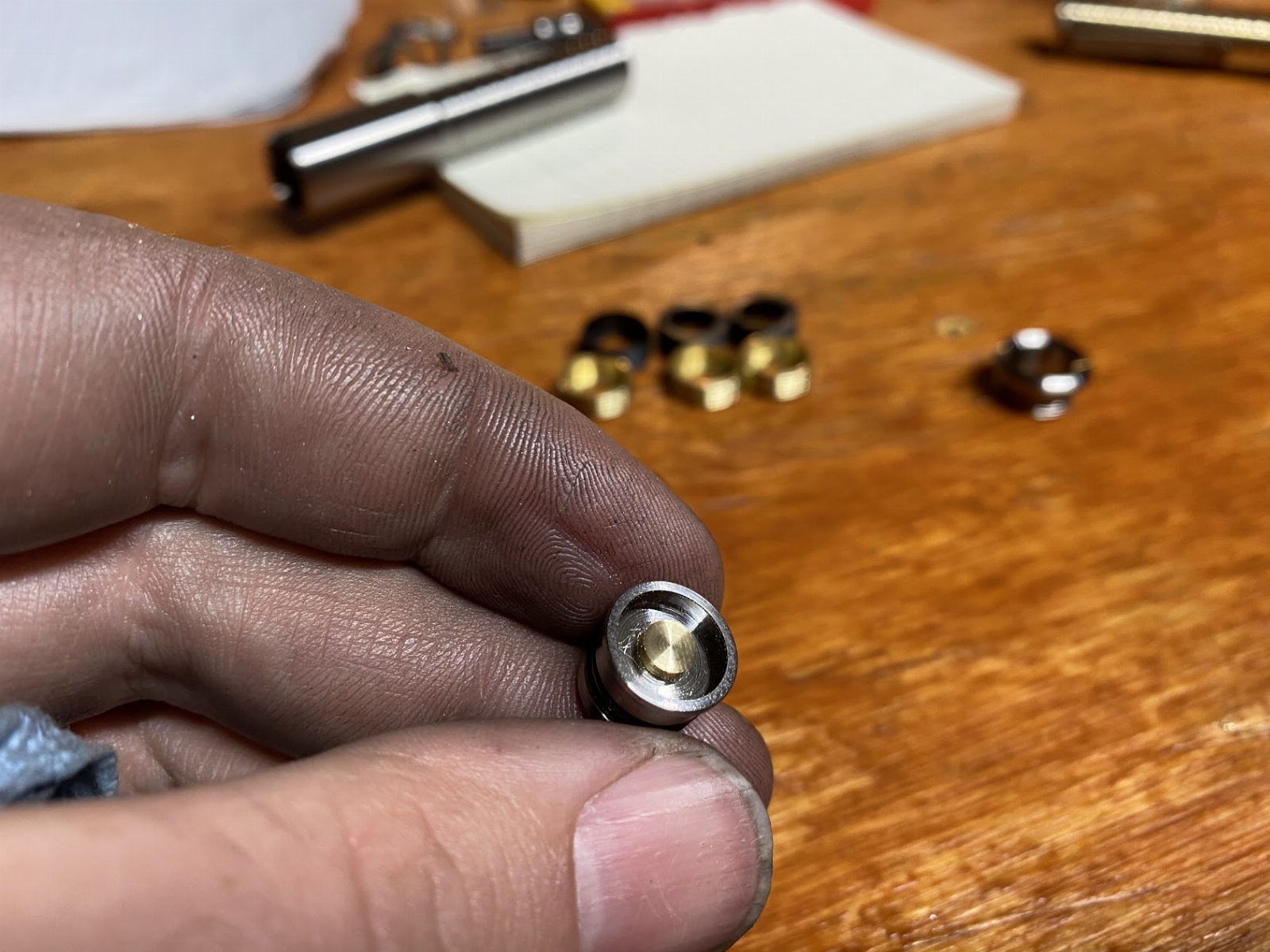

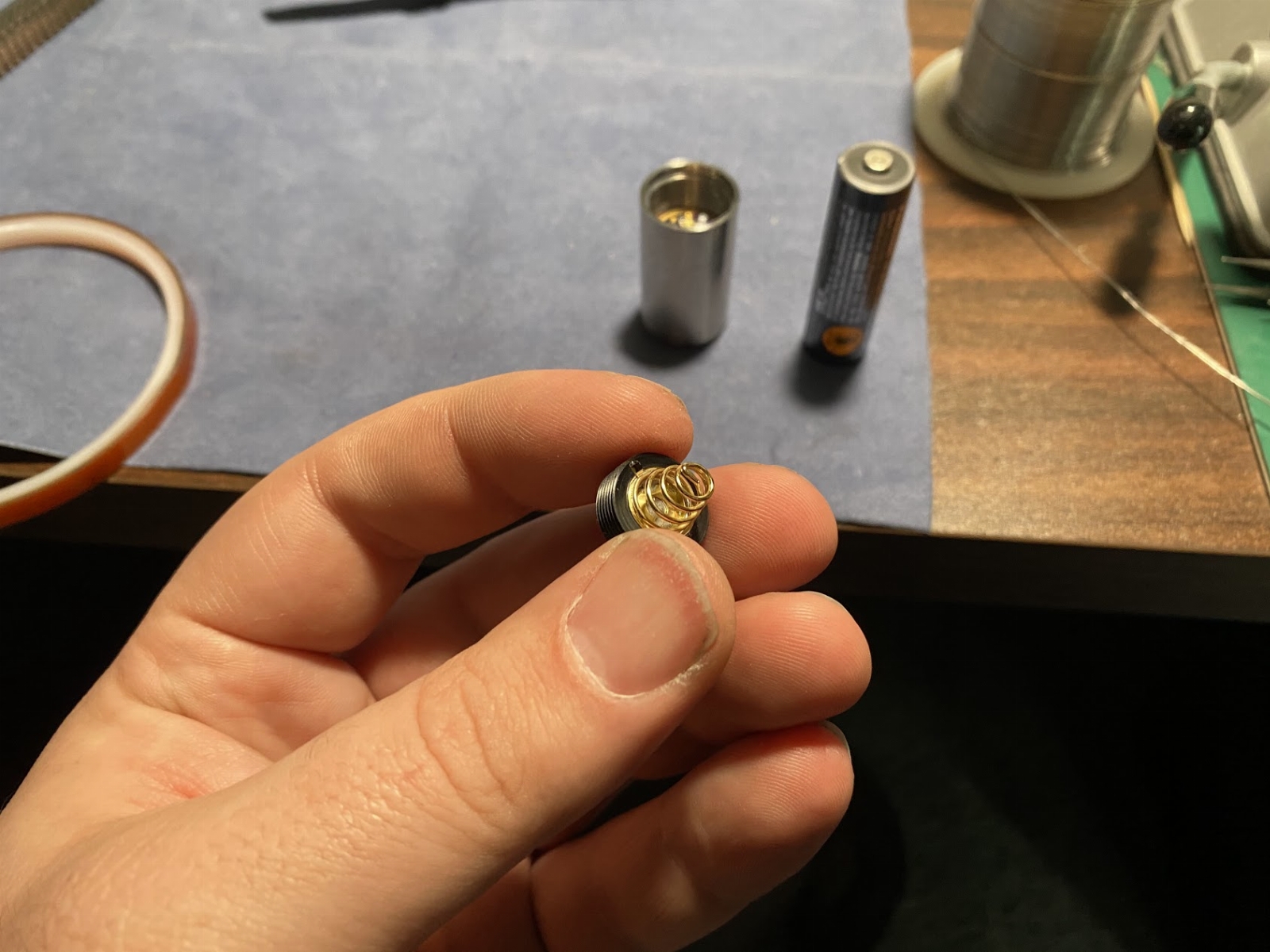

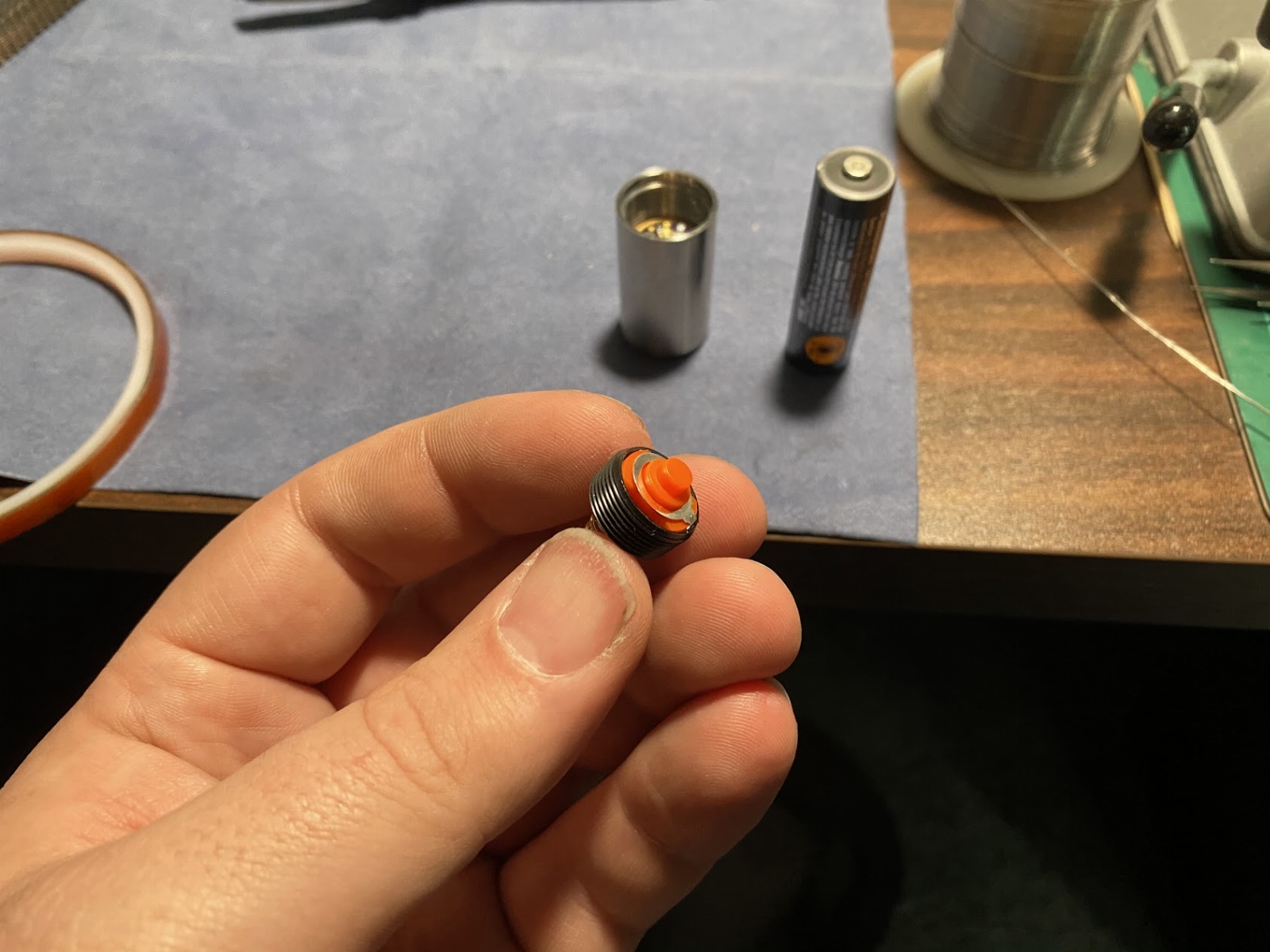

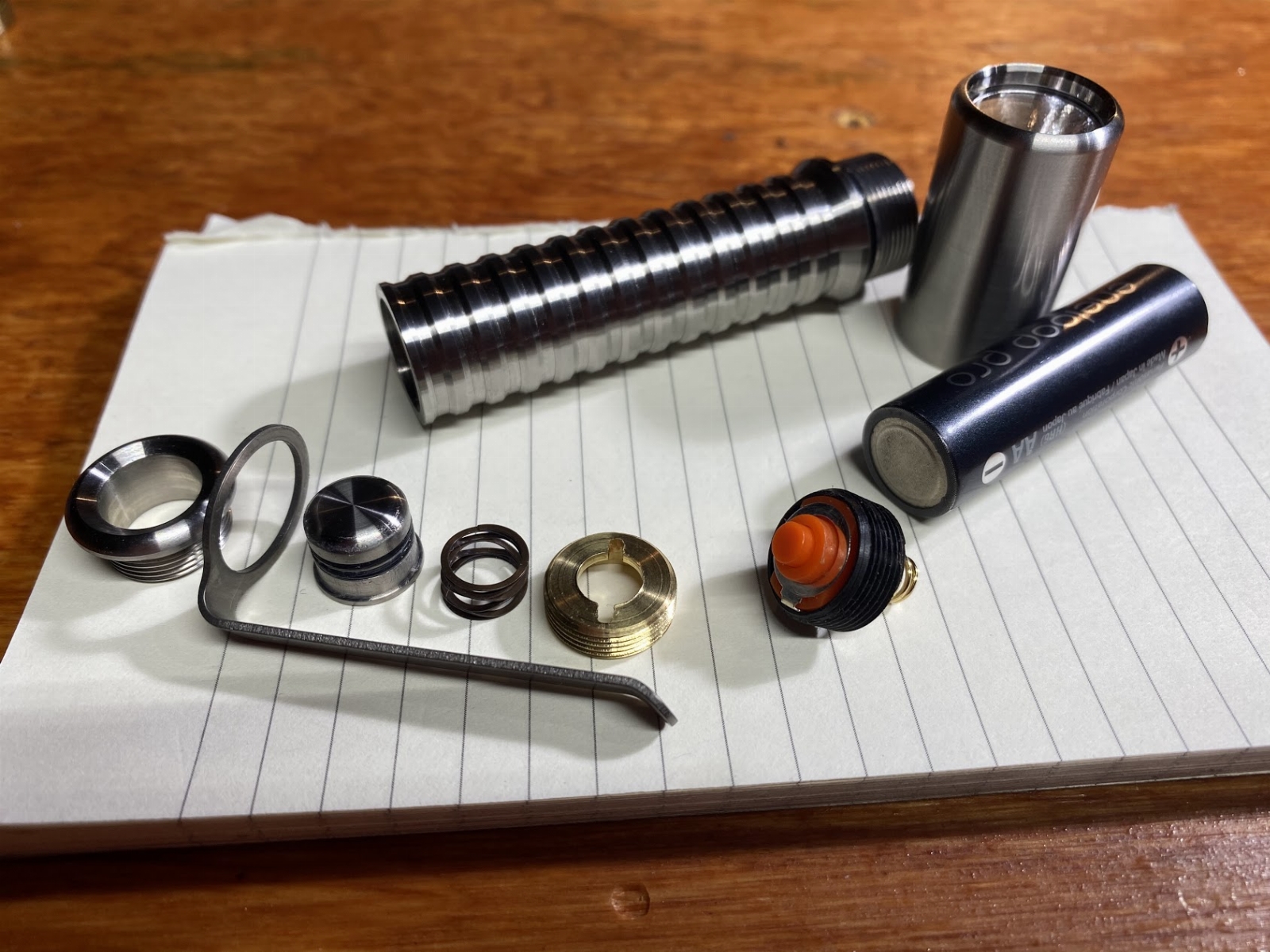

Intended design elements are a smoother and more compact variant of the titanium piston setup with a larger 11mm diameter piston, and a captive titanium deep carry clip. The assembly is powered by a compact wave spring which provides a smooth firm resistance with a crisp "break" at actuation. The whole switching assembly while a bit more complex in machining terms due to the brass spring cup and acetal isolator around the switch being threaded and slotted, is more consistent and stable in assembly with the switch forming a nice assembly with the isolator and spring plate.


The head and tailcaps interlock with the body where they mate up to distribute force and enforce consistent rigid lockup.
The reflector continues to be the excellent McR-16S which provides a punchy beam with a wide spill that makes good use of even moderate output levels.

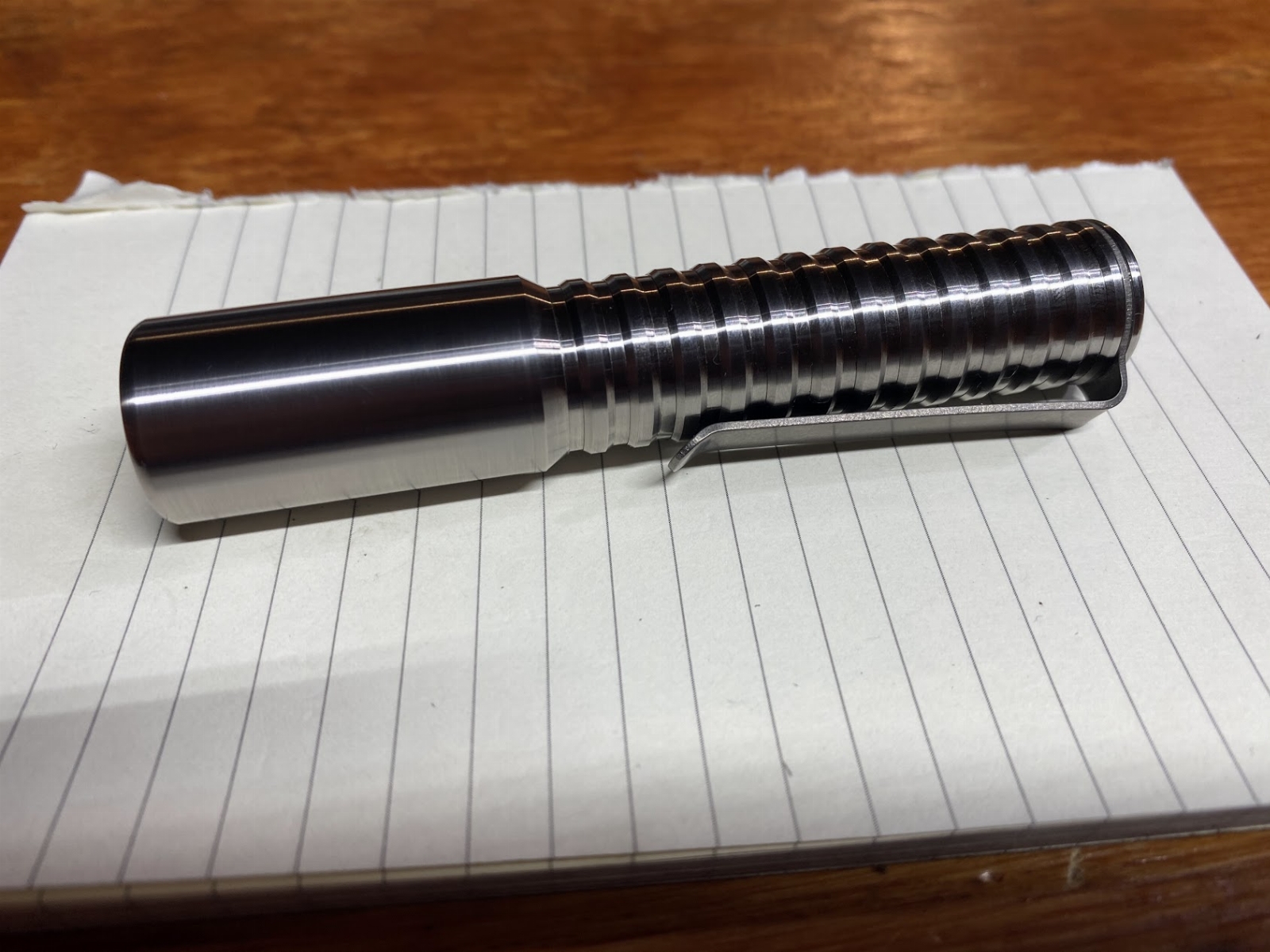

Grip-wise I've wanted to try something a little different from my usual "Acme" grip pattern and plan to use what I refer to as a "Wave" grip. This uses a bit wider of a ring with shallower chamfers, the result is a less abrasive grip which still provides a solid tactile grip.

Full
Image Gallery: https://photos.app.goo.gl/Ef9VBHTC2yWjMaVB6

Price: $535 shipped USA


ACtC-3do-5UH9n8K8EUZ1E4fPfDtoZ2rxXcYAvtuaS9iTQUeO2HtKqxFIWUllmI1MD6JUE_phrhQcscO2ltnEzpBz58LKJKISWuRO2qHHbBOGevHMctYH3eQgUM7jinKDEqV4FzcI-lwebjFAiq6FJkPouyaSQ=w1688-h1266-no
ACtC-3duCYCBTYNCohjFsrAl5HusBA5A9WI-byieo41dLLjjX5NMEdBsH9ZLzW7m3OpPnpuu9GViG6v8-ba_qr93qtxnmceAGA2JiytK_2WwNq1N45eyJ16_tpV2QXGzyPE0g0j4kCovITfi_tQi0uTBopa0rA=w1688-h1266-no
ACtC-3dPLrukz85dym-6uQtVFrCVdZTO1jeUl2JlgeK-yuvzxiwYStM0W1CMqukmOMGI7j-mrvflrabCltx3iIpw70krOQc-xR0PaVPGwVLLTxm-J774ymapYwQedyHFE5OwXg6EVpEhD3feBPfSdi9vVI1o3Q=w1688-h1266-no
ACtC-3cZ1UH_R-tBn9e1Mtc31gCYbyozYFxFQpztpZ36mfph84XD_C4bAMljcjQaWrPkvivRJdHItU7jrynboqPuYdEP7mvLO0b5Hq1jWZPNBvAoV-P8bTPCxEAayer0sutpQDUnuM2Yn0YKKtWx9EYs9hz5VA=w1688-h1266-no
ACtC-3czVOs1iox8op267GmFapwZKTZq0YgPRDmu83lfMzEBmYQSVWjnI6tMOh7dOqXXmVPA62v7ol8arVi_NxS7jDZ-b9zQBBkCmD5oZGv_GWztn-JeZ1ytO9VuldIQpZAUtQeGwtcI7dOvTaKYGK-NK0xafg=w1688-h1266-no
ACtC-3fMKqDNX2JF60xcnkvutItbEM8mu7n1k6DeoOmHulX1UbU7qcjFOubmi6CfJ_cLpWa2jB2oYfmaRLs_Mrp5R1hDgd41loONbY9NaWDR_MXQtA3lngmSwL7vgRqLENrmdB9VQvkdDk5pUqfuPavBNTG6ag=w1688-h1266-no
ACtC-3cyD6QiJmV62SFjXfm7YUDKjKO44BCQuSwixiT95j3yBBamIMnDkbFy9CmxR8Xszdz4WdhGknSn_X5vcyd557r7pNV832D7LIQEUdjy5KZlSg3KQTPXHzpWPWu0JbWkZ-7054ir9o-Oygyh-xqZQpxdRg=w1688-h1266-no
ACtC-3ejsJc2WTHbTNOynUvvwZ50yRfA_uY_Kzzp8ZLQFELtD-k1hilzPFLSuzT-FdDqjonZzziSdQtTpYCq-5rAqwm5UiARPGYkb2urhQB6fL5P7jB3br7WTdEk47Uw8WoIL3iJt-_ZwxllqkhZItb1E_tMJQ=w2402-h1248-no

Last edited:

K2-bk-bl-rd

Well-known member
CPF Supporter
Joined
Jan 17, 2008
Messages
1,578
I’m super excited for this light! I have a Hyperion, and it’s fantastic!


dotCPF

Well-known member
CPF Supporter
Joined
Dec 20, 2018
Messages
1,574
Location
New Angleland
Well hot damn I cannot wait for this! Any price estimate/ emitter possibilities?

I know this is very early, still can't help from dreaming though!

Perhaps the ultimate custom light!


Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA
Well hot damn I cannot wait for this! Any price estimate/ emitter possibilities?
I know this is very early, still can't help from dreaming though!
Perhaps the ultimate custom light!

Looking to keep it the same as the Hyperion, so around $525 USA.
Emitter wise I stock some R9080 219Bs in SW35-45, 5D XP-L HIs, and SST-20s in 3000-4000K. Could use any 3V XP footprint LED I can get ahold of, but practically speaking emitters with good throw performance like the 3 main ones I stock are ideal for a McR-16S reflector IMO.


Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA
Wow! I think this might just be my favorite Sigma design yet. Stunning work Dev!

Looks amazing! Any idea on driver?
Thanks guys!

I'm hoping to use calipsoii's newest driver project which is supposed to be AA/14500 capable and programmable. He has documented progress in his FB group Copper and Current Designs. Outside of that, scrapping a production light with a suitable driver is the next most likely option.


badtziscool

Well-known member
CPF Supporter
Joined
Oct 13, 2006
Messages
1,606
Outside of that, scrapping a production light with a suitable driver is the next most likely option.

I definitely hope it doesn’t have to come down to that. Most likely this won’t be the case, I’m thinking. A lot of progress has been made on the 15vp driver and should be near completion.


Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA
Wow... this is another winner! Hyperion Level 2.

I think that would be appropriate, the Corvus is the successor to the Hyperion in my mind, it takes the concepts and improves or fixes all the things that bugged me with the Hyperion. Reduced diameter and length, smoothest piston actuated switch I've done yet, simplified tailcap geometry, easier to service mail seals for the piston, easier to control seal pressure, better supported and more consistent switch/piston assembly, easier switch replacement routine, and a deeper clip arrangement.
The new seal arrangement also got rid of the "lock-stick" like effect where the x-ring would lock the piston in place in some of the tighter sealed Hyperions and require a firm push to release it.


Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA
A sneak peak at the wizardry of design that calipsoii has employed in his latest driver design. All of this stuff is on a 15mm OD board.

ACtC-3dLyDupE_7P9D9bzYTfQRo3iEO916_h6rFEQ8SrkS227njEbQcqKxobrQhZfNjXDFX6RxphrHDmkz8jhY0EpcTGIQEFYxvZTAPjiKdEh0HM9-IOk4aFpuWy-fEL_qeHddQHhETQkw1x1eoraE2rVZ4zIg=w1286-h1278-no
ACtC-3dyQLMy6w1bXrbYtyZVKYReodnfbSWF4WVizzHstA2Bm-066eK8o1gZ4xCMVNjPGVWAr3_PVR1Da2SmEeXRuWelBeC8-FOr8i9o7Z1iB8sNNjyihbmKTIp00DV2Jawvxg3sKyeGc1J62ybuYWiMgnPYhA=w1286-h1278-no


claptrap

Well-known member
Joined
Dec 9, 2014
Messages
49
Wow! This light looks just about perfect!
I haven’t purchased a Sigma before, so pardon my ignorance.
How does the drop/release/reservation process for these lights work? Is it announced here on CPF or elsewhere? I don’t have social media, but I may have to sign up to reserve one of these sweet lights


Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA
Wow! This light looks just about perfect!
I haven’t purchased a Sigma before, so pardon my ignorance.
How does the drop/release/reservation process for these lights work? Is it announced here on CPF or elsewhere? I don’t have social media, but I may have to sign up to reserve one of these sweet lights

Thanks sir! These days most sales are in my Facebook group as that is where the most interest is typically. For the Corvus I think the sales in my FB group will be released first-come first serve, and I will keep a reservation list here on CPF for members who don't use FB.


troutpool

Well-known member
CPF Supporter
Joined
Apr 22, 2010
Messages
1,010
Location
Arizona
Please put my name on the reservation list for one of these lights. I am not on FB, and I'd hate to miss the opportunity. Any hint as to when these might be ready to be offered?


Thetasigma

Well-known member
CPF Supporter
Joined
Nov 10, 2015
Messages
1,175
Location
Michigan, USA

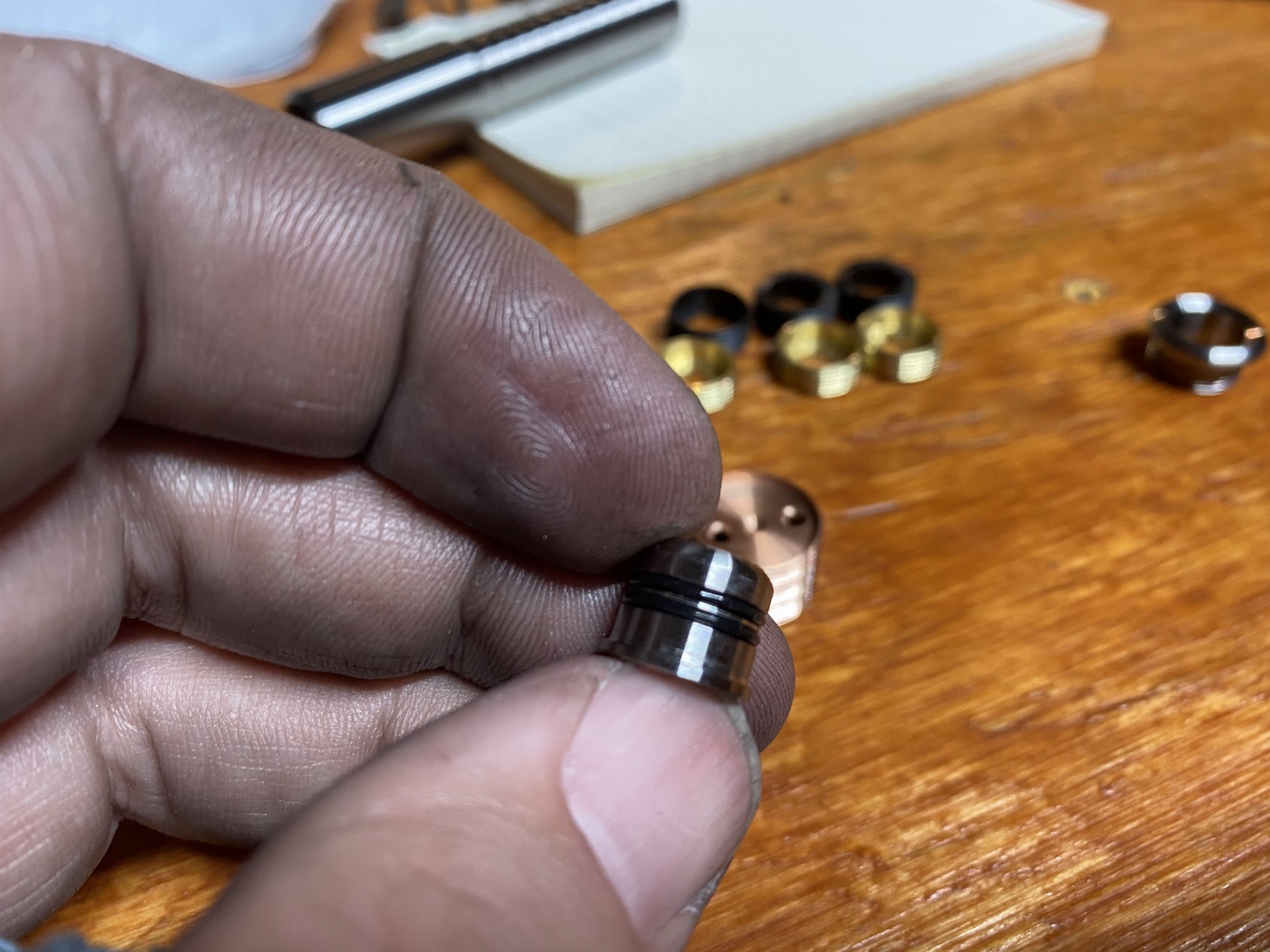

A mechanical update on the Corvus design. Piston design is holding up very well, minimal wear on the sliding surfaces of the piston setup, with grease still well-retained. Roughly 5 months and at least 2000 piston cycles, sliding surfaces are still polished and greased for an action as smooth as the day it was made.

ACtC-3ehAfnkZ-hpLRjoZ33n5inYsvwSqtc2p189nX137Amu1oSFz4otwf4NKDECemXsg1ZQGq8TcM3HlZBj0ao1PhmMma8z0Thp64pm98KLliEuItw2rator89_zEzFvRDQCeV_PZEiItC8gFAKF99JqoNYFg=w1854-h1390-no
ACtC-3e4mFvh9nMI86vnLYuSZGr8WBPRX9y_c-AuNWrupVMerK7aGUf_soFlfkvd_dackDSWx1QDFQb8kejbX3sMlass15uoahUyJy5KHLm8zThe-6H2sl_8eRqnOK3LINW4uXQDo93YtjGGa5BZlsSMfjYY2A=w1854-h1390-no


greatscoot

Well-known member
CPF Supporter
Joined
Dec 14, 2011
Messages
1,761
Location
169.254.34.49
Thanks sir! These days most sales are in my Facebook group as that is where the most interest is typically. For the Corvus I think the sales in my FB group will be released first-come first serve, and I will keep a reservation list here on CPF for members who don't use FB.
I'm not on FB either, can you please reserve a spot for me?
