(AVAILABLE)

Continue from
here

Please allow 7 days to ship


Please note: I will not send email or PM to individuals regarding payment confirmation and shipping status.
All these information will be next to your CPF handle in this post.
All 50 States shipping will come with tracking number but for international orders I will provide label number. Sorry, no tracking available for international orders.

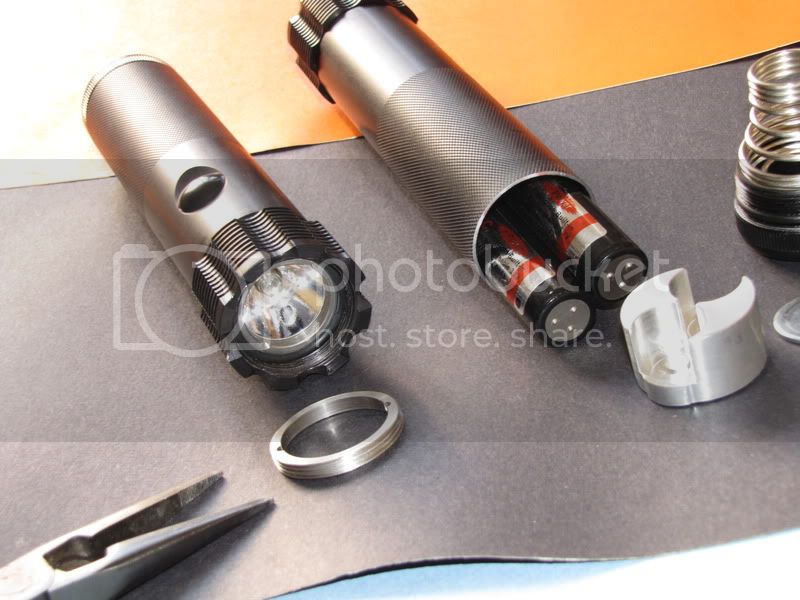

Use a pair of needle nose pliers to install lamp module and lens.

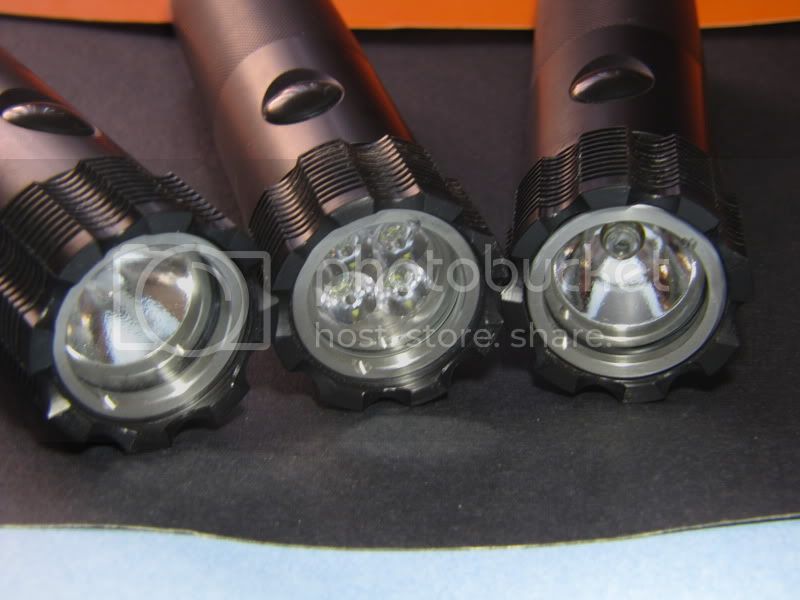

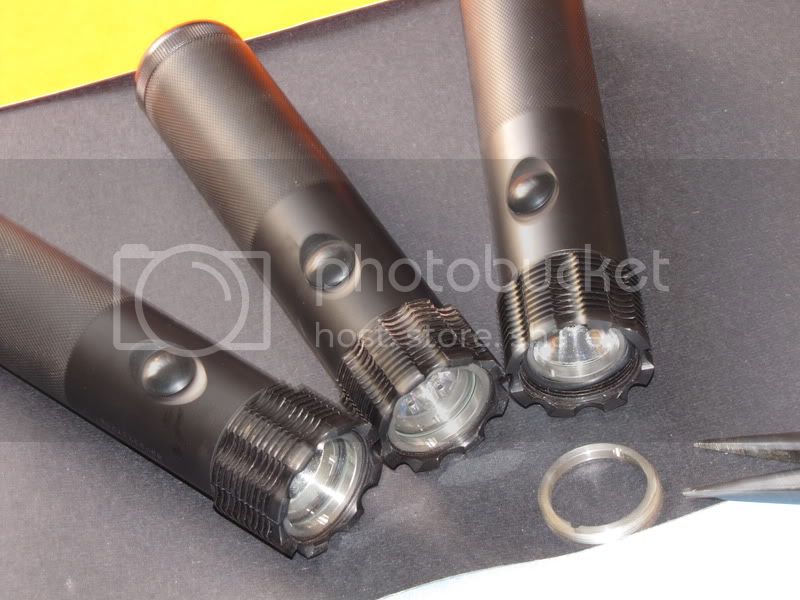

Installed P60 on left, installed quad on mid picture and installed WA1111 on right picture.

Hi folks, here is another creation from Fivemega.
I have made very limited quantity of these and there will not be more. So it's your choice to grab one or regret for ever.
A completely modified M*g D body with custom made D26 (P60 style) head, completly semi gloss (almost matte) hard anodized.
Body is shortened and dual bored with integrated battery holder to accept 2 18650 in parallel for total of 4.2 volt. No serial version available but for 8.4 volt application, possible to use 4 IMR 18350 (all cells are positive in/negative to tail side)
Head is custom made from one piece solid aluminum to accept any P60 stlye lamp/LED module with diameter of about 45mm.
There is no bezel to cover head. module is directly seated into cave metal which is outside finned for maxim heat dissipating. There is no threads (gap) to interrupt heat transfering.
There is one small stainless steel ring to hold lamp module and one bigger stainless steel ring to hold UCL lens and of course high quality UCL lens from flashlightlens is included.
There is one o'ring under lens, one o'ring on head and one o'ring on tail cap same as M*g
You can use your own D26 incand or LED and enjoy super long run per charge.
I highly recommend to use 2 high quality protected 18650 with same age and same capacity.
Since both batteries are connected in parallel, load on each cell is half of total load so less stress to each cell, longer battery life, less voltage drop, higher performance and longer run time per charge. Pair of protected 3400mAh cells will run the 3 Amp module for way more than two hours.
Total length is about 7" and head diameter is 1.75"
What you will receive is complete host including body, switch, battery holder, tail cap, head, 2 SS bezels, UCL lens and all required o'rings. No battery and No module included or offered.
Price: $98
Each extra UCL lens $6
Shipping to States $8.00
Internationally $18 each
No reservation please. You must pay FIRST then claim your spot by posting here. I will sign your name right after receiving payment unless you paying by MO.
Please don't pay if you may change your mind. There will not be any refund.
It is ABSOLUTELY NECESSARY to pick next available and valid number, post detail of your order here and paypal note along with your CPF handle.
It is ABSOLUTELY NECESSARY to pick next available and valid number, post detail of your order here and paypal note along with your CPF handle.
It is ABSOLUTELY NECESSARY to pick next available and valid number, post detail of your order here and paypal note along with your CPF handle.
I will never figure out what for is your payment and from whom without above information therefore I will reject payment.
Example:
Mr Dan26 :paypal: for #49
Paypal: [email protected]
Please PM for postal money order payment.

----------------------
#01 D26 M*g 1D $98 nailbender paid shipped 03110240000019937648
#02 D26 M*g 1D $98 nailbender paid shipped 03110240000019937648
#03 D26 M*g 1D $98 psychbeat paid shipped 03103490000199326329
#04 D26 M*g 1D $98 RCantor paid shipped 23071770000008632039
#05 D26 M*g 1D $98 RCantor paid shipped 23071770000008632039
#06 D26 M*g 1D $98 PoliceScannerMan paid shipped 23071770000008631711
#07 D26 M*g 1D $98 Sanderman paid shipped 23071770000008631704
#08 D26 M*g 1D $98 bugsy714 paid shipped 03103490000199338544
#09 D26 M*g 1D $98 Nite paid shipped 23082180000028851280
#10 D26 M*g 1D $98 RCantor paid shipped 03112550000057987580
#11 D26 M*g 1D $98 RCantor paid shipped 03112550000057987580
#12 D26 M*g 1D $98 jak3All3n paid shipped LC485381087US
#14 D26 M*g 1D $98 abanytime paid shipped 23082940000002467760
#15 D26 M*g 1D $98 CMAG paid shipped 23082940000002467883
#16 D26 M*g 1D $98 CMAG paid shipped 23082940000002467883
#17 D26 M*g 1D $98 CMAG paid shipped 23082940000002467883
#18 D26 M*g 1D $98 Freaker paid shipped 03112550000058015459
#19 D26 M*g 1D $98 cubebike paid shipped LC452889693US
#20 D26 M*g 1D $98 Xmldriver paid shipped LC740353742US
#21 D26 M*g 1D $98 Silgt paid shipped LC740353756US
#22 D26 M*g 1D $98 XFlash paid shipped 03113260000160975211
#23 D26 M*g 1D $98 Rovert paid shipped LC740353813US
#24 D26 M*g 1D $98 bradleyj37 paid shipped 03113260000161241018
#25 D26 M*g 1D $98 S1LVA paid shipped 23082940000002470746
#26 D26 M*g 1D $98 bbrins paid shipped 9505510518353176456364
#27 D26 M*g 1D $98 flyback paid shipped 0114901159818849095114
#28 D26 M*g 1D $98 mandrake paid shipped 9114901159818830949426
#29 D26 M*g 1D $98 euroken paid shipped 9114901159818848963933
#30 D26 M*g 1D $98 jmm244 paid shipped 9114901159815396497477
#31 D26 M*g 1D $98 nfetterly paid shipped 9114901159815876886920
#32 D26 M*g 1D $98 bbrins paid shipped 9505511149175177533476
#33 D26 M*g 1D $98 mk2rocco paid shipped 9505513717666084318069
#34 D26 M*g 1D $98 USM0083 paid shipped 9505513717728360219313
#35 D26 M*g 1D $98 mesa232323 paid shipped 9505513808411139376959

#36 D26 M*g 1D $98 (AVAILABLE)
#37 D26 M*g 1D $98 (AVAILABLE)
#38 D26 M*g 1D $98 (AVAILABLE)

-----------------------
Please find link of my other products here and click on each link you are interested.
-----------------------

(A V A I L A B L E)

Last edited:

fivemega

Flashlight Enthusiast
Joined
Jan 28, 2003
Messages
5,548
Location
California
**Question:
Any 2S2P for those that want to run 8.4V? (P91, M91, OR triple)
Did you read this?
fivemega said:
No serial version available but for 8.4 volt application, possible to use 4 IMR 18350 (all cells are positive in/negative to tail side)
---
how many amps can the switch handle?
These are towerless M*g D switch and many people use with high current incand bulbs such as Osram.
Not to mention incands initial spike is switch killer but LEDs don't have such spike and switch friendly.

---
why are they ~7 inch long
These are only 1.385" longer than Cooly and it's because of front side switch.
---
I'd love to do the same thing in a C size.
These are readily available at this moment. Why bother to make C size M*g which needs boring to fit 26xxx cells?

Two parallel 18650 cells have about 7000mAh while single 26650 cell has about 5200mAh

Also, "D" size bodies can dissipate heat better than "C" bodies.
---
is there any modification done to the head end of the tube? would i be able to remove the p60 head and put on a Mag head?
Yes, front of tube is shortened and rethreaded from inside (just like tail side). This was necessary to keep the overal length as short as possible.
---
Just to be clear- the cells run in parallel of the dropin only gets 4.2V? Can the 3100mah 18650's fit the adapter?

fivemega said:
Body is shortened and dual bored with integrated battery holder to accept 2 18650 in parallel for total of 4.2 volt. No serial version available but for 8.4 volt application, possible to use 4 IMR 18350
Any cell similar size of protected AW 18650 will fit.

---
Will you be able to use it to switch modes on multi-mode lights? Will you have to click the switch all the way off & on to get the mode change? How well do these switches hold up under all that clicking?.
M*g Switch is forward clicky and turns "ON" with slight pressure for momentary. Firm pressure will click it "ON". It works exactly like McClicky but mounted in mid side of body.
---
Do you have a 4AA to 32650 adapter? Or better yet a 2S 4P AA to 2*32650 adapter? Thanks.
Foe 4 serial AA adapters please check here .
---
Can a 32650 also be substitued for the dual 18650? Not really ant reason to do so considering 2X 3100mah cells gives you 6200mah!!!!
Nippled 32650/32700 will fit and work fine without tail side adapter but flat top 32650 cells will need some magnet for positive contact.
---
anyone know what size the drop in space of this and COOLY 26650 are? diameter and length? how long can the drop in be and how large of a heatsink can i put in there?
P60, P61, P90, P91 and all compatible D26 lamp module of LED or incan.
---
With the right dropin, can this run on a D cell battery?
Yes.
---
jak3All3n said:
I was wondering if i can use one of your 4aa to 1d adaptor in it, like here http://www.candlepowerforums.com/vb/showthread.php?198633-4AA-to-1D-8AA-to-2D-12AA-to-3D-M*g
will it fit/will it work? i'd like to compare this setup with 2p 18650s.
2P 18650 host is dual bored and designed for long run and can't take 4AA holder without boring.
However, if bore out the barrel, 4AA will fit and work.

Using 3600mAh 18650 cells you will get 7200 mAh @ 3.7 volt or approx. 26 Wh

Using 2700mAh AA cells you will get 2700mAh @ 4.8 volt or approx. 13 Wh
