Malkoff VME/MDX/etc vs C/E thread

[fulee9999]

I'm trying to come up with a few lego builds, but the more I research the more confusing it gets.
So my current understanding is that the Malkoff VME head is compatible with Oveready E35/E70 hosts, and some SureFires... SureFire E series from what I gather from the website, but what does that entail? I mean what exact models is it compatible with?

Also the MDX is a C-thread if I'm right? Which would be compatible with a SureFire 6PX..? Or not?

HALP.:duh2:

Edit: The tailcaps are compatible all around as far as I can tell, the Malkoff tailcap goes with the 6PX, the G2X ( however the G2X is plastic ) and vica versa, so basically the threading is the same, but you can opt for a Z41 style push and twist, Z59 clicky, or McClicky, or even for a ZeroRes one with a spacer.



[dotCPF]

It will be compatible with anything called or labeled "e" series. If it's a SF, it will have "E" in the name obviously. Many other companies make E-series parts including but not limited to Malkoff Devices (MDC), Oveready (e), Fivemega, RPM, and many others. They all pretty directly say "E series lights"

"Also the MDX is a C-thread if I'm right?"

Yes, it is, but C-series lights/ bodies are not compatible with MDX heads* and vice-versa.

"Which would be compatible with a SureFire 6PX..? Or not?"

None. The newer "X" gen lights are different threads entirely, I think Lumens Factory and maybe FiveMega make some P60 heads for these now however.

"he tailcaps are compatible all around as far as I can tell"

Yes.

"but you can opt for a Z41 style push and twist, Z59 clicky, or McClicky, or even for a ZeroRes one with a spacer."

As long as they are for "C" series lights, yes.


ALSO there are E to C adapters, and maybe C to E?



[fulee9999]

So the SF X series like 6PX and G2X has some new head threads, however they still retain the C series threads in the back, right?

Also based on this logic, an MDX head is compatible with the old SF 6P host?

And if I get this right, there is no C series 18350 size host currently? ( the OR is E series based on the information above, but with E to C converter [ and spacer I assume ] would accept an MDX head )



[greatscoot]

The MDx and SFx heads are not interchangeable.
If you want an 18350 Malkoff host, FiveMega and Martin D White both make custom MD1's. These are only compatible with Malkoff MDx heads.

FiveMega may still make a 18350 C to C body. You'll need to search for his threads.



[fulee9999]

Oh wow, thanks! I ordered an MD1 from FiveMega right away, I'm excited to build my mini tank



[greatscoot]

Oh wow, thanks! I ordered an MD1 from FiveMega right away, I'm excited to build my mini tank

I have an MD1.5 from Martin and for me, it's the perfect size.



[fulee9999]

I have an MD1.5 from Martin and for me, it's the perfect size.

Can you share a picture of your build? I might buy a 1.5 later, but I'll definitely be using it with a CR123+15mm spacer.



[troutpool]

Here is a picture of a VME head on an Aleph 1.5 body with an RPM tail. Overall length is 4.5 inches. I use one CR123 and a spacer in it.



[greatscoot]

Pic of an MD1.5 next to an MD2.



[thermal guy]

Any clue how many of them pink ones gene made?



[Nimitz68]

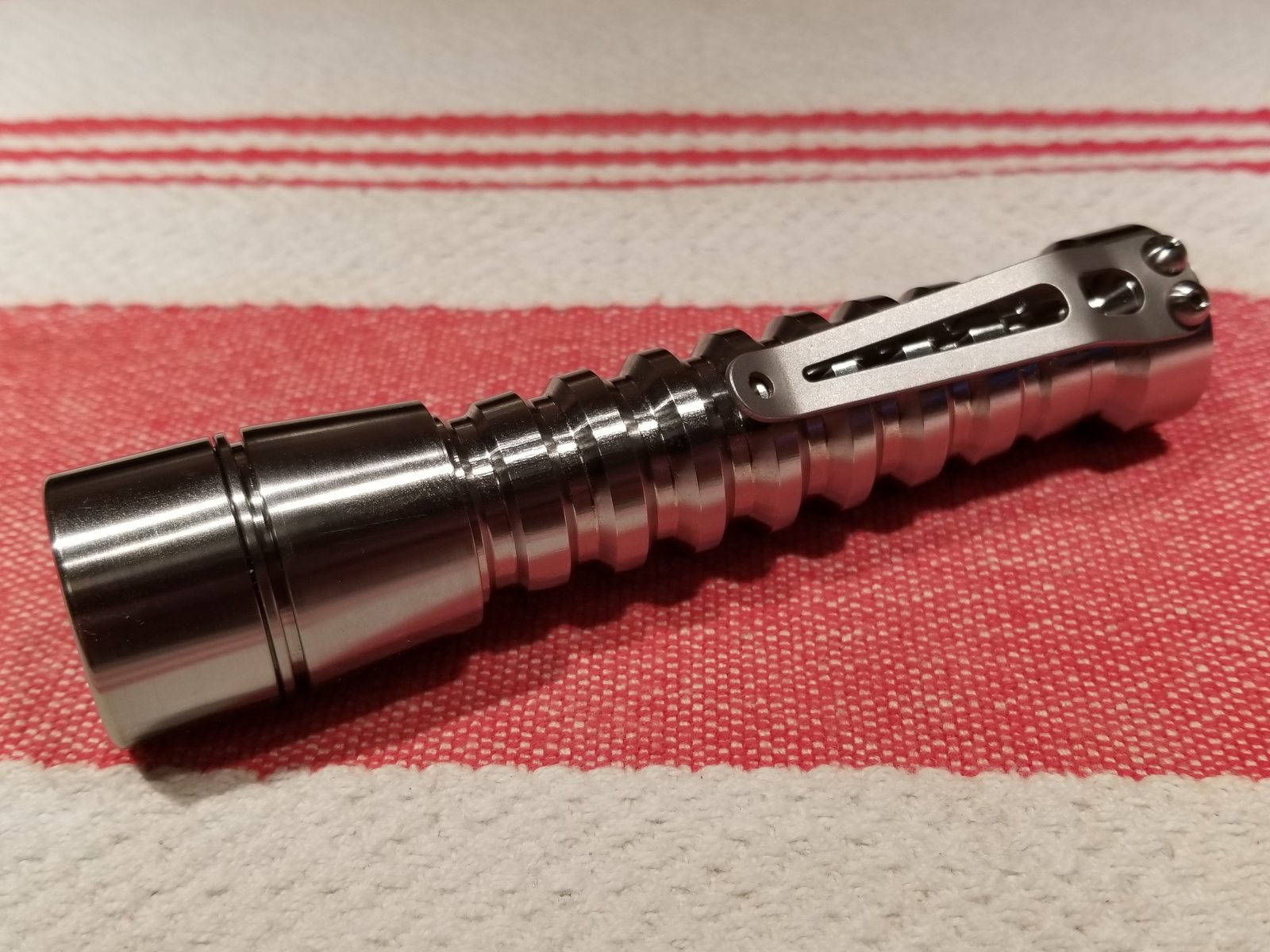

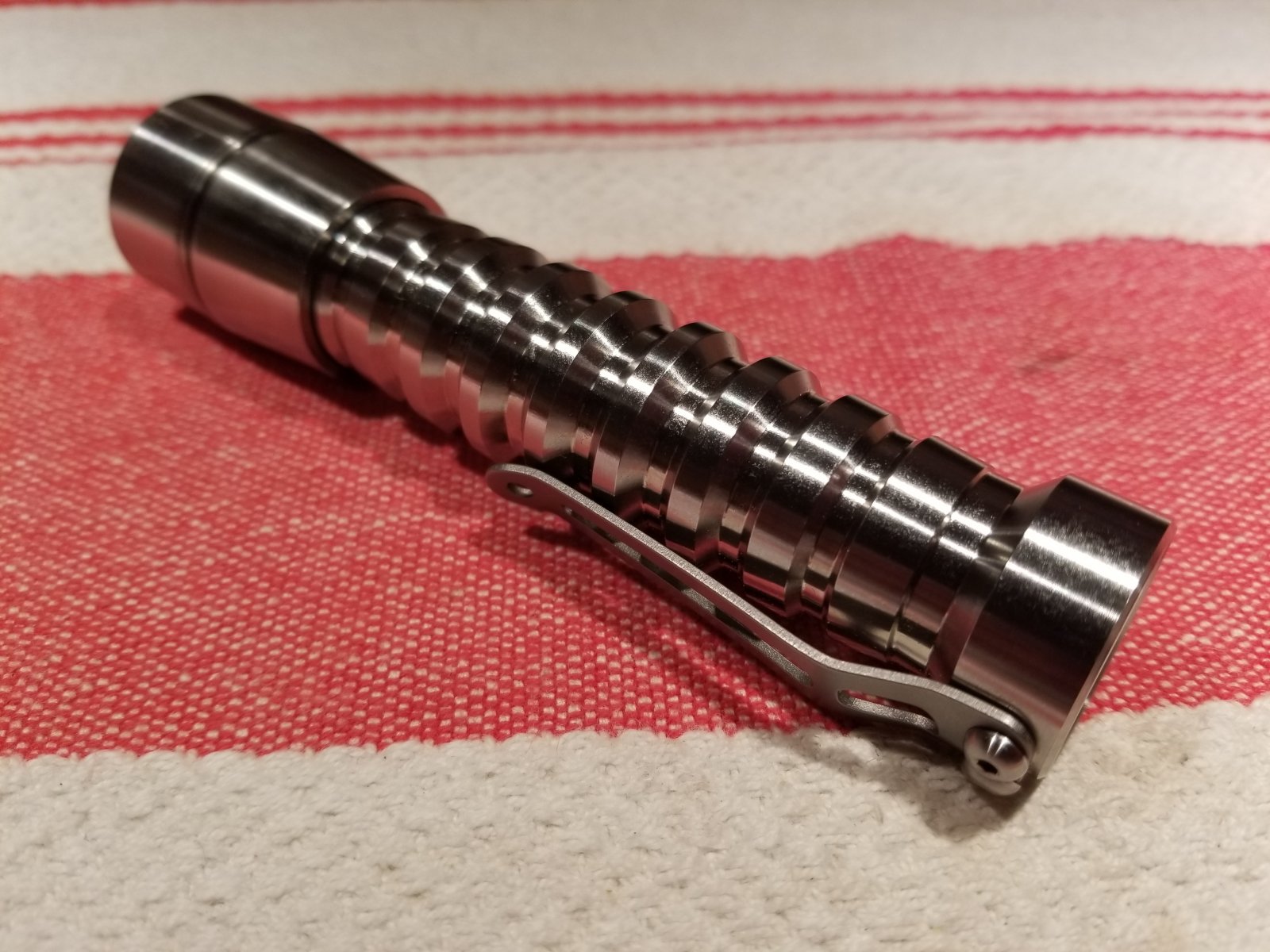

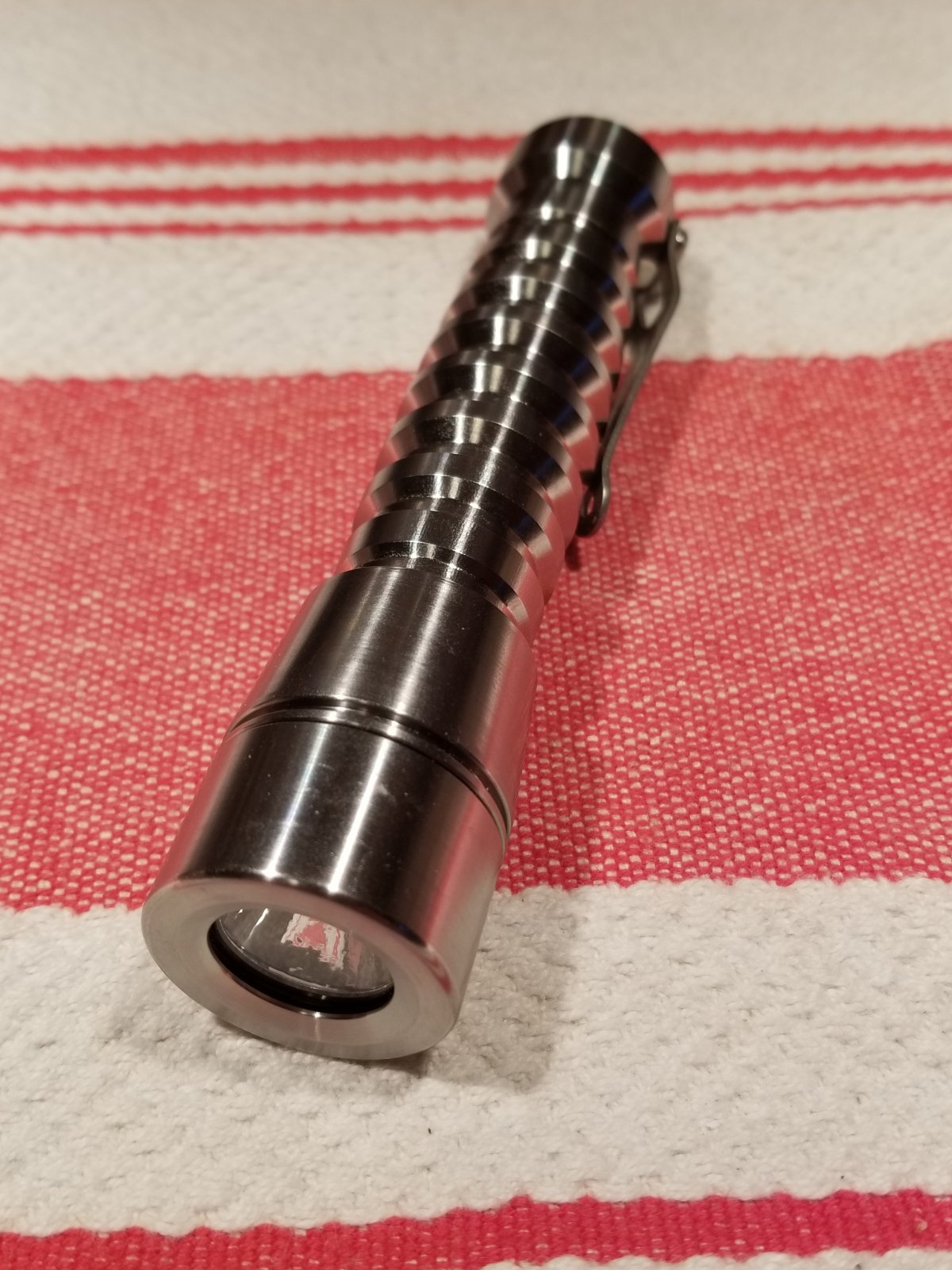

Malkoff Ti VME head, McGizmo Ti 2x16340/1x16650 McClickie Pak, and Malkoff M361 N219C 92CRI 3000K drop-in:
