Sold/Expired 3XML M*g C & D drop in by Fivemega

[fivemega]

(AVAILABLE)


NOTE: PLEASE ALLOW 7 DAYS TO SHIP​

Please note: I will not send email or PM to individuals regarding payment confirmation and shipping status.
All these information will be next to your CPF handle in this post.
All 50 States shipping will come with tracking number but for international orders I will provide label number. Sorry, no tracking available for international orders.

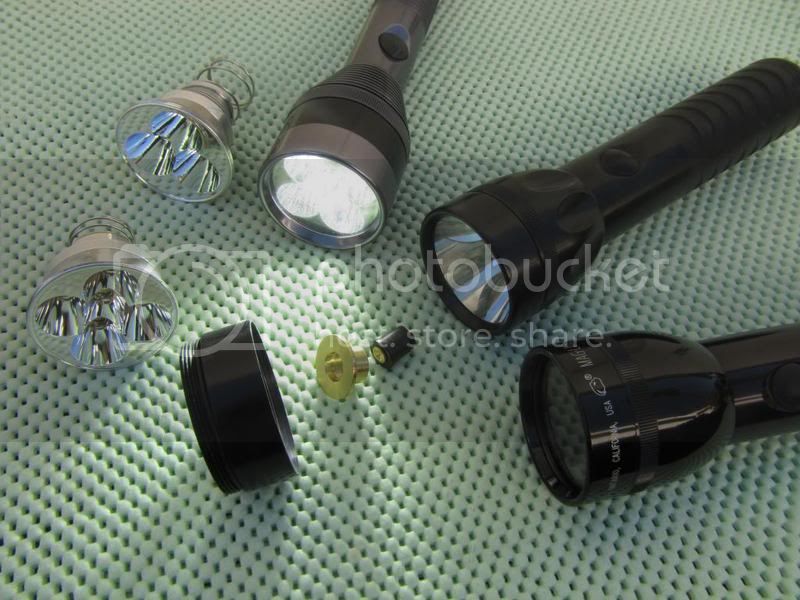

Install black extension ring between head and bezel

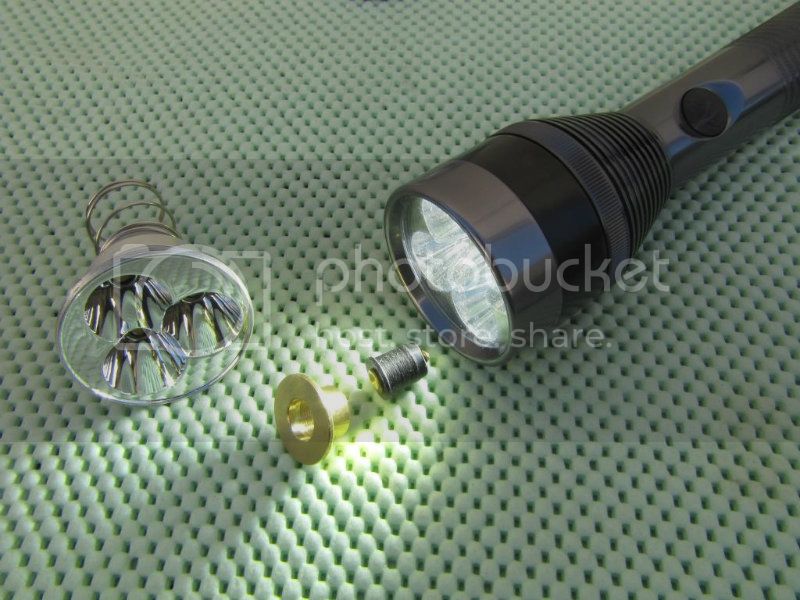

Install black positive connector instead of bulb and tighten it with brass negative connector

2C M*g using 2 protected 18650

Here I have limited quantity of simple 3 XML drop in for all incand M*g "C" and M*g "D" (Will not work with M*gCharger)
No soldering needed, no skill needed and 100% reversible. Installation will take only few minutes.
Simply remove bezel, reflector and bulb of your incand M*g then install black plastic instead of bulb, tighten it by provided brass nut.
Then install black extension ring on top of head, install 3XML module with original bezel.
Head extension is made of 6061 aluminum with hard black anodized type III and will increase length of head about 18mm (no other color available)
Replacing the lens is not necessary but optional.
Please make sure total forwarded voltage to 3XML module is no greater than spec.
8.4 volt version will work in 6C or 6D (6 NiMH), 2C (2x18650) and 2D (2x18650 or 6AA), 2.5D (2x32700) and many other configurations.
12.6 volt version will work in 3C (3x18500), 1.25D (3x17670), 3D (3x18650 or 9AA), 3.5D (3x32700) and many other configurations.
Obviously, 12.6 volt version is brighter than 8.4 volt version but either one will outperform many other conversion kit.
You can also use many other type of modules such as single P7, single XML, 5 Cree, 6 Cree, 3XML (2 cell), 3XML(3 cell) and ....
If you already have your own module, then you will need kit only without module.
What you will get in a kit includes: 3XML module, black HA head extension with oring, black plastic positive contact and brass negative contact.
Please make sure positive of batteries toward front of flashlight and negative towards the tail cap.
Warning: Reverse polarity will damage, burn and fry the module.
Price:
3 XML 8.4 volt kit $88 (AVAILABLE)
3 XML 12.6 volt kit $89 (NOT AVAILABLE)
Adapter kit only $60 (No module included) (AVAILABLE)
Shipping to States $8
Internationally: $24
No reservation please. You must pay FIRST then claim your spot by posting here. I will sign your name right after receiving payment unless you paying by MO.
Please don't pay if you may change your mind. There will not be any refund.
It is ABSOLUTELY NECESSARY to pick next available and valid number, post detail of your order here and paypal note along with your CPF handle.
It is ABSOLUTELY NECESSARY to pick next available and valid number, post detail of your order here and paypal note along with your CPF handle.
It is ABSOLUTELY NECESSARY to pick next available and valid number, post detail of your order here and paypal note along with your CPF handle.
I will never figure out what for is your payment and from whom without above information therefore I will reject payment.

Paypal: [email protected]
----------------------
#01 8.4 volt 3 XML kit $88 thundertree paid shipped 23082940000002485863
#02 8.4 volt 3 XML kit $88 Jaq paid shipped 95055105299730324087
#03 8.4 volt 3 XML kit $88 CMAG paid shipped 95055109123830775490
#04 8.4 volt 3 XML kit $88 RandomFlyer paid shipped 95055108929030855975
#05 8.4 volt 3 XML kit $88 hwoont64 paid shipped LC564224194US
#06 8.4 volt 3 XML kit $88 jtrucktools34 paid shipped 9505510912383196558443
#07 8.4 volt 3 XML kit $88 Gene paid shipped 9114901159818848909504
#08 8.4 volt 3 XML kit $88 dcphoto paid shipped 9114901159815876869756
#09 8.4 volt 3 XML kit $88 Maker paid shipped 9114999944238373431092
#10 8.4 volt 3 XML kit $88 (AVAILABLE)
#11 8.4 volt 3 XML kit $88 (AVAILABLE)
#12 8.4 volt 3 XML kit $88 (AVAILABLE)
---------------------
#01 12.6 volt 3 XML kit $89 thundertree paid shipped 23082940000002485863
#02 12.6 volt 3 XML kit $89 Jaq paid shipped 95055105299730324087
#03 12.6 volt 3 XML kit $89 thundertree paid shipped 23082940000035401779
#04 12.6 volt 3 XML kit $89 russde paid shipped 95055105183530524457
#05 12.6 volt 3 XML kit $89 MadMaxabeam paid shipped 95055109123830704337
#06 12.6 volt 3 XML kit $89 LEDAdd1ct payment received shipped 95055105183530814033
#07 12.6 volt 3 XML kit $89 Paul1976 paid shipped LC546223415US
#08 12.6 volt 3 XML kit $89 thundertree paid shipped 95055105183530814035
#09 12.6 volt 3 XML kit $89 blistering paid shipped LC546223446US
#10 12.6 volt 3 XML kit $89 RandomFlyer paid shipped 95055108929030855975
#11 12.6 volt 3 XML kit $89 flashgreenie paid shipped LC931084756US
#12 12.6 volt 3 XML kit $89 flashgreenie paid shipped LC931084756US
#14 12.6 volt 3 XML kit $89 jere paid shipped 9114901123086511188883
#15 12.6 volt 3 XML kit $89 jonwkng paid shipped LC658424089US
#16 12.6 volt 3 XML kit $89 brewerygulch paid shipped 9114901159815942864463
#17 12.6 volt 3 XML kit $89 fredx paid shipped 9114901159815876869770
#18 12.6 volt 3 XML kit $89 RomeoKilo paid shipped LC333379465US

--------------------
#01 Kit only with no module $60 thundertree paid shipped 23082940000002485863
#02 Kit only with no module $60 Rovert paid shipped LC687217849US
#03 Kit only with no module $60 Paul1976 paid shipped LC546223415US
#04 Kit only with no module $60 brewerygulch paid shipped 9114901159815942864463
#05 Kit only with no module $60 jonwkng paid shipped LC333379522US
#06 Kit only with no module $60 Gilcano paid shipped 9114901159815876848379
#07 Kit only with no module $60 Domdom paid shipped LC550404528US
#08 Kit only with no module $60 Maker paid shipped 9114999944238373431092
#09 Kit only with no module $60 Maker paid shipped 9114999944238373526392
#10 Kit only with no module $60 Maker paid shipped 9114999944238373526392
#11 Kit only with no module $60 Maker paid shipped 9114999944238373480717
#12 Kit only with no module $60 Maker paid shipped 9114999944238373480717
#14 Kit only with no module $60 (AVAILABLE)
#15 Kit only with no module $60 (AVAILABLE)
--------------------
Please find link of my other products here and click on each link you are interested on.
--------------------

(A V A I L A B L E)​



[fivemega]

Question?
--------------------------

Would like a bit more info on output and current draw. is this regulated?

Each module is different than other.
You can click on each blue link and find out output, current draw and voltage range of each module.
I have measured about 2.2 Amps from tail cap of 3 protected 18500 cells. Keep in mind that it was high mode of 2200 lumens version and tail cap current while total voltage was about 12 volt.
---------------------------

This looks like a very nice setup

Thank you and very easy to install.
---------------------------

Can you clarify where one might find these other modules, or what the original host of these other modules is/might be?

Links are added in post #1 where you can get them.
---------------------------

Good design FM. I love that bezel extensions, I think it actually improves the look of the maglite head.

Thank you.
---------------------------

What does this do for you?

This will increase output of your 3D incan M*glite from 27 lumens to 2200 lumens.

Cant you just drop these modules into a Maglite?

No, you can NOT
---------------------------

FM, are these built or can I specify the LED bin? If they are already all built what bin are they. Thanks.

These are 2 cell and 3 cell version of 3XML linked in post #1
---------------------------

FM...will these work in your Exotic M*g 26500 bodies?

Sure will.
---------------------------

So...the modules you are shipping in the kit are the KD and DX modules?

Exactly.
DX and KD are not manufacturers. They are online retailers.
---------------------------

If that's the case, have you checked the current flow on the 8.4V KD module? The review on their website says it's only 800mA on high.

For 2 cell version, I have measured about 1 Amp from pair of protected 18500 cells. Remember, this is tail cap current and not forwarded voltage to LED
For 3 cell version, I have measured about 2.2 Amp tail side current.
---------------------------

Will 6 NiMH AA's put out sufficient current to the 8.4v kit to produce roughly the same lumens as from 2 18650's?

Yes,
Voltage of 6 NiMH AA's is about same as 2 Li-Ion and 8.4V kit will run on either configuration properly.
---------------------------

Will this fit the old D M*glites that have no letter in the front of the serial number?

Yes, will fit and work properly on any M*g C or D with or without letter in the front of the serial number.
---------------------------

Does it really put 2200 lumens? What about a 2D M*g with two protected 18650?

Claimed lumens ratings are from module manufacturer and you can get any module which you prefer and that's why I offer "kit only without module too".
---------------------------

Does this work on magcharger?

No, will work on M*g "C" and M*g "D" only.
---------------------------



[Bullet Bob]

Would like a bit more info on output and current draw. is this regulated?



[fgials]

This looks like a very nice setup

Sent from my SAMSUNG-SGH-I747 using Tapatalk 2



[LEDAdd1ct]

You can also use many other type of modules such as single XML, 5 Cree, 6 Cree and ....
If you already have your own module, then you will need kit only without module.

1) Can you clarify where one might find these other modules, or what the original host of these other modules is/might be?

2) I would also like to know lumens and current draw at various voltages.



[vestureofblood]

Good design FM. I love that bezel extensions, I think it actually improves the look of the maglite head.



[thundertree]

from thundertree for:

#01 8.4 volt 3 XML kit $88

#01 12.6 volt 3 XML kit $89

#01 Kit only with no module $60

Unique Transaction ID # 63511730HC981560N


Much thanks!!



[Jaq]

I'll take,

#2 8.4 volt 3 XML kit $88

#2 12.6 volt 3 XML kit $89

Thanks



[LEDAdd1ct]

Okay, thank you, sir.



[EscapeVelocity]

What does this do for you? Cant you just drop these modules into a Maglite?



[fivemega]

What does this do for you?

This will increase output of your 3D incan M*glite from 27 lumens to 2200 lumens.

Cant you just drop these modules into a Maglite?

Here I have limited quantity of simple 3 XML drop in for all incand M*g "C" and M*g "D"

M*g=Maglite=Maglight



[fivemega]

All orders shipped. Enjoy :twothumbs



[EvilPaul2112]

Any feedback on these drop-ins?



[Fresh Light]

FM, are these built or can I specify the LED bin? If they are already all built what bin are they. Thanks.
edit-Oh, I see the link. Very nice.



[Rovert]

From Rovert
#02 Kit only with no module $60 + $14 int postage
Paypal Sent.



[donn_]

FM...will these work in your Exotic M*g 26500 bodies?



[fivemega]

FM, are these built or can I specify the LED bin? If they are already all built what bin are they. Thanks.

These are 2 cell and 3 cell version of 3XML linked in post #1
----------------------------

FM...will these work in your Exotic M*g 26500 bodies?

Sure will.



[donn_]

So...the modules you are shipping in the kit are the KD and DX modules?

If that's the case, have you checked the current flow on the 8.4V KD module? The review on their website says it's only 800mA on high.



[fivemega]

So...the modules you are shipping in the kit are the KD and DX modules?

Exactly.
DX and KD are not manufacturers. They are online retailers.

If that's the case, have you checked the current flow on the 8.4V KD module? The review on their website says it's only 800mA on high.

For 2 cell version, I have measured about 1 Amp from pair of protected 18500 cells. Remember, this is tail cap current and not forwarded voltage to LED
For 3 cell version, I have measured about 2.2 Amp tail side current.



[donn_]

For 2 cell version, I have measured about 1 Amp from pair of protected 18500 cells. Remember, this is tail cap current and not forwarded voltage to LED
For 3 cell version, I have measured about 2.2 Amp tail side current.

OK..If I got the formula right,

LED_Current = battery_voltage*battery_current / LED_voltage

That would be approx 2.66A forward current, assuming a perfectly efficient circuit...or, more likely 2.25A assuming 85% efficiency, 8 volts at the cells, 3 volts forward voltage and 1A at the tail.

If that's right, it's a good bit of current to the emitters.
