Kel-Lite repair

JMaletto

Newly Enlightened
Joined
Jun 19, 2013
Messages
2
I've come into possession of a 7 D cell Kel-Lite. I put new batteries in, but unfortunately, the bulb work for a brief seconf, then turned off. Now it won't turn on at all. Anyone know of any placed or people that work on or repair Kel-Lites? Any info would be appreciated.


JCD

Enlightened
Joined
Apr 12, 2010
Messages
892
Have you tried another bulb (or otherwise verified the bulb didn't die)?


JMaletto

Newly Enlightened
Joined
Jun 19, 2013
Messages
2
I have not replaced the bulb yet, but I'm not sure how. Is it the same as a MagLite bulb to remove it? And will a Mag Lite bulb work as a replacement?


JCD

Enlightened
Joined
Apr 12, 2010
Messages
892
I have not replaced the bulb yet, but I'm not sure how. Is it the same as a MagLite bulb to remove it? And will a Mag Lite bulb work as a replacement?

I'm not familiar with Kel-Lites. My suspicion of the bulb is based on your description of how and when it stopped working. If you can remove it, you should be able to test the bulb's continuity with a multimeter.


sween1911

Flashlight Enthusiast
Joined
Dec 10, 2003
Messages
2,051
Location
Pennsylvania
Great light! Worth hanging onto and playing around with! A friend of mine who did security work and moved away left me a Streamlight SL-35X years ago. I played around with it, ultimately had AA's leak inside of it and threw it out. I always regret not seeing what else I could have done with it.

Just sounds like the bulb is blown in your Kel-lite. Try a new bulb. A 6-cell mag bulb should be okay to try out with 7-cells.
If you want to experiement with different bulbs, you can usually find PR-base flashlight bulbs at Radio Shack for varying voltages.

You can always get a D-cell spacer ("dummy cell") and just run it with 6 D's.


Wilmette

Newly Enlightened
Joined
Apr 25, 2010
Messages
40
Location
planet earth

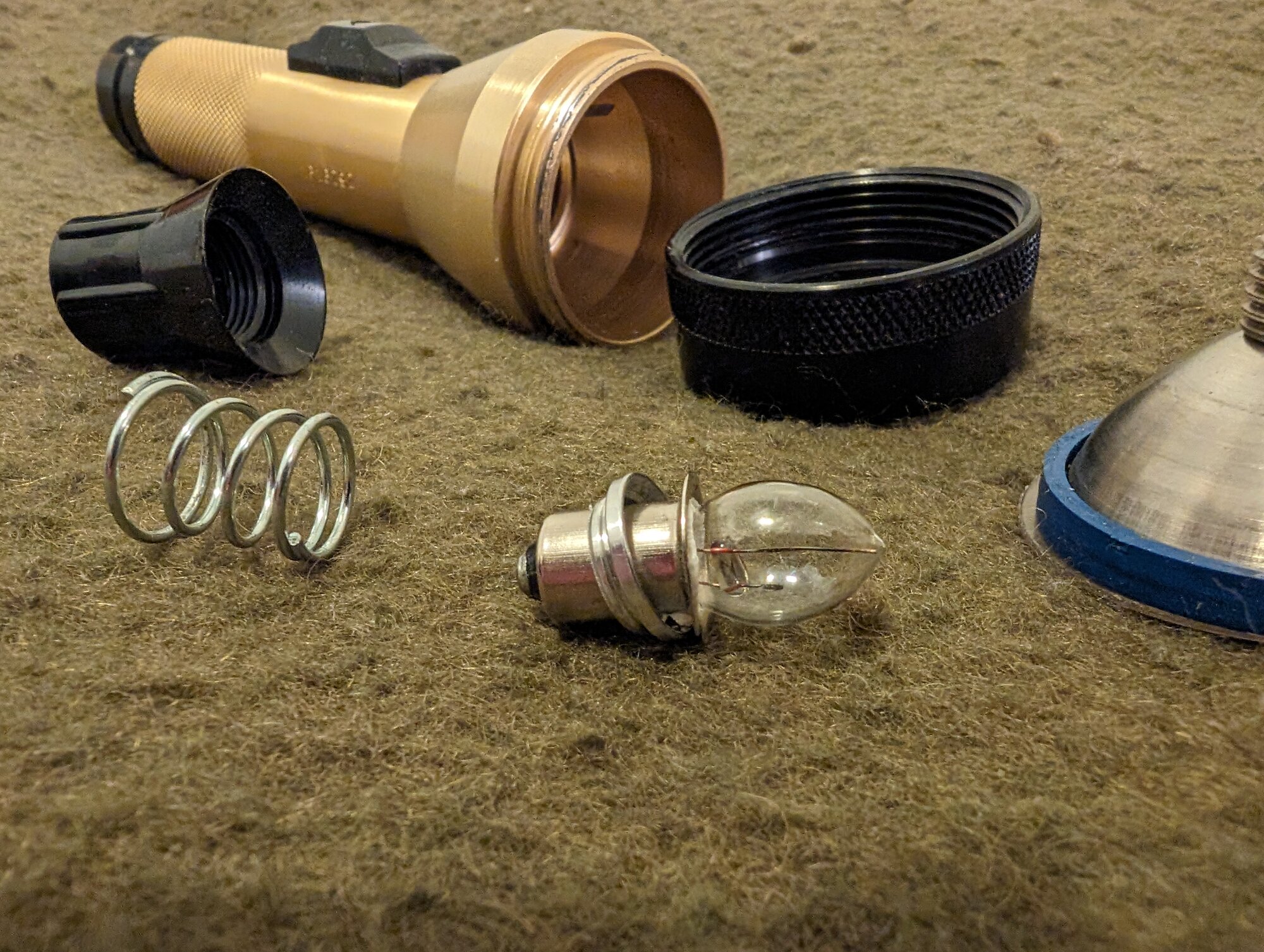

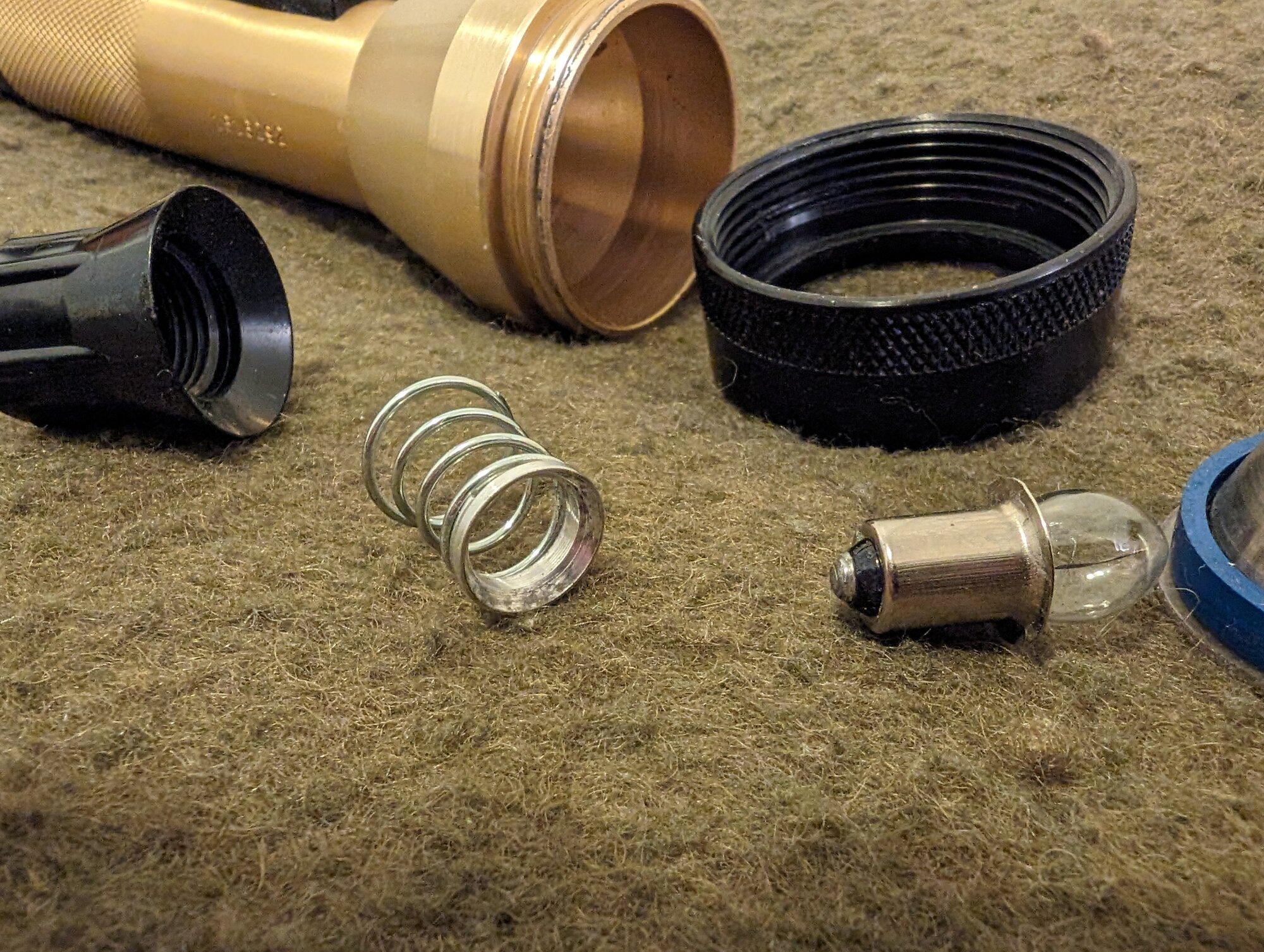

You want a PR-20 lamp for the 7D configuration. Biggest Kel I own is a 5D, which takes a PR-12. 6D is a PR-18. All readily available. Note that there may be a spare lamp inside the tailcap under the spring washer.


ABTOMAT

Flashlight Enthusiast
Joined
Jan 9, 2004
Messages
2,913
Location
MA, USA

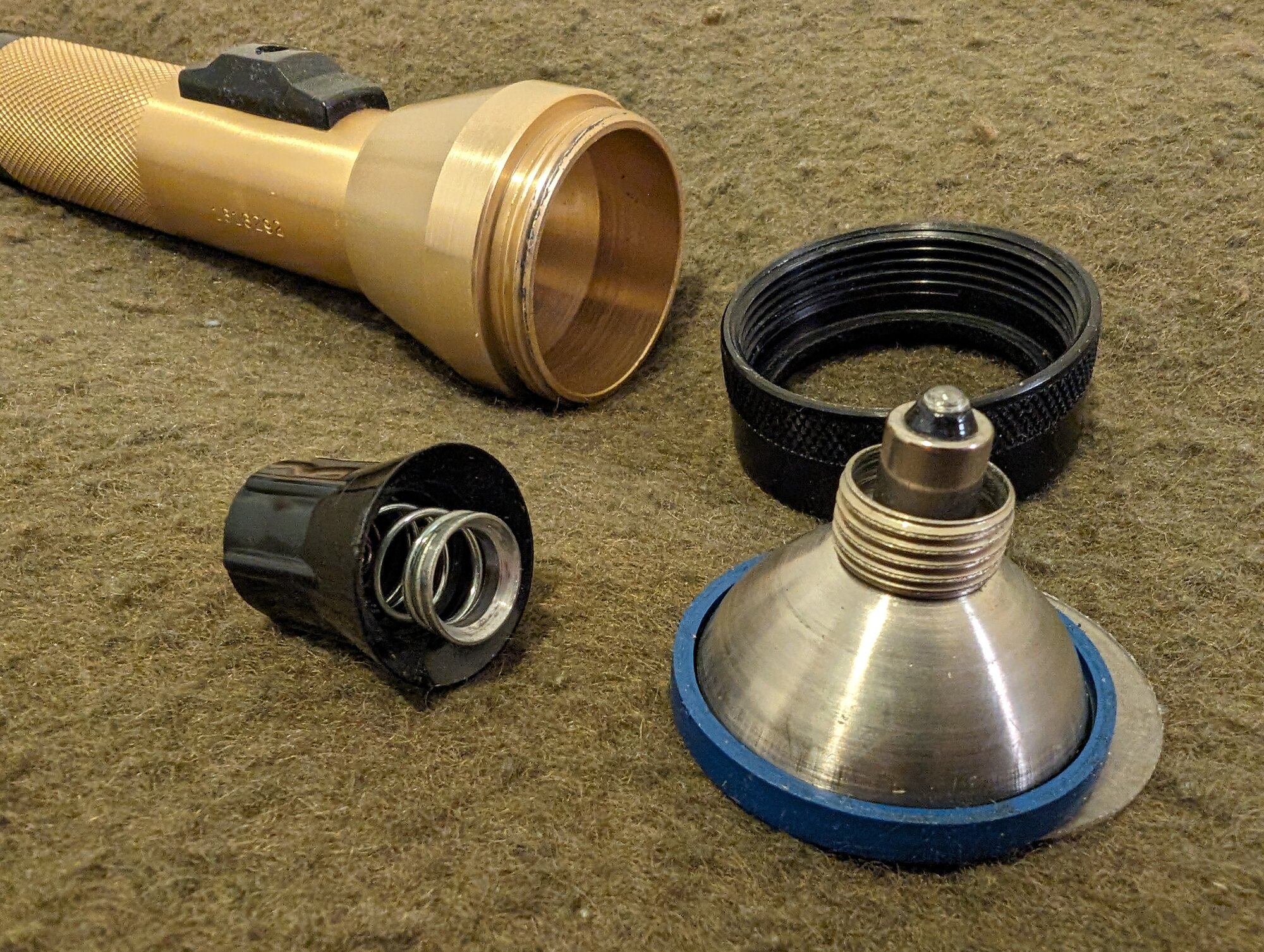

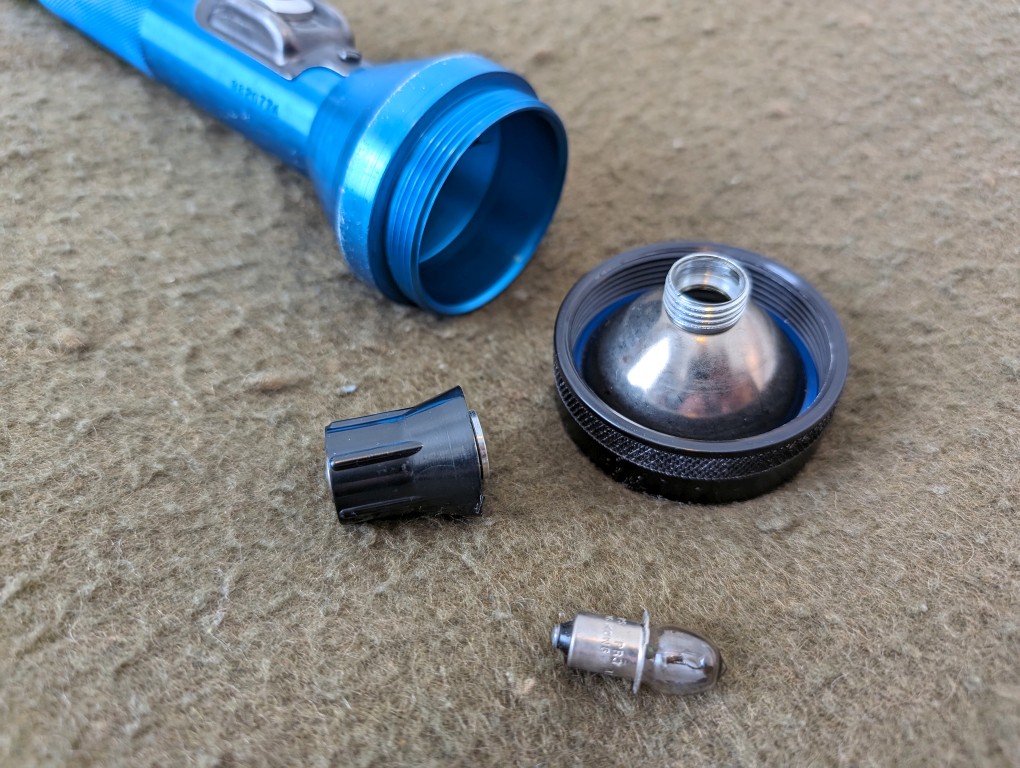

Do you need a wrench to get it off?
Nope.



ABTOMAT

Flashlight Enthusiast
Joined
Jan 9, 2004
Messages
2,913
Location
MA, USA

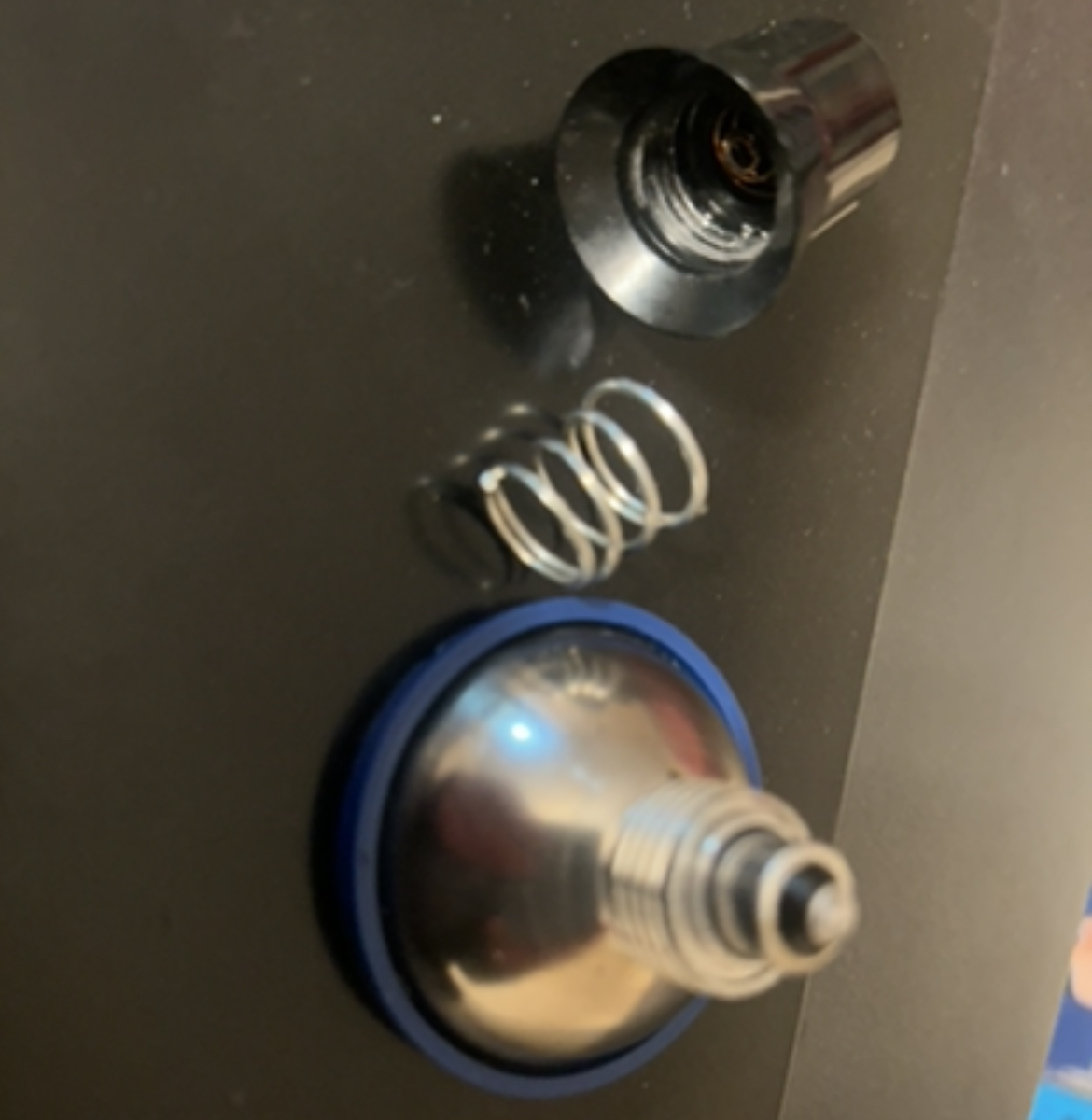

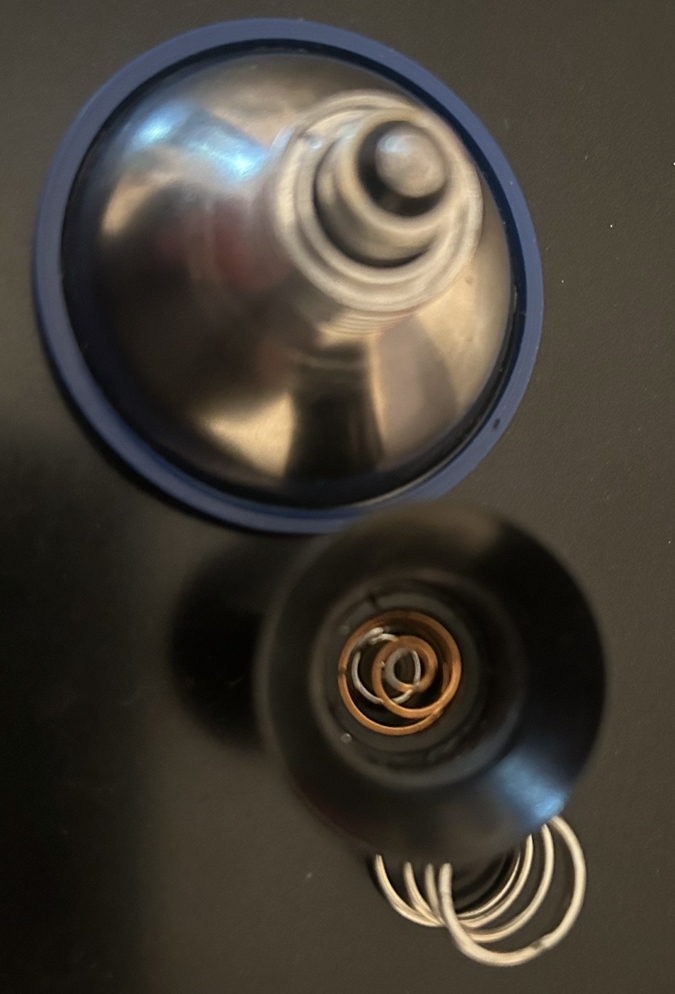

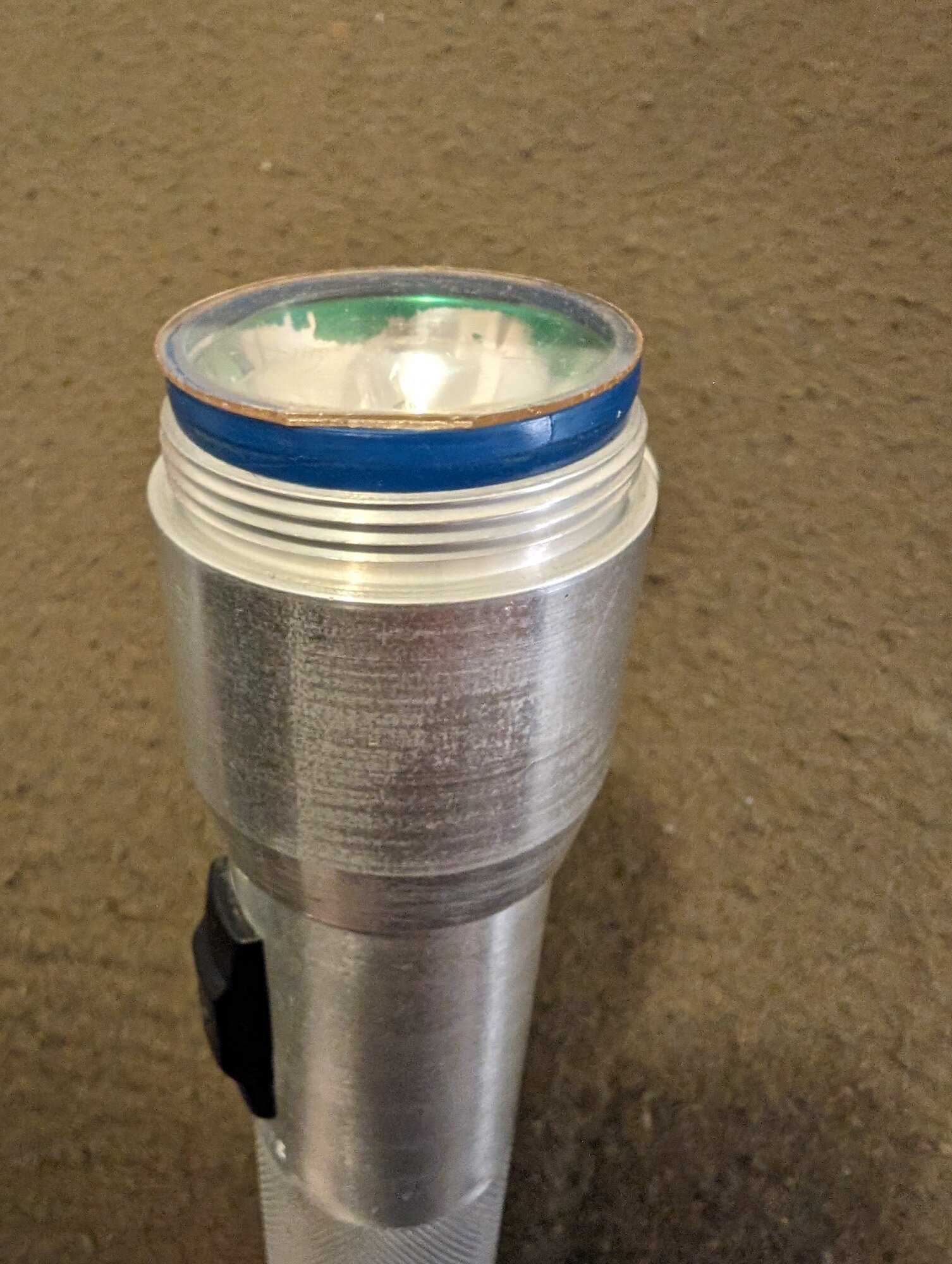

Huh, I think the bushing at the end of the bulb retaining spring has come off and gotten stuck in the socket. You need to gently pull/push the bulb out. That silver ring surrounding the bulb base should be on the end of the large spring.





Last edited:

letschat7

Flashlight Enthusiast
Joined
Dec 7, 2022
Messages
2,395
Location
West Virginia, North America

Attachments

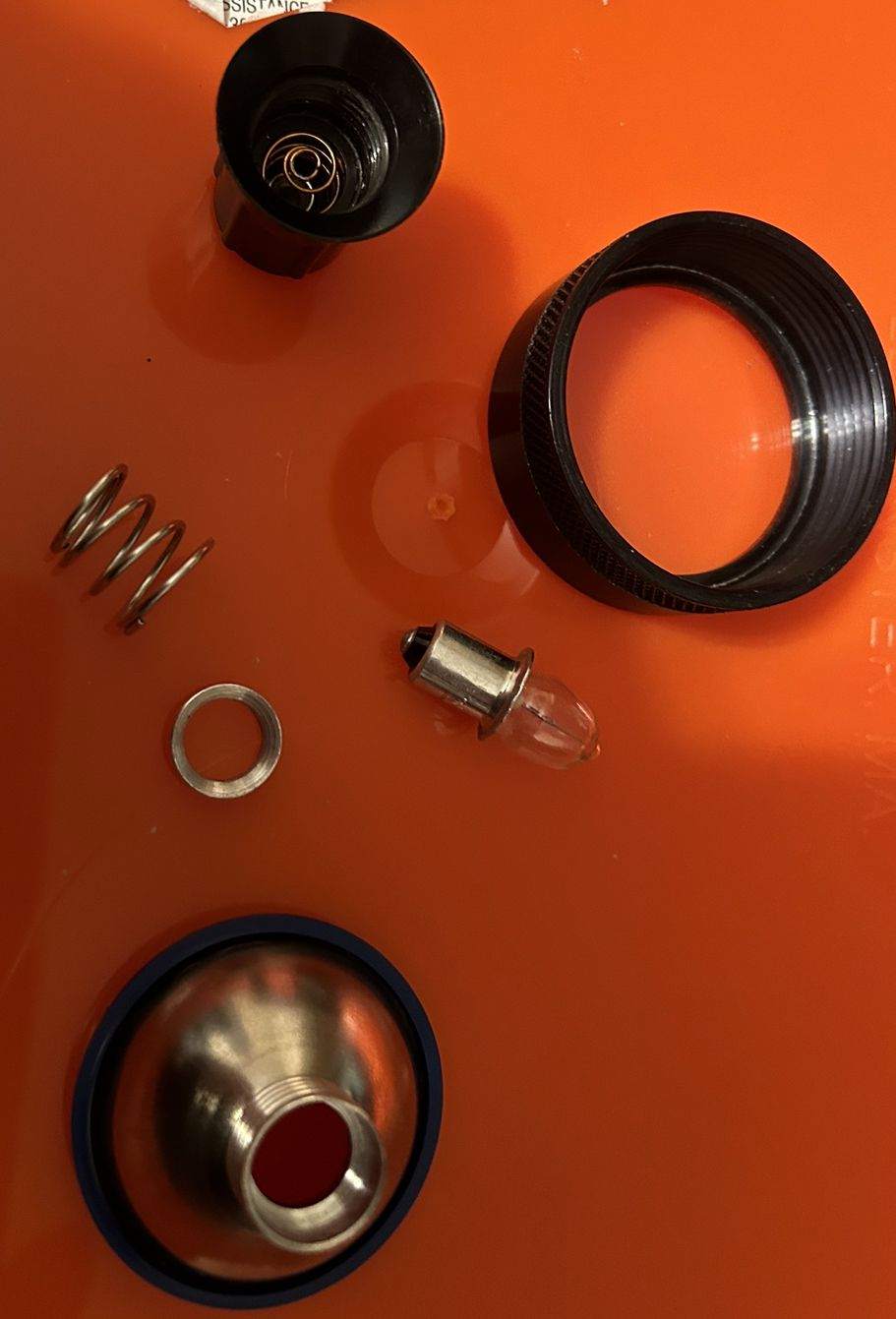

  • 4441B4BB-CD4E-4A5C-8AA3-43882030E83A.jpeg
    906.4 KB · Views: 17

ABTOMAT

Flashlight Enthusiast
Joined
Jan 9, 2004
Messages
2,913
Location
MA, USA

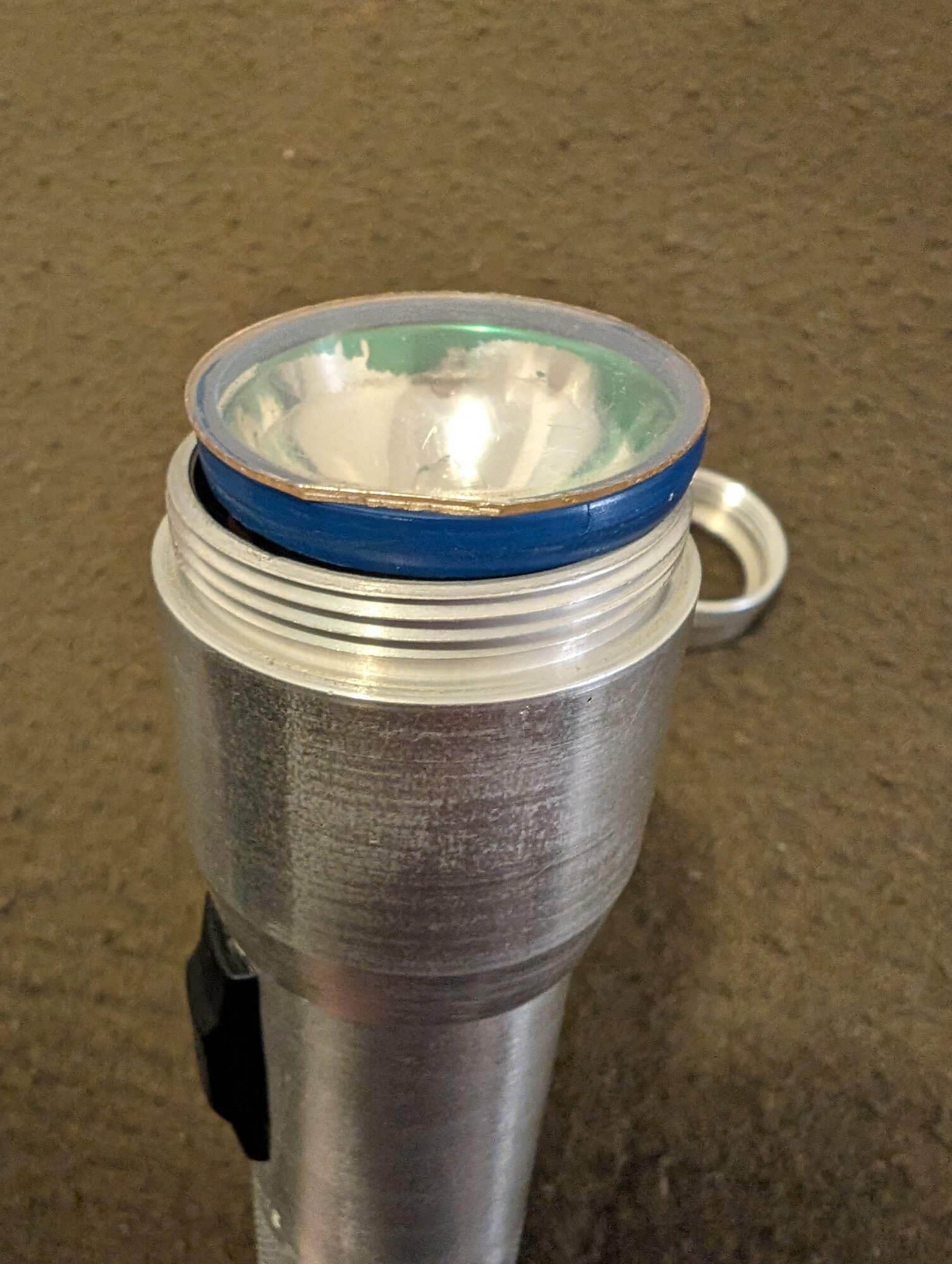

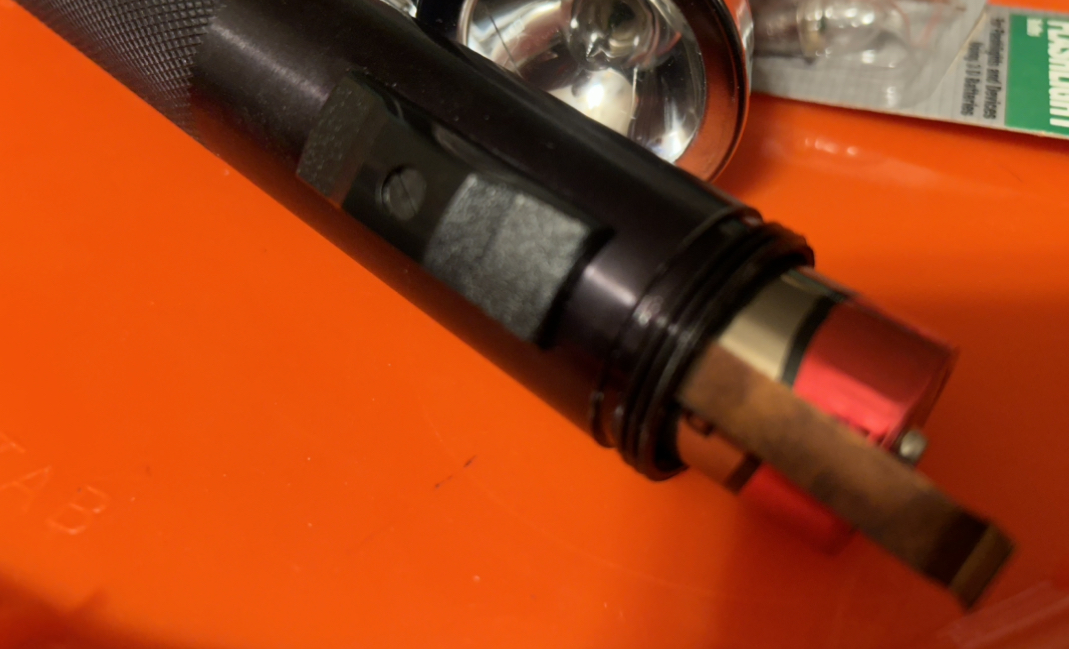

Post a pic of the light. If it's the black plastic sliding switch you may need to bend the flat negative contact down just slightly. One way to test the correct switch alignment: Take the bezel off so the reflector is loose resting on the head body. With the switch in the on position it should push the reflector sideways a little, but not in the off position.

If it's the metal 3-way switch, the negative contact always needs to gently be pressing on the reflector. The switches themselves rarely go out of whack unless someone's tinkered with it.
