4AA to 1D, 8AA to 2D, 12AA to 3D M*g

fivemega

Well-known member
CPF Supporter
Joined
Jan 28, 2003
Messages
5,152
Location
California
[SIZE=+3](AVAILABLE)[/SIZE]​

[SIZE=+1]Please allow 7 days to ship[/SIZE]​


[SIZE=+3]
ALL FOLLOWING ADAPTERS ARE
DESIGNED TO USE WITH QUAD OR
ALL THE WAY AROUND BORED M*G "D"​
[/SIZE]




[SIZE=+3]
Please read this post completly
before ordering​
[/SIZE]

Hi folks,

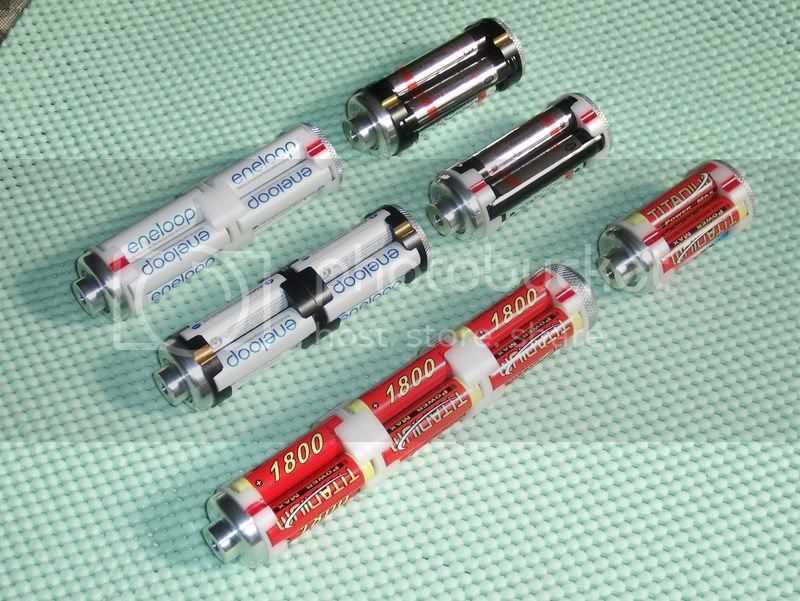

Now I have following battery holders ready to ship.
White serial 16AA to 4D adapters to power up to 19.2 volt bulb in 4D bored out M*g
White serial 12AA to 3D adapters to power up to 14.4 volt bulb in 3D bored out M*g
White serial 8AA to 2D adapters to power up an WA1164 in 2D bored out M*g
White serial 4AA to 1D adapters to power up a 4.8 Volt bulb or LED in 1D (or 4 IMR 14500, 14.8V) bored out M*g
White serial 4x14670 to 1.25D for multiple LED operation (Terralux) in 1.25D bored out M*g (14.8 volt application).
Black serial/parallel 12AA to 3D adapters (7.2 volt) to power up WA1111 or ROP in 3D bored out M*g (high capacity and long run application).
Black serial/parallel 8AA to 2D adapters (4.8 volt) to power up WA1183 or regulated LED in 2D bored out M*g (high capacity application).
Black serial/parallel 4x14670 for higher capacity 7.4 volt operation in bored out M*g.
Please follow Positive and Negative marks printed as P and N
Aloso allign red marks on upper and lower white plastic when loading and gold marks on black plastic then GENTLY tighten upper nut.
Remember, white plastic adapters are connected in all serial and black plastic adapters are connected in serial/parallel. So black 12AA is basically 2 groups of 6 serial then both groups connected in parallel.
These adapters can be used in either quad or all the way around bored out M*gs only.
[SIZE=+1]Inner diameter of M*g "D" body must be 35.1mm or at least size of tail side threads to fit. No guarantee to fit in unbored stone aged M*g.[/SIZE]
Please see 3AA to 1D, 6AA to 2D, 9AA to 3D and 12AA to 4D battery holders [SIZE=+3]here.[/SIZE]
All adapters come with female tail jack connector (installed) and I will include male jack too. [SIZE=+1]Batteries NOT included[/SIZE]
Remember, center pin of charging jack is POSITIVE
It is highly recommended to use this feature for recharging batteries by any smart battery pack charger like this for NiMH or this for lithium ion cells. However it is possible to remove batteries to recharge or replace.
Please do not use two of these adapters in same flashlight for higher voltage.
No warranty for bulbs. I do not sell bulbs for profit. The only reason I sell bulb here is for your convenience to get everything in same package and same time. If this is not acceptable, please get the bulbs elsewhere.

White 16AA to 4D (19.2 volt) $42 (AVAILABLE)
White 12AA to 3D (14.4 volt) $38 (NOT AVAILABLE)
White 8AA to 2D (9.6 volt) $37 (NOt AVAILABLE)
White 4AA to 1D (4.8 volt) $36 (AVAILABLE)
White 4x14670 to 1.25D (14.8 volt) $36 (AVAILABLE)
Black 12AA to 3D (7.2 volt) $38 (NOT AVAILABLE)
Black 8AA to 2D (4.8 volt) $37 AVAILABLE
Black 4x14670 to 1.25D (7.4 volt) $36 (AVAILABLE)
FM1909 $16 each (Custom made G4 Halogen 11.5 Volt, 5.5 Amp 2260 Lumens) (AVAILABLE with purchase of battery holder only)
Bi-pin WA1164 $9 each (to use with white 8AA) (NOT AVAILABLE)
Bi-pin WA1185 $6 each (to use with 9AA) (NOT AVAILABLE)
Bi-pin Philips 5761 $6 each (to use with white regulated 8AA) (AVAILABLE with purchase of battery holder only)
Pack of ROP (3854) Hi and Low $10 (to use with black 12AA) (NOT AVAILABLE with purchase of battery holder only)
Pack of ROP (3853) Hi and Low $10 (to use with black 12AA) (AVAILABLE with purchase of battery holder only)
FM Axial 7.4 volt, 3.3A $10 (to use with 7AA) (NOT AVAILABLE with purchase of battery holder only)
Dummy AA $8 each (AVAILABLE)
Boro (Hi-Temp) lens $7.50 each (AVAILABLE)
Mineral glass lens $3.00 each (NOTAVAILABLE with purchase of battery holder only)
5/64" Hex wrench $1.00 (AVAILABLE with purchase of battery holder)
[SIZE=+1]Sorry, no replacement parts available for warranty or for sale.[/SIZE]
$7 shipping to States for up to 2 adapters of any kind, then add $0.75 for each additional one.
$14 shipping to international destination for each adapter of any kind, then add $8 for each additional one. (No tracking available)
No additional shipping for bulbs, sockets and or reflectors if purchased with adapters.
Insurance $2.60 for each $100 value in States
Insurance $6.00 for each $100 value internationally
I am not responsible for loss or damage once I ship your package.
Please make all your purchase at once to save you some shipping.
Paypal: [email protected]
Please PM me for other type of payment.
For ducumentation purpose, it is [SIZE=+2]necessary[/SIZE] to post your CPF handle and detail of your order here and paypal note.
Without above information, I will never figure out what the payment is for and from who.
Example: Mr Gold :paypal: for:
8AA to 3D $37
One WA1164 $9
Shipping to States $6
------------------------
Please see:
3x17670 battery holders for $urefire M6 or tri bored 1.25D M*g here.
3AA to 1D, 6AA to 2D, 9AA to 3D and 12AA to 4D battery holders here.
2S/2P 18650 M*gs here.

------------------------
[SIZE=+2]Sorry, no replacement parts available for warranty or for sale.[/SIZE]

------------------------
[SIZE=+1]Please find link of my other products[/SIZE] [SIZE=+2]here[/SIZE][SIZE=+1] and click on each link you are interested on.[/SIZE]
------------------------
[SIZE=+3](A V A I L A B L E)[/SIZE]​

Last edited:

3rdrock

Well-known member
Joined
Mar 23, 2008
Messages
264
Location
South Florida
I assume you mean 4AA to 1D


2 dummy AA cells $8x2=$16
4AA to 1D $36 for first adapter.
Each additional 4AA adapter $34
Shipping $6

:paypal: $92

Last edited:

StarHalo

Well-known member
Joined
Dec 4, 2007
Messages
10,932
Location
California Republic
Good to see you back in the battery adapter game Fivemega! :twothumbs Any chance of a batch of three-cell adapters (1D/3AA, 2D/6AA, etc) anytime soon? *warming up Paypal button*


pertinax

Well-known member
Joined
Oct 27, 2005
Messages
219
Has there been a change in the design of the bottom so that the center rod won't strip out of the plastic if the cap is overtightened? You implied as much in another message-- just want to confirm.

Thanks.

Pertinax


jcvjcvjcvjcv

Well-known member
Joined
May 1, 2008
Messages
266
Location
The Netherlands
Correct. The circle around four AA batteries is bigger then the inner diameter of a Mag D tube. The Mag has to be bored out to fit the (4x)AA > (1x)D adapters


9x23

Well-known member
Joined
Jan 21, 2005
Messages
209
Location
NorCal
Hi Varooj,

What is the outside diameter of these serial AA adapters?

My FM 4AA to 1D measures 1.340" at the plastic round part where it meets the battery terminals (widest part without batteries), and with a Duracell AA coppertop inserted it measures 1.357" at the widest point, which is at the batteries.

9x23


fivemega

Well-known member
CPF Supporter
Joined
Jan 28, 2003
Messages
5,152
Location
California
how do you recharge 4S2P battery pack?

I have done that without any problem but you can remove batteries if you prefer so.
---
What is the outside diameter of these serial AA adapters?

Loaded battery holder will fit in 1.370" ID similar to this.
---
Has there been a change in the design of the bottom so that the center rod won't strip out of the plastic if the cap is overtightened?

These are all new design and center rod holding buttom part with hex nut.
Please do not show your power with OVERTIHTENING

---
Serial 4AA to 1D adapters to power up an WA1183 or drop in LED in 1D bored out M*g

so does this mean the stock D mag battery tube will not fit this?

[size=+4]Exactly[/size]
---
Any plans for a parallel 4x14670 holder?

Sorry, not enough demand for minimum required quantity.


pertinax

Well-known member
Joined
Oct 27, 2005
Messages
219
Please send:

Two 12AA to 3D adapters.

$38*2 = $76

Shipping is $6.

That's $82.

Pay Pal on the way.

Pertinax
